Q4K-R1 RF/IR DISTRIBUTION KIT
What do you get when you combine the industry's most cost-effective HD modulator (now with 4K loop out) with a patented whole-house video distribution module with IR over coax? A cracking deal is what it is! Just for resi-linx® trade members!
With this combo deal you can distribute Pay TV around the house and control it from 2 TVs using the industry's best (patented) IR control.
Bundle and save!

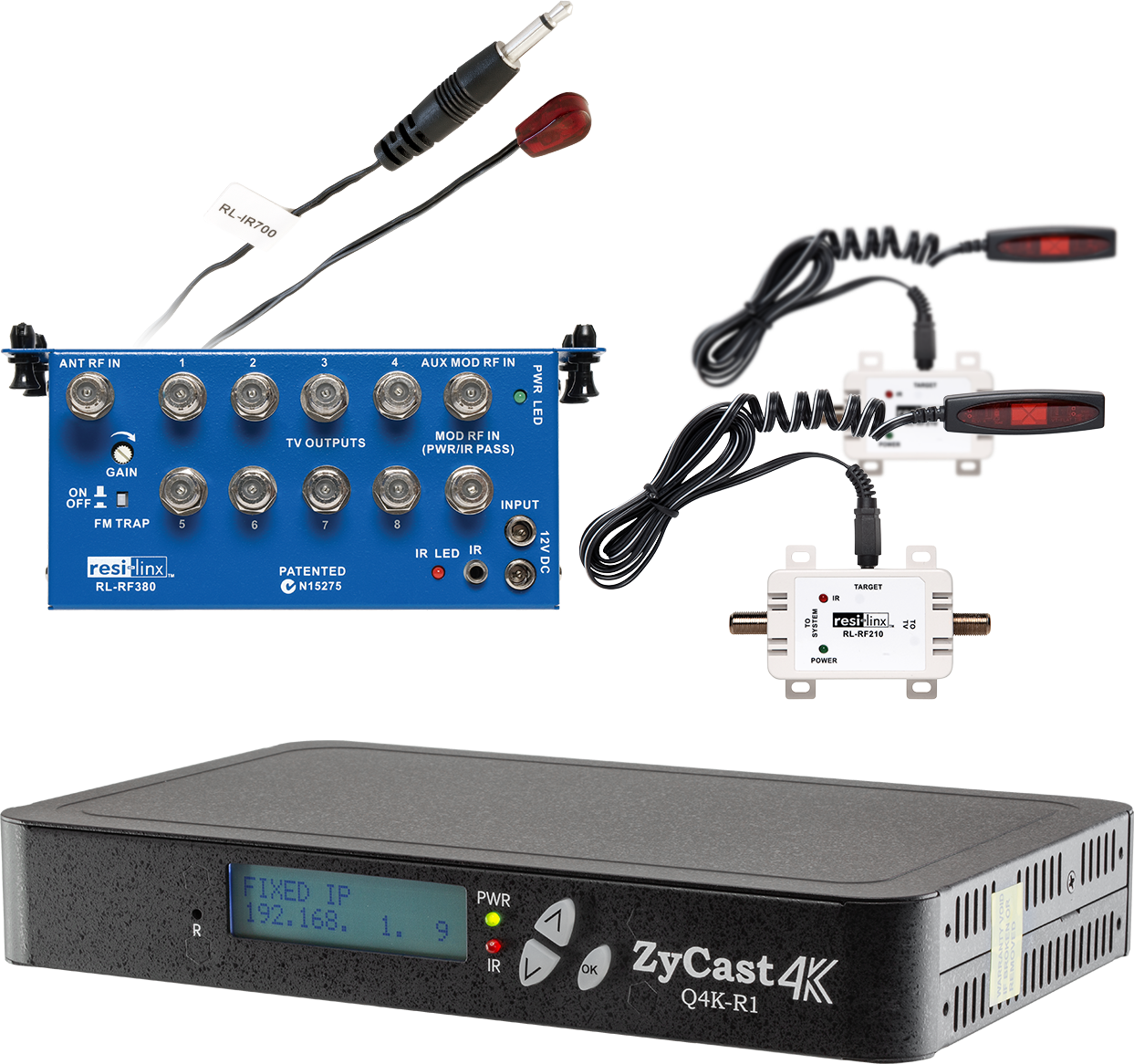

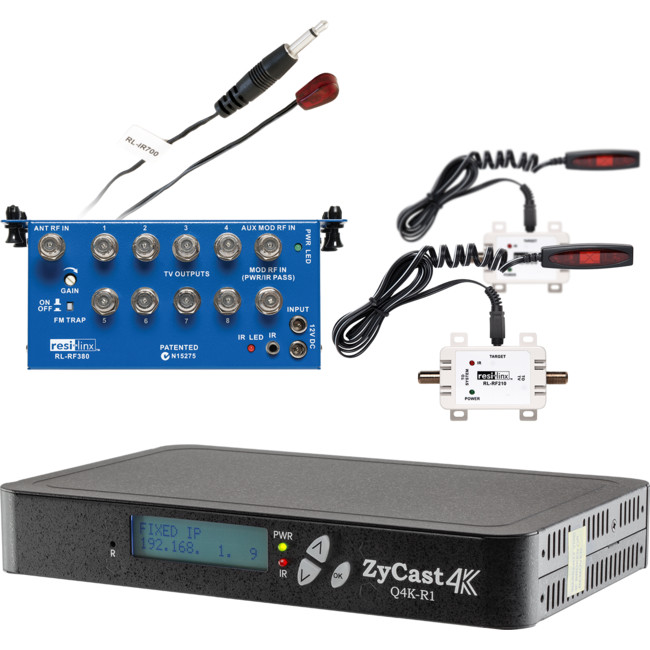

This kit includes the following:
- Q4K-R1 HD modulator with 4K loop-out
- RL-RF380 3-in-8-out combiner/splitter
- RL-RF210 IR flat target × 2
- RL-IR700 IR emitter
The first stable 4K modulator! Like the HD1603, the Q4K-R1 supports resi-linx® IR targets and emitters. resi-linx® are the market leader in both IR and modulation and the onlybrand to have Foxtel approved product in both fields.
This unit has full menu via LCD display, improved MER resulting in higher quality picture and is configurable for New Zealand. Q4K-R1 allows you to distribute any HD source around your home/business installation over coax cable and control with ease.
- The most cost effective fully featured 4K HD modulator on the market
- Single input digital modulator encoding HDI video and stereo audio signals to MPEG-4 only(H.264) DVB-T COFDM TV channels
- Compatible input resolutions 576i/720P/1080i & 1080P/UHD/4K for high definition picture quality (ensure TV tuner is MPEG4/H.264 and 4K HDCP2.2 compatible)
- HDMI input-with HDMI loop through for local connectivity
- IR return path- compatible with resi-linx® RL-RF380(videohub) and Rl-RF210(IR target)
- Superior error rate (MER 39)
- Full function front LCD display with menu driven configuration
- New Zealand channel plan selectable
- 2K/8K carriers
- Adjustment of settings available via WEB GUI
- Remote management with a PC
- Adjustable VHF/UHF output (6-69)
- 85dB launch with adjustable attenuation
- Compact design
- Silent operation – NO FAN NOISE!
3 Input / 8 Output RF Distribution Module
The RL-RF380's patented design is for whole-house video distribution with IR control. The splitters have reverse path IR control, that when combined with other products in the IR range, will allow you to control the AV inputs from other locations. The RL-RF380 must be remotely powered by anIR Modulator when using the IR Control.
- Active, low loss combiner and splitter with 3 inputs, 8 outputs
- Includes gain control for Free To Air input to eliminateproblems due to high/low signal strength.
- When combined with gain control on the modulator, allowscomplete balancing of signals
- FM trap On/Off switch to filter 88-108MHz signals from transferring through to output ports to eliminate FM interference to TV reception
The resi-linx® RL-RF210 is a sleek and unobtrusive "Plasma Friendly" Flat IR Target for use in the resi-linx® range of RF IR Video Distribution system.
The target receives IR commands from remote controls and sends the signal through the Video Hub and Emitters to control the AV device at a remote location.
- LED Recognition
- 5V operation
Single head blaster-type IR emitter that repeats IR remote control signals received at an IR target and sent back through the cable to the AV equipment. Compatible with RF IR pass back systems (5V) and HardWired IR systems (12V)
