RLRF380 3 IN 8 OUT COMBINER/AMPLIFIER

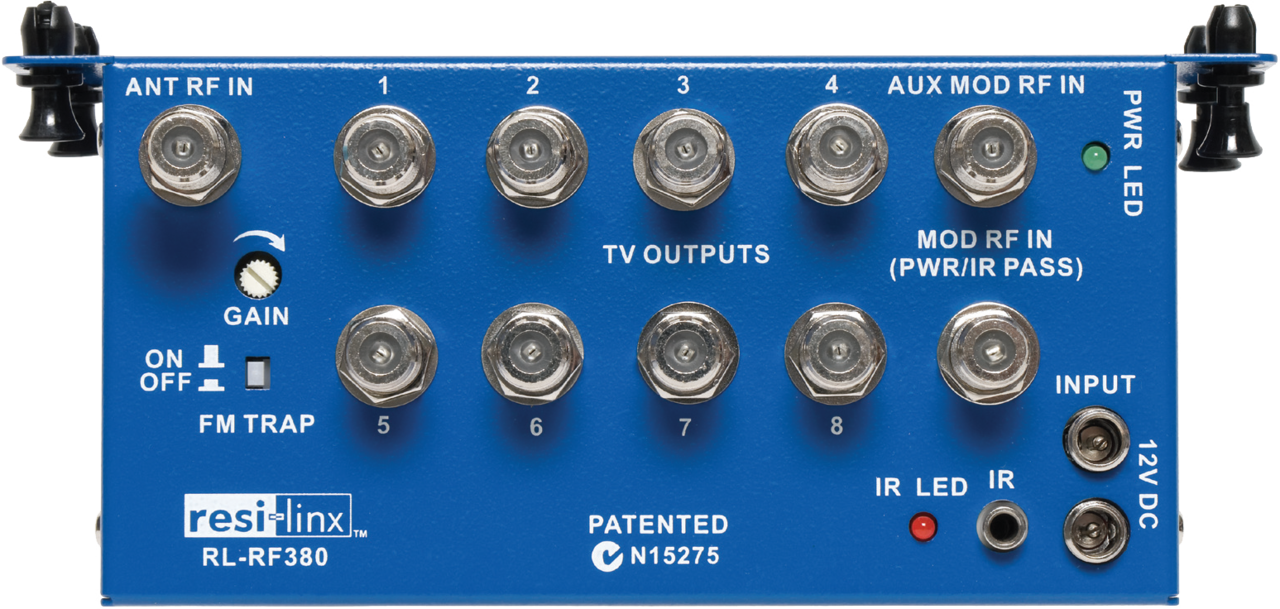

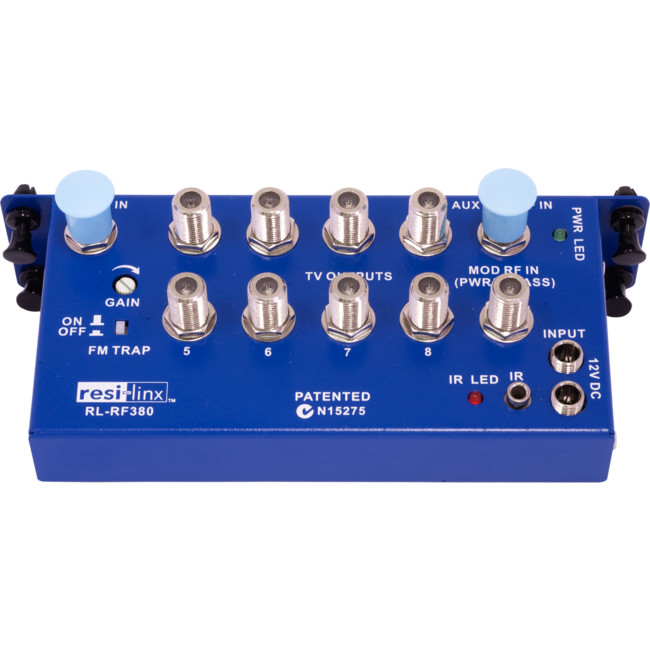

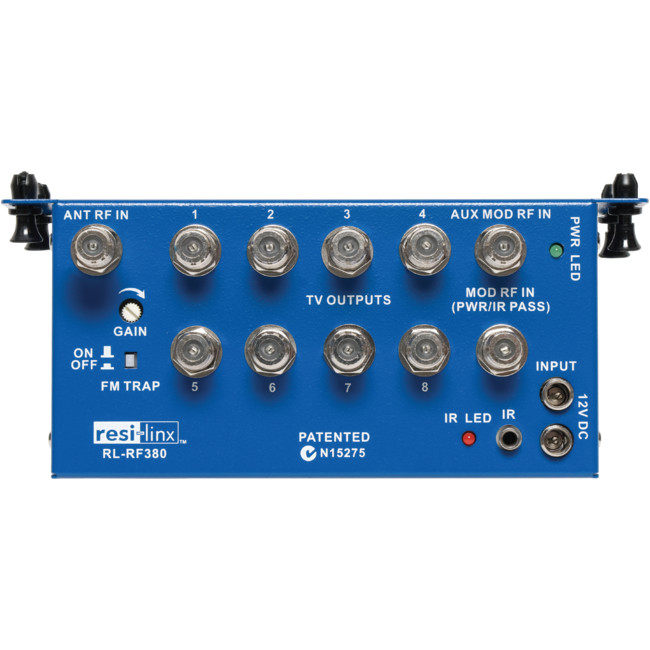

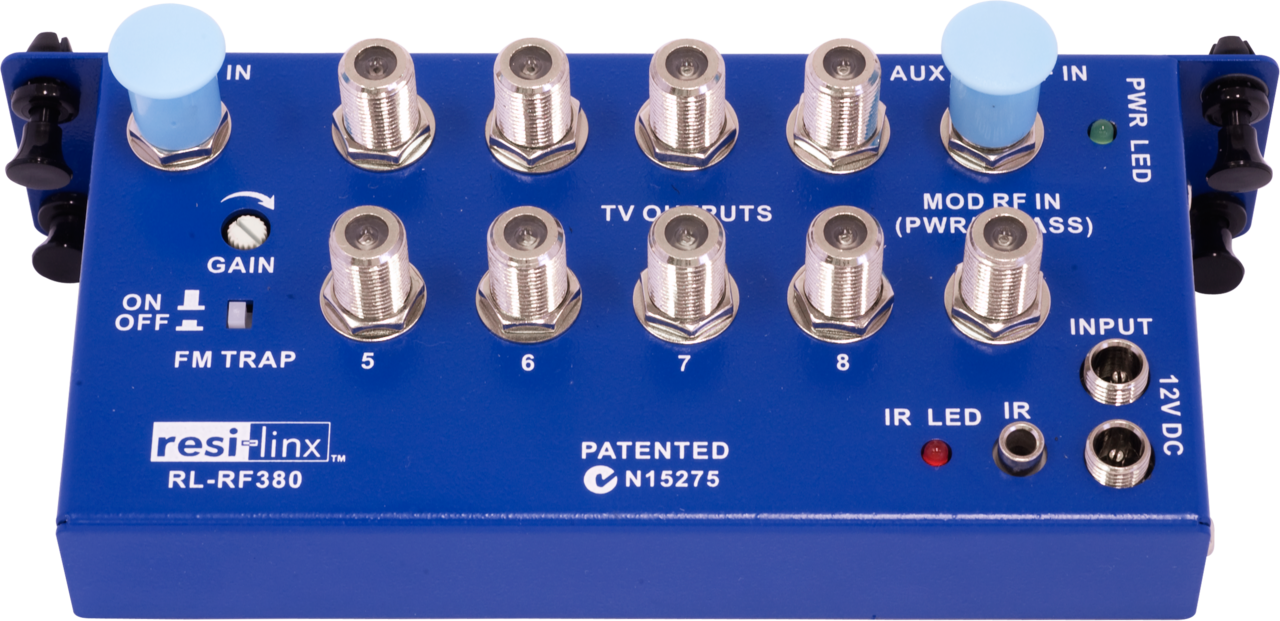

RL-RF380 3 Input / 8 Output RF Distribution Module

The RL-RF380's patented design is for whole-house video distribution with IR control. The splitters have reverse path IR control that, when combined with other products in the IR range, will allow you to control the AV inputs from other locations. The RL-RF380 must be remotely powered by an IR Modulator when using the IR Control.

• Inputs: 3
• Outputs: 8
• Output Run Distance: 60m
• IR Control: Yes
• Patented
• Must be remotely powered by an IR Modulator when using the IR Control


Features

• Active, low loss combiner and splitter with 3 inputs and 8 outputs
• Includes gain control for Free To Air input to eliminate problems due to high/low signal strength.
• When combined with gain control on modulator, allows complete balancing of signals
• FM trap ON/OFF switch to filter 88-108MHz signals from transferrring through to output ports to eliminate FM interference to TV reception

Specifications
