Q4KR1 SINGLE INPUT HD MODULATOR

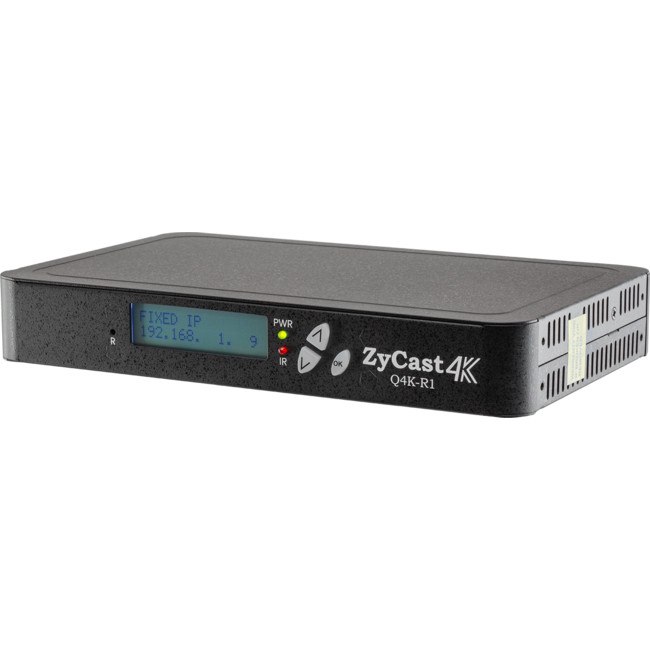

Q4K-R1 SINGLE INPUT HD MODULATOR

We have been testing the new Q4K-R1 for months now, while the Q4K-R1 is not the first 4K modulator on the market, it's the first stable 4K modulator. Like the HD1603, the Q4K-R1 supports Resi-linx IR targets and emitters. Resi-linx are the market leader in both IR and modulation and the only brand to have Foxtel approved product in both fields.

This unit has full menu via LCD display, improved MER resulting in higher quality picture and is configurable for New Zealand. Q4K-R1 allows you to distribute any HD source around your home/business installation over coax cable and control with ease.

• Most cost effective fully featured 4K HD modulator on the market
• Single input digital modulator encoding HD video and stereo audio signals to MPEG-4 only (H.264) DVB-T COFDM TV channels
• Compatible input resolutions 576i/720P/1080i & 1080P/UHD/4K for high definition picture quality (ensure TV tuner is MPEG4/H.264 and 4K HDCP2.2 compatible)

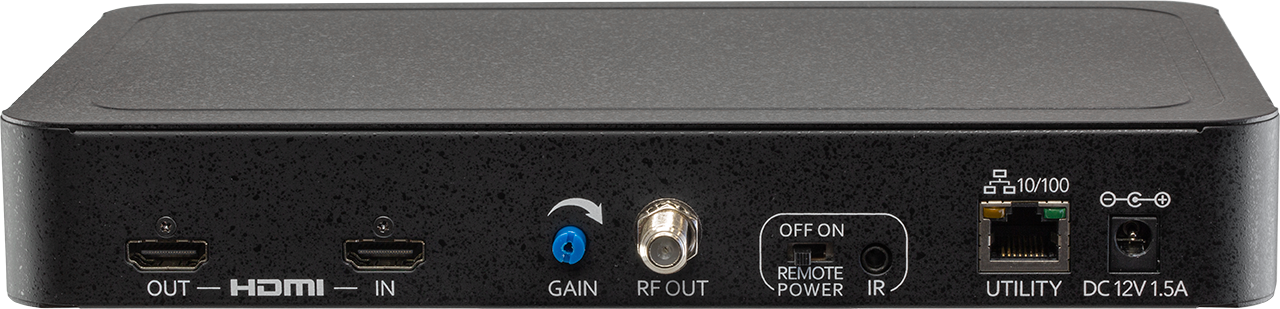

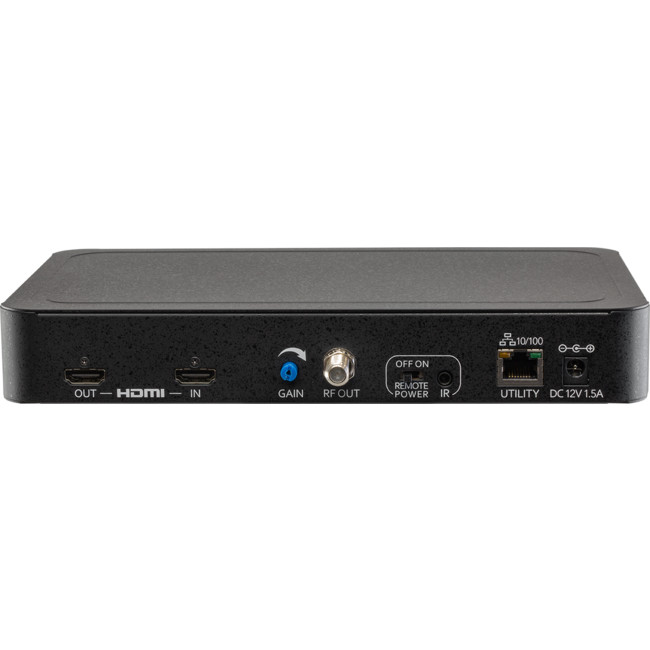

• HDMI input-with HDMI loop through for local connectivity

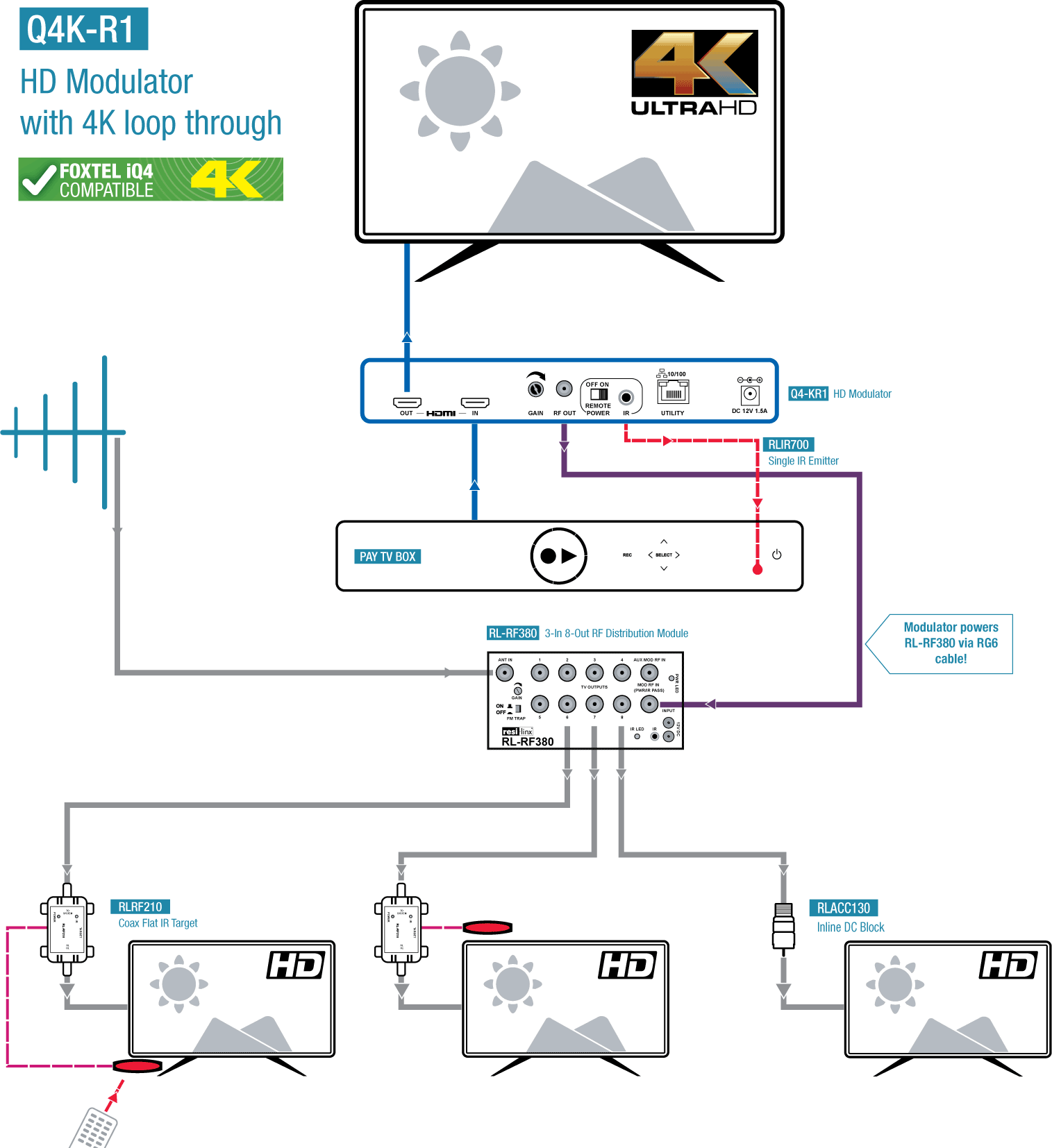

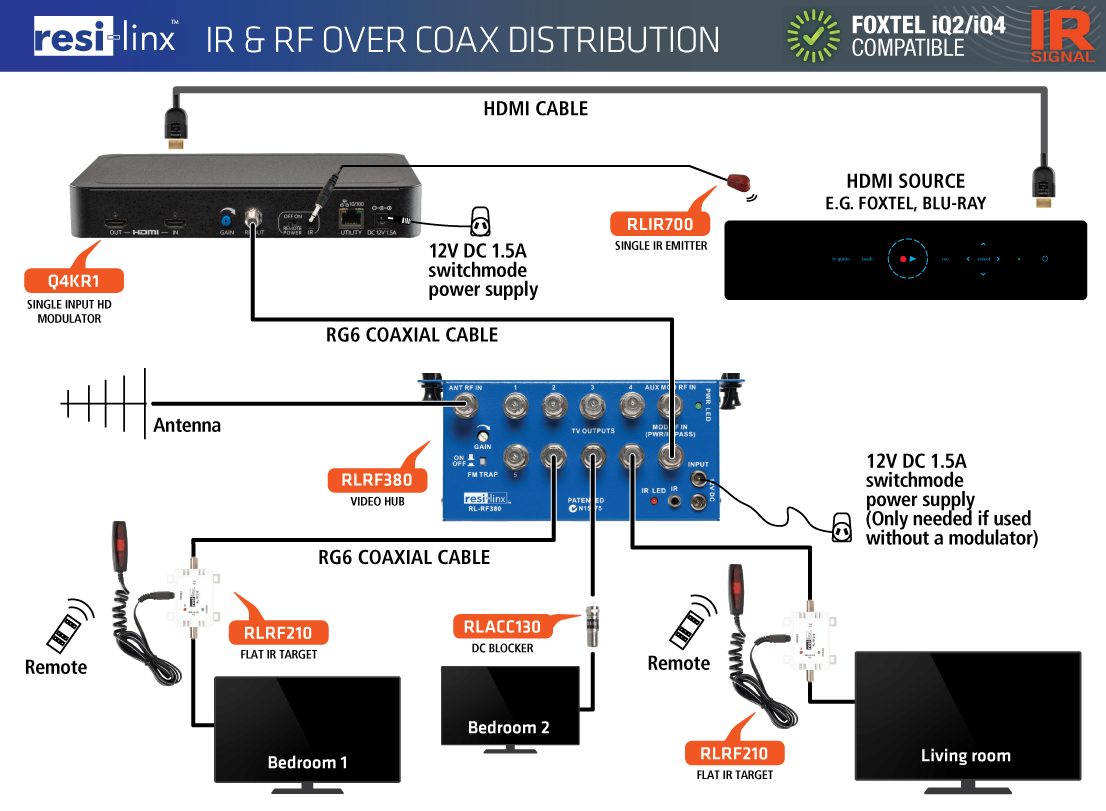

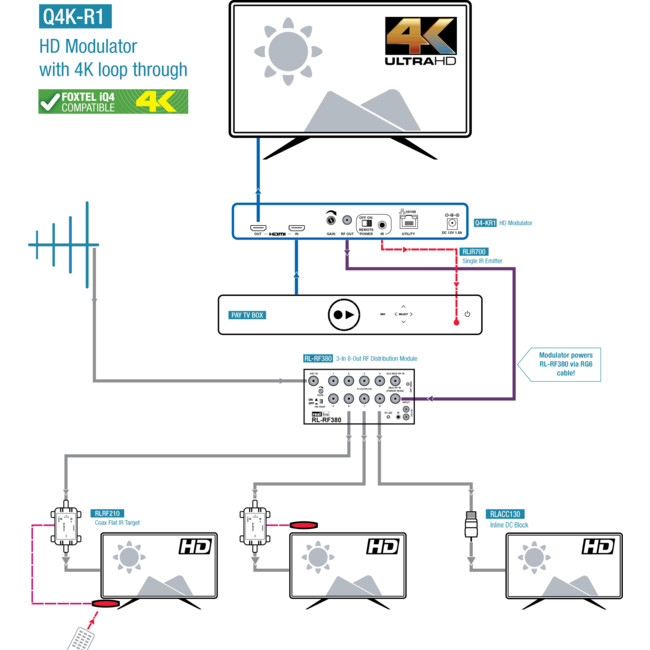

• IR return path- compatible with resi-linx RL-RF380 (video hub) and Rl-RF210 (IR target)
• Superior error rate (MER 39)

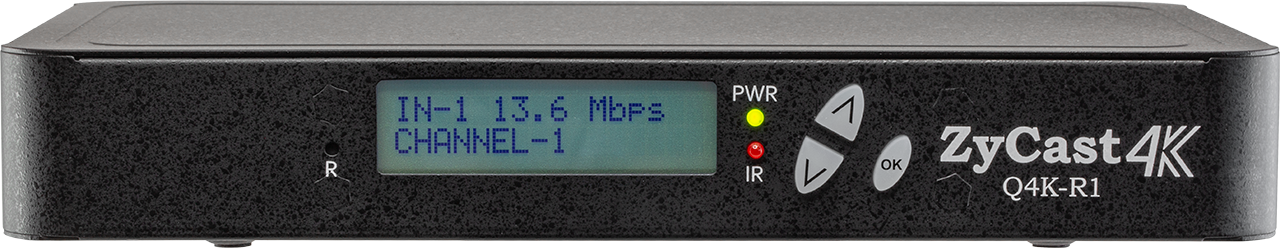

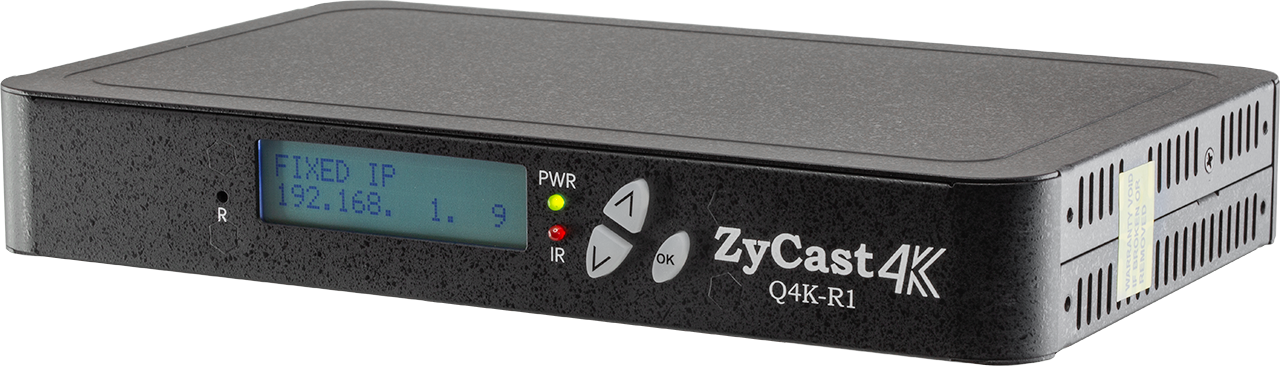

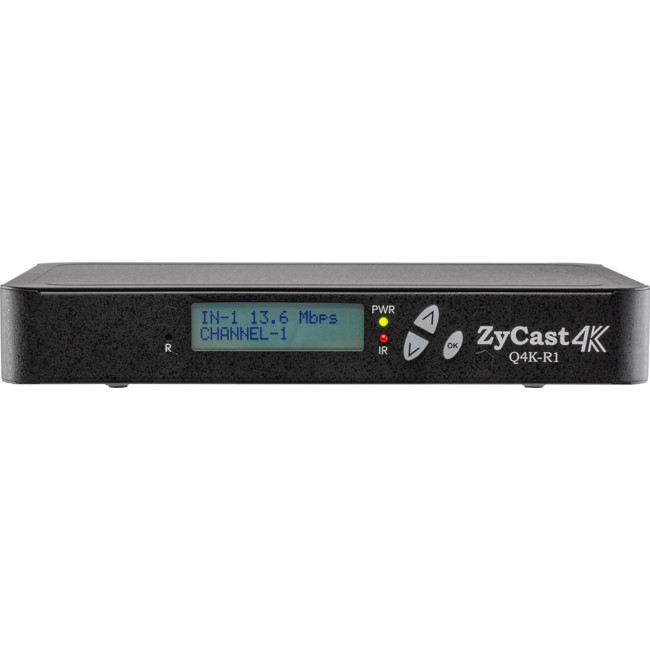

• Full function front LCD display with menu driven configuration
• New Zealand channel plan selectable
• 2K/8K carriers
• Adjustment of settings available via WEB GUI
• Remote management with a PC
• Adjustable VHF/UHF output (6-69)
• 85dB launch with adjustable attenuation
• Compact design
• Silent operation – NO FAN NOISE!

Specifications

FAQ

I've connected the modulator to the system and lost my free to air (FTA) TV reception. What should I do?

The difference in FTA signal and the Modulator output can have a detrimental effect on your FTA reception. You canattenuate the signal using the blue and white dial at the back of the modulator. In rare cases, this may not fully fixthe issue. In this case, we can send you (free of charge) anattenuator that screws on to the RF output of the modulator.If you would like to know more, feel free to reach out.

I'm only getting 720p on my modulated signal

The Q4K-R1 was designed primarily for use with Foxtel IQ4 boxes. Because of the non-industry standard Foxtel has decided to use on their 4K channels, the Q4K-R1 defaults to 720p output on its modulated signal for better stability when modulating Foxtel 4K channels. If this is not a concern, or you are not using a Foxtel IQ4 as your source, then you can easily change the default output to 1080p – in the modulator resolution options simply set resolution to "Same as input". Remember, the above only applies to the modulated signal. The HDMI loop-out retains the original Foxtel signal.

I've lost audio through the HDMI loop-through port, how do I fix it?

The most common reason is due to "Automatic" resolution or output settings on your HDMI input device (i.e. Foxtel, AV receiver, etc.). Go into the display outputor resolution settings menu on your device, and choose a manual resolution (720p, 1080p, 4K, etc.). You may also wantto change the audio output on your device to PCM or 2.0ch PCM too.
