IPA1PA12 IP AMPLIFIER

Code: 01488185

EACH
Special
Buy-In
TRADE ALERT!
$1999 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

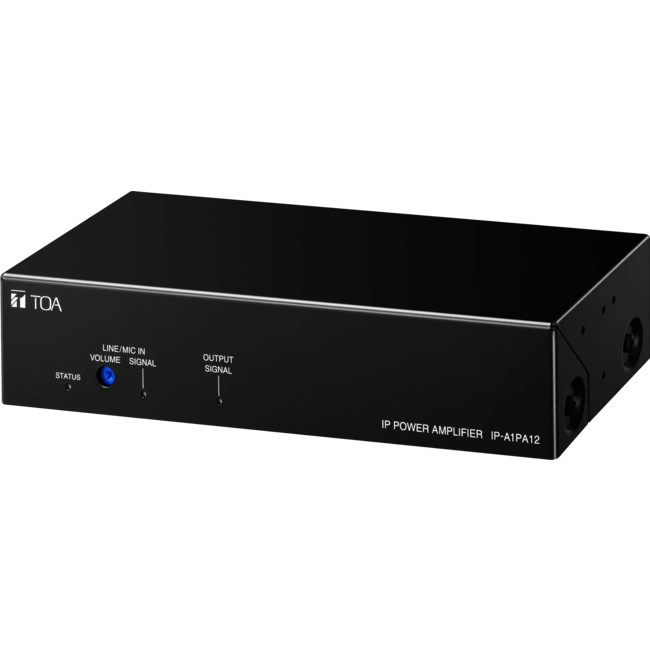

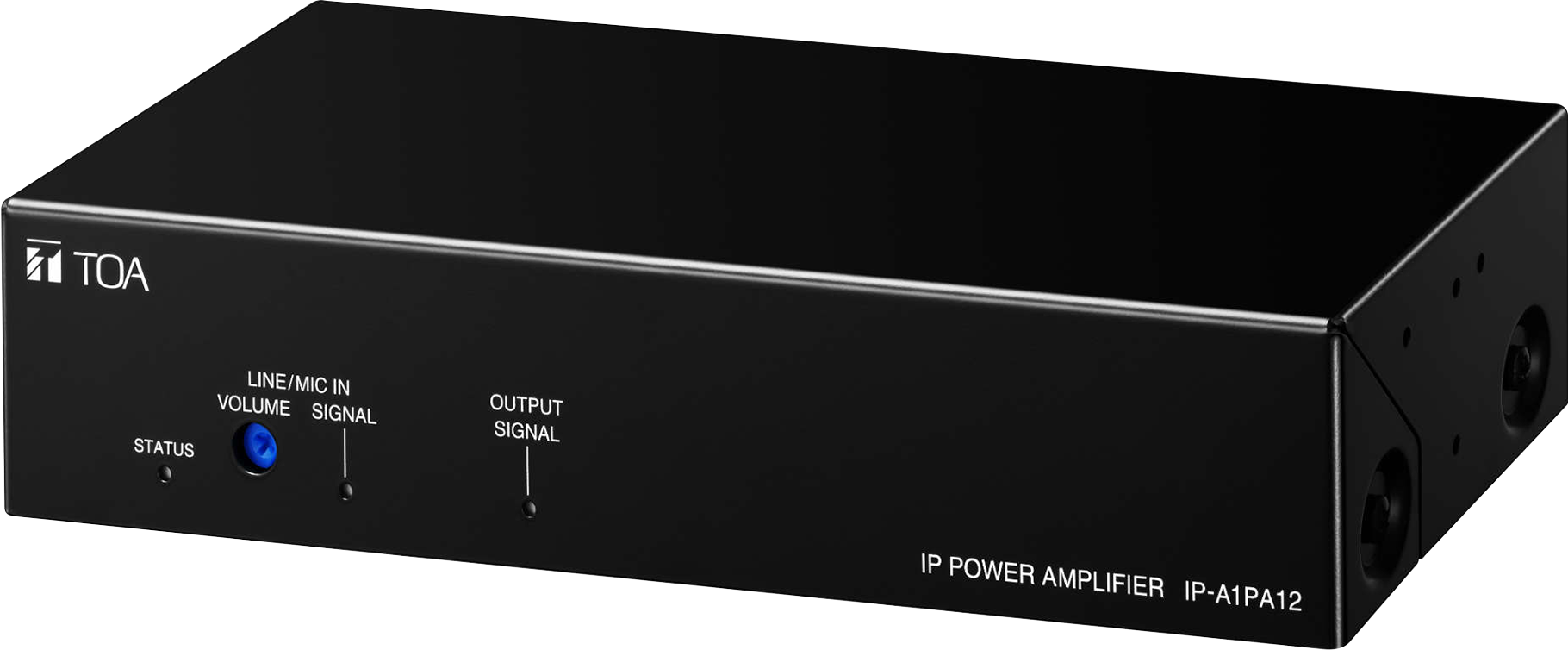

Toa IP-A1PA12 IP Power Amplifier

Combine the Strengths of the IP and the Analogue Audio World
Plug & Receive: Based on open standards, the IP-A1PA12 IP power amplifier plugs right into standard IP networks and can be easily integrated into your video management system (VMS) or SIP-based communication system. A single standard network cable provides both connectivity and power.
The IP-A1PA12 IP power amplifier can integrate analogue receiving devices into your network as e.g., conventional high impedance speakers or local PA systems. A wide variety of high impedance speakers can therefore be turned into IP speakers, multiple at the same time using a single IP-A1PA12. Furthermore, PA or BGM systems without SIP or ONVIF* interface can now be integrated into your network solutions.

Flexible Group Paging: The IP power amplifier can also be addressed via multicast, enabling audio paging into groups or larger zones of IP audio devices simultaneously.


Application Examples:
Seminar rooms with a requirement for multiple loudspeakers can be easily integrated into VMS or SIP telephone systems with higher cost-efficiency compared to setups consisting entirely of IP speakers. Retail chains with existing local PA/BGM systems can be integrated into IP solutions providing network control and centralized management opportunities.

  • Receive SIP audio, ONVIF* audio and multicast (up to 20 addresses)
  • API for HTTP command reception
  • Local broadcast using internal audio files or local audio source
  • Different playback programs (repeat, duration, weekly timer)
  • 12 W built-in amplifier

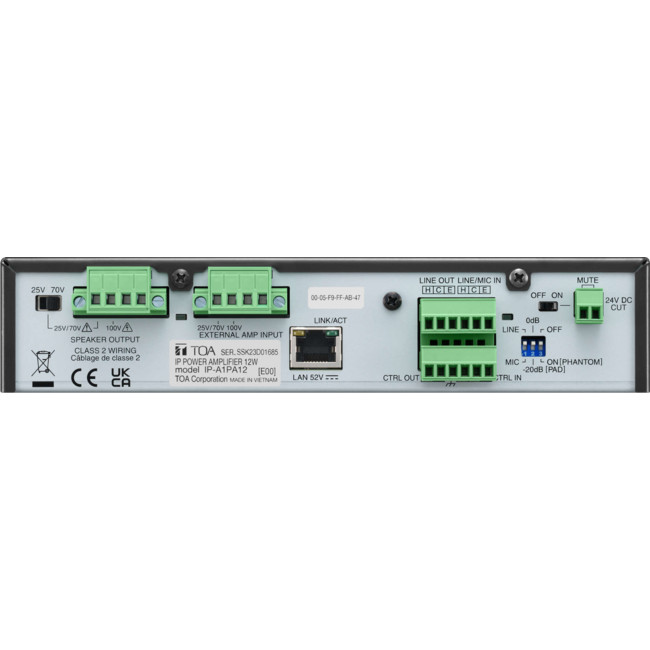

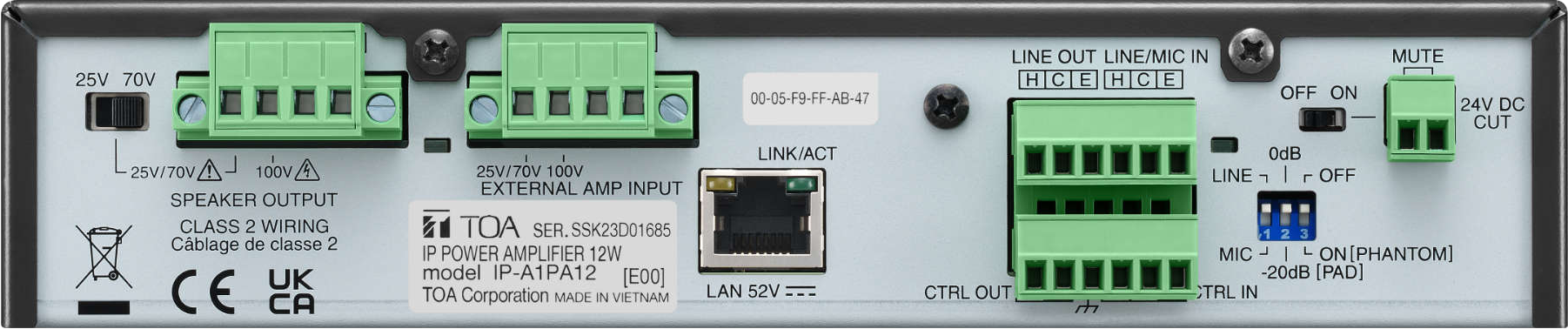

  • 1 speaker output (100?/?70/25 V), 1 line audio output
  • 1 external amplifier input (100/70/25 V)
  • 1 audio input (line/mic and phantom power selectable)
  • 2 control inputs, 1 mute control input and 1 control output
  • PoE ?-powered

*ONVIF is a registered trademark of ONVIF Inc.


Application examples for this product:
  • Video Management Systems
  • SIP Systems
  • Office Buildings
  • Conference Rooms
  • Educational Facilities
  • Hospitals / Health Care

Specifications


IP-A1PA12
Power / current consumption

25 W (rated output)

Frequency response

100 Hz - 20 kHz

Rated output

12 W

Network I/F

1x 100BASE-TX (RJ45)

Network protocol

TCP/IP, UDP, HTTP, RTP, RTSP, RTCP, ARP, ICMP, IGMPv3, NTP, SIP (RFC3261)

Audio input

1x line/mic (balanced, phantom power, terminal block)
1x 100 V (terminal block)

Audio output

1x line (balanced, terminal block)

Speaker output

1x 100 V (terminal block)

Control input

2x no-voltage make contact (terminal block)
1x mute control (24 V, terminal block)

Control output

1x open collector (terminal block)

Operating temperature

-30 °C to 55 °C

Finish

Steel, black

Dimensions

210 x 44 x 81.5 mm (W x H x D)

Weight

940 g

Power source

PoE
