Features

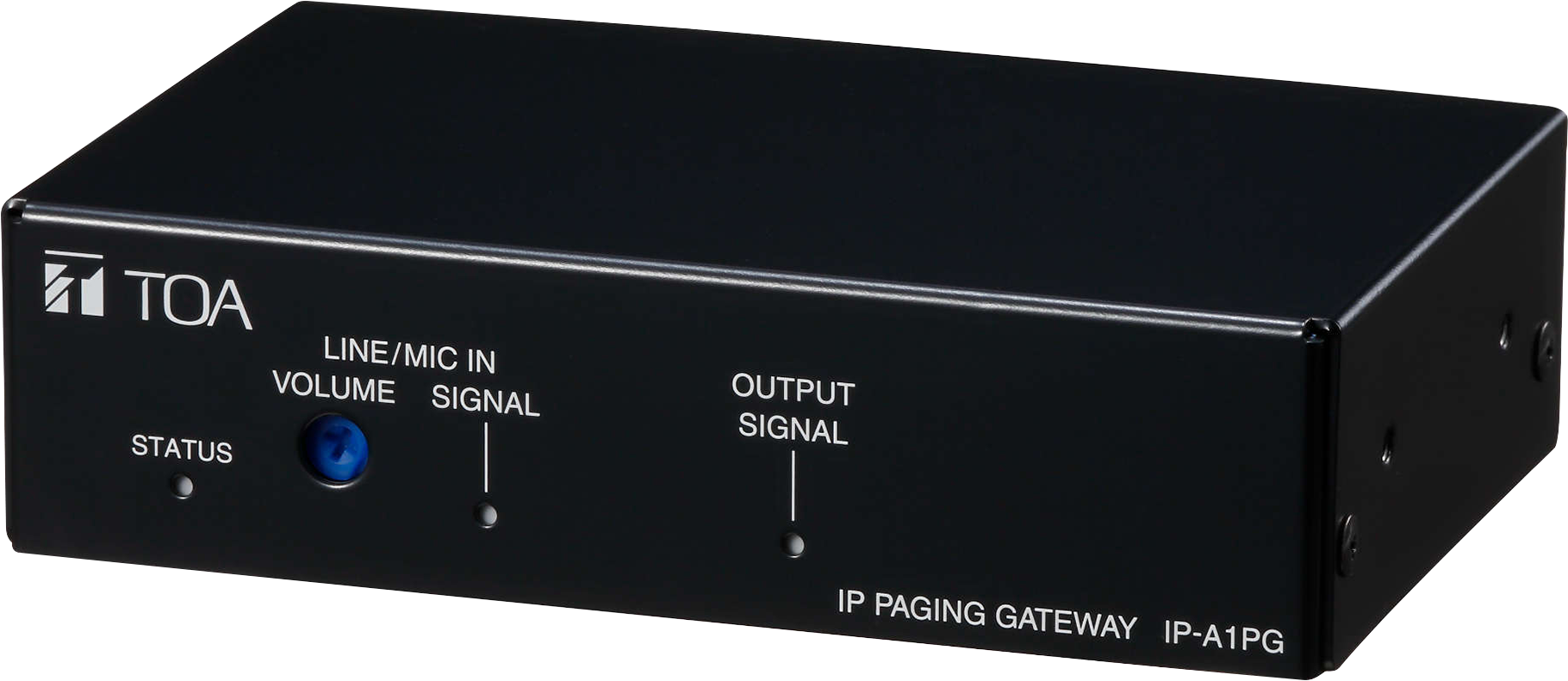

TOA IP-A1PG IP Paging Gateway

Make your IP System ready for Multicast Audio
Plug & Transmit: Based on open standards, the IP-A1PG Paging Gateway plugs right into standard IP networks and can be easily integrated into your video management system (VMS) or SIP-based communication system. A single standard network cable provides both power and connectivity with your network.
Flexible Group Paging: The IP-A1PG IP Paging Gateway converts SIP/ONVIF* calls into multicast streams for delivering the group paging function also to systems that are not multicast-ready.

Furthermore, it provides a multicast-ready audio input and the possibility to send sets of HTTP commands into the network, triggered by the API or control inputs. Connect an analogue audio source as audio players for BGM or microphones and distribute this audio to various IP devices in the network simultaneously.

Easy-to-use scheduler: By accessing the web interface, endusers can create flexible time schedules according to their personal requirements. The intuitive layout and quick control leave nothing to be desired.

Application Examples:

Office buildings with a video management system and the need to perform paging into a customized combination of rooms/zones: The IP-A1PG converts the audio calls of the VMS into multicast to address groups of loudspeakers in single rooms, entire floors or the entire building.

Convert SIP audio, ONVIF* audio, internal audio files or local audio source into multicast streaming (up to 20 addresses)
System mute function to mute all broadcasts of IP-A1 series devices within the same network
1 local audio input (LINE/MIC and phantom power selectable)
API (HTTP commands)
Transmission of up to 10 HTTP command sets (consisting of up to 20 commands each)
Audio file storage (20 files, total 80 MB, WAV/MP3)
5 control inputs and 1 control output
PoE-powered

*ONVIF is a registered trademark of ONVIF Inc.

Ideal for

Video Management Systems
SIP Systems
Supermarkets
Malls
Retail Stores
Shopping centers
Educational facilities

Specifications

IP-A1PG
Power / current consumption	2.5 W
Network I/F	1x 100BASE-TX (RJ45)
Network protocol	TCP/IP, UDP, HTTP, RTP, RTSP, RTCP, ARP, ICMP, IGMPv3, NTP, SIP (RFC3261)
Audio input	1x line/mic (balanced, phantom power, terminal block)
Audio output	1x monitor (balanced, RCA pin jack)
Control input	4x no-voltage make contact (terminal block) 1x mute control (24 V, terminal block)
Control output	1x open collector (terminal block)
Operating temperature	0 °C to 40 °C
Finish	Steel plate, black
Dimensions	126 x 33 x 80 mm (W x H x D)
Weight	0.39 kg
Power source	PoE (IEEE802.3af Class 3)
Finish.	Steel plate, black, surface-treated, paint Steel plate, black, surface-treated
Accessory (included)	Removable terminal plug (6 pins, preinstalled on the unit) x 2, Removable terminal plug (2 pins, preinstalled on the unit) x 1, Rubber feet x 4, Mounting screw (M3x6) x 4
