C66CS CONTRACTOR 6X6 HDBASET CSC MATRIX

4K 60Hz 4 4 4 - 40M

Code: 64510256

EACH
Special
Buy-In
TRADE ALERT!
$3899 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

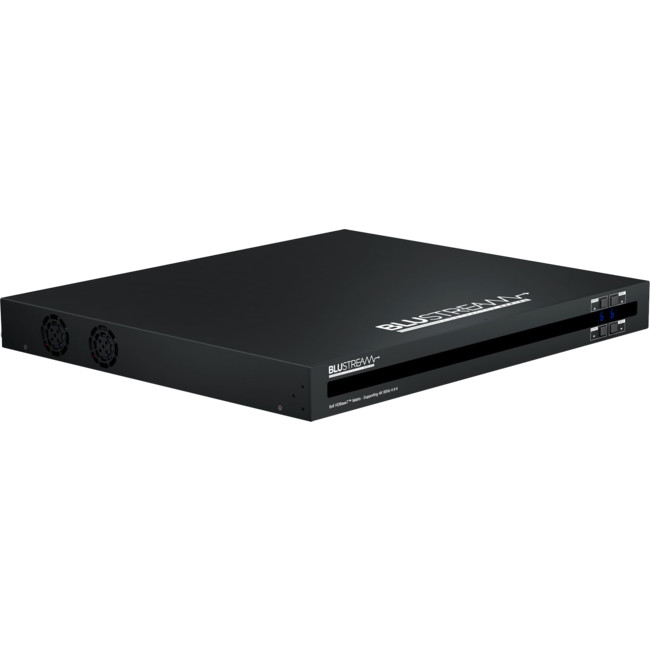

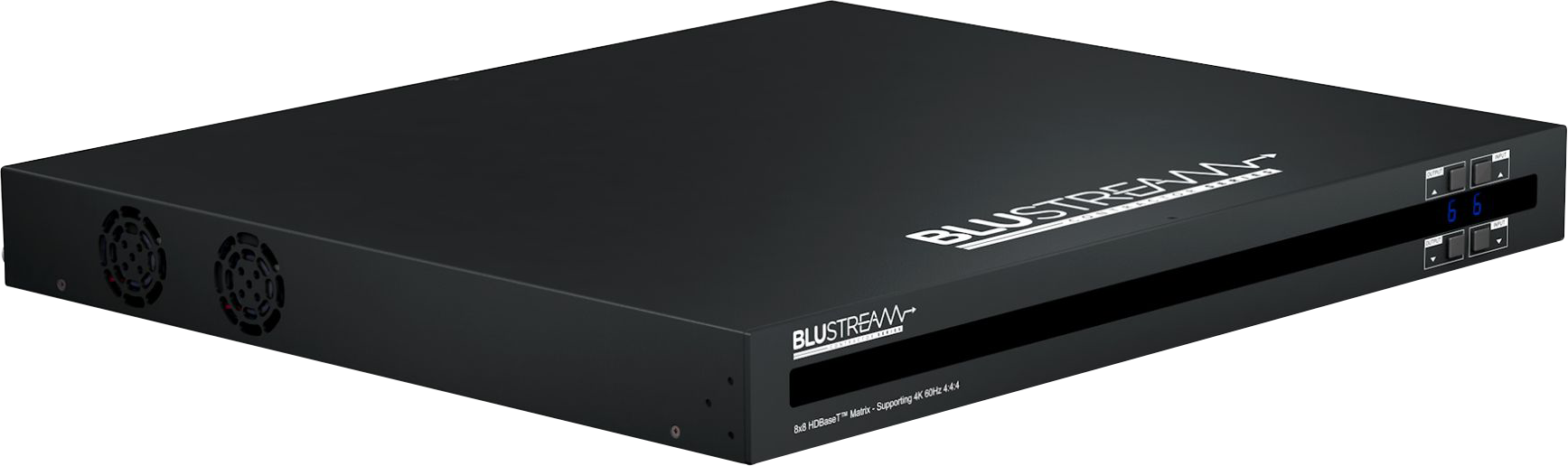

Blustream C66CS 70m Contractor 6×6 HDBaseT™ CSC Matrix




CSC EDID Management HDCP 2.2 HDMI2.0 WEB GUI

Our Contractor 6×6 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market.

The C66CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR and PoC up to lengths of 40m over a single CAT cable (1080p to 70m).

The Matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ outputs and a web browser interface module for control and configuration of the matrix.

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable.
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*.
  • Features 6 × HDMI inputs which can be independently routed to 6 × HDBaseT™ outputs.
  • Output 1 features simultaneous HDMI and HDBaseT™ output.
  • Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz.
  • 4:4:4 ideo content while still showing maximum original 4K UHD resolution on remaining video outputs.
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m.
  • Extends HDMI 1080p video up to 70m.
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K.
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission.
  • Web interface module for control and configuration of matrix.
  • Supports bi-directional IR on all HDBaseT™ outputs.
  • Control via front panel, IR, RS-232 and TCP/IP.
  • Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers (RX70CS recommended).
  • Supplied with Blustream IR receivers and emitters.
  • 3rd party drivers available for major control brands.
  • 1U Design for 19″ rack mount integration – mounting kit included.
  • Advanced EDID management.
  • HDCP 2.2 compliant.
  • Recommended receiver: RX70CS (where 18Gbps CSC support is required).

*For 18Gbps CSC support use RX70CS receivers

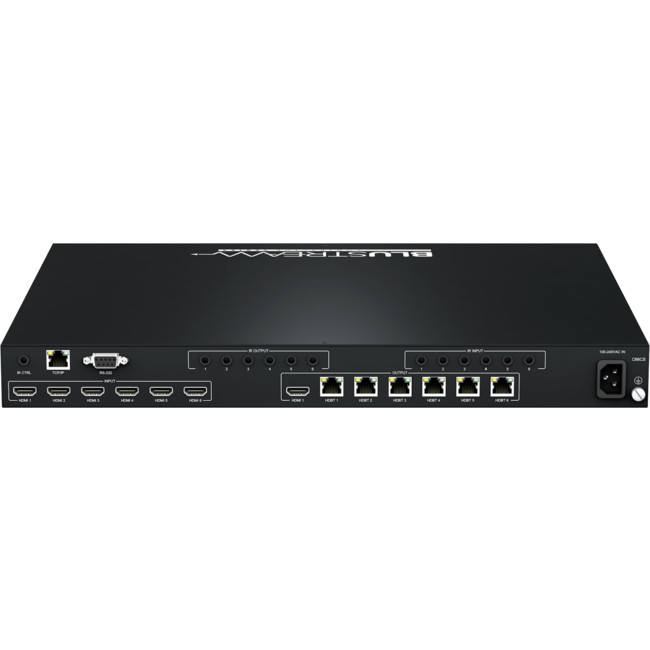

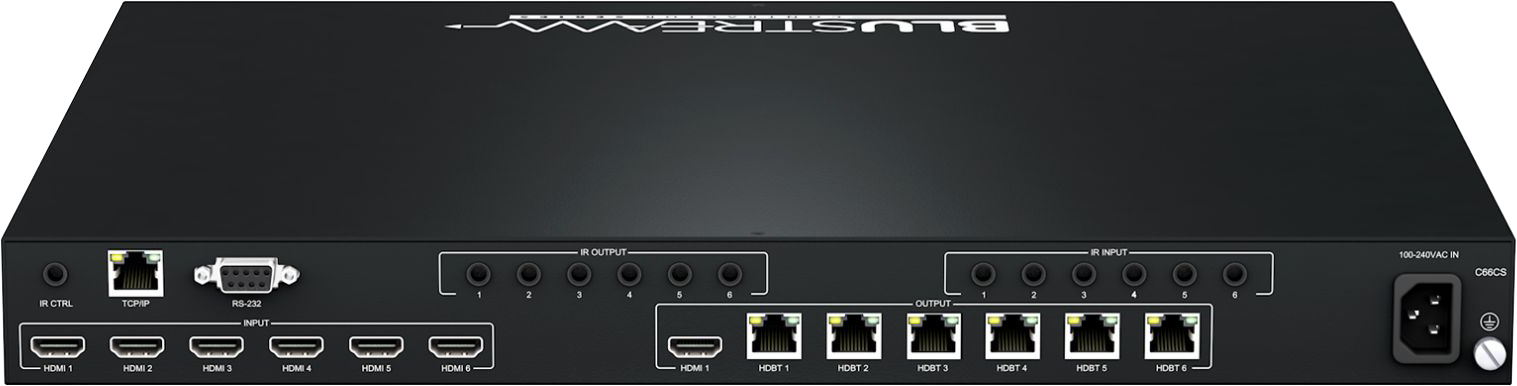

Specifications


Video Input Connectors 6 × HDMI Type A, 19-pin, female
Video Output Connectors 1 × HDMI Type A, 19-pin, female, 6 × HDBaseT™ RJ45 connector
RS-232 Serial Port 1 × DB9 Serial connector
TCP/IP Control 1 × RJ45, female
IR Input Ports 7 × 3.5mm stereo jack
IR Output Ports 6 × 3.5mm mono jack
Rack Mountable 1U rack height, rack ears included
Case Dimensions (without feet & connections) (W×D×H) 437mm × 377mm × 44mm
Case Dimensions (with feet & connections) (W×D×H) 437mm × 384mm × 53mm
Shipping Weight 6.25kg
Operating Temperature −5°C to +55°C (32°F to 104°F)
Storage Temperature −25°C to +70°C (−4°F to 140°F)
Power Supply Internal 100-240V AC
Box Contents
  • 1 × C66CS
  • 1 × Rack Mounting Kit
  • 1 × Remote Control
  • 6 × IR Emitters
  • 7 × IR Receivers
  • 1 × RS-232 Control Cable
  • 1 × IR Control Cable – 3.5mm-3.5mm Cable
  • 1 × Quick Reference Guide
  • Power Cable(s)
