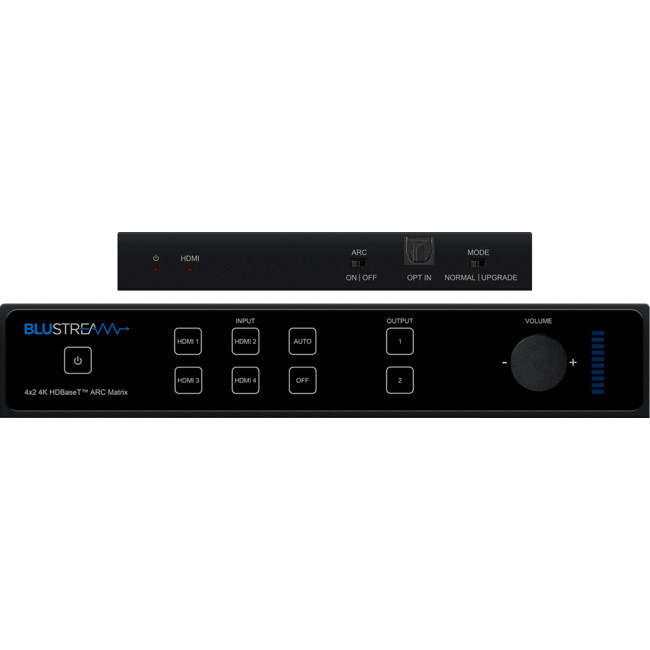

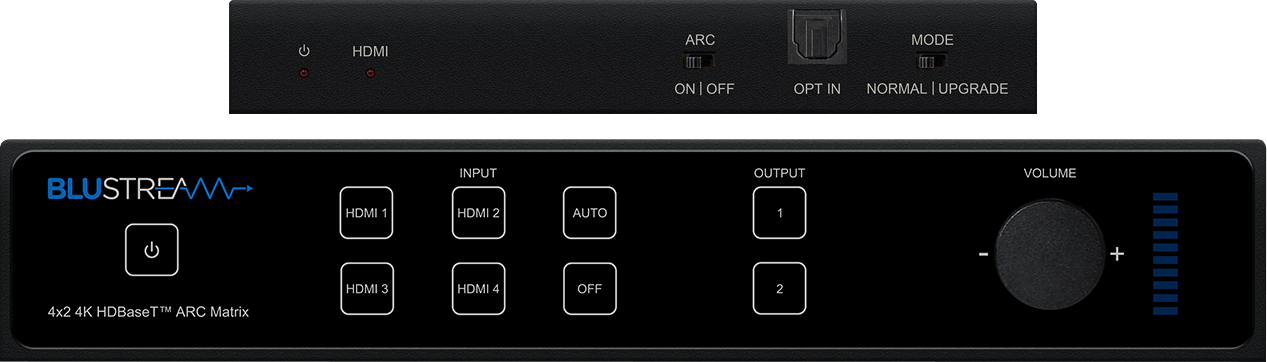

Blustreams Essential 4x2 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market.
The HMXL42ARC-KIT is a HDMI2.0 4K60Hz 4:4:4 HDCP2.2 Matrix package utilising CSC technology to deliver HDMI, Bi-directional IR and PoC up to lengths of 70m over a singleCAT cable.
The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1, video Smart Scaling on HDBaseT outputs, manual or auto source selection,independent audio matrix and a web browser interface module for control and configuration of the Matrix.
The HMXL42CS-KIT is supplied with 2 x HDBaseT™ receivers.
Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR • Features 4 x HDMI inputs which can be independently routed to 2 x HDBaseT™ outputs
Output 1 features simultaneous HDMI and HDBaseT™ output
Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
Supports 4K 60Hz 4:4:4 UHD video up to 40m
Extends HDMI 1080p video up to 70m
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:Xtransmissions
8 x 2 audio matrix that is independently controllablefrom video.
Audio source inputs include: - 4 x audio breakout from HDMI source - 2 x audio breakout from zone outputs - 2 x ARC from zone outputs
Audio breakout to analogue L/R audio and optical digital (S/PDIF) outputs concurrently with line level volumecontrol on analogue outputs
Audio breakout features selectable source from zone audio breakout or ARC from zone outputs via HDMI ARC or optical ARC
Web interface module for control and configuration ofmatrix
Supports bi-directional IR on all HDBaseT™ outputs
Supports PoC (Power over Cable) to power supplied RX70CS HDBaseT™ receivers
3rd Party drivers available for all major control brands
Advanced EDID management
HDCP 2.2 compliant
Supplied with 2 x RX70CS HDBaseT™ receivers

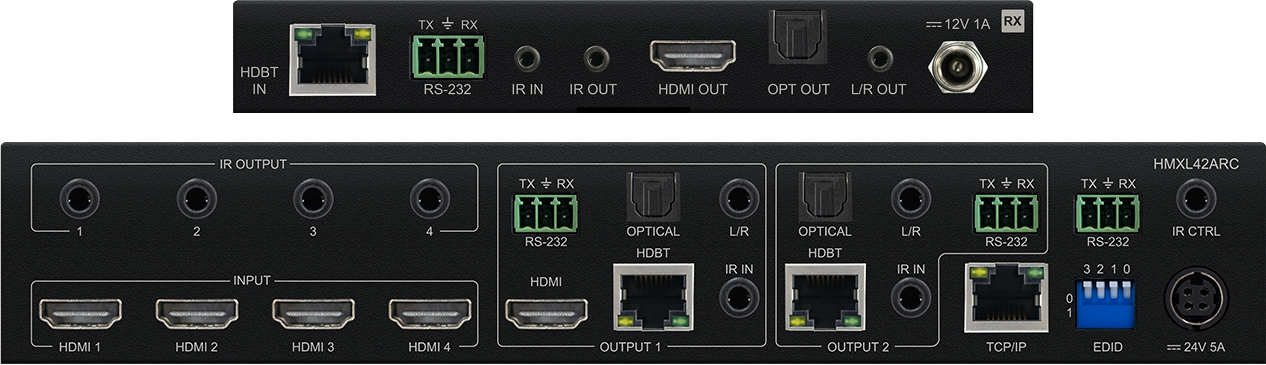

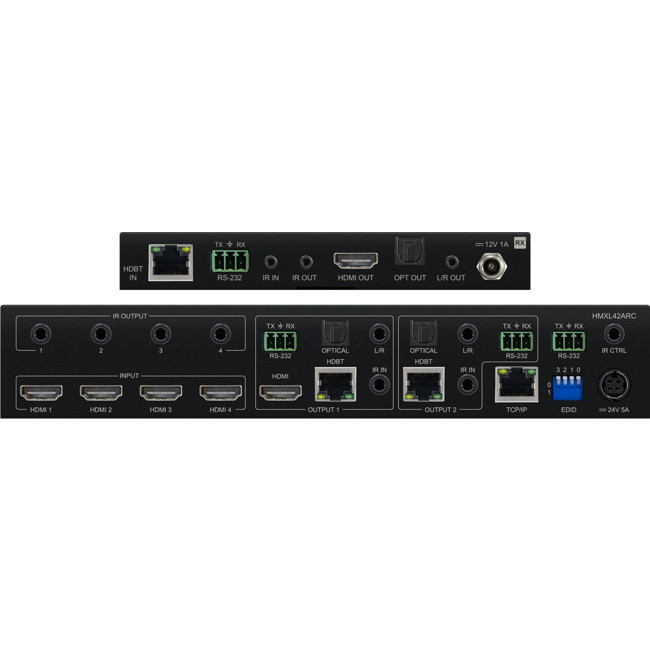

Video Input Connectors: 4x HDMI Type A, 19-pin, female
Video Output Connectors: 1x HDMI Type A, 19-pin, female, 2x HDBaseT™ RJ45 connector
Audio Input Connectors: 2x Analogue audio L/R (3.5mm stereo Jack), 2x Optical (SPDIF)
RS-232 Serial Ports: 1x 3-pin Phoenix connector
TCP/IP Control: 1x RJ45, female
IR Input Ports: 3x 3.5mm stereo jack
IR Output Ports: 4x 3.5mm mono jack
Rack Mountable: 1U rack height, rack ears included
Casing Dimensions (WxDxH): 220mm x 235mm x 44mm (without feet)
Shipping Weight: 4.5kg
Operating Temperature: 32°F to 104°F (0°Cto 40°C)
Storage Temperature: -4°F to 140°F (-20°Cto 60°C)
Power Supply: 1x 24V/5A DC
1 x HMXL42ARC 2 x RX70CS 1 x 19" Rack mounting kit for HMXL42ARC 1 x Surface mount kit for HMXL42ARC 2 x Mounting kit for RX70CS 1 x Remote control 4 x IRE1 emitters 3 x IRR receivers 1 x Serial Cable - DB9 to 3-pin Phoenix connector 1 x IR Control Cable - 3.5mm-3.5mm Cable 1 x 24V/5A power supply 1 x Quick Reference Guide
