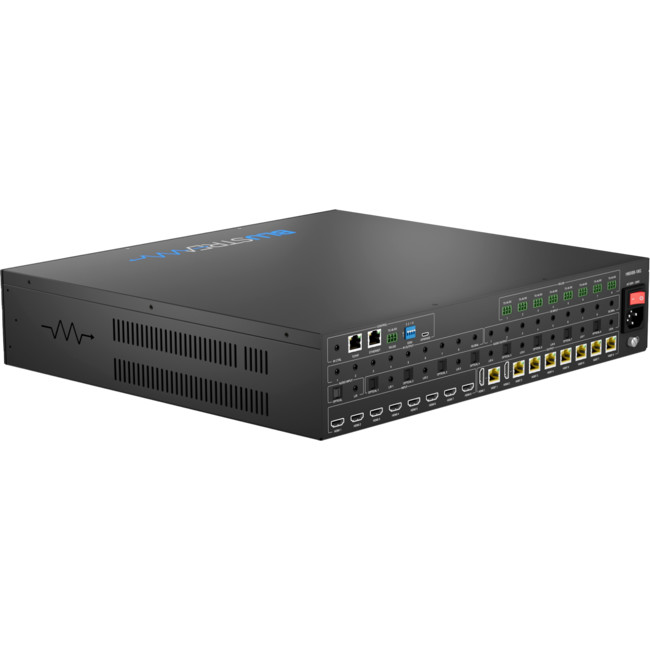

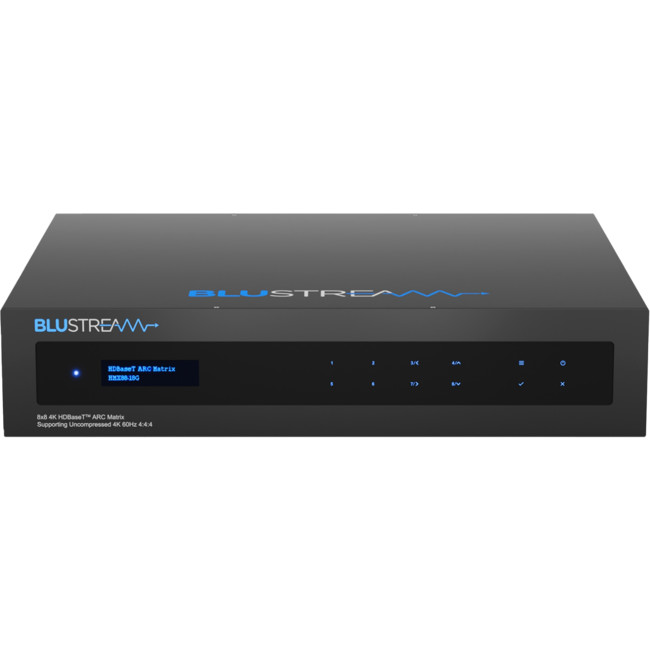

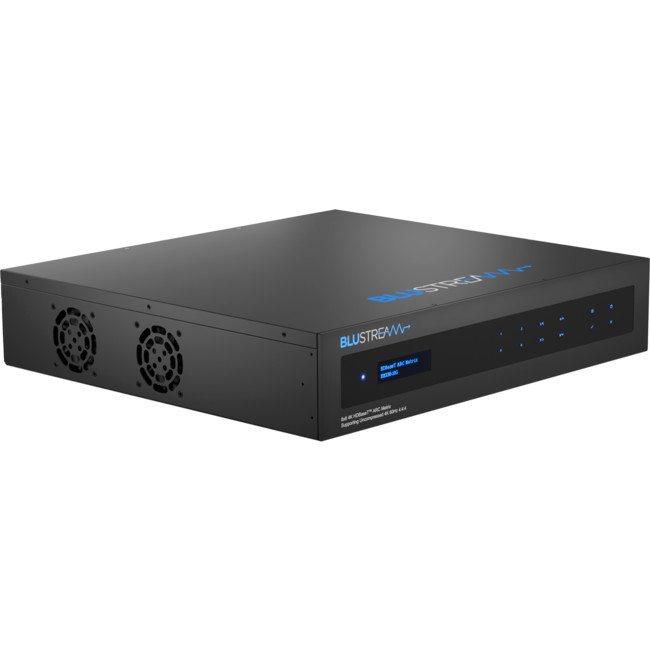

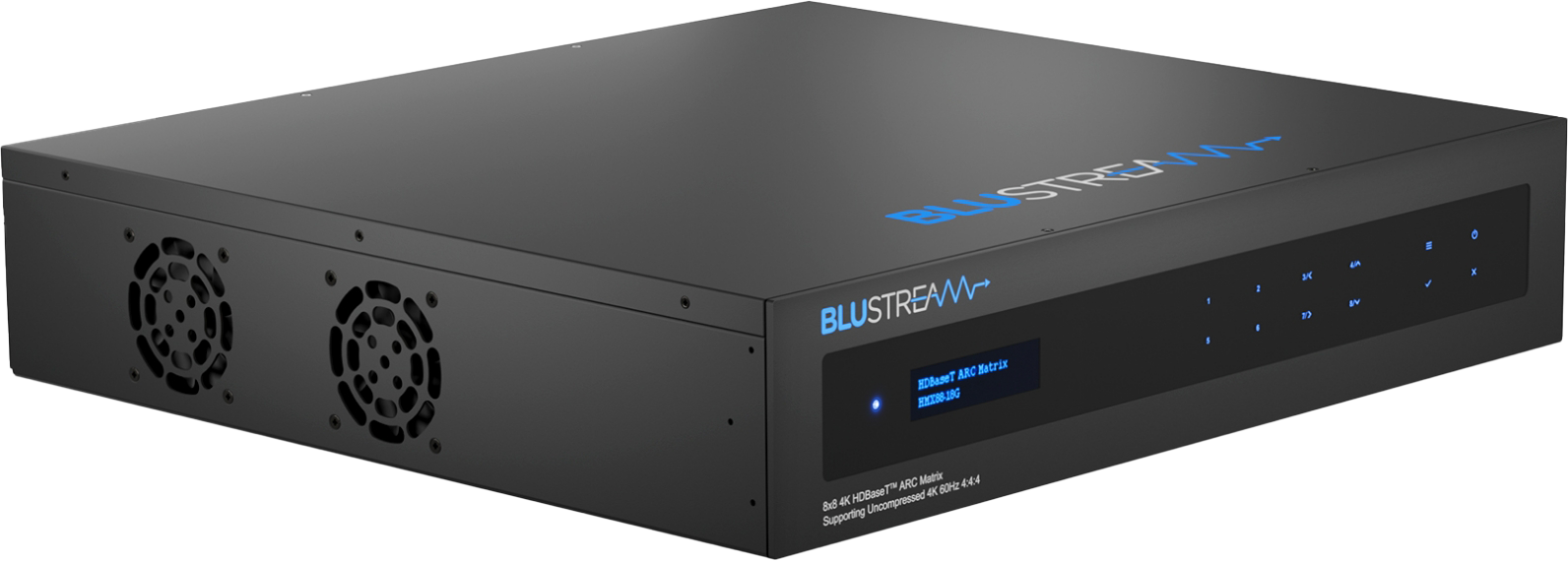

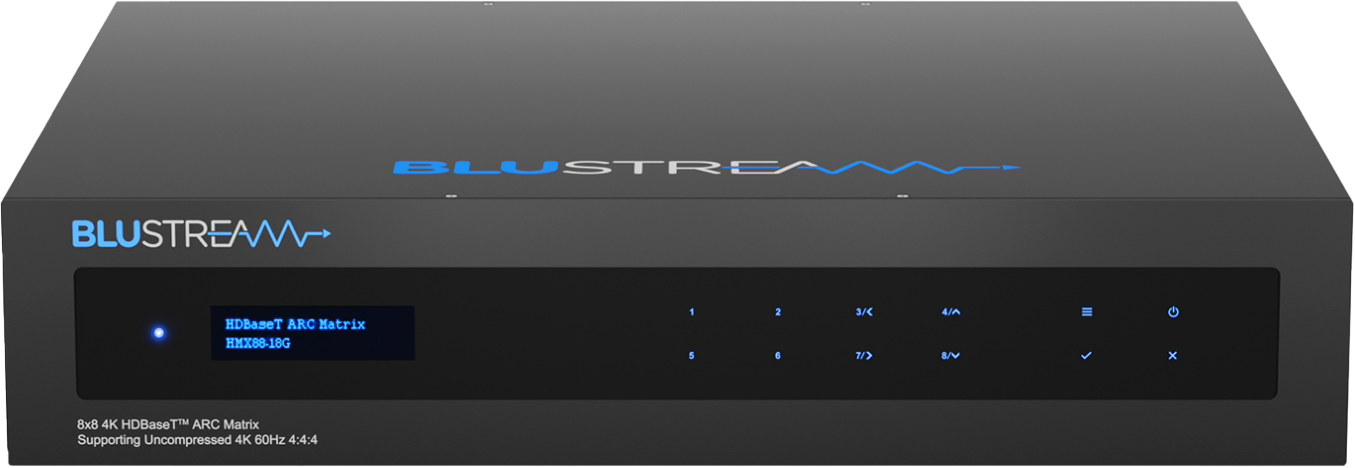

Blustream HMX88-18G Uncompressed 18Gbps HDBaseT™ Matrix
The HMX88-18G Matrix is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising HDBaseT™ 3 technology to deliver HDMI, Bi-directional IR & RS-232, ARC, 1Gb Ethernet, and PoC up to lengths of 100m over a single CAT6A cable.
The HMX88-18G supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your critical viewing areas.
The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on outputs 1 & 2, video smart scaling on HDBaseT outputs, and an independent 26×8 audio matrix and ARC. The HMX88-18G includes an in-built web browser interface module for control and configuration of the Matrix, and RS-232, IR and Ethernet pass through to enable seamless 3rd party control integration.
Features
- Advanced uncompressed, unconverted, HDMI over HDBaseT™ technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cable
- Features 8 × HDMI inputs which can be independently routed to 8 × HDBaseT™ outputs
- Outputs 1 & 2 feature simultaneous HDMI and HDBaseT™ outputs
- Supports distribution of uncompressed HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video up to 100m*
- Supports distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
- 26×8 Audio Matrix independently controllable from video. Audio source inputs include:
- 8 × audio breakout from HDMI source inputs
- 8 × audio breakout from zone outputs
- 8 × audio return from zone outputs*
- 1 × Optical and 1× Analogue audio input
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Integrated Ethernet switch (LAN Serving) when used with Blustream RX18G receiver (1GB maximum)
- Web interface module for control and configuration of the Matrix
- Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
- Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
- Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
- Advanced EDID management and HDCP 2.3 compliant
*Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling
**ARC feature supports HDMI ARC or Optical ARC. Compatible with RX18G only
Specifications

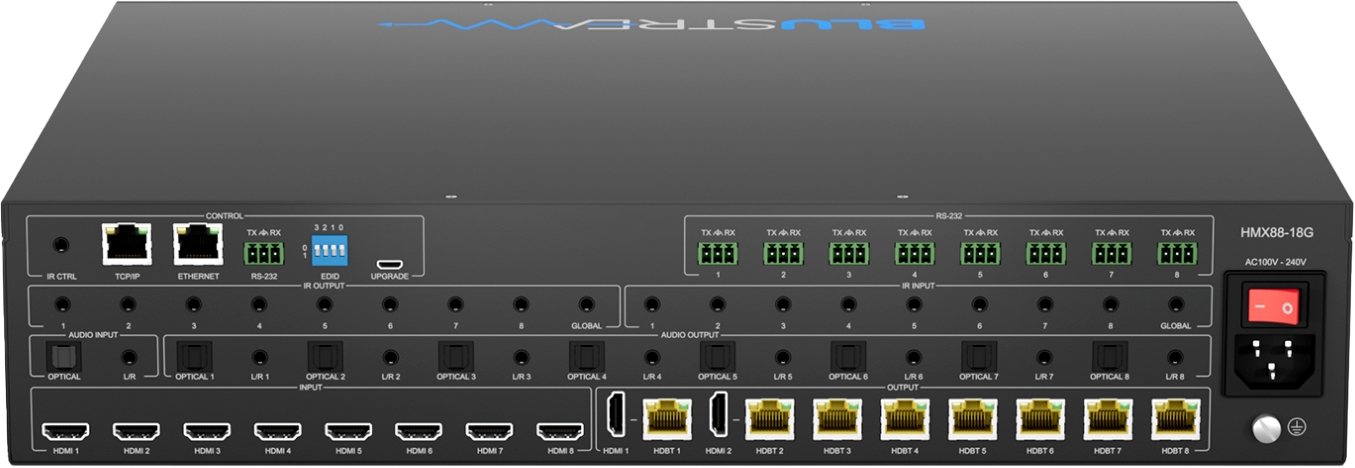

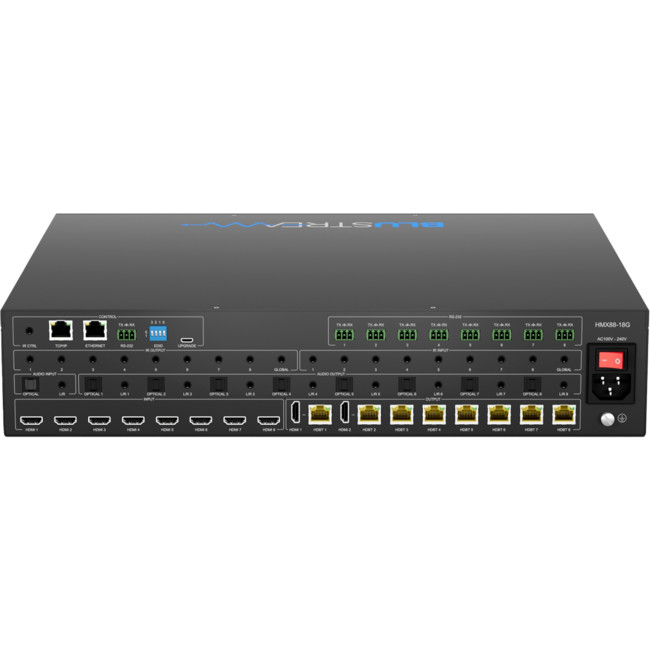

| Video Input Connectors | 8 × HDMI Type A, 19-pin, female |
| Video Output Connectors | - 2 × HDMI Type A, 19-pin, female
- 8 × HDBaseT™ RJ45 connectors
|
| Audio Input Connectors | - 1 × Analogue audio L/R (3.5mm stereo Jack)
- 1 × Optical (S/PDIF)
|
| Audio Output Connectors | - 8 × Analogue audio L/R (3.5mm stereo Jack)
- 8 × Optical (S/PDIF)
|
| RS-232 Serial Port | 9 × 3-pin phoenix connector |
| TCP/IP Control Port | 1 × RJ45, female |
| Ethernet Passthrough Port | 1 × RJ45, female |
| IR Input Ports | 10 × 3.5mm stereo jack |
| IR Output Ports | 9 × 3.5mm mono jack |
| Product Upgrade Port | 1 × Micro USB, female |
| Rack Mountable | 2U rack height, rack ears included |
| Casing Dimensions – Without Feet(W×H×D) | 436mm × 88mm × 400mm |
| Shipping Weight | 10.5kg |
| Operating Temperature | −5°C to +55°C (23°F to 131°F) |
| Storage Temperature | −25°C to 70°C (−13°F to 158°F) |
| Power Supply | Internal 100-240V AC |
| HDBaseT Power Output | 24V DC 0.75A per port |
In the Box
- 1 × HMX88-18G
- 1 × Rack mounting kit
- 1 × Remote control
- 8 × IR emitters
- 9 × IR receivers
- 1 × Serial Cable – DB9 to 3-pin phoenix connector
- 1 × IR Control Cable – 3.5mm-3.5mm Cable
- IEC Power Cable(s)
- 1 × Quick Reference Guide
