CMX88CS CONTRACTOR 8X8 4K 18GBPS

AUDIO BREAKOUT, EDID MANAG IR ROUTING, HDCP2.2

Code: 64510229

EACH
Special
Buy-In
TRADE ALERT!
$3999 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

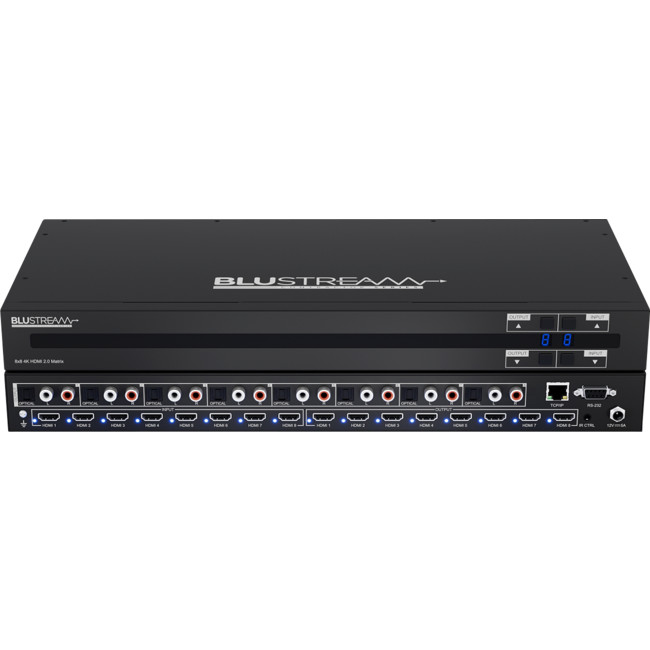

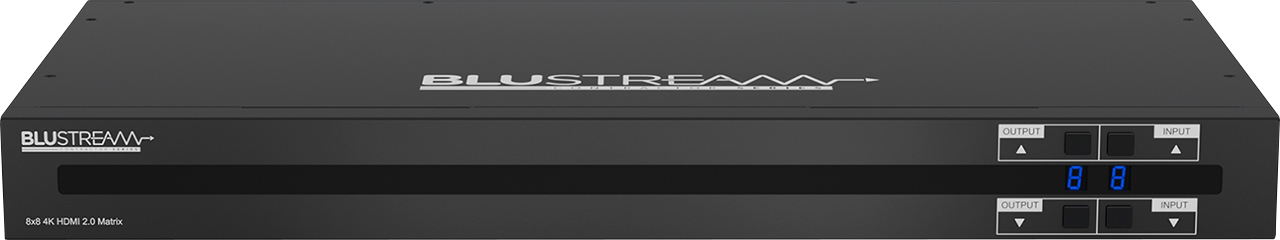

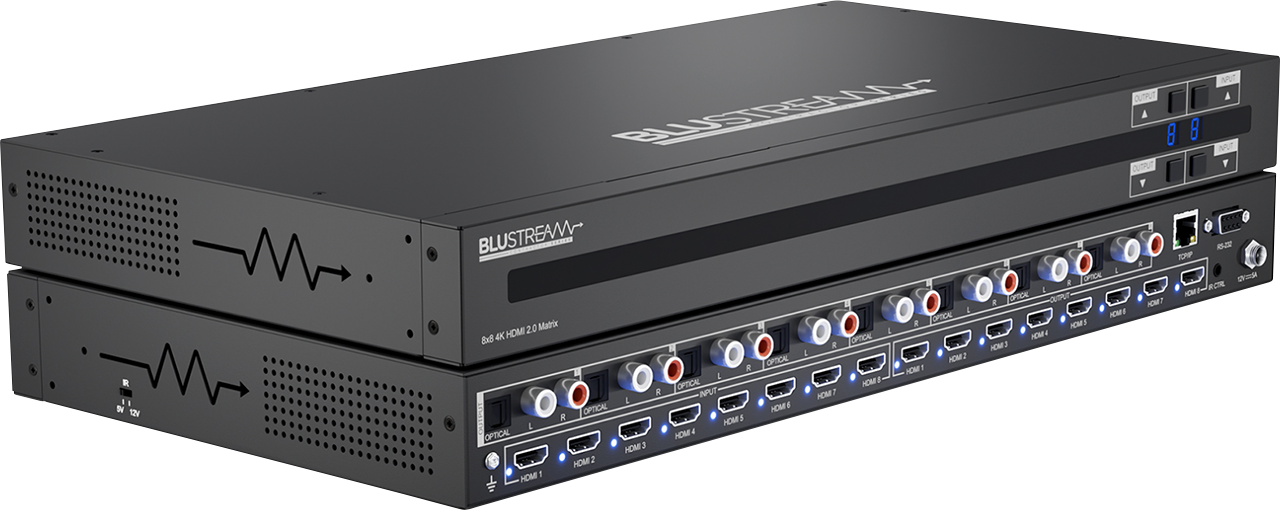

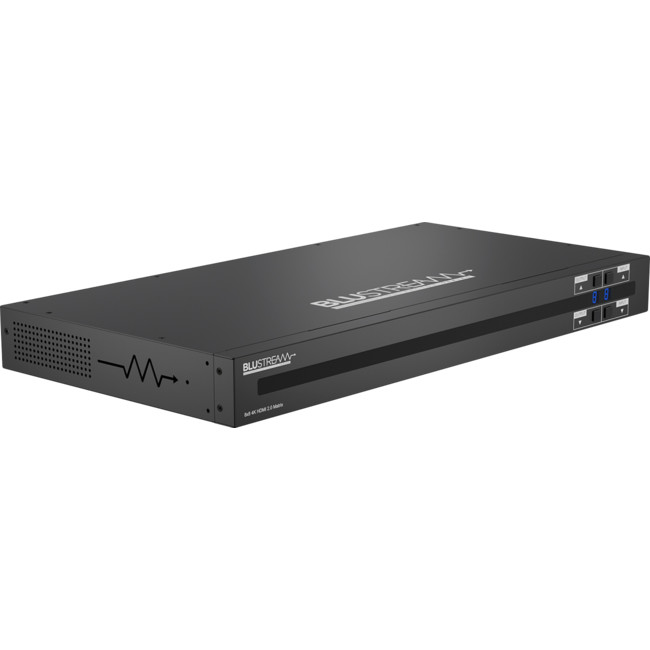

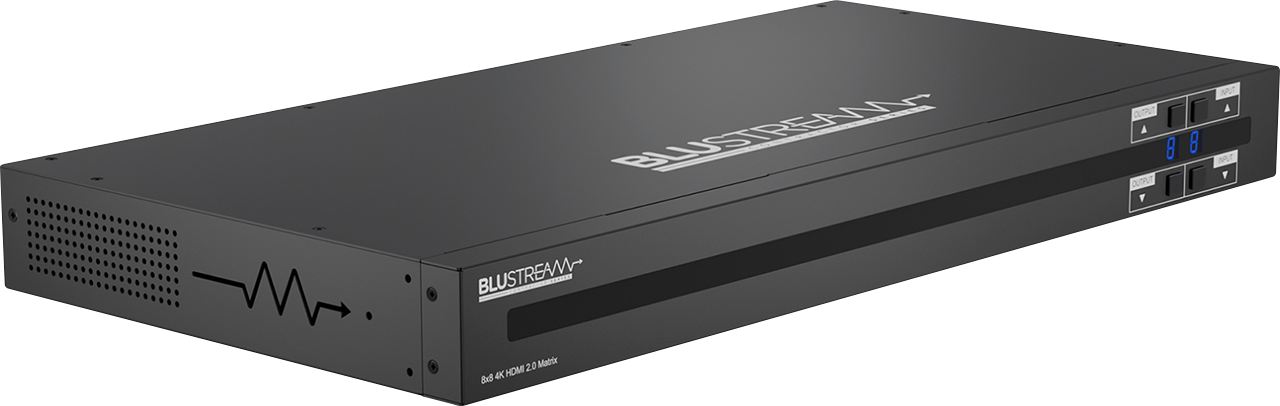

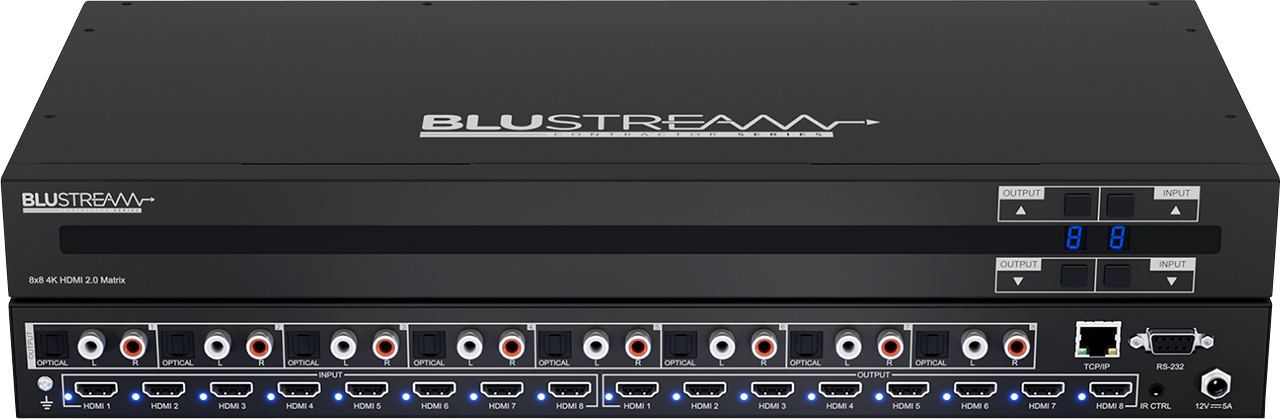

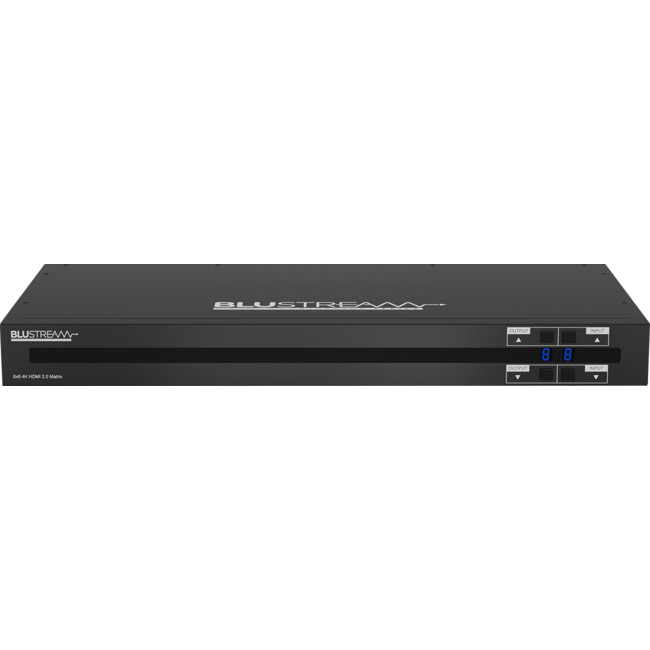

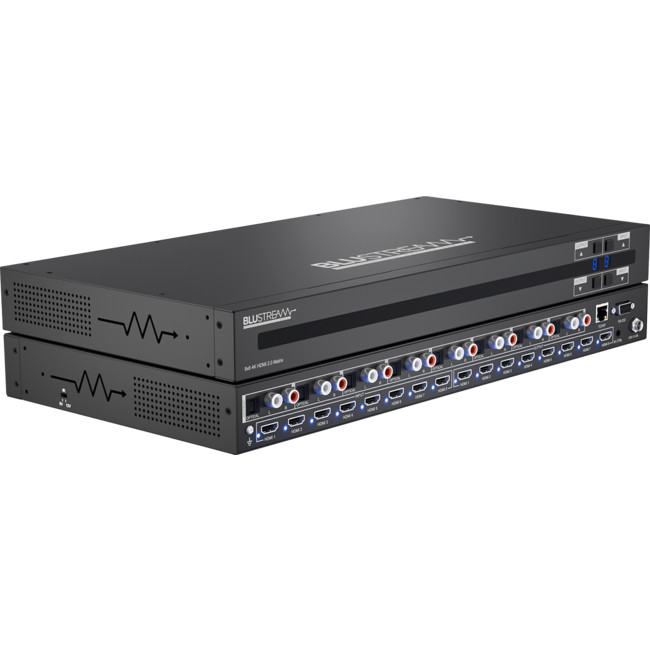

Blustream CMX88CS 8x8 4K HDMI 2.0 Matrix

Our Contractor CMX88CS 4K HDMI Matrix offers unprecedented performance and value for the custom installation market.

The CMX88CS supports HDMI2.0 with HDCP2.2, allowing distribution of eight HDMI sources to eight displays. This enables all sources to be viewed as required within a matrix configuration.

The unit transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4. The 8-Way matrix also includes audio breakout, EDID management and a web browser interface module for control and configuration of the matrix.


4K 60Hz 444 Audio Breakout EDID Management HDCP 2.2 HDMI2.0 WEB GUI

Features

  • Features 8× HDMI inputs which can be independently routed to 8× HDMI outputs.
  • Supports 4K UHD video including HDR (up to 4K @ 60Hz 4:4:4).
  • Independent video down conversion on all HDMI outputs allowing a display only capable of supporting lower 4K video resolutions (4K 60Hz 4:2:0) to receive 4K
  • 60Hz 4:4:4 ideo content while still showing maximum original 4K UHD resolution on remaining outputs.
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K.
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission.
  • HDMI audio breakout to associated output analogue L/R audio and optical digital outputs concurrently.
  • Web interface module for control and configuration of the Matrix.
  • Control via front panel, IR, RS-232 & TCP/IP.
  • 3rd party drivers available for all major home control brands.
  • Advanced EDID management.
  • HDCP 2.2 compliant

Specifications

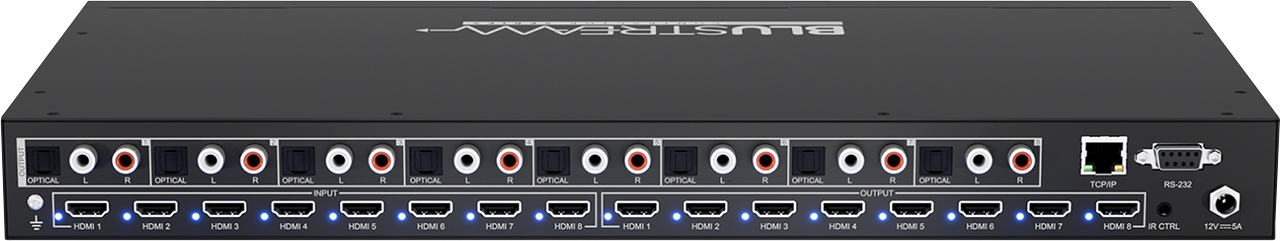

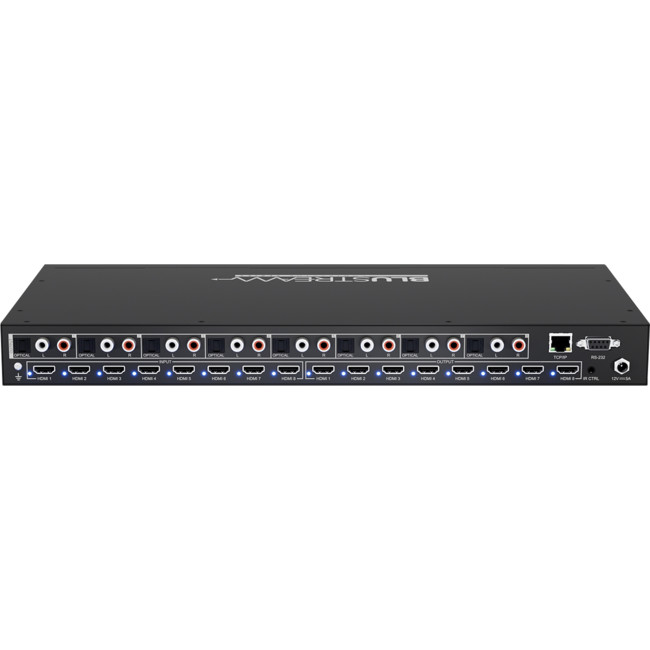

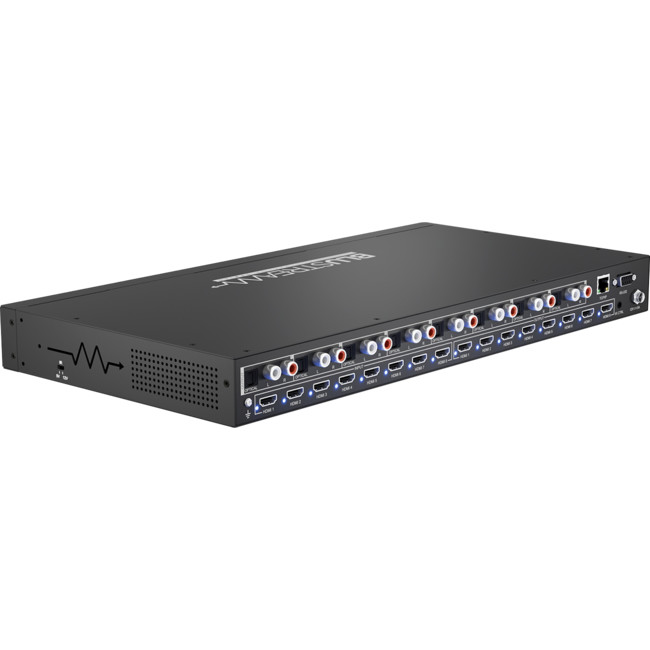

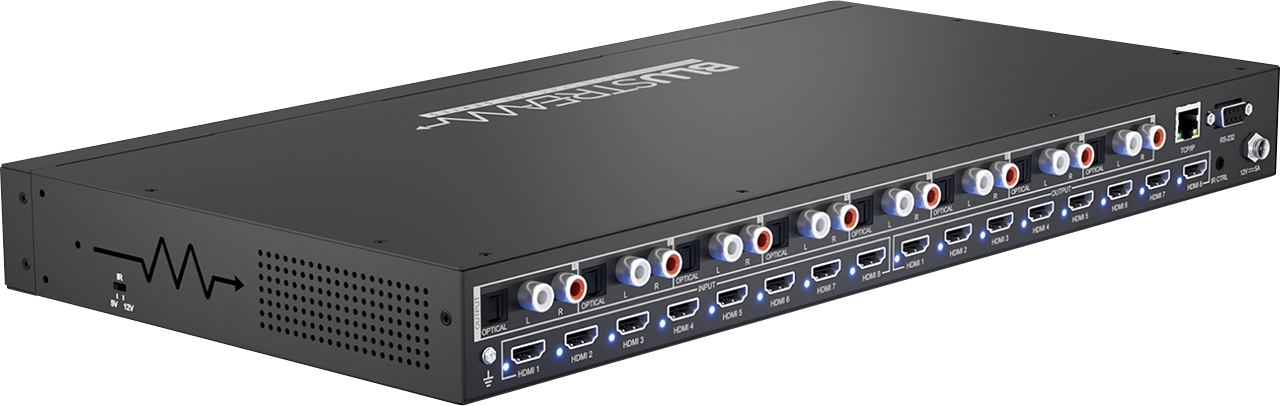

Video Input Connectors 8 × HDMI Type A, 19-pin, female
Video Output Connectors 8 × HDMI Type A, 19-pin, female
Audio Output Connectors 8 × RCA (SPDIF), 8 × Analogue audio RCA (L/R)
RS-232 Serial Port 1 × DB-9, female
TCP/IP Control 1 × RJ45, female
IR Input Ports 1 × 3.5mm stereo jack
Casing Dimensions (W×D×H) 441mm × 226mm × 45mm
Dimensions Inc. Connections (W×D×H) 441mm × 234mm × 51mm
Shipping Weight 3.5kg
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature −4°F to 140°F (−20°C to 60°C)
Power Supply 12V/5A DC


Box Contents

  • 1 × CMX88CS
  • 1 × 12V / 5A DC power supply
  • 1 × Remote control
  • 1 × IR receiver
  • 1 × IR control cable (3.5mm to 3.5mm cable)
  • 1 × Mounting kit
  • 1 × Quick reference guide
