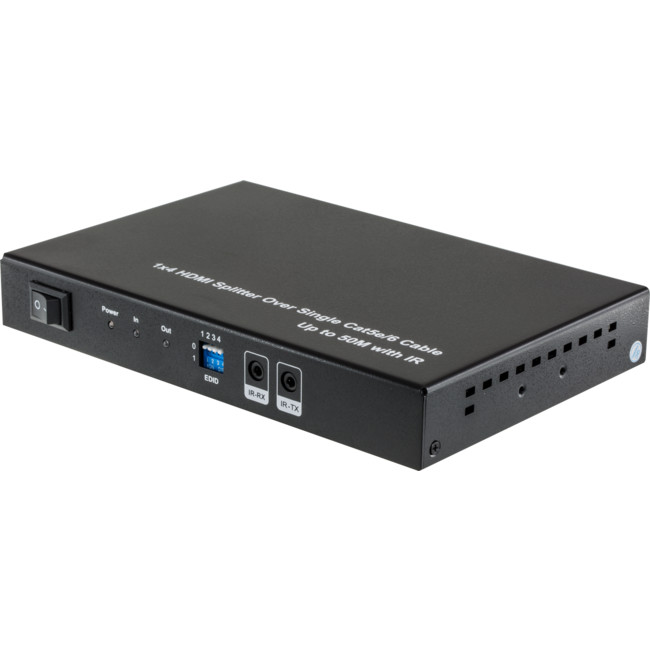

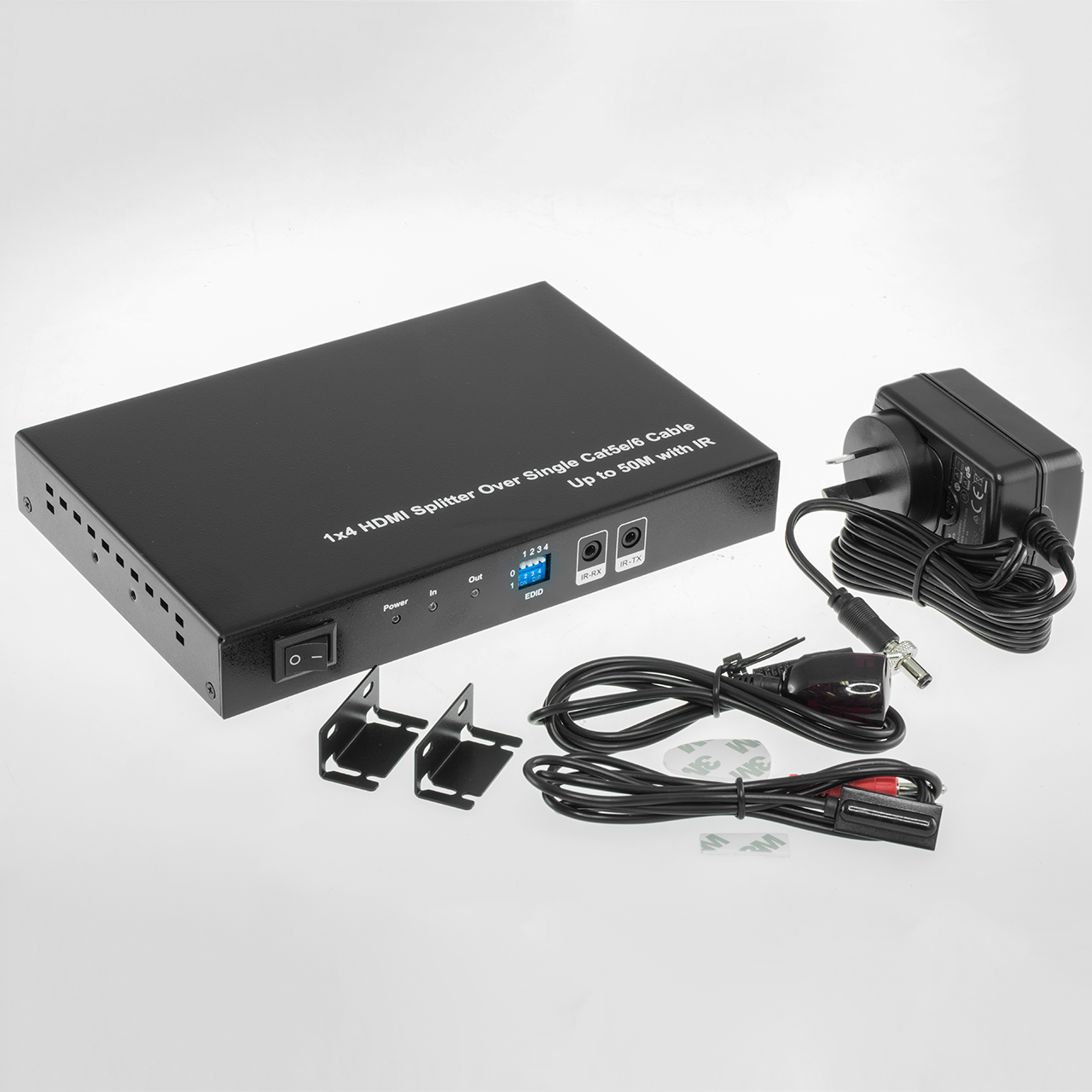

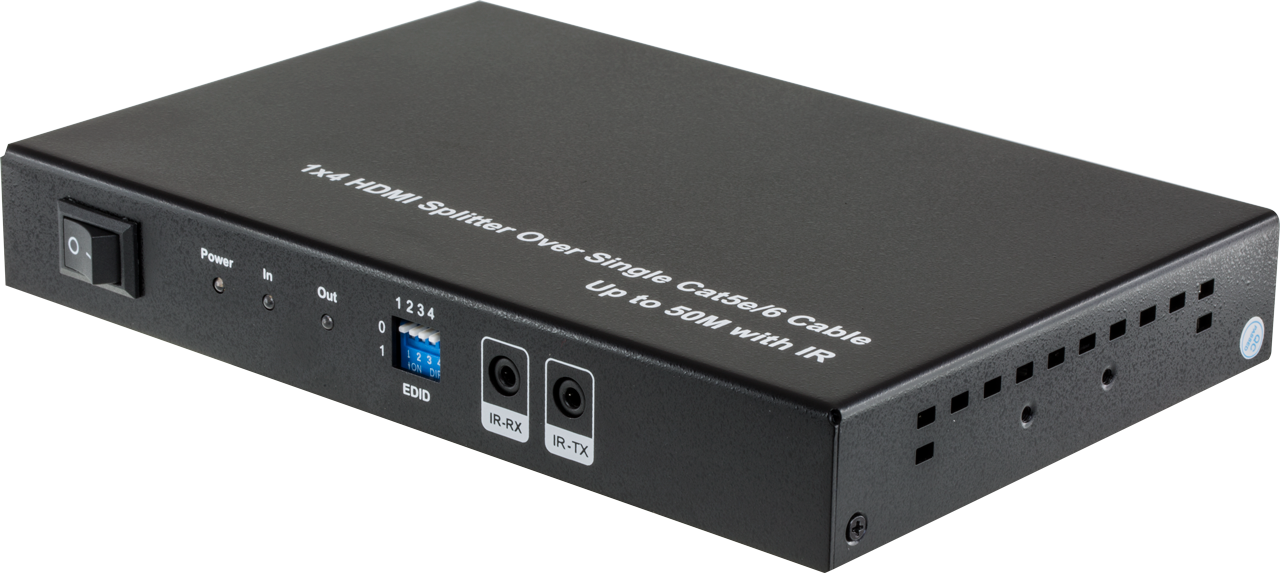

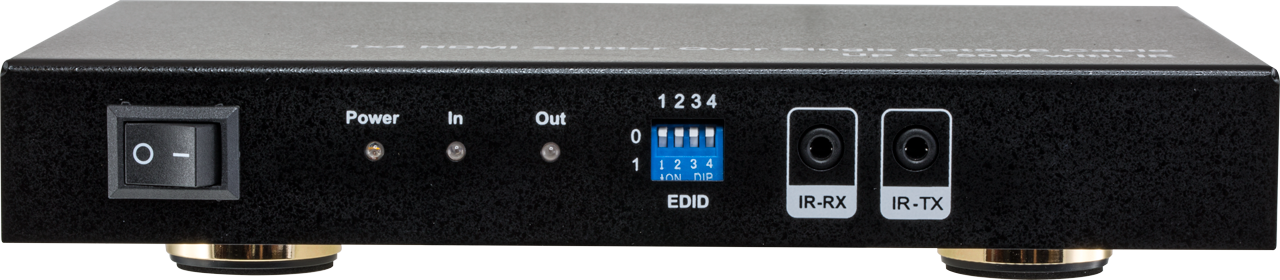

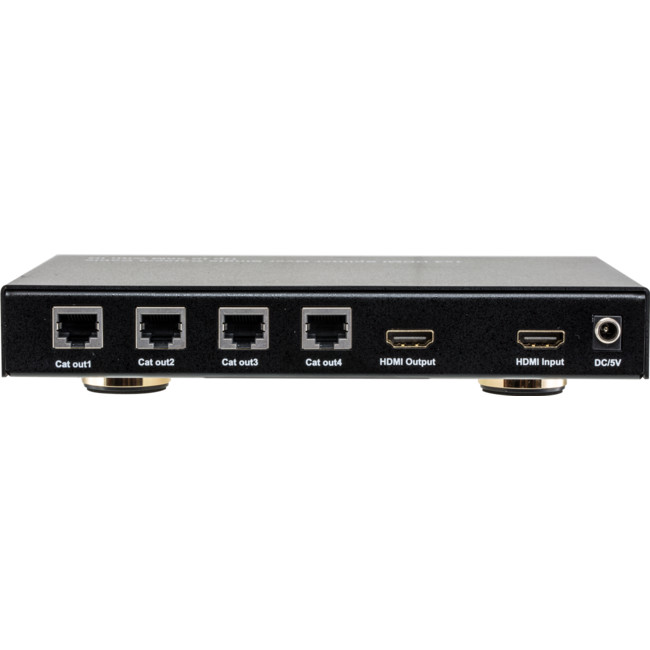

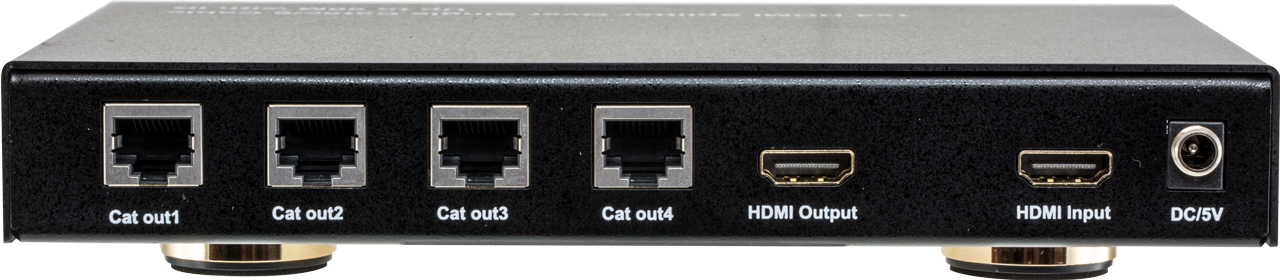

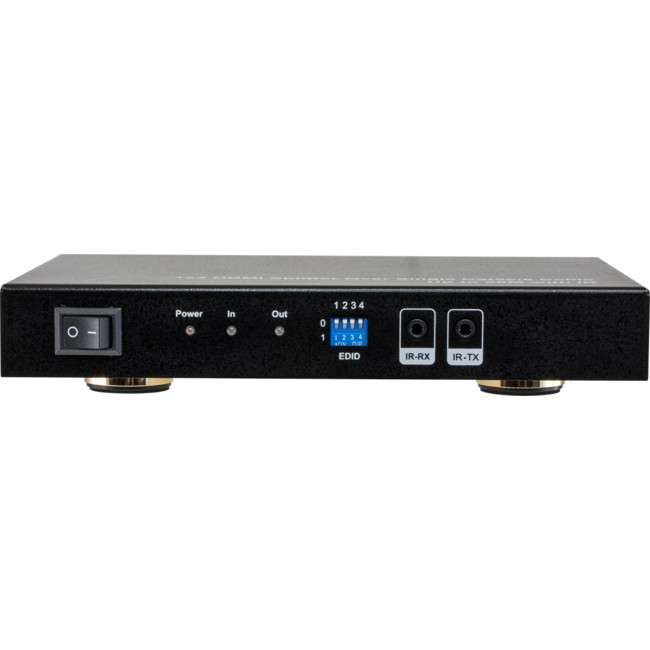

H4SPC5L 4 WAY HDMI OVER CAT5 SPLITTER TRANSMITTER

HDMI LOOP 50M TRANSMITTER ONLY

Code: 64510144

1.25 kg
9328202001054
EACH
10
In Stock
TRADE ALERT!
$189 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Solid/FTP CAT5/6 cable required for best results

If you are running a cable 15 metres or more, make sure you use a SOLID CAT5/6 cable. This product may not workwith standard stranded ethernet cable. See related items forcabling that will work this product. 60m distance has been tested fine on F/UTP solid cat6 cable.

FYI: Most of the pre-made cat5/6 leads on the market are stranded cable not solid.

Features:

1x4 HDMI splitter over single Cat5e/6 cable enables to split your source up to 50 meters with IR passes through. H4SPC5L also provides a local hdmi loop out for viewing locally.

Foxtel iQ2and iQ3 compatible
  • Distribute 1 HDMI signal to 4 identical UTP outputs synchronously, with 1 HDMI loop output
  • Transmit over 50m using single Cat5E/6 cable.
  • Can be cascaded for 4 layers
  • With wide-band Bi-Direction IR control(36-56kHz)
  • Supports full HD 1080p, VESA resolution 1920x1200
  • Supports Dolby TrueHD, DTS-HD Master Audio
  • Supports 3D

Wiring Diagram:

For use with Foxtel Only:
