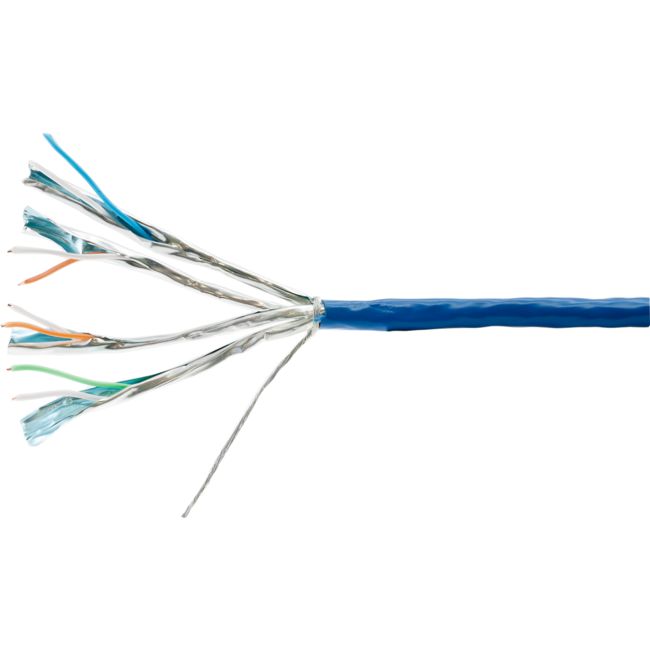

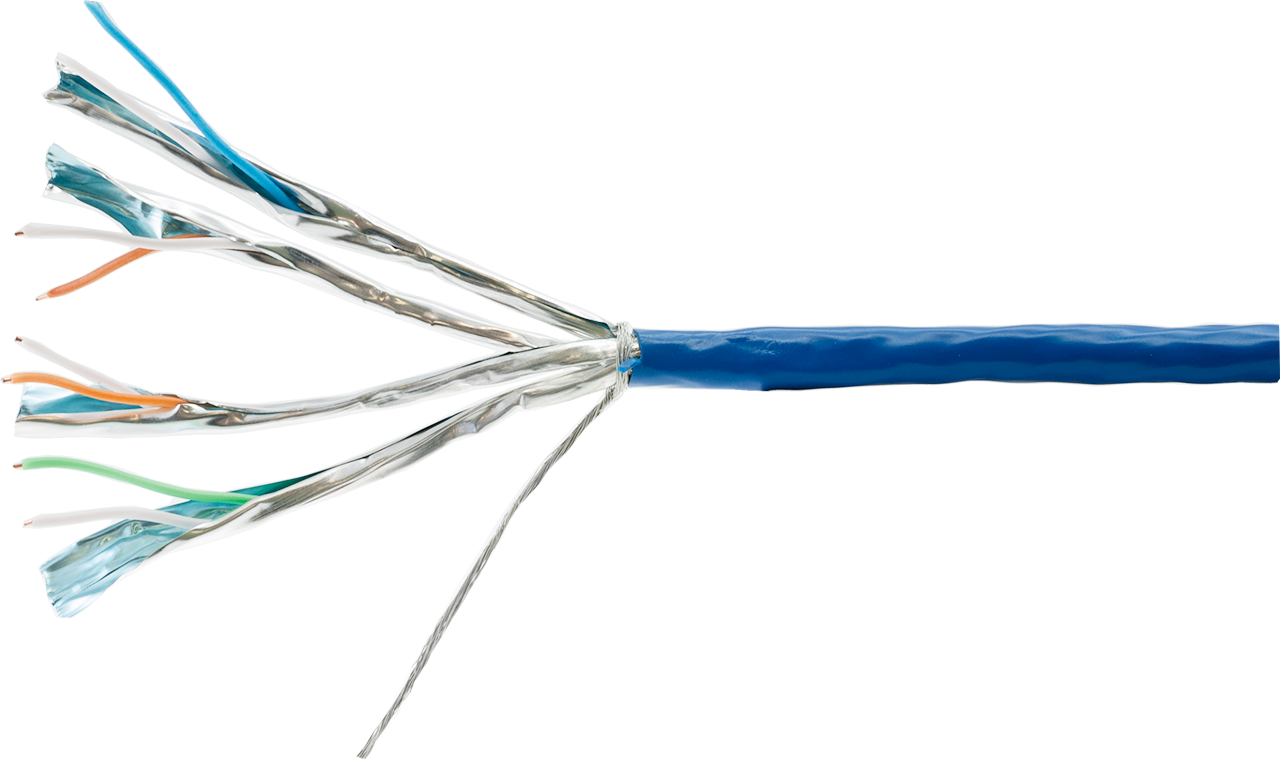

SSTPCAT6BL-1M SSTP CAT6 SOLID BLUE -1M

SHIELDED - PER METRE (305M)

Code: 05062900

0.0720 kg
9328202014382
MT
305
In Stock
TRADE ALERT!
$2.45 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

This item is sold per "METRE"

If you order 5, you will get five metres.

Need a longer length?

This cable is also available as a 305 m roll.

S/STP (Screened Shielded Twisted Pair) or S/FTP (ScreenedFoiled Twisted Pair) cabling offers shielding between the pair sets and an overall sheath shield within the cable. This type of shielding protects EMI from entering or exitingthe cable and also protects neighbouring pairs from crosstalk.

Specifications

  • Conductor
    • Insulation:
      • Material: FO-PE and HD-PE
      • Diameter: 1.30 ± 0.02mm
      • Thickness: 0.37 ± 0.01mm
      • Colours (per pair):
        • Blue - Blue/White
        • Orange - Orange/White
        • Brown - Brown/White
        • Green - Green/White
    • Conductor:
      • Material: Bare Copper
      • Diameter: 1/0.571 ± 0.01mm
  • Sheilding
    • Outer Braid (loose): 16×4×1/0.12mm
    • Aluminium Foil (per pair): 0.065×13mm
  • Jacket Insulation
    • Colour: Blue
    • Material: LSOH
    • Diameter: 7.6 ± 0.01mm
    • Thickness: 0.6 ± 0.02mm
    • Tensile strength (minimum): 0.917Kg/mm2
  • Electrical Characteristics:
    • Conductor Resistance (max): 9.38 Ω/100m at 20°C
    • Resistance Unbalance (max): 5%
    • Capacitance Unbalance (max): 330pF/100m
    • Mutual Capacitance (max): 560pF/100m

Images

Alternate Products

True 2
PK3940 SSTP CAT6 8P8C MODULAR PLUG SOLID SHIELDED RJ45 30633940
Copper alloy shell.
$1.95 TRADE ALERT!
In Stock
Increase value Decrease value
True 2
PK4050 RJ45 RUBBER BOOT SUITS PK3940 8MM FOR CAT5E/6 BLUE SHIELDED 30634050
Suitable for SSTP / CAT6 / 8P8C modular plug. Max OD: 8mm/0.315" Blue
$0.89 TRADE ALERT!
In Stock
Increase value Decrease value
True 5

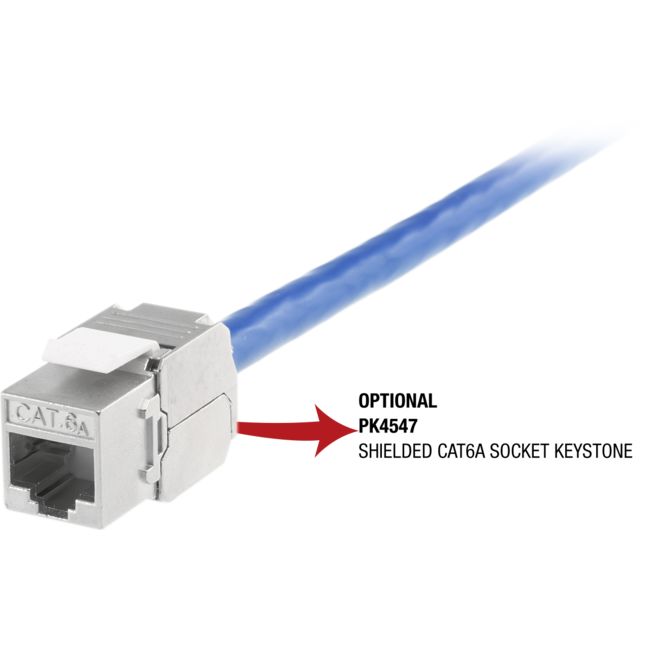

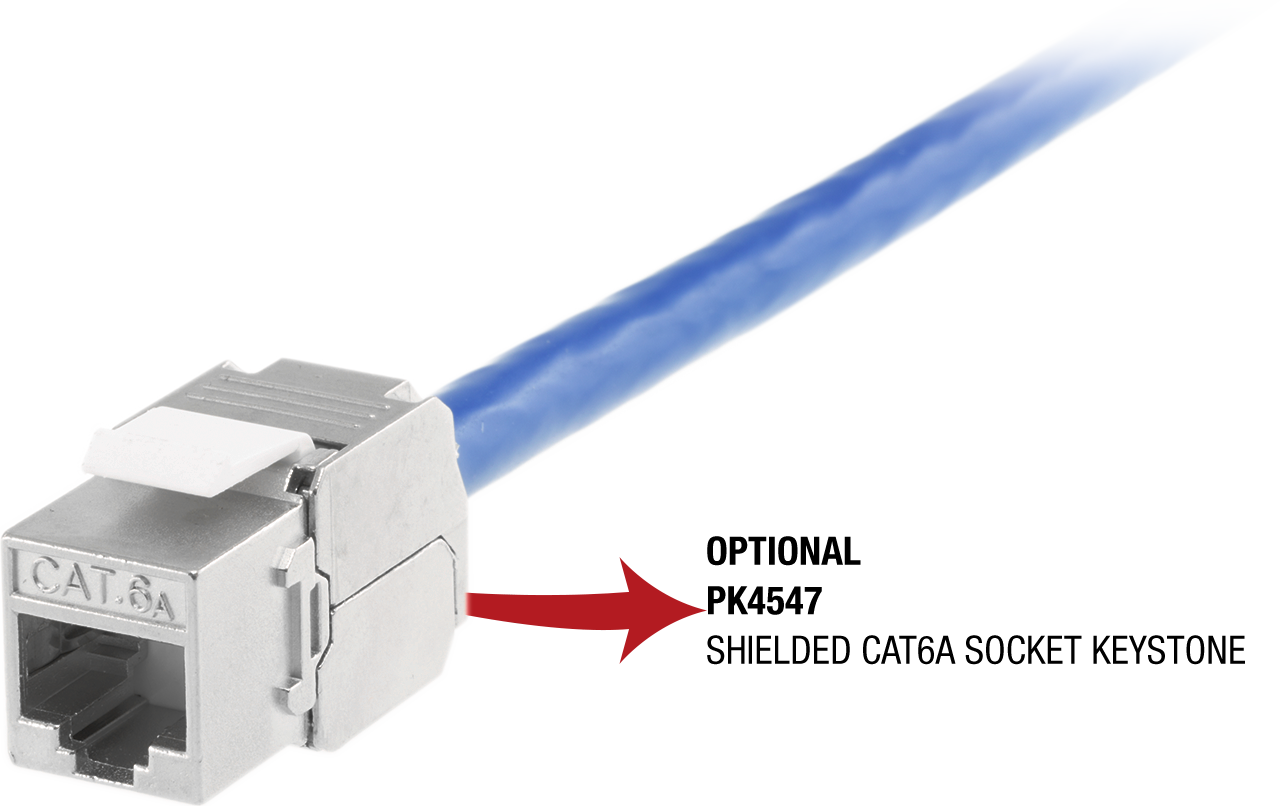

PK4547 SHIELDED CAT6A SOCKET KEYSTONE KEYSTONE MECH RJ45 CAT6 30634547
