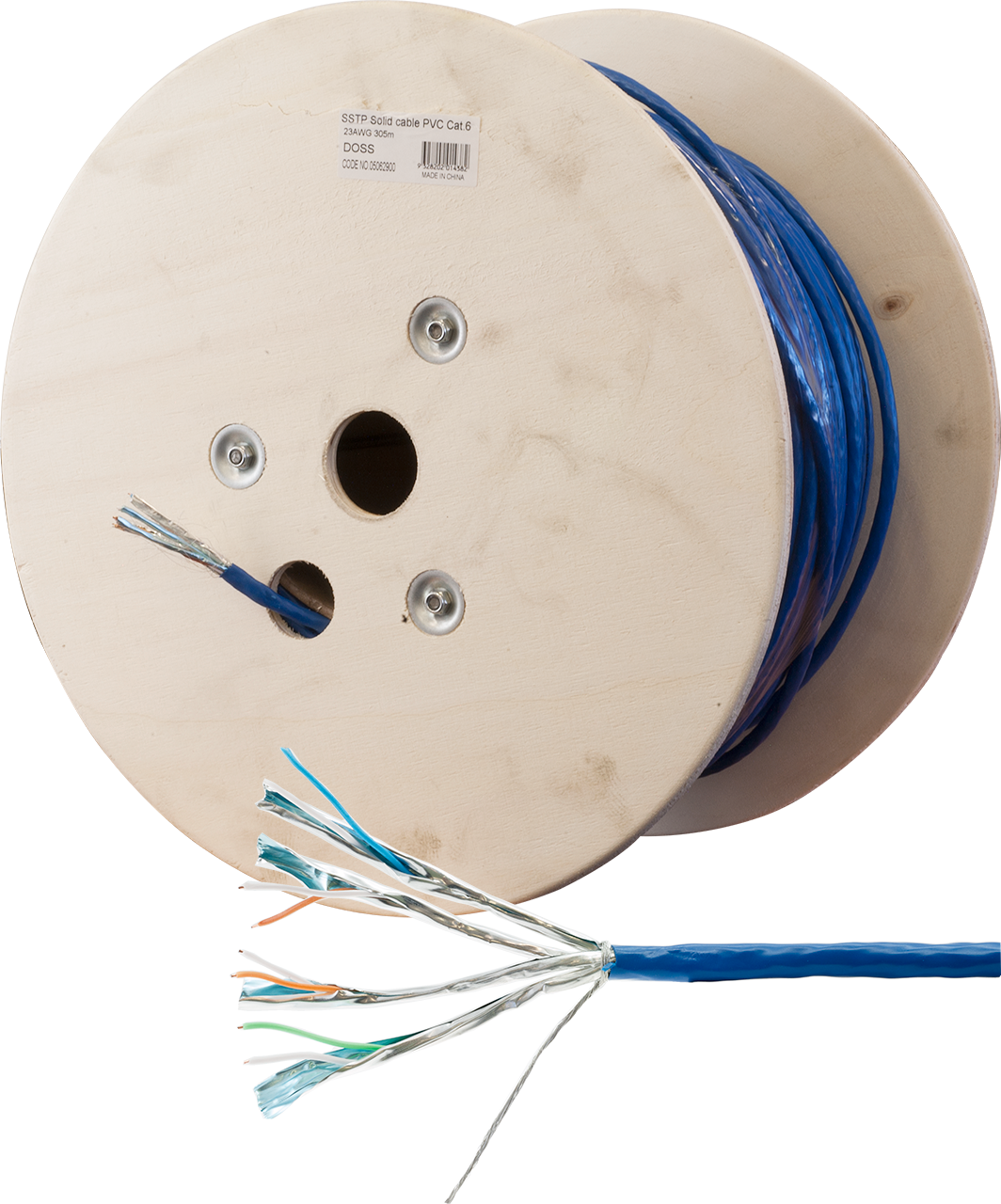

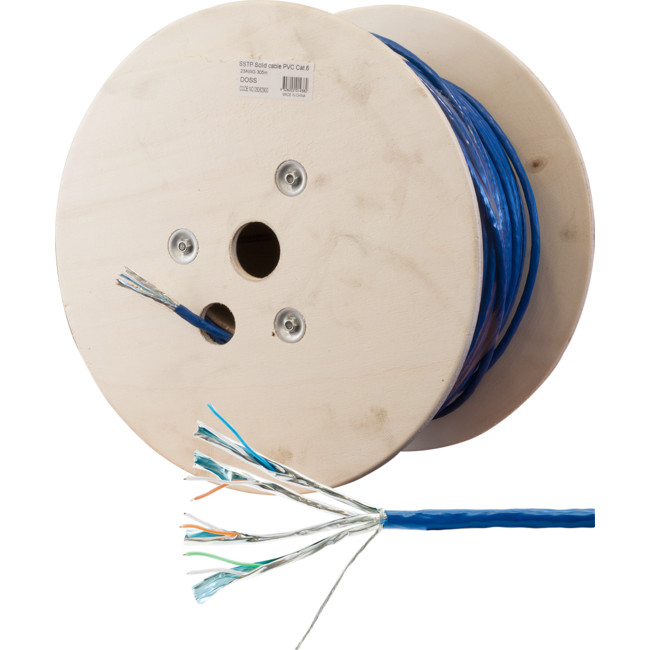

SSTPCAT6BL-305M SSTP CAT6 SOLID CABLE BLUE305M

SHIELDED PER ROLL REEL

Code: 05062902

9328202021205
ROLL
In Stock
TRADE ALERT!
$399 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Kit Components
Code
Item
Qty
05062900
SSTPCAT6BL-1M SSTP CAT6 SOLID BLUE -1M SHIELDED - PER METRE (305M)
305
Enter 4 digit postcode

This item is sold as a 305m roll

Need a shorter length?

This cable is also available per metre.

S/STP (Screened Shielded Twisted Pair) or S/FTP (ScreenedFoiled Twisted Pair) cabling offers shielding between the pair sets and an overall sheath shield within the cable. This type of shielding protects EMI from entering or exitingthe cable and also protects neighbouring pairs from crosstalk.

Specifications

  • Conductor
    • Insulation:
      • Material: FO-PE and HD-PE
      • Diameter: 1.30 ± 0.02mm
      • Thickness: 0.37 ± 0.01mm
      • Colours (per pair):
        • Blue - Blue/White
        • Orange - Orange/White
        • Brown - Brown/White
        • Green - Green/White
    • Conductor:
      • Material: Bare Copper
      • Diameter: 1/0.571 ± 0.01mm
  • Sheilding
    • Outer Braid (loose): 16×4×1/0.12mm
    • Aluminium Foil (per pair): 0.065×13mm
  • Jacket Insulation
    • Colour: Blue
    • Material: LSOH
    • Diameter: 7.6 ± 0.01mm
    • Thickness: 0.6 ± 0.02mm
    • Tensile strength (minimum): 0.917Kg/mm2
  • Electrical Characteristics:
    • Conductor Resistance (max): 9.38 Ω/100m at 20°C
    • Resistance Unbalance (max): 5%
    • Capacitance Unbalance (max): 330pF/100m
    • Mutual Capacitance (max): 560pF/100m
