2003A 2000AMP DIGITAL CLAMP METER

AC DC CAT 4 RATED KYORITSU IV

Code: 46440030

EACH
Special
Buy-In
$1099 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

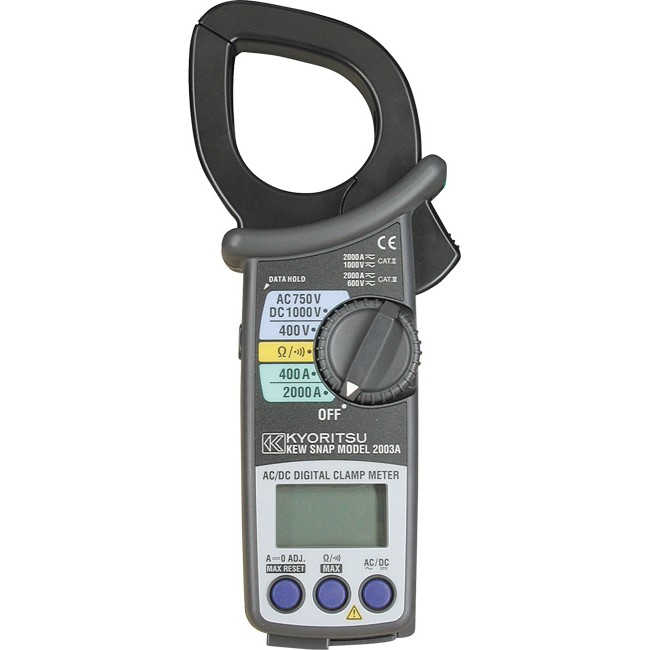

2003A - AC/DC Digital Clamp Meter - KYORITSU

Kyoritsu 2010 Clamp Meter Product Selection Guide (873kb PDFPDF filefile)

Equipped to measure both AC and DC current with transformer jaws of large diameter.

FEATURES:

  • Can measure AC and DC currents up to 2000A.
  • Output terminal for connection to recorders.
  • AC/DC voltage, resistance measurement and continuity functions also available.

SPECIFICATIONS:

AC A 400A/2000A (0~1000A)
lusmn;2dgt [50/60Hz]
[40~500Hz]
[500Hz~1kHz]
2000A (1001~2000A)
[50/60Hz]
AC V 400/750V
lusmn;2dgt [50/60Hz]
lusmn;4dgt [40Hz~1kHz]
DC A 400/2000A ±1.5%rdg±2dgt
DC V 400/1000V ±1%rdg±2dgt
Ω 400/4000Ω lusmn;1.5%rdg±2dgt
Continuity buzzer buzzer sounds below 50±35Ω
Output Voltage 400/2000A DC400mV/200mV
Conductor Size Ø55mm max.
Safety Standard IEC 61010-1 CAT.IV 600V CAT.III 1000V
IEC 61010-031
IEC 61010-2-032
Frequency Response 40Hz~1kHz
Withstand Voltage 6880V AC for 5 seconds
Power Source R6P (AA) (1.5V) ×2
Dimensions 250(L) × 105(W) × 49(D)mm
Weight 530g approx.
Accessories 7107 (Test Leads)
8201 (Output Plug)
9094 (Carrying Case)
R6P (AA) × 2
Instruction Manual
Optional 8008 (Multi-Tran) (AC only)
7014 (Output Cord)
