KEW2001A 2001 KEWMATE POCKET MULTIMETER

AC/ DC, 100AMP CURRENT CLAMP

Code: 46440015

EACH
Special
Buy-In
$499 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

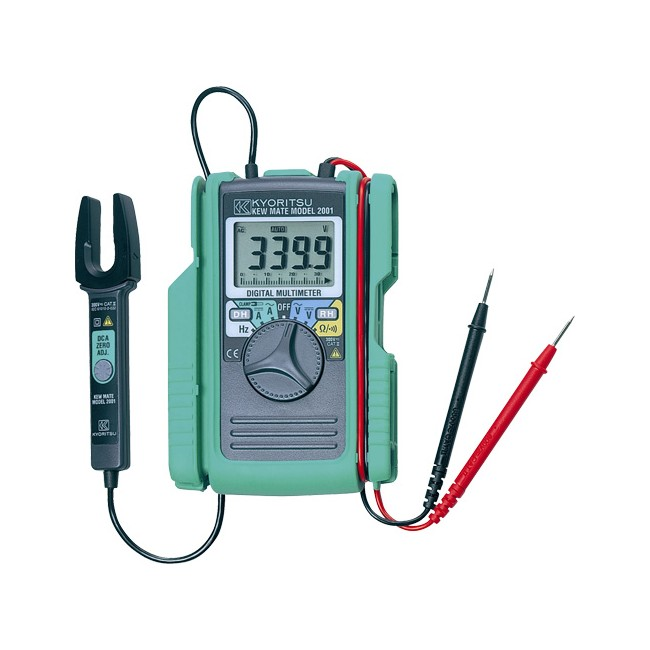

2001 KEWMATE POCKET MULTIMETER WITH OPEN CURRENT CLAMPSENSOR

Kyoritsu 2010 Multimeter Product Selection Guide (442kb PDFPDF filefile)

FEATURES:

  • Capable of measuring AC and DC currents up to 100A with OPEN CLAMP SENSOR
  • 3400 counts with bargraph display.
  • Pocket size and heavy duty design
  • Sleep function to save battery consumption
  • Designed to international safety standard IEC61010-1 CAT.III 300V

SPECIFICATIONS:

Range Measuring Range Accuracy
DC A 100A 0~100A plusmn;2%rdg±5dgt
AC A 100A 0~100A plusmn;2%rdg±5dgt (50/60Hz)
DC V 340mV
3.4V
34V
340V
600V		 0~600V
(5 Autoranging)		 %rdg±4dgt
AC V 3.4V
34V
340V
600V		 0~600V
(4 Autoranging)		 plusmn;1.5%rdg±5dgt
(50~400Hz)
Resistance
(Ω)		 340Ω
(Continuity)
3.4kΩ
34kΩ
340kΩ
3.4MΩ
34MΩ		 0~33.99MΩ
(6 Autoranging)
Buzzer sounds at 30Ω 		plusmn;1%rdg±3dgt




(±5%rdg±5dgt)
(±15%rdg±5dgt)
Frequency
(Hz)		 AC A 3.4kHz
10kHz		 0~10kHz
(2 Autoranging)		 %rdg±1dgt
AC V 3.4kHz
34kHz
300kHz		 0~300kHz
(3 Autoranging)		 %rdg±1dgt
MaximumAC/DC
Circuit Voltage		 600V AC/DC (between line/neutral)
300V AC/DC (against earth)
Conductor Size Ø10mm max.
Withstand Voltage 3700V AC for 1 minute
Safety Standard IEC61010-1 CAT.III 300V Pollution Degree 2
IEC61010-2-031
IEC61010-2-032
IEC61326-1
Power Source Two R03 or equivalent (DC1.5V) batteries
Dimensions 128(L) × 91(W) × 27(D)mm
Weight 220g approx.
Accessories R03(1.5V) × 2
Instruction Manual
Optional Soft Case
