PC2668 6W CEILING SPEAKER

SURFACE MOUNT TOA

Code: 39776122

1.14 kg
EACH
Special
Buy-In
TRADE ALERT!
$69 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

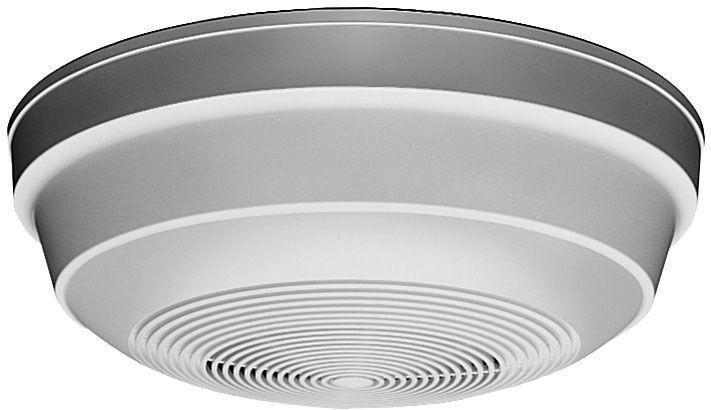

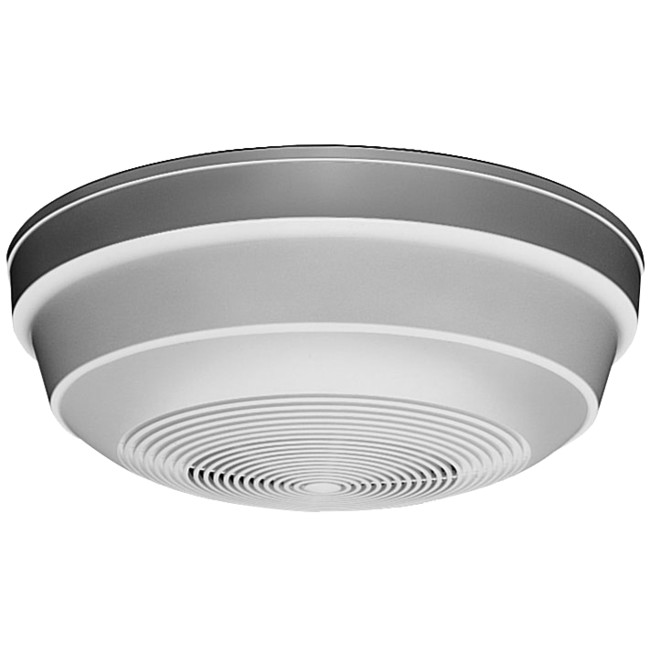

TOA - PC-2668 Surface mount ceiling speaker

The PC-2668 speaker can be mounted (exposed installation) to the ceiling where flush mounting is impossible.

It can be easily installed thanks to its spring catchmethod.

Push-in connector allows quick wire connection, and speaker lines can be bridged by bridging terminals.

The supplied bracket can be mounted to a flush-mount pull box.



Specifications


Rated Input

 6 W (for 100 V Line), 3 W (for 70 V Line)
Rated Impedance 100 V Line: 1.7 kΩ (6 W), 3.3 kΩ (3 W),
(6.7 kΩ (1.5 W), 13 kΩ (0.8 W): Internalwiring must be changed)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W),
(6.7 kΩ (0.8 W), 13 kΩ (0.4 W): Internalwiring must be changed)
Sound Pressure Level 90 dB (1 W, 1 m, 330 Hz - 3.3 kHz Pink noise)
Frequency Response 100 Hz - 16 kHz
Speaker Component 12 cm dynamic cone-type speaker
Speaker Mounting Method Spring catch
Applicable Cable
600 V Vinyl-insulated cable (IV wire or HIV wire)
Solid copper wire: Φ0.8 - Φ1.2 mm
7-core twisted copper wire: 0.75 - 1.25 m?
Connection Push-in connector (Bridging terminal-2 branch type)
Finish Baffle: ABS resin, off-white (RAL 9010 or equivalent color)
Dimensions Φ260 × 92 (D) (Exposed section) mm
Weight 820 g (Bracket included)
