TOA CS-154BS 15W 100V LINE WD HORN AS7240.24:2018
The TOA CS Series music horn speakers,certified to Australian Standards AS 7240.24:2018 are ideal for indoor and outdoor commercial sound system applications for voice paging, background music and tone signalling distribution.
CS Series speakers offer wider frequency range up to 15kHz and superior sound quality.
Each includes a built-in 100V transformer with screwdriver-adjustable power taps.
All CS models are fully weather-resistant to withstand demanding environmental conditions with a sealed enclosure, full-range moisture-resistant cone speaker, stainless-steel mounting hardware and a protective punched net.
The enclosure is also coated with polyurethane resin paint to resist the fading effects of prolonged exposure to ultraviolet light. . 6W, 100V line. Certified to AS 7240.24:2018. Outdoor Type B. Stainless steel bracket and hardware
The CS-154BS is the voice alarm certification product.

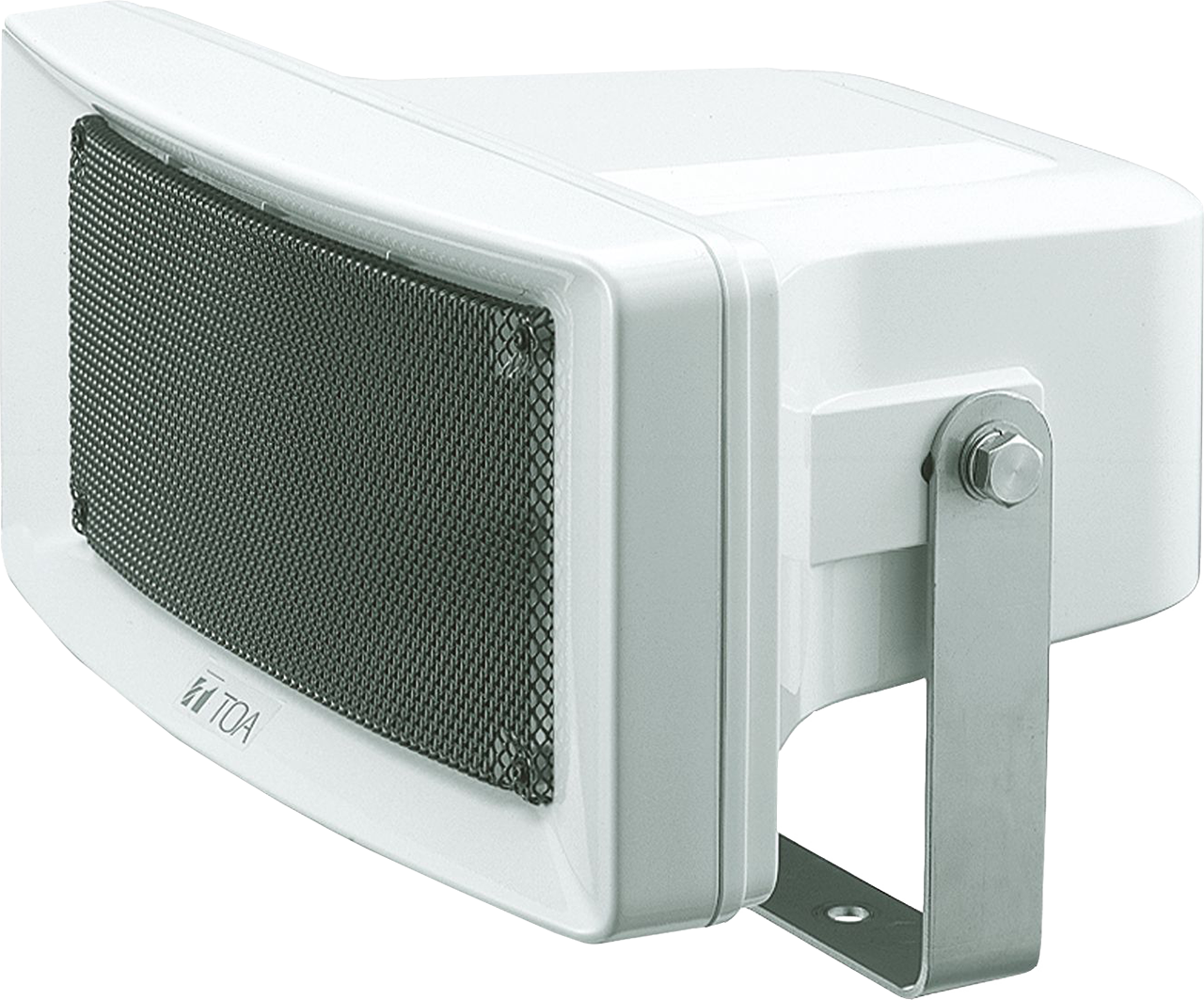

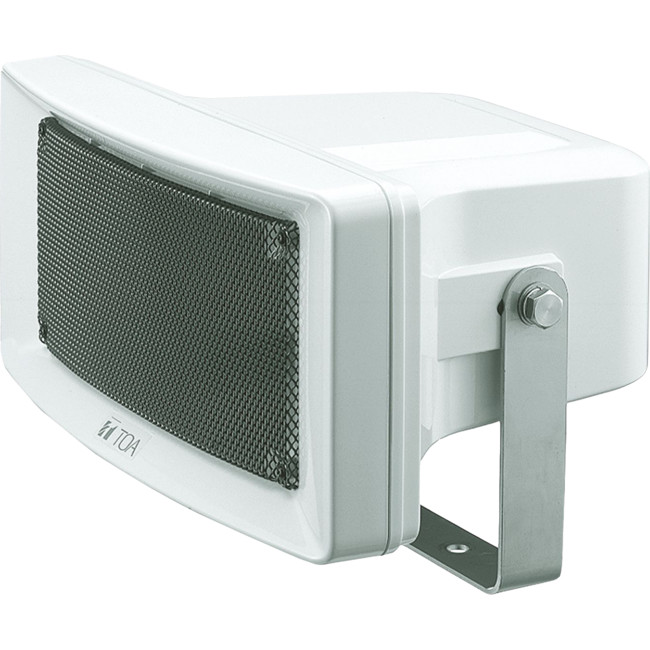

The CS-154BS Wide range speaker features an ABS resin enclosure and stainless steel bracket for all weather durability.
It is comprised of a high-efficiency weather-resistant horn and a high quality sound cone speaker, providing clear and highly directional sound reproduction.
The CS-154BS is equipped with a constant directivity horn(90° horizontal) to control sound directivity, realizinguniform and clear sound dispersion over a wide area.
- Square weatherproof speaker for outdoor use
- Lightweight and rugged construction
- Exponential horn for improved directivity
- High SPL
- Complete with stainless steel bracket
- Certifiedto Australian Standards AS 7240.24:2018
- IP65
Application examples for this product:
- Industrial facilities
- Parking garages
- Railway stations
- Sport facilities
- Stadiums
- Highly humid locations (locker rooms of swimming pools and bathrooms)
Specifications
| Frequency response | 150 Hz - 15 kHz |
| Connection | Ceramic screw terminals, thermal fuse, externalconnection box, 5-wire BS-compliant |
| Sensitivity (1 W, 1 m) | 97 dB (330 Hz - 3.3 kHz, pink noise) |
| Rated input (High Impedance) | 15 W |
| Tappings | 100 V : 670 Ω (15 W) / 1 kΩ (10 W) / 2 kΩ (5 W)
70 V : 330 Ω (15 W) / 670 Ω (7.5 W) /1 kΩ (5 W) / 2 kΩ (2.5 W) |
| Operating temperature | –20 C to 55 C (-4 °F to 131 °F) |
| Finish | ABS resin, paint, off-white (RAL 9010 or equivalent)
Bracket: Stainless steel |
| Dimensions | 366 x 230 x 310 mm (W x H x D) |
| Weight | 3 kg |
| Accessory (included) | Terminal cover ...1 |
| | |
