RLIR505 IR TARGET AND JUNCTION BOX

FOXTEL COMPATIBLE DISCRETE IR

Code: 37168748

0.1490 kg
9328202020161
EACH
In Stock
DON'T PAY $149.95
$109 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

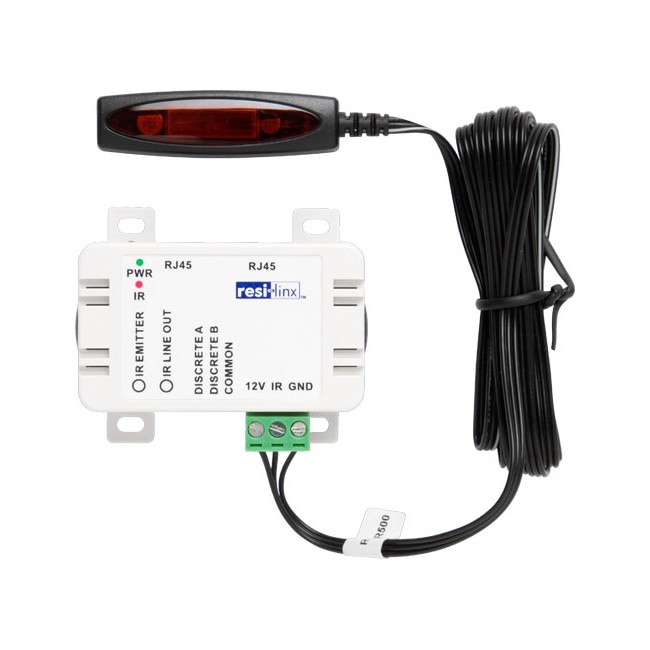

RL-IR505 ‘linx-IR’ Receiver Module and Flat IR Target

Receiver Module for use in resi-linx® NEW 'linx-IR' Discrete Infra Red system.

Advantage of Discrete IR control of specific AV devices from each zone via Dip Switch selection.

Easily extendable cable distance by 'Plug and Play' facility using RJ45.

Built-in LED's to show acknowledgement of IR commands and power status.

Powered remotely by Distribution Module.


FEATURES:

  • Receiver Module for use in resi-linx® NEW ‘linx-IR’ Discrete Infra Red system with RLIR305 (Distribution Module) and RL-IR700 (single) or RL-IR800 (double) Emitter
  • Advantage of Discrete IR control of specific AV devices from each zone via Dip Switch selection
  • Facility for IR control of local AV device/s by connecting RL-IR700/800 Emitter directly to Receiver Module
  • Easily extendable cable distance from Receiver Module by ‘Plug and Play’ facility using RJ45 connector to either Distribution Module or RL-IR170 (IR Distribution Hub)
  • Built-in LED to show acknowledgement of IR commands and Power Status
  • Powered remotely by Distribution Module
  • Foxtel Approved (Approval No: F30544) - works with all Foxtel and all other receivers

SPECIFICATIONS:


Frequency Range20 kHz - 200 kHz
Cable Length Included1.75m
Max. Cable LengthUp to 60 metres
Max. Target Reception DistanceUp to 10 metres
Max. Targets per System - inc. RL-IR305Up to 7 Targets
Dimensions70mm × 40mm × 23mm

Connection diagram
Click on image for larger version
