RLIR170 IR OVER CAT5 DISTRIBUTION

RLIR170 RESI-LINX IR OVER CAT5 DISTRIBUTION

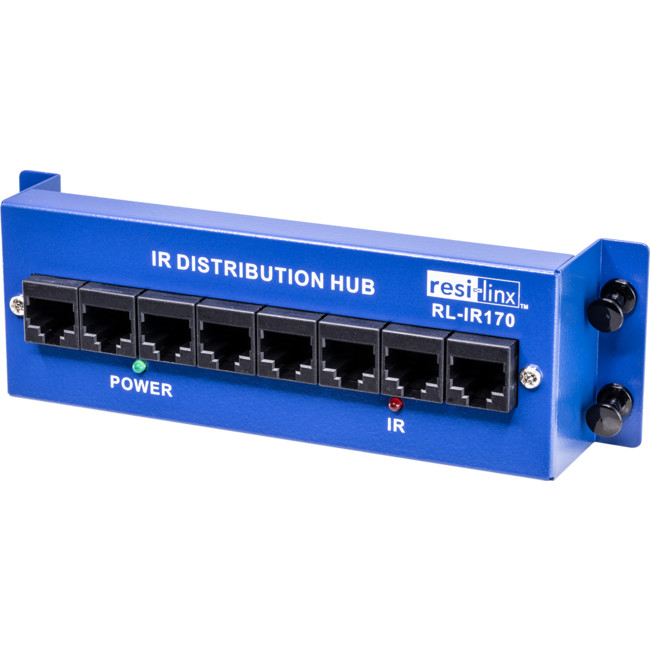

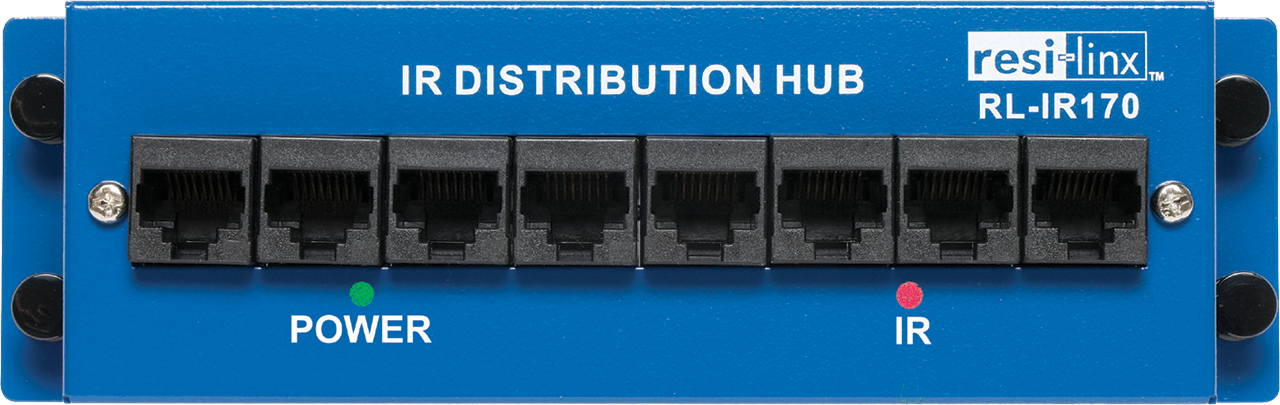

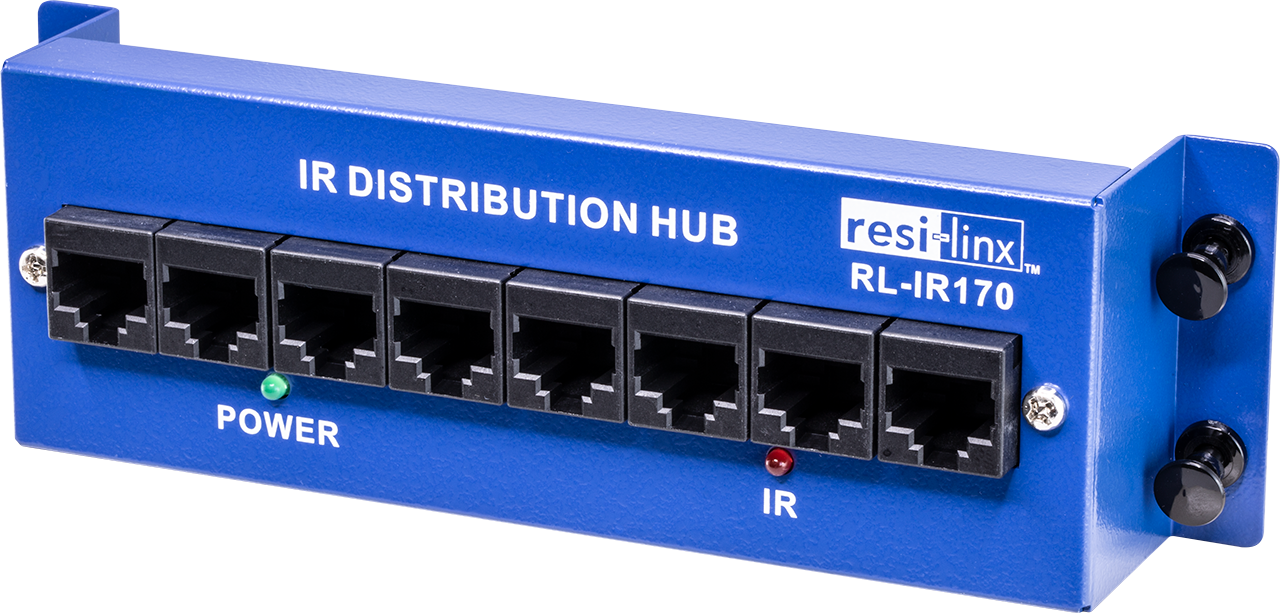

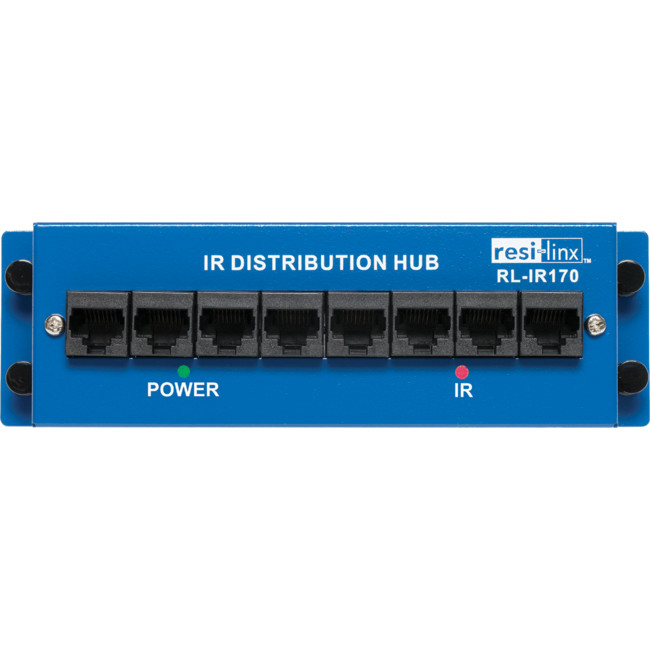

CAT5e IR Distribution Hub that allows for simple IR distribution to up to 7 Targets in a star-wired configuration.

Shallow mount metal casing.

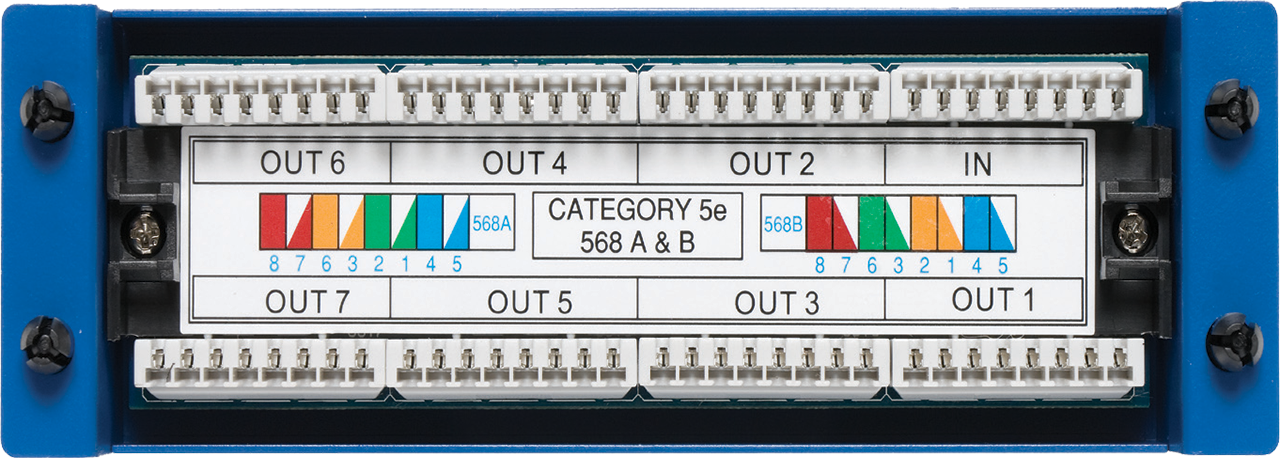

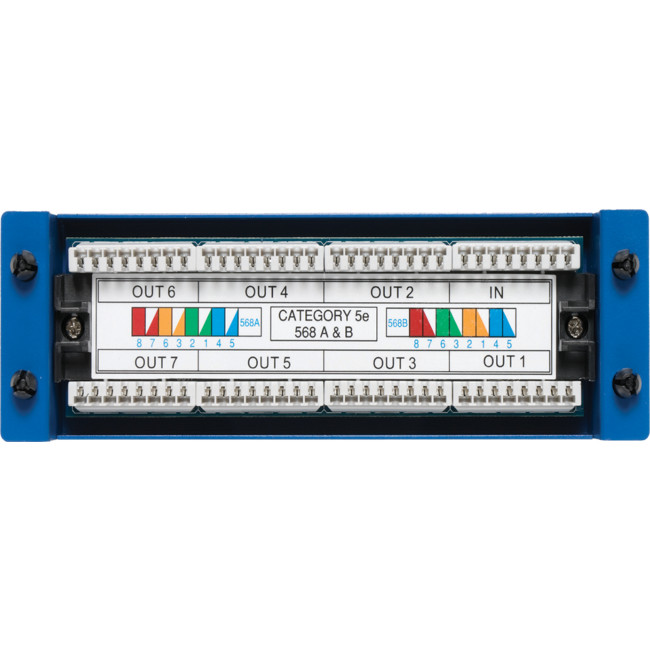

Accommodates up to 8 individually terminated lines via RJ45 sockets or IDC terminations.

Features

• CAT5e IR Distribution Hub that allows for simple IR distribution to up to 7 Targets in a star wired configuration
• Shallow mount metal casing designed for easy mounting into resi-linx enclosure (CS-SC200) or any 9 inch racking system enclosure
• Accommodates up to 8 individually terminated lines, which can be distributed to 7 different locations via RJ45 sockets
• Foxtel Approved (Approval No: F30545) - works with all Foxtel and all other receivers

Specifications

Connection Example

FAQ

What if my equipment is located in more than one room?

The connections can be used for either emitter blocks (RLIR305) or target blocks (RLIR600 or RLIR505). Having multiple locations for your source equipment is not an issue, so long as there are sufficient sockets available on the hub (RLIR170)

The hub (RLIR170) has 8 8P8C (RJ45) sockets and 8 punch down sockets on it. Does that mean that I can connect up to 16 units?

Yes. You could connect say 2 emitter blocks (RLIR305) and 14 target blocks (RLIR600 or RLIR505).
