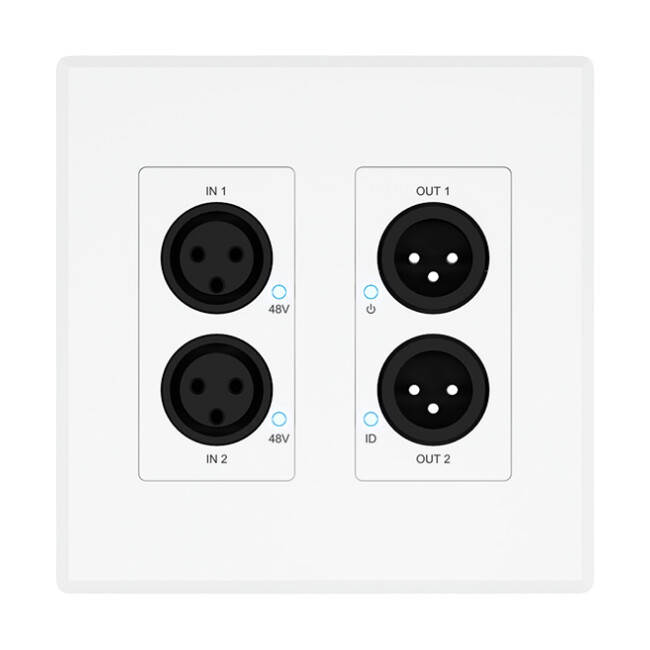

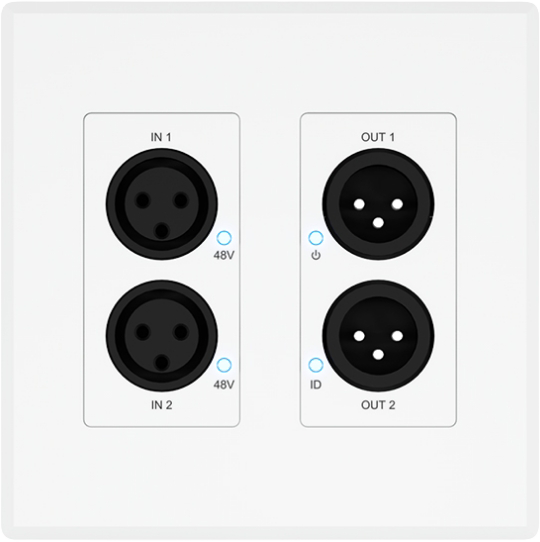

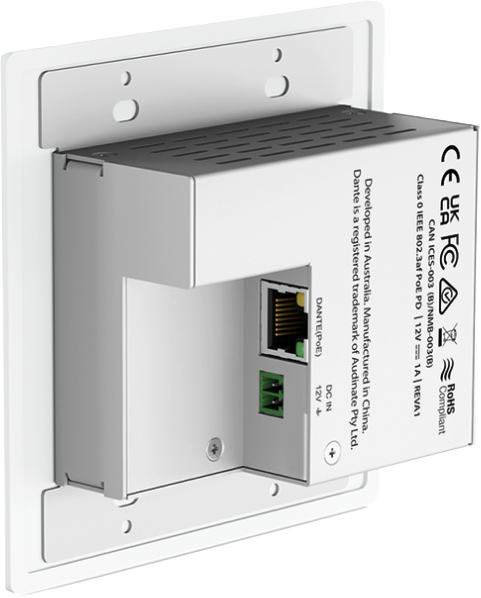

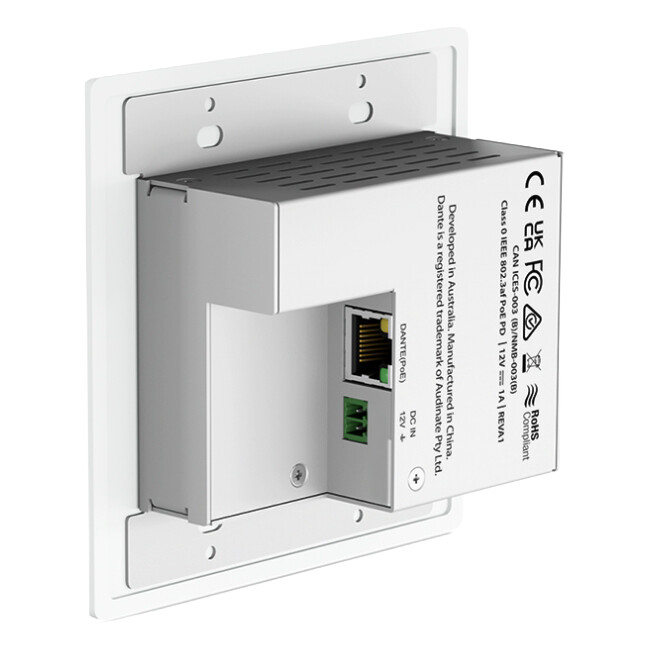

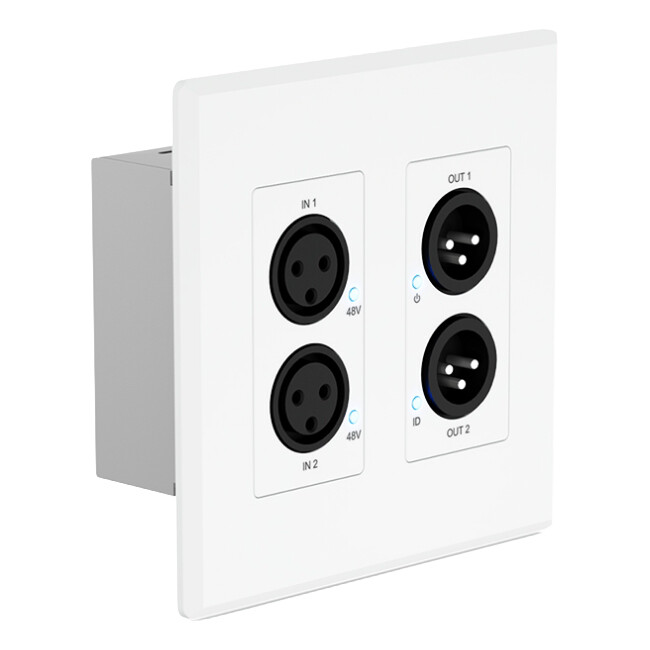

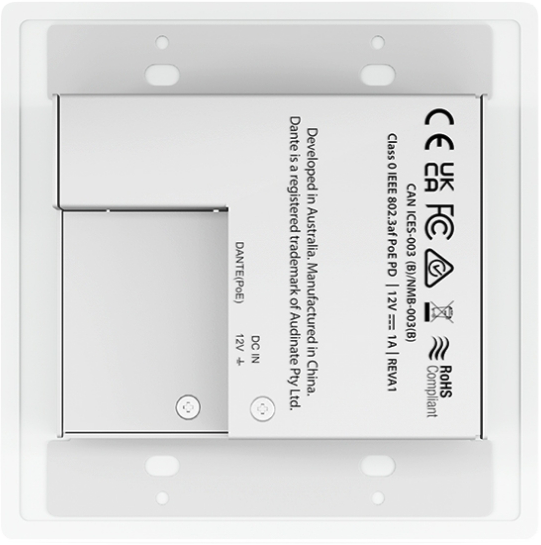

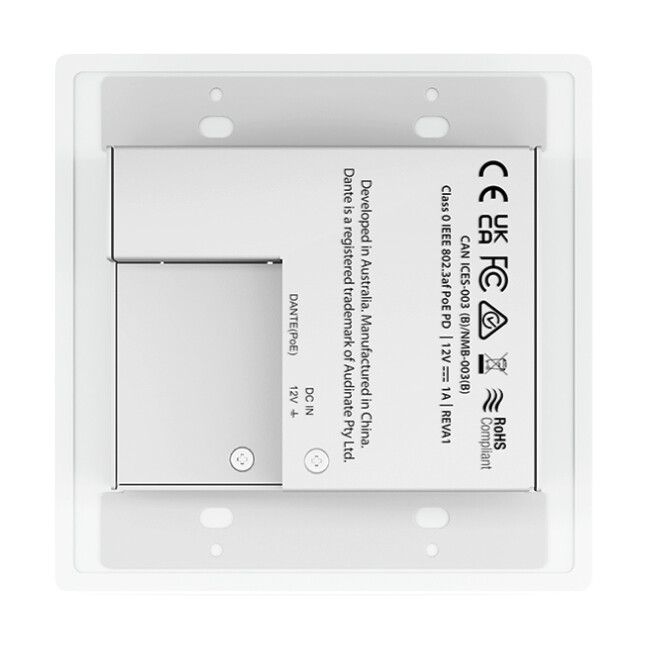

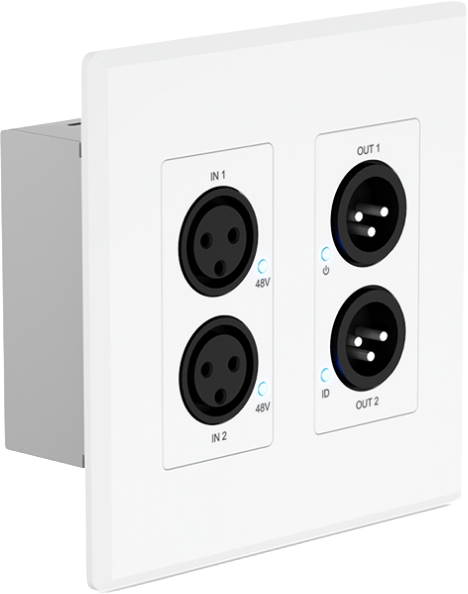

DA22XLRWP-US-V2 LINE / MIC XLR DANTE AUDIO WALL PLATE

2+2 - WHITE ONLY

Code: 30365168

EACH
Special Buy-In
$999 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

DA22XLR-WP-US-V2 Line / MIC 2+2 XLR Dante® Audio Wall Plate

The DA22XLR-WP-V2 is a multi-input / output wall plate to convert analog audio within a digital Dante® networked audio system.

The DA22XLR-WP-V2 converts 2 input channels of balanced / unbalanced / MIC audio with switchable 48v Phantom power to Dante® digital audio, and 2 channels of Dante® audio to 2 output channels of balanced / unbalanced audio.

The DA22XLR-WP-V2 is a plug & play device that is powered using PoE (Power over Ethernet), or via 12v power supply, offers support for AES67 RTP audio transport and magnetic faceplate design allows installation into standard dual Decora US junction boxes. The DA22XLR-WP-V2 is the ideal BYOD interface to a Dante® audio system.

48V PhantomAudio BreakoutMICPlug PlayPoEXLR

Key Features:

  • Dante® network wall plate interface for 2 x audio inputs and 2 x audio outputs
  • Converts 2 x balanced / unbalanced / MIC audio sources to Dante® audio channels
  • Converts 2 x Dante® audio channels to balanced / unbalanced audio outputs
  • Switchable 48V Phantom power for each MIC XLR input
  • Adjustable MIC / line sensitivity from +24dBu to -28dBV for each XLR input
  • Adjustable line gain from +20 dBu to -28 dBV for each XLR output
  • Supports: 44.1, 48, 88.2 & 96kHz sample rates @ 16, 24 or 32 Bit
  • Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)
  • Supports AES67 RTP audio transport
  • Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
  • Supports power via 12V DC adapter (not included) for when network switch does not support PoE
  • White magnetic faceplate surround and US Decora style backbox compatibility
  • In-built web-GUI for configuration and control

Specifications:

  • Audio Input Connectors: 2 x Analogue balanced/unbalanced 3-Pin XLR connector
  • Audio Output Connectors: 2 x Analogue balanced/unbalanced 3-Pin XLR connector
  • Network Connectors: 1 x PoE Dante® Ethernet Connection (RJ45)
  • Configuration Switches: 2 x Push button (48V Phantom power)
  • Firmware Upgrade: 1 x Micro-USB port
  • Module Dimensions (L x W x H): 105mm x 95mm x 45mm (without faceplate)
  • Faceplate Dimensions (L x W x H): 115mm x 115mm x 5mm
  • Cut Out Dimensions (L x W x H): 89mm x 71mm x 41mm
  • Mounting Hole Spacing: US 83.5mm CTC
  • Backbox Requirements: US double gang junction box
  • Shipping Weight: 0.6kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
  • Power Supply: Class 0 IEEE 802.3af POE PD or 12V/1A DC, 2-Pin Phoenix connector

Box Contents

1 x DA22XLR-WP-US-V2
1 x Magnetic Faceplate
1 x Quick Reference Card
