TU660M PREMIUM 60W 100V DRIVER UNIT

REQUIRES TH650 OR TH660 FLARE

Code: 21815925

EACH
Special
Buy-In 1 IN STOCK
TRADE ALERT!
$229 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

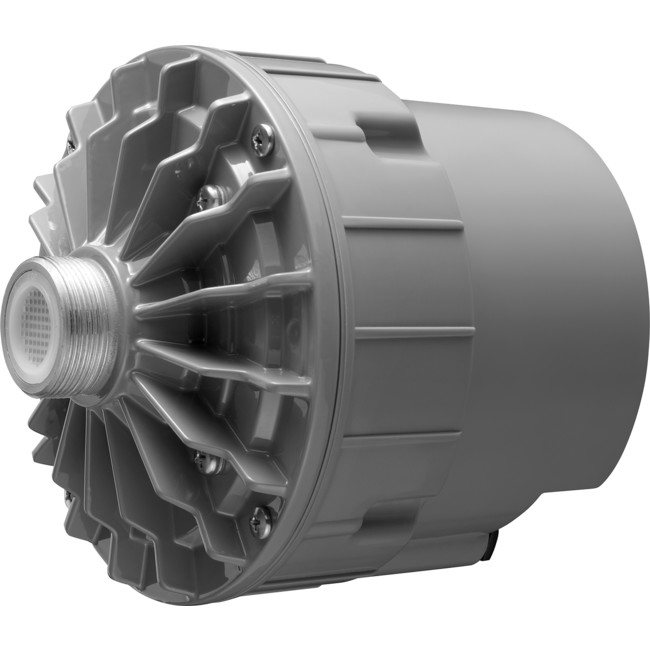

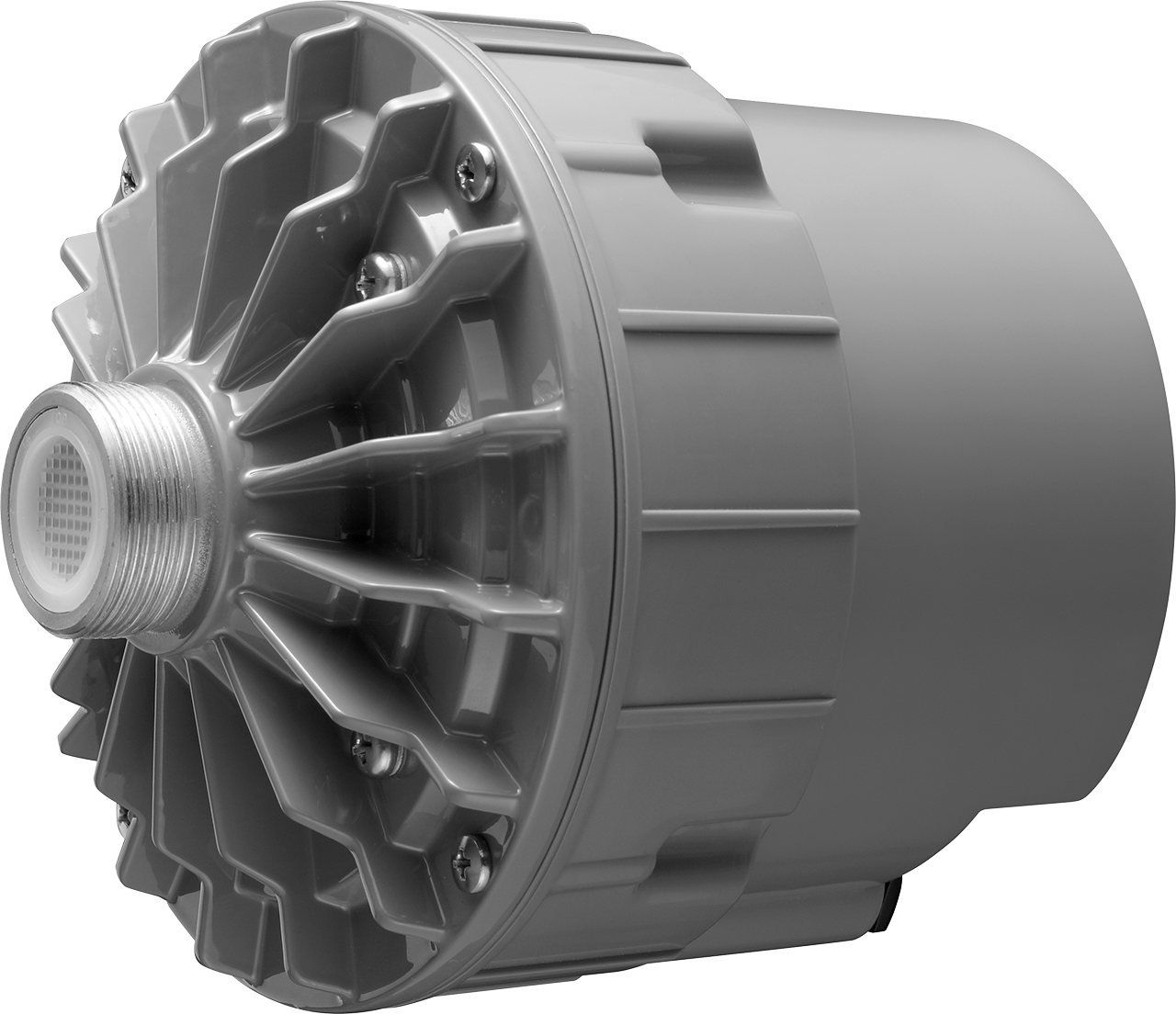

TOA TU-660M - Premium 60 Watt Driver Unit, 100V Line 110dB, 150Hz - 8kHz

The TU-660M is a highly intelligible driver unit suitedto public address announcement applications.

Use the driver unit in combination with a suitable horn(option).

Its powder-coated finish and stainless steel screws ensure the unit's weatherproof capability.

Also employing a newly developed ring diaphragm ensuresthe unit's high frequency characteristics.


Specifications

Applicable Horns TH-650, TH-660
Rated Input 60 W
Line Voltage 100 V line or 70 V line
Rated Impedance 100 V line: 170 O (60 W), 330 O (30 W), 670 O (15 W)
70 V line: 83 O (60 W), 170 O (30 W), 330 O (15 W), 670 O (7.5 W)
Sensitivity 110 dB (1 W, 1 m) (When operated with JIS C 5504 standard horn.)
Frequency Response 150 Hz - 8 kHz (When operated with JIS C 5504 standard horn.)
Dust/Water Protection IP65 (When a driver is operated with a horn.)
Horn Coupling 1 - 3/8 18 threads (inch screw)
Polarity Hot: Black, Com: White
Operating Temperature -20 ? to 55 ? (-4 ?F to 131 ?F) (no condensation)
Finish Flange: Aluminum, gray, powder coating
Rear cover: ABS resin, gray
Screws: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm (0.24") in diameter, 600 mm (23.62") in length)
Dimensions f139 x 151 (D) mm (f5.47" x 5.94")
Weight 2.7 kg (5.95 lb)
