What This Product Does

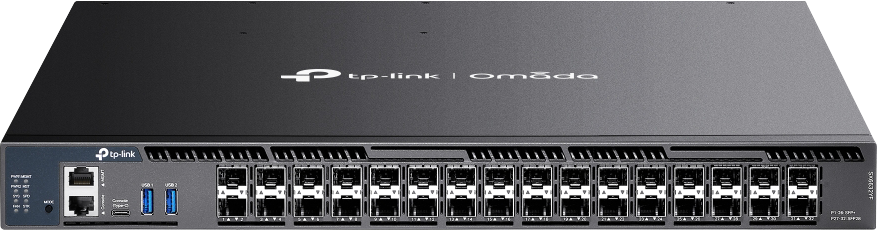

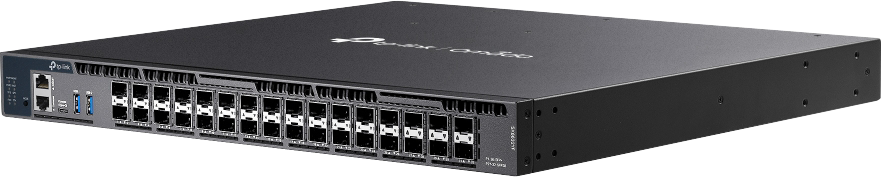

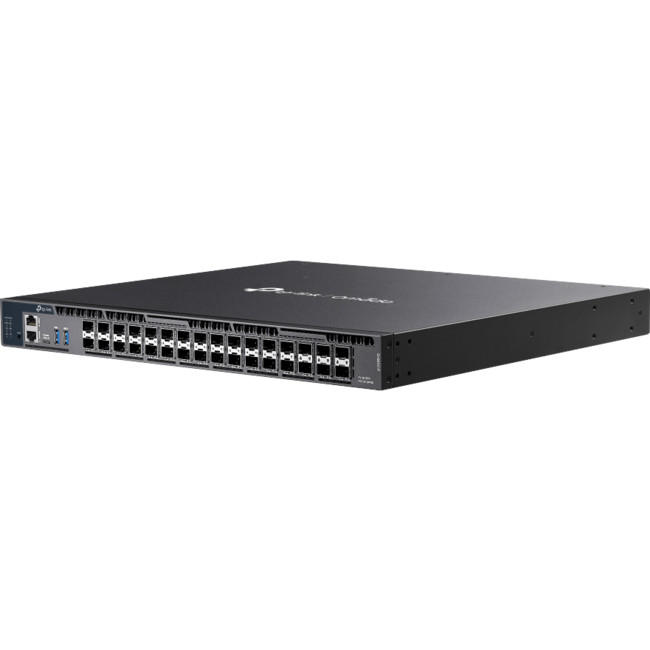

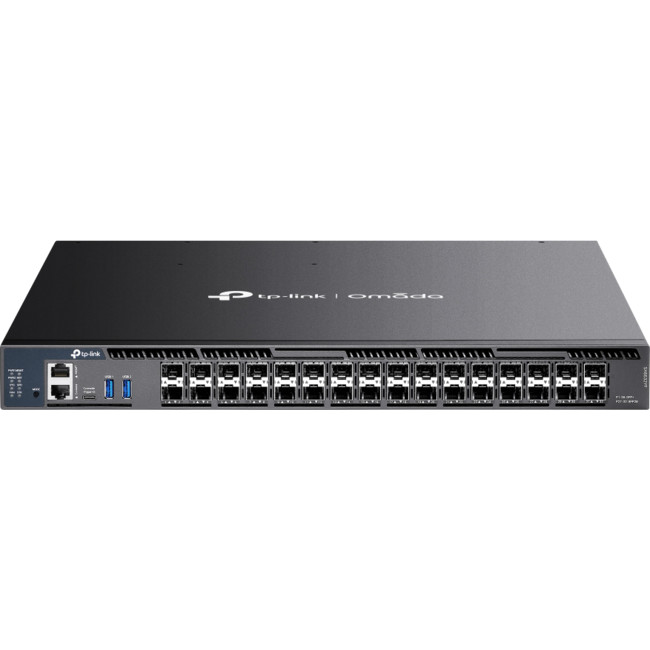

The Omada SX6632YF is a true L3 managed switch with full fiber ports that offers L3 routing, swift 25 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 6 25 Gbps SFP28 slots, 26 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP). The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SX6632YF is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
| HARDWARE FEATURES |
| Interface | 6 10/25G SFP28 Slots
26 10G SFP+ Slots
2 USB 3.0 Ports
1 RJ45 Console Port
1 USB Type C Console Port
1 RJ45 Management Port |

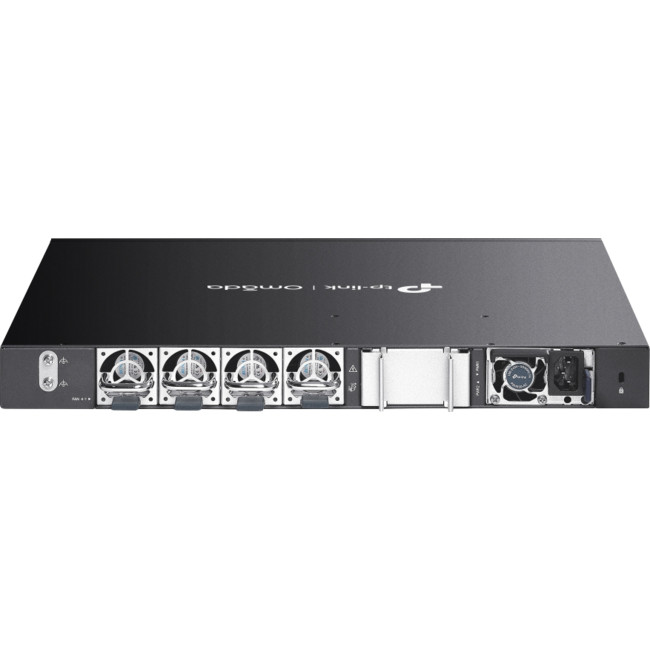

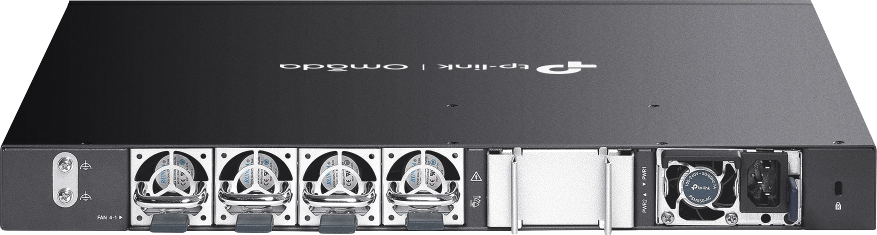

| Fan Quantity | Four field-replaceable and hot-swappable fans |
| Physical Security Lock | v |
| Power Supply | Two field-replaceable and hot-swappable redundant power supplies (100 240 VAC, 50/60 Hz)
*Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase. |
| Power Consumption | 86.7 W (110 V/60 Hz) |
| Dimensions ( W x D x H ) | 17.3 15.0 1.7 in (440 380 44 mm) |
| Mounting | Rack Mountable |
| Max Heat Dissipation | 295.85 BTU/hr (110 V/60 Hz) |
| PERFORMANCE |
| Switching Capacity | 820 Gbps |
| Stacking | Stacking Number: 8 in standalone mode, 4 in Omada controller mode
Stacking Port: 25G SFP28
Stack Bandwidth: Up to 300 Gbps (6 stack ports) |
| Packet Forwarding Rate | 610.1 Mpps |
| MAC Address Table | 128 K |
| Packet Buffer Memory | 8 MB |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES |
| Quality of Service | Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
Bandwidth Control
- Rate Limit
- Strom Control
Voice VLAN
User-Defined OUI
|
| L3 Features | RoutingIP Interfaces
- Static Routing
- Host Route Table
- RIP v1/v2
- RIPng
- OSPFv2/v3
- VRRP
- ECMP
- ARP Proxy
DHCP
- DHCP Server
- DHCP Relay
- DHCPv6 Relay
- DHCP Snooping
- DHCPv6 Snooping
Multicast
- Multicast Table
- IGMP v1/v2/v3
- Static Multicast Routing
|
| L2 and L2+ Features | Switching
- Port Mirroring(SPAN)
- RSPAN
- Loopback Detection
- Traffic Monitor
Trunking
- Static LAG
- LACP 802.3ad
Mac Address
- MAC Address Table
- Static MAC
- Dynamic MAC Address
- Filtering MAC Address
- MAC Flapping
STP
- STP 802.1d
- RSTP 802.1w
- MSTP 802.1s
- Loop/Root/TC Protect
- BPDU Protect/Filtering
ERPS
Multicast
- IGMP Snooping
- MLD Snooping
- L2 Multicast Table
- Fast Leave
- Multicast VLAN Registration (MVR)
- Static Multicast IP
- Multicast Filtering
|
| Advanced Features | Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ISP Features:
802.3ah Ethernet Link OAM
L2PT (Layer 2 Protocol Tunneling)
Device Link Detect Protocol (DLDP)
DDM
sFlow |
| VLAN | IEEE 802.1q Tag VLAN
MAC VLAN
Protocol VLAN
VLAN VPN(QinQ)
Private VLAN
GARP/GVRP
Voice VLAN
Multicast VLAN
Management VLAN
|
| Security | Access Security
- Port/MAC/IP-based Access Control
- SSL
- SSH
Port Security
Port Isolation
CPU-Deffend
Time Range
- Time Range Defination
- Periodic Time Range
- Absolute Time Range
- Time Holiday
ACL
- Entries
- L2/L3/L4 ACL
- ACL Action
- ACL over VLAN
- ACL over Port
IP-MAC Binding
- IP+MAC+PORT+VID Binding
- Manual Binding
- ARP Scanning
- DHCP Filter
- DHCPv6 Filter
- DHCP Option 82
ARP Inspection (Dynamic ARP Inspection)
IP Source Guard
IPv6 Source Guard
ND Neighbor Discovery/ ND Snooping/ ND Filtering
DoS Defend
Authentication, Authorization & Accounting (AAA)
- 802.1X Port Authentication
- RADIUS Authentication
- RADIUS Accounting
- TACACS+ Authentication |
| MANAGEMENT |
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP Auto Install
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
Password Recovery
SNTP
System Log |
| OTHERS |
| Package Contents | SX6632YF Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare , UNIX or Linux. |
| Environment | Operating Temperature:
-5 C to 50 C (23 F to 122 F) @ 300 meters
-5 C to 45 C (23 F to 113 F) @ 2,000 meters
-5 C to 40 C (23 F to 104 F) @ 3,000 meters
Storage Temperature: -40 C to 70 ? (-40 ? to 158 ?)
Operating Humidity: 10 90% RH non-condensing
Storage Humidity: 5 90% RH non-condensing |
These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Please go to www.tp-link.com/en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with the Omada Cloud-Based Controller.
*Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase.
