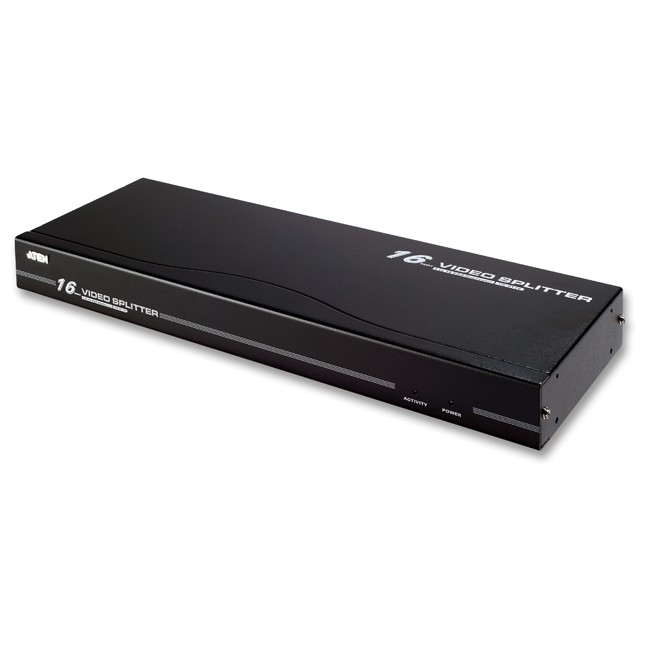

VS0116 16 WAY VGA VIDEO DISTRIBUTION

AMPLIFIER SPLITTER WITH AUDIO

Code: 09005049

EACH
Special
Buy-In
$520 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

16-Port VGA Video Splitter with Audio

The VS0116 16 Port Video Splitter with Audio duplicates and enhances the video and audio signals from an input source (i.e. a computer) and routes them to up to 16 output devices (monitors, projectors, etc.)Furthermore, it can be cascaded to additional ATEN video splitters to support hundreds of monitors.

FEATURES:

  • One video input to 16 video outputs.
  • Cascadable to 3 levels -provides up to 8/64/512 and thousands of video signals.
  • Audio enabled.
  • Supports up to 250MHz; bandwidth.
  • Long distance transmission - up to 65 m (210').
  • High video resolution - 1920 x 1440.
  • DDC, DDC2, DDC2B Compatible (Port 1 only).
  • All metal casing.
  • Designed for enterprise use - 1U in size.
  • Supports VGA, XGA, SVGA, UXGA and multisync monitors.
  • OS Support: Windows 2000, Windows XP, Linux, Mac and Sun

Package Content:

  • 1x 16-Port Video Splitter with Audio
  • 1x VGA/Audio Cable (1.8m)
  • 1x Power Adapter
  • 1x Rack Mount Kit
  • 1x Quick Start Guide
  • 1x User Manual

SPECIFICATIONS:

Display Connections 16
Connectors Video In 1 x HDB-15 Male (Blue)
Audio In 1 x Mini Stereo Jack Female
(Green)
Video Out 16 x HDB-15 Female (Blue)
Audio Out 16 x Mini Stereo Jack Female
(Green)
Power 1 x DC Jack
Switches Video Gain 1 x Slide
LEDs Power 1(Blue)
Activity 1(Green)
Video Bandwidth 250MHz
Video 1920 x 1440 @ 60Hz
Sync Range Sync Positive / Negative
Signal Range Up to 65m (210')
Power Consumption DC5.3V, 3.3W (Max)
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 2.80 kg
Dimensions
(L x W x H)		 43.30 x 16.00 x 4.40 cm (19"/1U)
