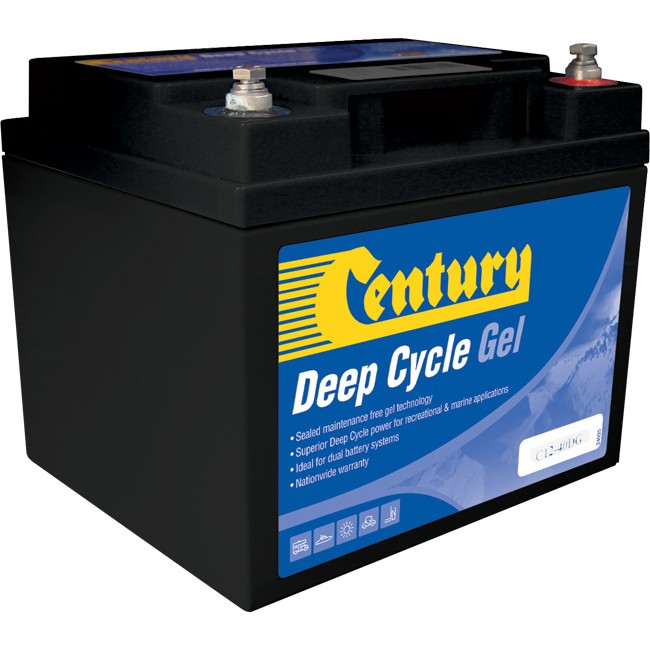

CENTURY DEEP CYCLE GEL BATTERIES - Gel Electrolyte = NO LOOSE LIQUID
WHY CHOOSE A DEEP CYCLE BATTERY?
Deep cycle batteries provide sustained power over extended periods of time and are designed to be repeatedly discharged and recharged. Choose a deep cycle battery when you require long-running power and the peace of mind that your battery will last - charge after charge.
DEEP CYCLE BATTERIES EXPLAINED
Car batteries vs deep cycle batteries
- Car batteries:
- To understand why a deep cycle battery would be used in certain applications, we can compare a deep cycle battery with a standard carbattery.
- The car battery could be called “shallow cycle”, providing a high burst of power for a short time, just long enough to start a car’s engine. Only a small portion of the battery’s power is used, and this is restored over time by the car’s alternator.
- Standard car batteries have thinner lead grids and porous active material (lead oxide based paste coated onto the battery grids) to maximise the surface area of grid exposed to the acid.
- Maximising the surface area provides greater current flow and as a result, greater starting power. However, because car batteries have thinner grids and more active material, they are not as reliable in providing longperiods of power.
- Deep cycle batteries:
- Unlike standard car batteries, deep cycle batteries are constructed with thicker grids of antimony lead alloy and a denser paste of active material to withstand discharge and recharge cycles.
- This construction allows the deep cycle battery to deliver sustained power with low current drain for extended periods of time. Repeatedcycling (discharge and
recharge) does not cause the same level of damage that a car battery would sustain from the same process. - The ability to deliver steady power with long cycle life makes the deep cycle battery an ideal solution for a range of both recreational and industrial applications.
In recreational applications, deep cycle batteries may be found in golf buggies, caravans, electric scooters, four wheel drive vehicles, boats and electric wheelchairs. - Deep cycle batteries are also ideal for materialshandling equipment such as pallet movers and forklifts. However, they can also be usedin other industrial applications such as auxiliary power supplies, solar devices and a scissor lifts.
Types of deep cycle battery:
- There are several different types of deep cycle batteries available, each with specific features designed to suit different applications.
- Flooded Batteries
- These are the most basic widely used type of lead acid battery. Lead plates are suspended in wet acid which means electrolyte levels require periodic topping up. Flooded batteries are fairly tolerant of charging rate and depth of discharge. Leaving flooded lead acid batteries to stand in a discharged state can cause irreparable damage.
- Gel Batteries
- The electrolyte of a gel battery is held in a jelly-like state. Gel batteries can be left discharged for longer periods of time without affecting their ability to recover. However, the batteries require very strict monitoring of the charger voltage and a rest period is necessary after rapid charging to ensurethe true charge state is known.
- Absorbed Glass Mat (AGM) Batteries
- AGM batteries consist of acid suspended in a special glass mat separator. This is state-of-the-art technology. AGM batteries have a higher charge acceptance rate than other types and they are not as susceptible as gel batteries to damage caused by lack of charge voltage control. These batteriesare sealed and do not leak if the battery case is fractured.
FEATURES:
- Century Deep Cycle Gel Batteries are specially designed to provide long lasting, dependable deep cycle power under extreme operating conditions.
- The Century Gel Deep Cycle Range incorporates advanced Gel electrolyte technology which holds the battery plates in an immobolised gel. Specialist hard wearing internal components and strong grid designs combine to provide excellent vibration resistance, superior deep cycle performance and repeated deep discharge and recharge capabilities. They are ideal for use in recreational vehicles and accessories, electric powered vehicles, mobility scooters, wheel chairs and marine applications.
SPECIFICATIONS:
| Cells | 6 |
| Voltage | 12 |
| Capacity | 40Ah@20hr-rate to 1.75V per cell @ 25°C |
| Weight | Approx. 13.5 Kg |
| Max. Discharge Current | 400 A (5 sec) |
| Internal Resistance | Approx. 9.0mΩ |
| Operating Temperature Range | Discharge:-40°C~60°C |
| Charge:-20°C~50°C |
| Storage: -40°C~60°C |
| Normal Operating Temperature Range | 25°C ± 5°C |
| Float charging Voltage | 13.6to 13.8 VDC/unit Average at 25°C |
| Recommended Maximum Charging - Current Limit | 8A |
| Equalisation and Cycle Service | 14.2 to 14.4VDC/unit Average at 25°C |
| Self Discharge | Century GEL batteries can be stored for more than6 months |
| at 25°C. Self-discharge ratio less than 3% per month |
| at 25°C. Please charge batteries before using. |
| Terminal | M6 Insert |
| Container Material | A.B.S. (UL94-HB). |
| Dimensions (mm) | 198 (L) X 166 (W) X 171 (H) |
| Note: Warranty void if mounted under bonnet. | |
