STAGEPAS100BTR STAGE PASS 100 100W PORTABLE PA SYSTEM

6.5" CO-AXIAL DRIVER FITTED WITH LITHIUM BATTERY

Code: 01457254

EACH
Special
Buy-In
$899 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

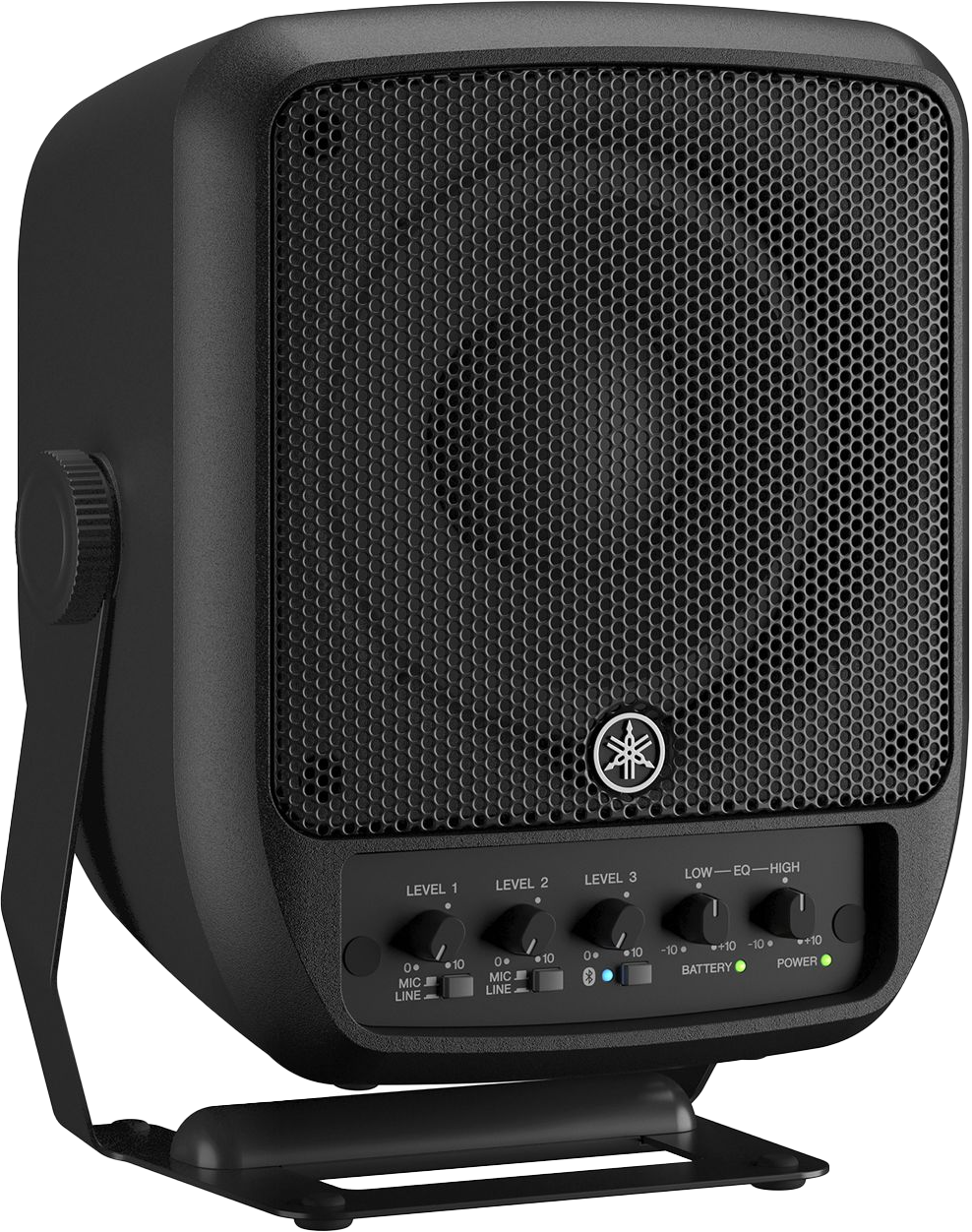

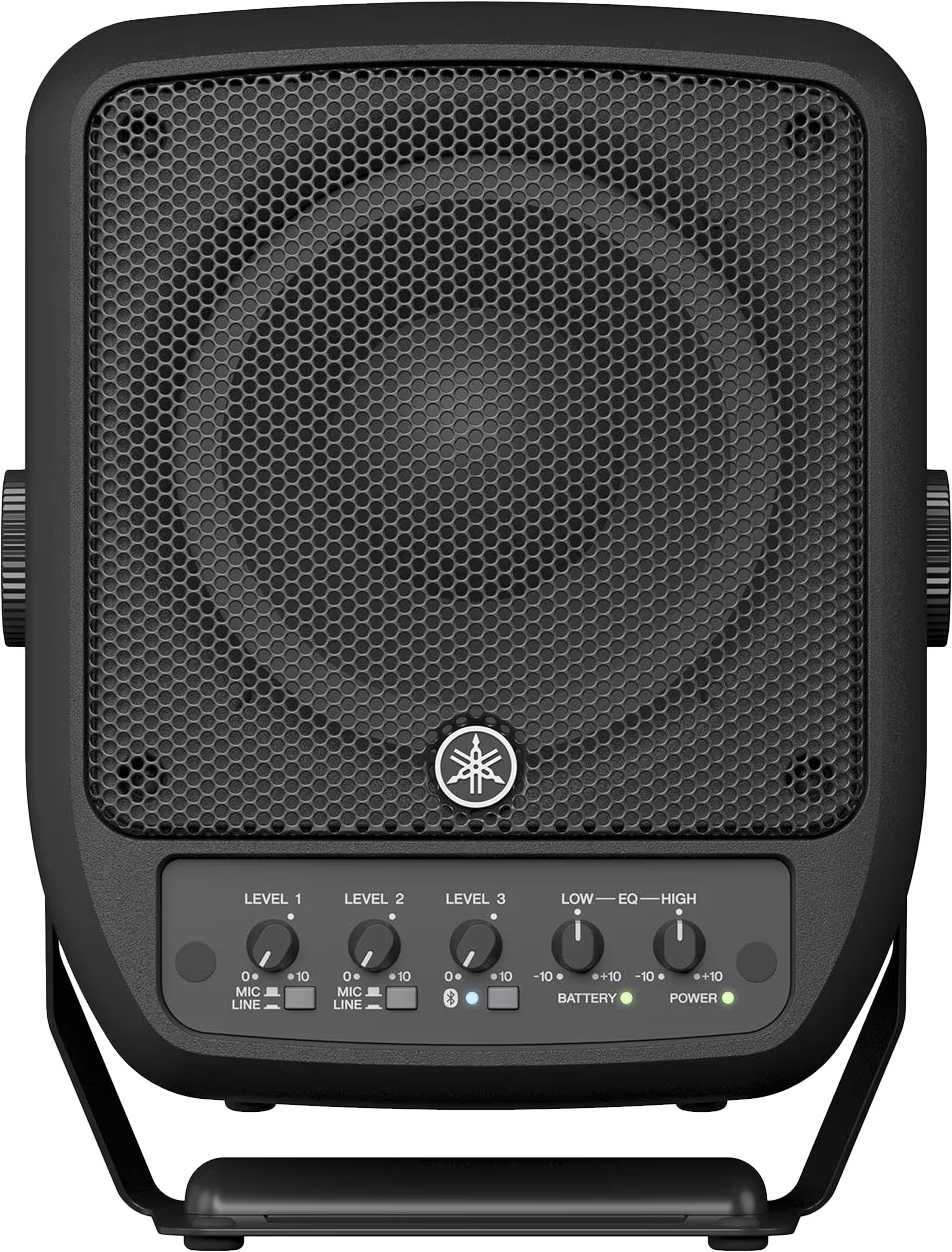

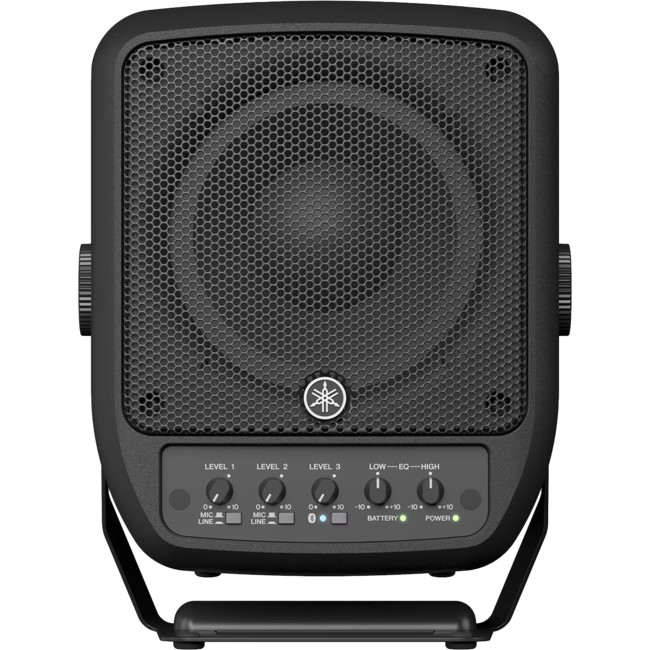

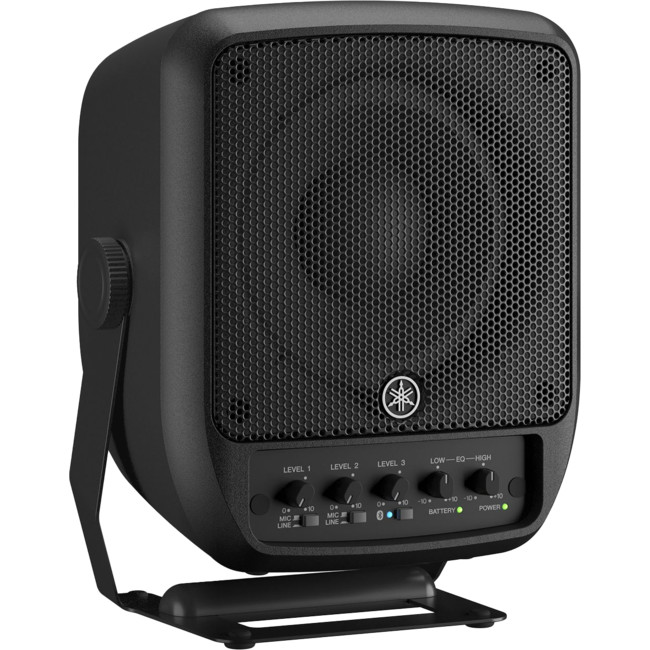

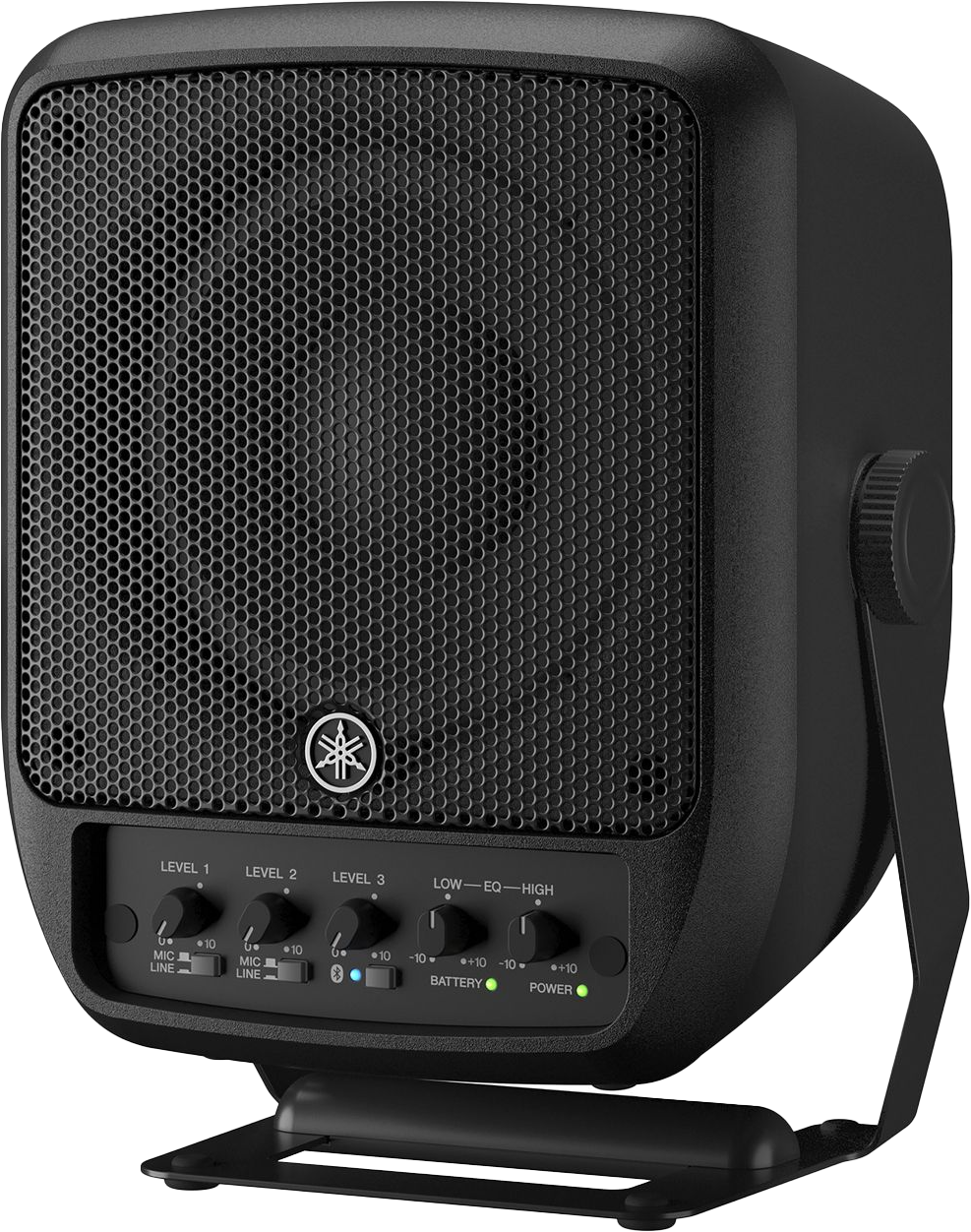

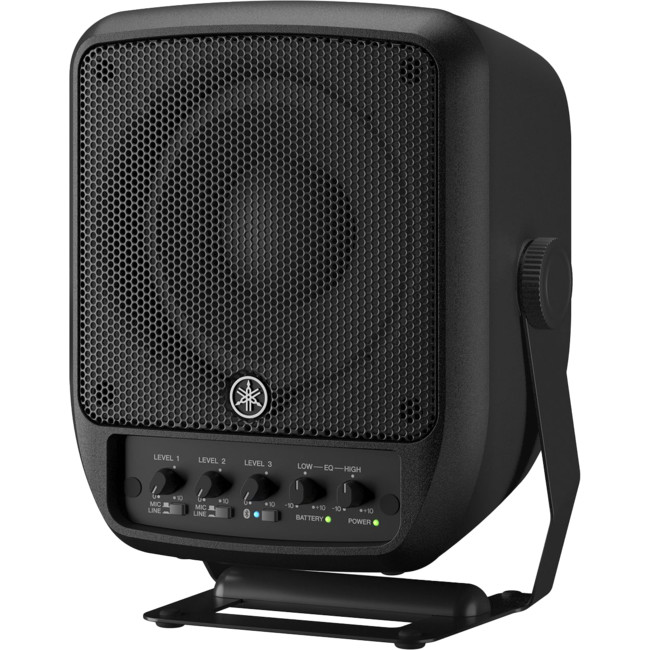

Yamaha STAGEPAS 100BTR Portable PA System

Portable PA system equipped with a 100 W power amp, coaxial compression driver with 1.4” voice coil HF and 6.5” cone LF, a 3-channel mixer, and internal lithium-ion battery

  • 100 W Class-D amplifier
  • 1.4” HF 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
  • 3-channel mixer (2 monaural mic/line 1 line)
  • Equipped with a 2-band master EQ
  • Compatible with Hi-Z input (Channel 2 only)
  • Equipped with mix-out
  • Carrying handle doubles as an adjustable stand
  • Compatible with audio accompaniment over Bluetooth
  • Optional carrying bag (BAG-STP100) available for convenient transport
  • Internal lithium-ion battery



EXPAND YOUR RANGE, EXTEND YOUR REACH

The STAGEPAS 100 portable PA system strikes a perfect balance between high-quality sound and ultimate portability that will allow you to turn virtually any location into your own intimate live stage. Coming in two versions, one with a battery and one without, the lightweight yet durable design, effort-less operation, and astonishing sound of the STAGEPAS 100 will help you reach your audience with the full expression of your performance.

Yamaha STAGEPAS 100: EXPAND YOUR RANGE, EXTEND YOUR REACH


Compact design. Big sound.

Far more than just a speaker that amplifies your mic or instrument inputs, the diminutive STAGEPAS 100 delivers impressive sonic performance by leveraging some of the same technologies used in our high-end professional products. A powerful, high-quality coaxial compression driver combined with Yamaha’s FIR-X filters for the HF and LF crossover deliver sound pressure, precise phase response, and a natural dispersion that will ensure every nuance of your performance is conveyed loud and clear to your audience.

Start the show in seconds

With an unrivaled ease of operation and a setup requiring mere seconds, the STAGEPAS 100 will have you sounding great and performing in an instant. Just turn the power on, connect a micro-phone and your instrument, turn the volume up, and you're ready to go. The master EQ is right on the front panel making it easy to dial in your sound or adjust settings on the fly.

“A PA in the palm of your hand”

With all the essentials for a compact PA packed into a durable cabinet weighing just 5 kg, the STAGEPAS 100 takes portability to a whole new level. Having a personal live stage you can easily carry in one hand makes it possible to set up and play literally anywhere, anytime.

6 Hours of non-stop performance

Yamaha STAGEPAS 100: 6 Hours of non-stop performance

The STAGEPAS 100BTR is compatible with large-capacity lithium-ion batteries capable of up to 6 hours of continuous operation, delivering reliable performance in environments where there is no power source available.

Multipoint Bluetooth® connectivity

Yamaha STAGEPAS 100: Multipoint Bluetooth® connectivity

The STAGEPAS 100 also comes equipped with multipoint supported Bluetooth functionality adding even more convenience to your set up and operation with wireless connection for music/ audio playback using smartphones and tablets.

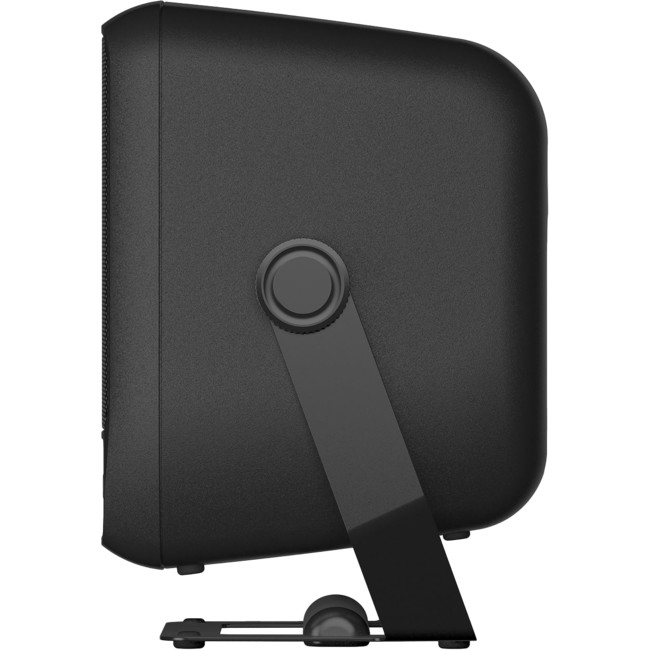

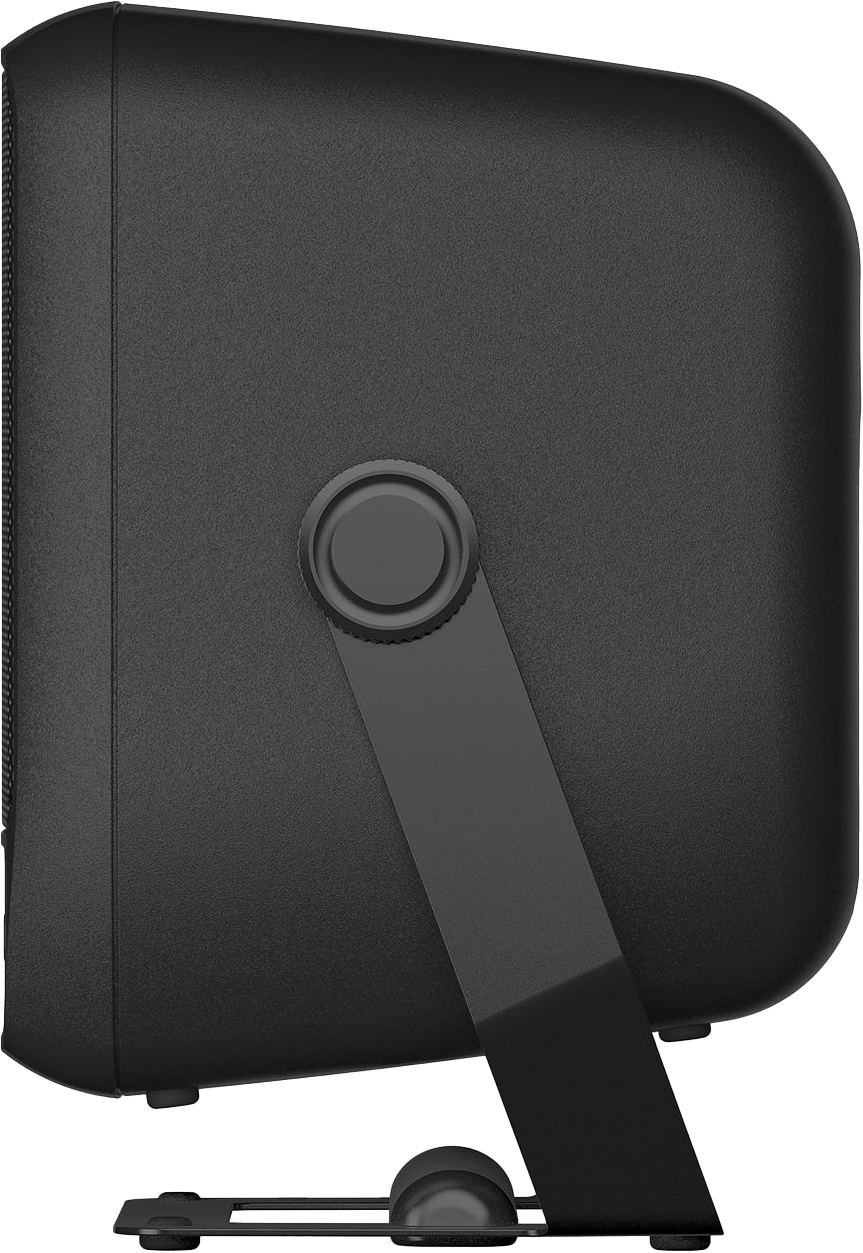

The right direction

Yamaha STAGEPAS 100: The right direction

Easily control your coverage area with the carrying handle that doubles as a stand when the unit is placed on the floor. The attachment screws can be adjusted to change the angle of inclination to direct your sound exactly where it needs to go.

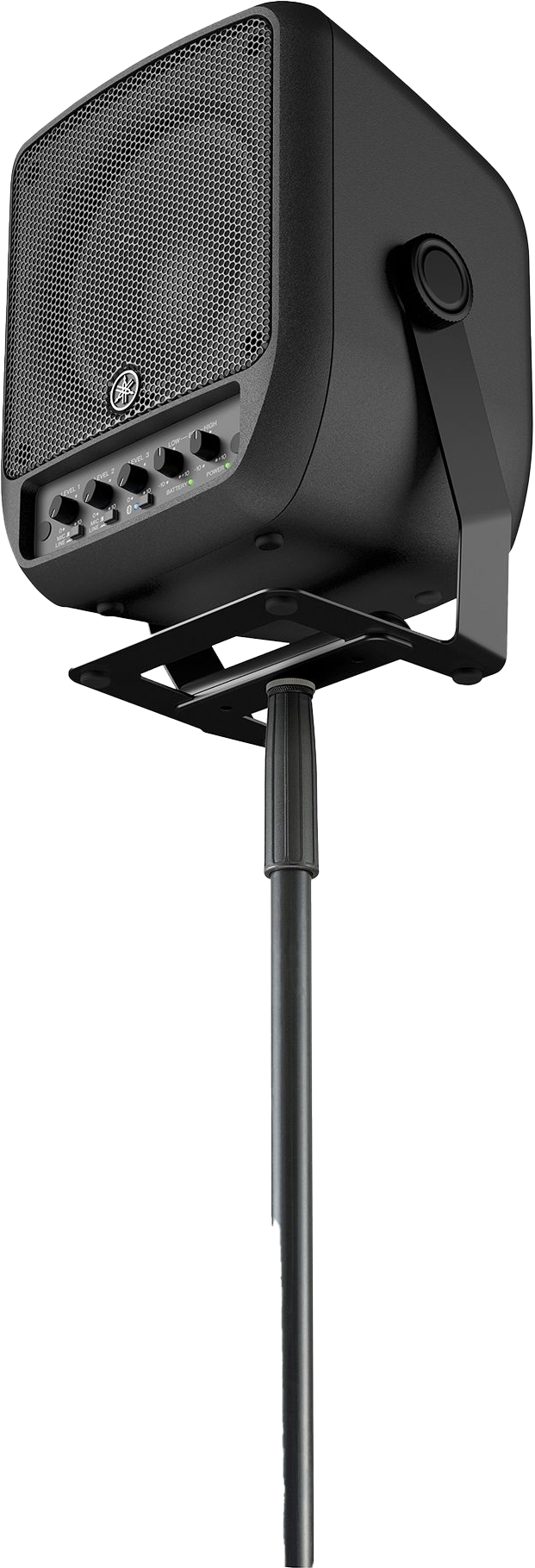

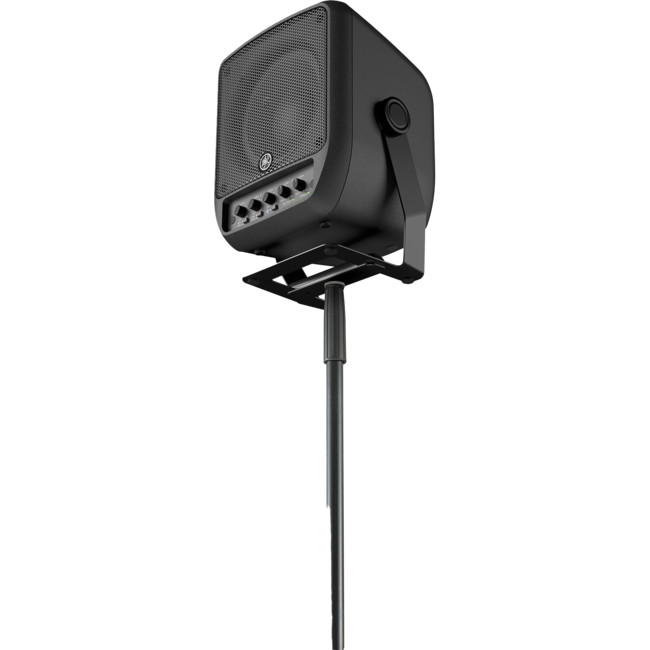

Mounting possibilities

Yamaha STAGEPAS 100: Mounting possibilities

The handle of the STAGEPAS 100 also features a 3/8" diameter screw hole that enable mounting on a microphone stand for more versatile sound dispersion options.

Whenever. Wherever.

Yamaha STAGEPAS 100: Whenever. Wherever.

The dedicated BAG-STP100 carrying bag features internal pockets for storing adapters, cables etc., as well as a padded shoulder strap for safe and easy transport to any location.



Optional

BAG-STP100Carrying Bag

Carrying bag for STAGEPAS 100.

  • Weight: 1.1 kg (2.4 lbs)
  • Dimensions (W x H x D): 370 x 240 x 240 mm (14.6" x 9.5" x 9.5")



Specifications

STAGEPAS 100BTR INCLUDES LITHIUM BATTERY STAGEPAS 100 - NO BATTERY
Type 2-way Bi-amp Powered Speaker with mixer 2-way Bi-amp Powered Speaker with mixer

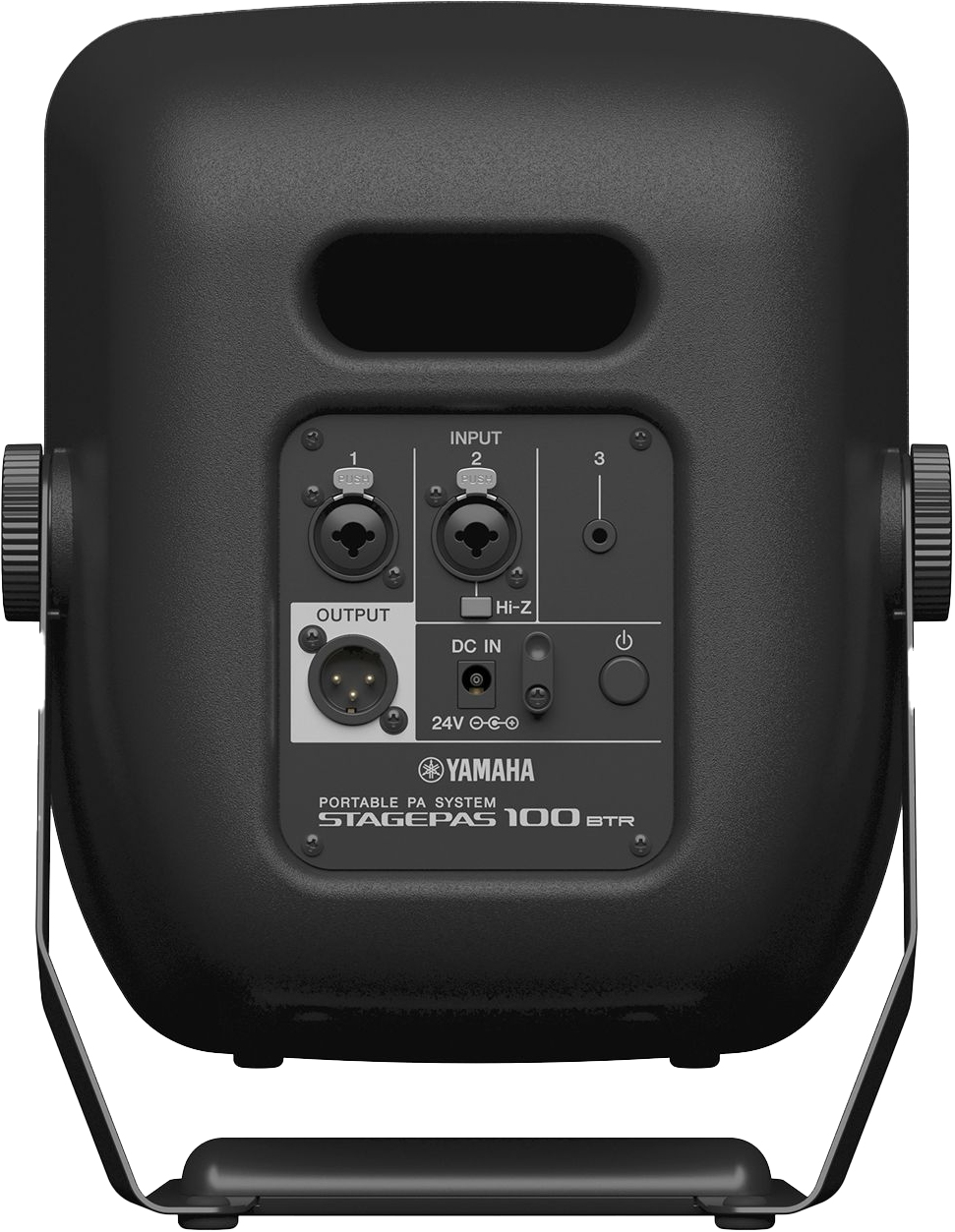

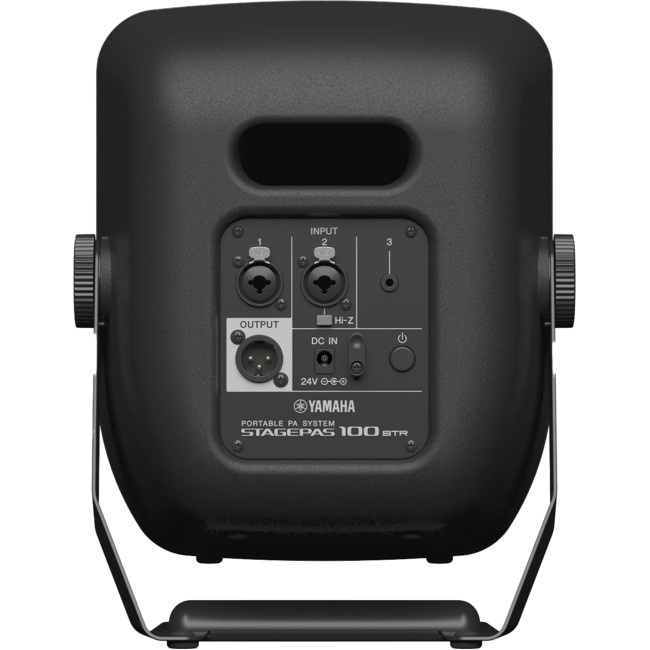

I/O Inputs INPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line), INPUT 3: Stereo Mini x1 (line) INPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line), INPUT 3: Stereo Mini x1 (line)
Outputs OUTPUT: XLR3-32 (INPUT 1-3 mix) OUTPUT: XLR3-32 (INPUT 1-3 mix)
Bluetooth Ver.5.0, A2DP (SBC, AAC), Class 1 Ver.5.0, A2DP (SBC, AAC), Class 1
Mixing capability Mixing channels 3 3
Input channel functions Hi-Z: CH2 Hi-Z: CH2
Output channel functions 2 Band EQ 2 Band EQ
Speaker type Coaxcial speaker with compression driver Coaxcial speaker with compression driver
Frequency range (-10dB) 70 Hz 20 kHz 70 Hz 20 kHz
Coverage area H90? x V90? H90? x V90?
Crossover 1.8 kHz (FIR-X) 1.8 kHz (FIR-X)
Maximum output level (1m; on axis) 120 dB SPL *1 120 dB SPL *1
Components LF 6.5" Cone, 1.7" voice coil 6.5" Cone, 1.7" voice coil
HF 1" throat compression driver, 1.4" voice coil 1" throat compression driver, 1.4" voice coil
Amplifier class Class-D Class-D
Power rating Dynamic 100 W (LF: 93 W, HF: 7 W) 100 W (LF: 93 W, HF: 7 W)
Cooling Natural convection (no fan) Natural convection (no fan)
Power consumption 10 W (Idle), 30 W (1/8 power) 10 W (Idle), 30 W (1/8 power)
Power requirements 100-240 V 50/60 Hz 100-240 V 50/60 Hz
Battery Type Rechargeable Lithium ion battery pack -
Capacity 60 Wh -
Operating Time Maximum 6 hours, 1/16 power continuous 5 hours -
Charging Time Approx. 2.5 hours -
Cabinet material Plastic (PP) Plastic (PP)
Handle Bottom x1 (Rotatable) Bottom x1 (Rotatable)
Flying and mounting hardware 1 × 3/8", depth 12 mm (center of handle) 1 × 3/8", depth 12 mm (center of handle)
Dimensions (W x H x D) 239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle 239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle
Weight 5.5 kg (12.1 lbs), without AC adaptor 5.2 kg (11.5 lbs), without AC adaptor
Accessories Power cord x 1, AC adaptor (PA-500) x 1 Power cord x 1, AC adaptor (PA-500) x 1
Options Carrying bag: BAG-STP100 Carrying bag: BAG-STP100
  • *1: Measured peak SPL with pink noise @1m.
