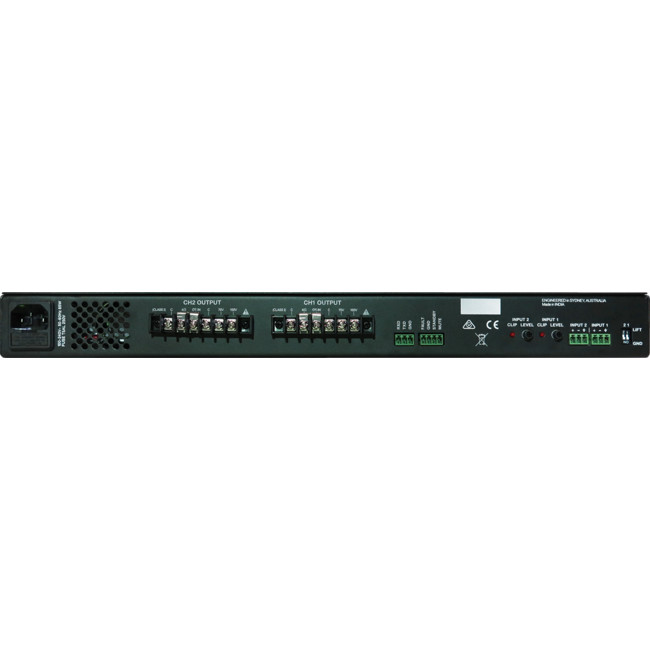

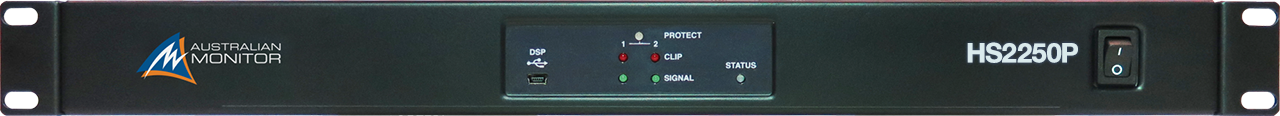

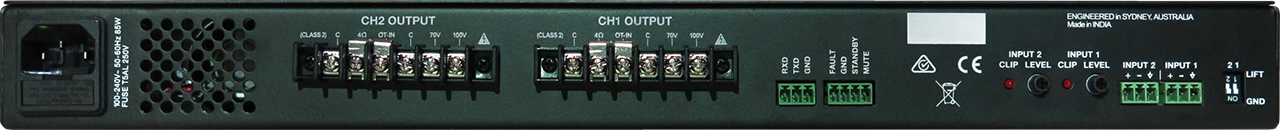

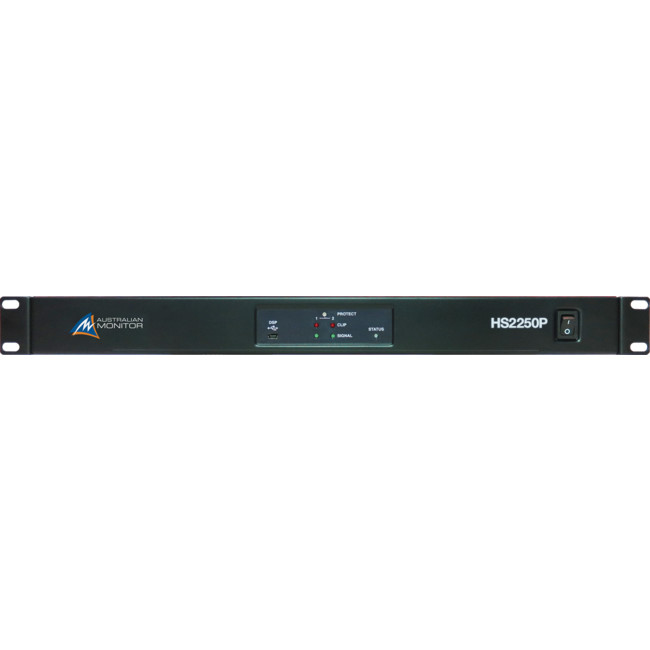

Australian Monitor HS2250P 2 x 250W Power Amplifier USB/RS232 Control with mini DSP
The HSP series is Australian Monitor's next generation ofcontrollable Class D power amplifiers, delivering high quality audio reinforcement with the power you need in the following options
- Single channel 120W or 250W, Dual channel 120W or 250Wand Quad channel 120W or 250W.
Australian Monitors new power amplifiers are fully featured, including an efficient Class D amplifier, USB and RS232 control and a mini DSP featuring volume control, mute,compressor/limiter, filter and input channel selection.
The HSP series power amplifiers give the AV contractor a reliable amplifier for applications that are price sensitiveyet still require high quality commercial sound reinforcement and control.
Key Features
- 2 x 250W power amplifier
- 4 ohm, 70V and 100V output options
- Class D topology
- Programmable via PC UI application
- USB and RS232 control
- Mini DSP - Volume controls, input / output routing, high and low pass filtering, compressor / limiter, pink noise / sine wave generator, muting and inversion
- Mute control via contact
- Standby control via contact
Fault status via contact
Class - D - Amplifier
The HSP amplifiers use an efficient Class-D amplifier topology allowing a greater power density with a much lower weight.
All amplifier channels offer 100V, 70V and 4? output options so you can choose the output configuration to match your application.
PC Control Application
Take control of your amplifier using the HSP Control Software.
The control software allows you to modify signal routing, DSP settings, channel naming, retrieve status information and more.
Download it now from the download section of this page and see what the HSP amplfier can do.
Integrated Mini DSP
The HSP amplifiers include a mini DSP engine with the following features,
- Input/Output Router
- High, Low Pass Filters
- Compressor / limiter
- Mute
- Inversion
3rd Party Control
Take further control of the HSP amplifiers with 3rd partysystem support over USB or RS232.
Enter "Developer Mode" in the PC application to easily seethe commands being sent and received from the amplifier.
The HSP control protocol can be found in the manual.
Specifications
| Output Power per Channel | 250W | Frequency Response | 100Hz - 16kHz |
| Output Channels | 2 | THD N | < 0.2% (-3dB) |
| Output Mode | 4 Ohm-70V-100V | Signal to Noise Ratio | > 97dB |
| Input Voltage | 100-240Vac 50-60Hz | Input Sensitivity | 1Vrms |
| Mounting | 1RU | Cooling | Fan-assisted |
| | Warranty | 5 years |
Product Dimensions
(W x D x H) | 483mm x 325mm x 44.5mm | Shipping Dimensions
(W x D x H) | 525mm x 425mm x 120mm |
| Net Weight | 9.0 Kg | Shipping Weight | 11.2 Kg |
| | GTIN EAN | 9323383019935 |
