BAE100 BLUETOOTH ANTENNA EXT KIT

AUDAC

Code: 00460320

5414795041516
EACH
Special
Buy-In
$74.80 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

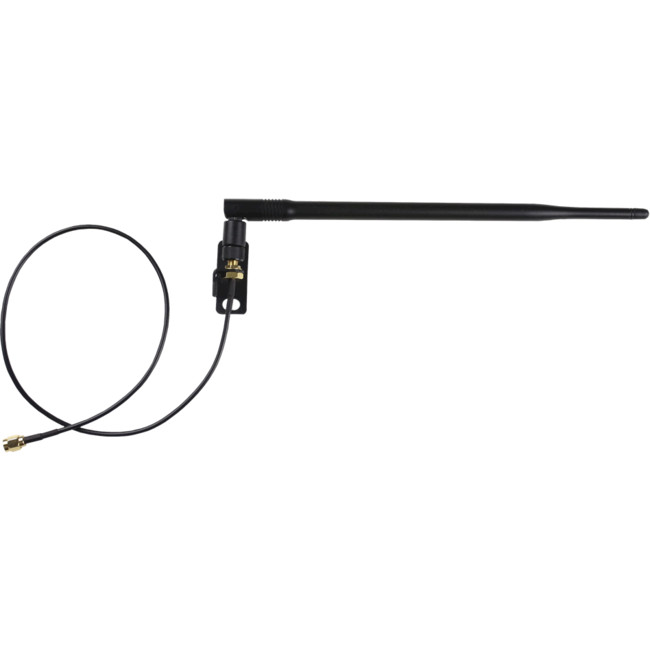

Audac BAE100 Bluetooth antenna extender kit

Audac have released the BAE100, a Bluetooth antenna extension kit for the PRE116 and PRE126 stereo preamplifiers and the BMP40 SourceCon card.

The BAE100 Bluetooth antenna extender kit, allows increasement of reception range for a Bluetooth (2.4 GHz) receiver when installed to a 19" equipment rack or any other(shielded) enclosure.

The BAE100 comes with everything you need to extend your Bluetooth signal:

  • 7dBi Antenna
  • Preterminated SMA antenna cable - 1 Metre
  • Preterminated SMA antenna cable - 5 Metre
  • Multifuctional Bracket (Rack-mount / Surface-mount)


The multifunctional bracket allows the antenna to be mountedto a standard rack-strip

(hint: use the preterminated 1 metre cable to allow you to mount the antenna to the front mounting strip of your rack, so that the Bluetooth signal is not having to penetrate through the steel of the equipment rack).

The same bracket can also be used to mount the antenna toa wall / ceiling (hint: this is where the included 5 metre cable comes in handy).



BAE100 - Bluetooth extender kit



SYSTEM SPECIFICATIONS
Impedance 50 ?
Polar Pattern Omnidirectional
Connection SMA Straight plug reverse
Frequency Range 2.4 GHz ~ 2.5 GHz
Antenna Gain 7.0 dBi
PRODUCT FEATURES
Dimensions 12 x 279 mm (Ø x L)
Weight 0.135 kg (incl accessories)
Construction ABS
