RPR-CF-01029-PROMO Nextivity CEL-FI G41-JE Building LPDA Pack inc. Paddle Antenna
Revolutionise your building’s cellular connectivity with the Nextivity CEL-FI G41-JE and Wideband LPDA Antenna pack. This powerful combo delivers up to 3000 m2 coverage with 20 dBm output, multi-band support, and remote management. The lightweight LPDA antenna enhances signal with up to 9.5 dBi gain, perfect for large-scale indoor cellular solutions.

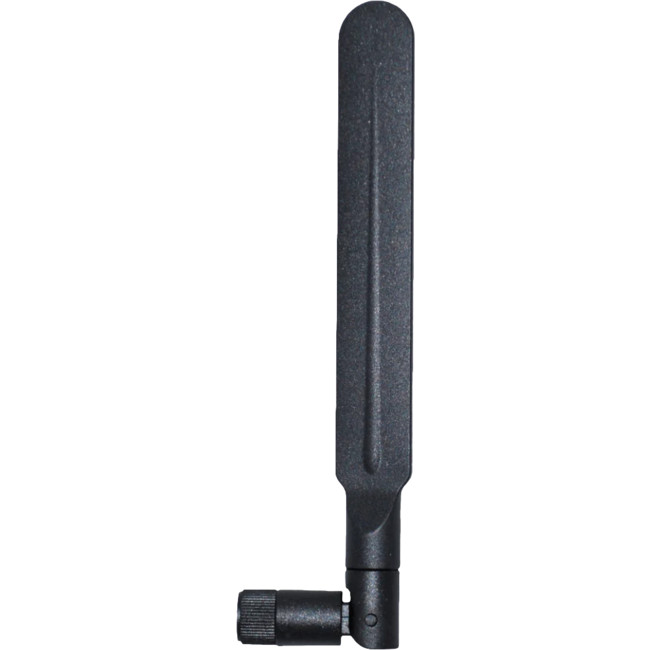

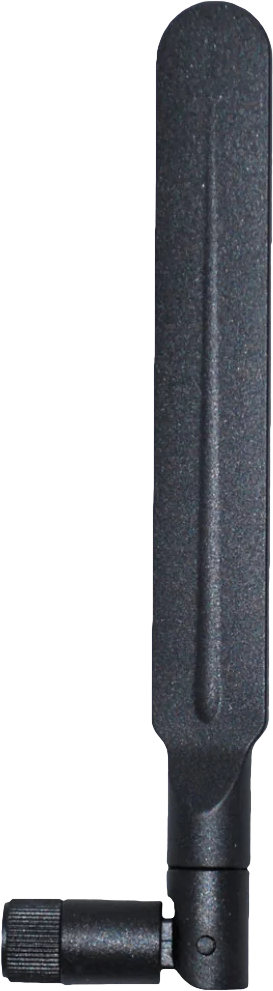

Nextivity CEL-FI G41-JE Building LPDA Pack inc. Paddle Antenna

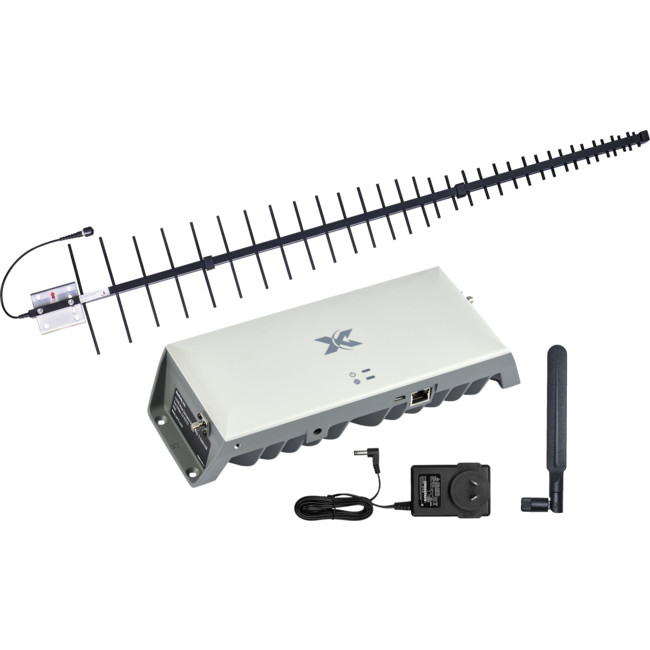

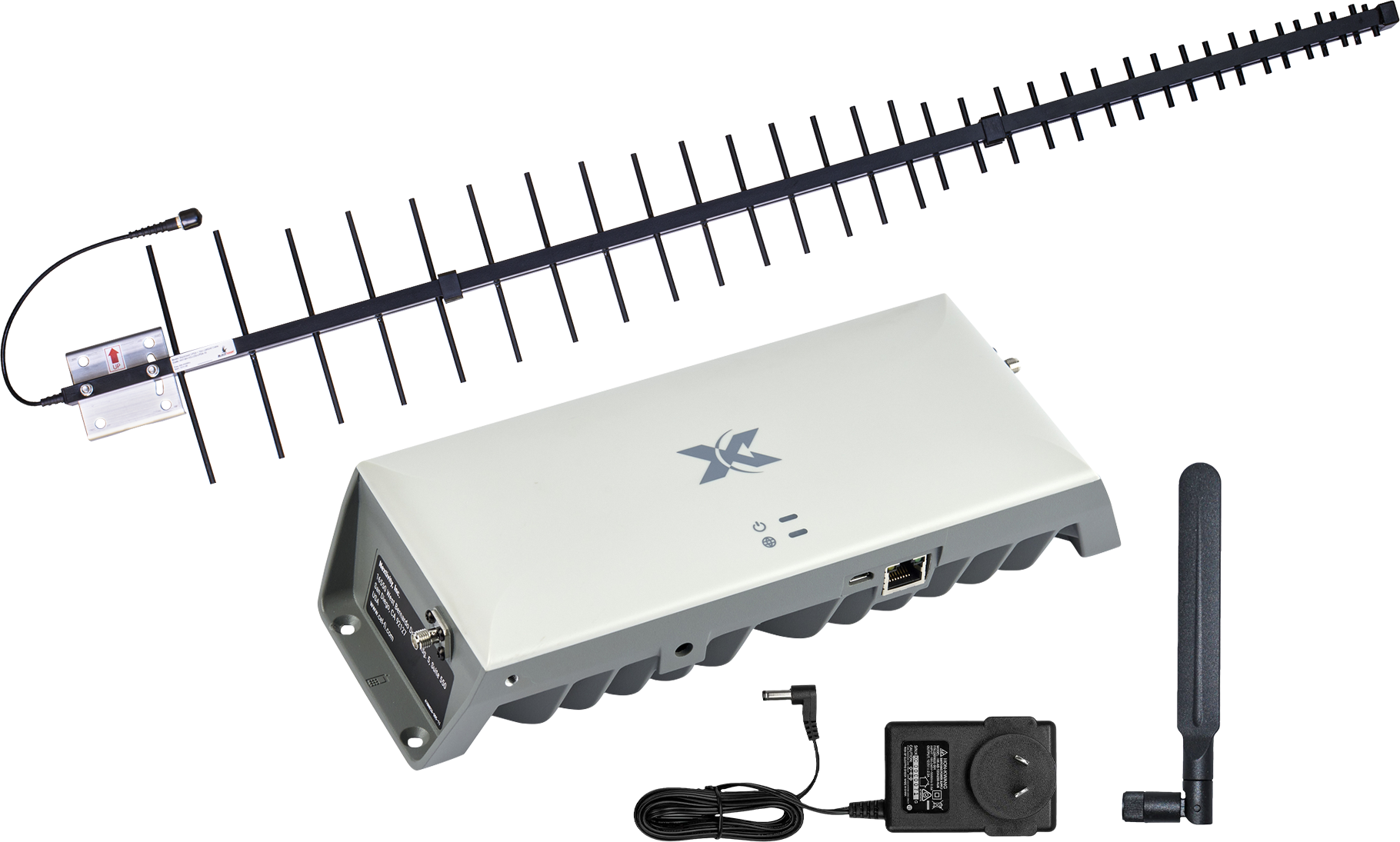

The Nextivity CEL-FI G41-JE Building LPDA Pack, including a Paddle Antenna, is a comprehensive solution designed to enhance 4G cellular reception in large buildings. It combines the advanced features of the CEL-FI GO G41 with the efficiency of a LPDA Antenna, making it ideal for improving cellular connectivity in extensive indoor spaces.

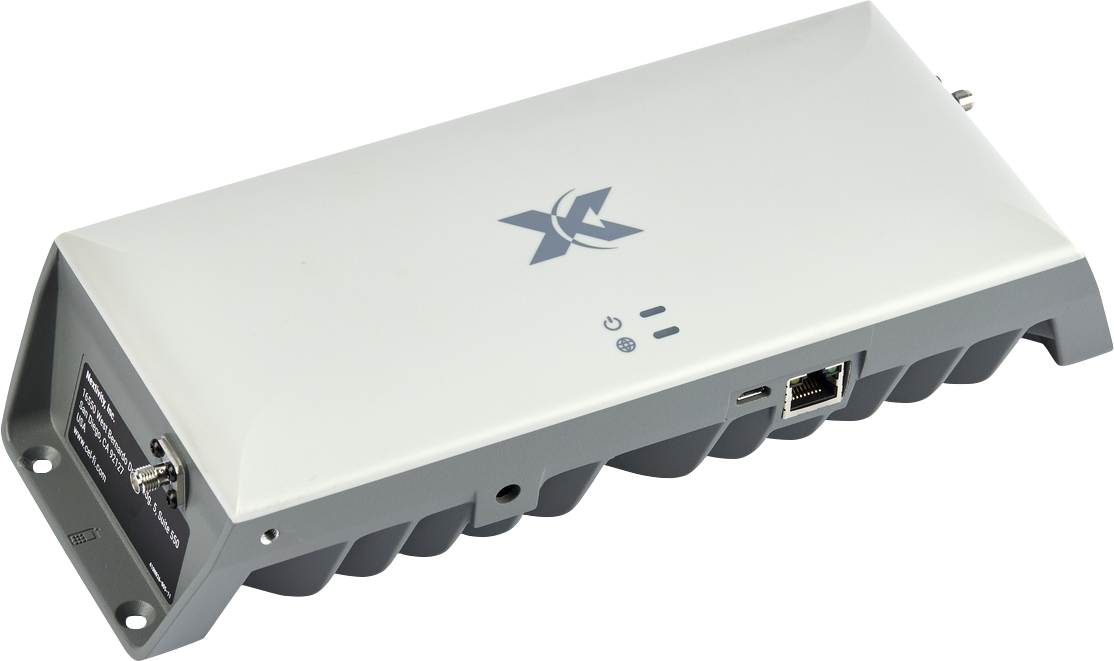

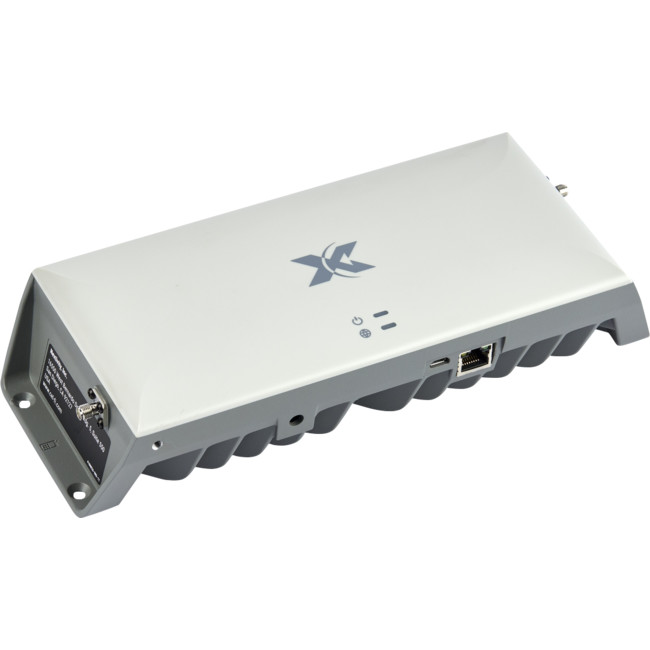

CEL-FI GO G41 Features:
-
Enhanced Output Power
- Boasts a higher output power ( 20 dBm) compared to the G32 model, ensuring a larger coverage area.
-
Carrier Flexibility
- Easily switchable between Telstra, Optus, and Vodafone-TPG networks, accommodating changes in service providers.
-
Large Coverage Area
- Offers up to 3000 m2 of coverage, suitable for extensive inbuilding applications.
-
Advanced Connectivity
- Supports 3G, 4G, VoLTE, NB-IoT, and carrier aggregation with up to 40 MHz of relay bandwidth
-
Remote Management
- Includes an RJ45 Ethernet port for connection to the internet, enabling live monitoring and control via the WAVE Portal
-
Frequency Bands
- Operates on 700L/850/900/1800/2100/2600 MHz, with dual-band simultaneous relay.

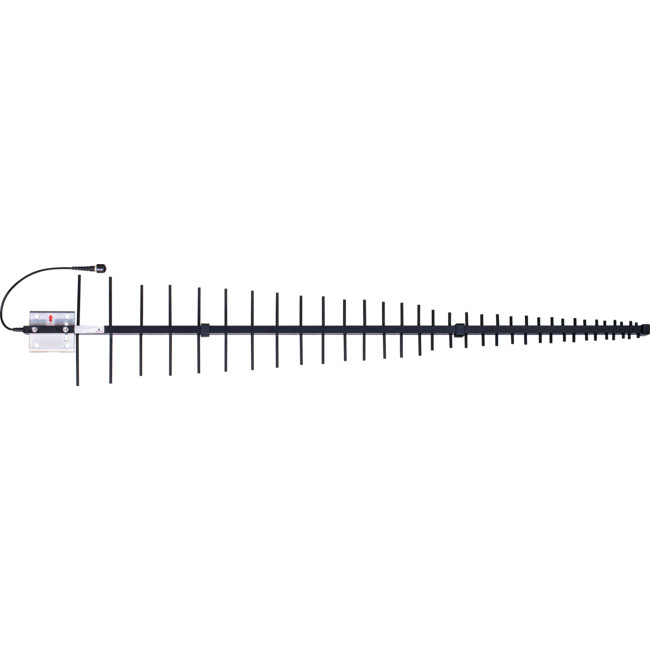

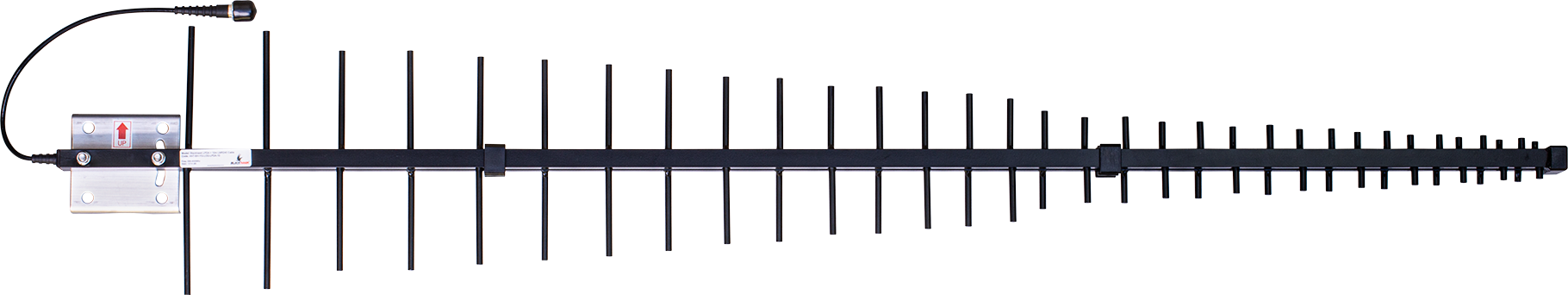

LPDA Antenna Features:
The Blackhawk LPDA Antenna is one of the most popular external antenna solutions for poor 3G / 4G voice and data service. This one antenna can be used on any mobile network, in any area without worrying about compatibility. It is the ideal roof-mounted antenna for CEL-FI repeaters.
The LPDA antenna covers all cellular bands between the 700 and 4000 MHz range with a high peak gain which projects maximum energy in the direction of the cell tower, while maintaining a wide enough beam to capture signal reflections off nearby buildings, hills, and signals scattered by trees.
FEATURES:
- 11.3 dBi peak gain across lower bands 698 to 960 MHz
- 11.5 dBi peak gain across bands 1695 to 2700 MHz
- 9.5 dBi gain across upper bands 3300 to 4000 MHz
- Ruggedized construction for Australian conditions
- Fully welded, powder coat aluminium design
- Stainless steel mounting clamp included
- 30 cm tail with pre-terminated choice of either N Female connector or 4.3-10 Female connecter
- Ideal for Telstra, Optus, and Vodafone 3G, 4G & 5G
Specifications:
| CEL-FI GO G41-JE | WIDEBAND LPDA ANTENNA |
| Coverage: Up to 3000 m2 | Gain: 8-9.5 dBi |
| Frequency Bands: Multi-band | Frequency Range: 698-4000 MHz |
| Output Power: 20 dBm | Connector: N Female, SMA Male Cable |
| Remote Management: Via WAVE Portal | Design: Lightweight, Compact |
| Ethernet Port: Yes | Mounting: Clamp Included |
This combined pack is an ideal choice for anyone looking to enhance cellular connectivity in large buildings, offering high performance, flexibility, and easy installation.
