ANT-BH-WAL 698-2700MHZ PANEL ANTENNA

BLACKHAWK

Code: 00421880

0.4640 kg
9337692000515
EACH
Out of Stock!
$121 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

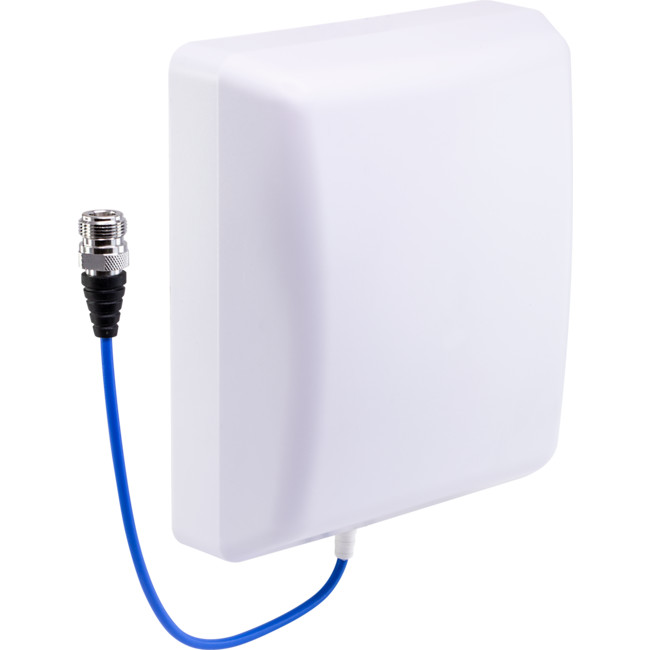

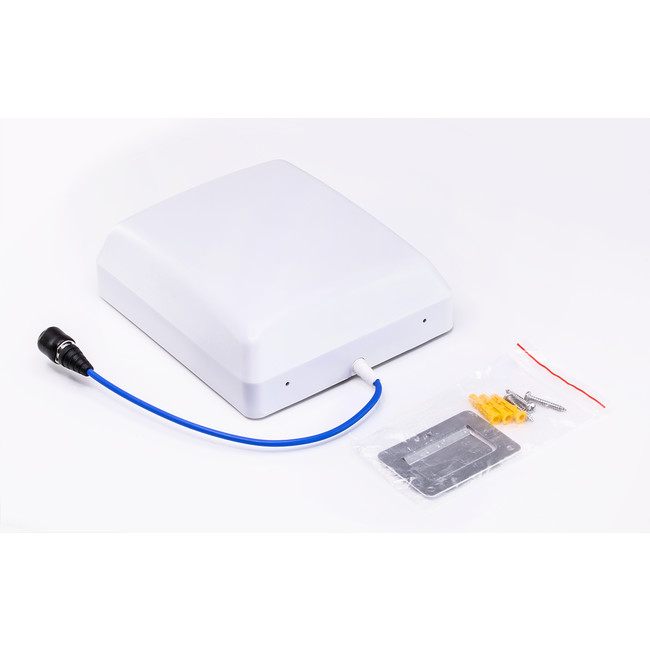

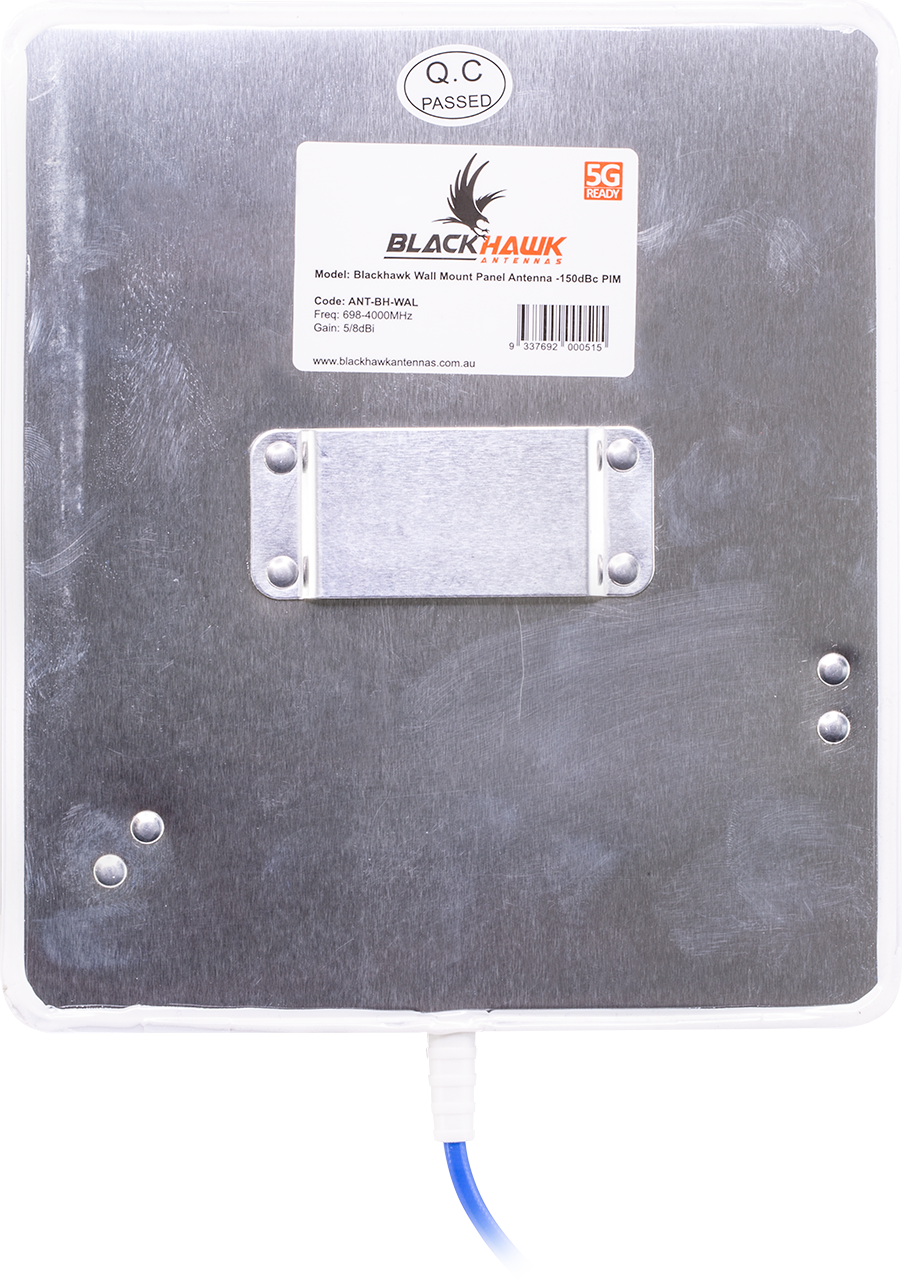

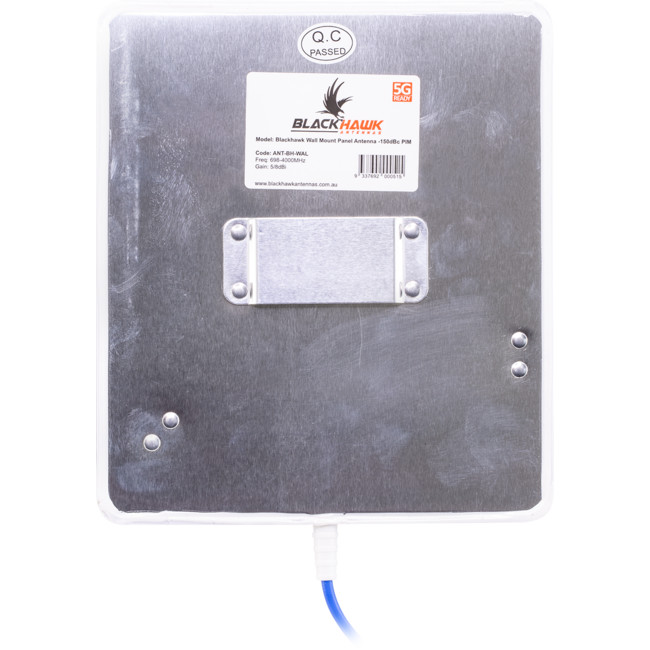

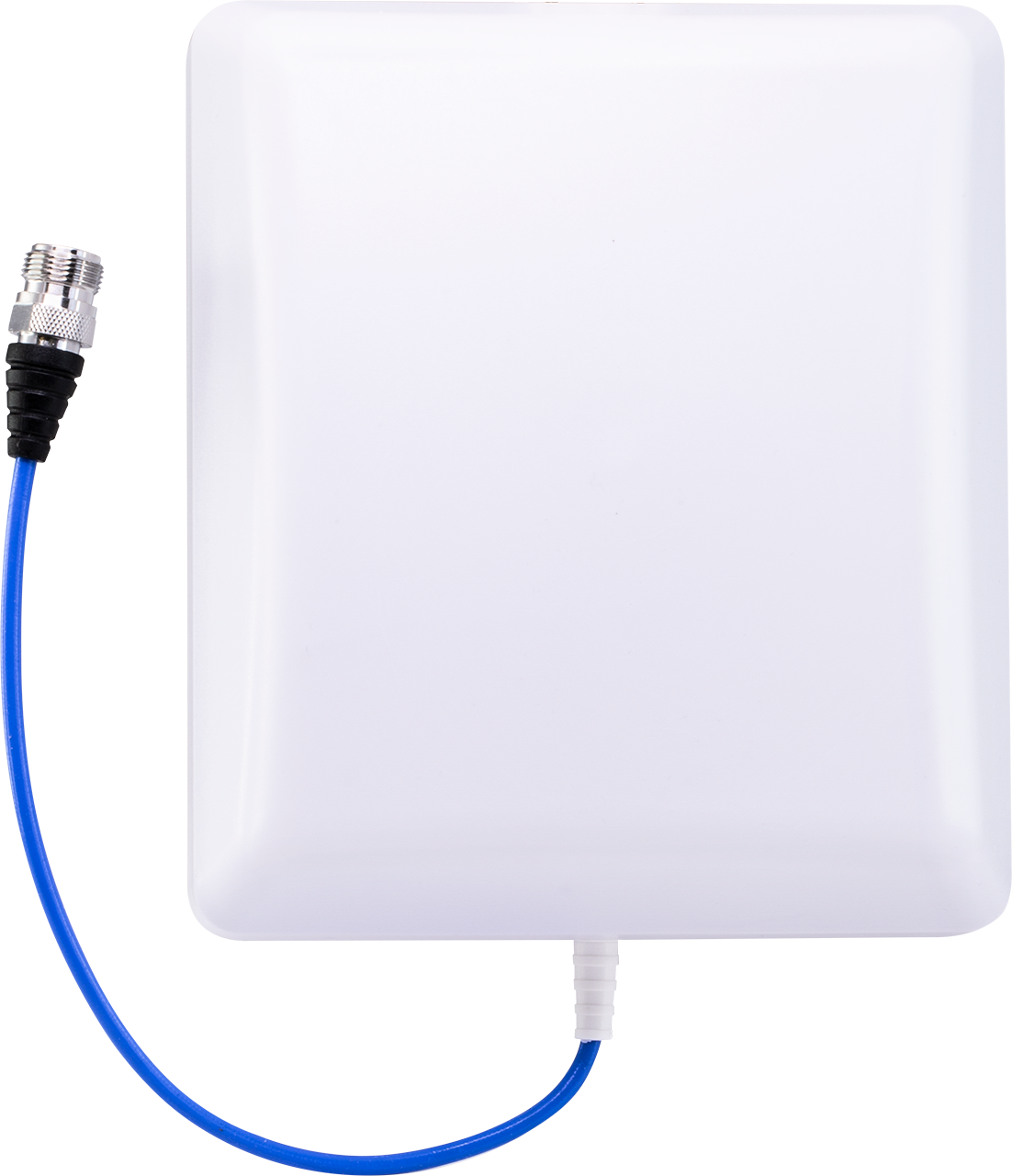

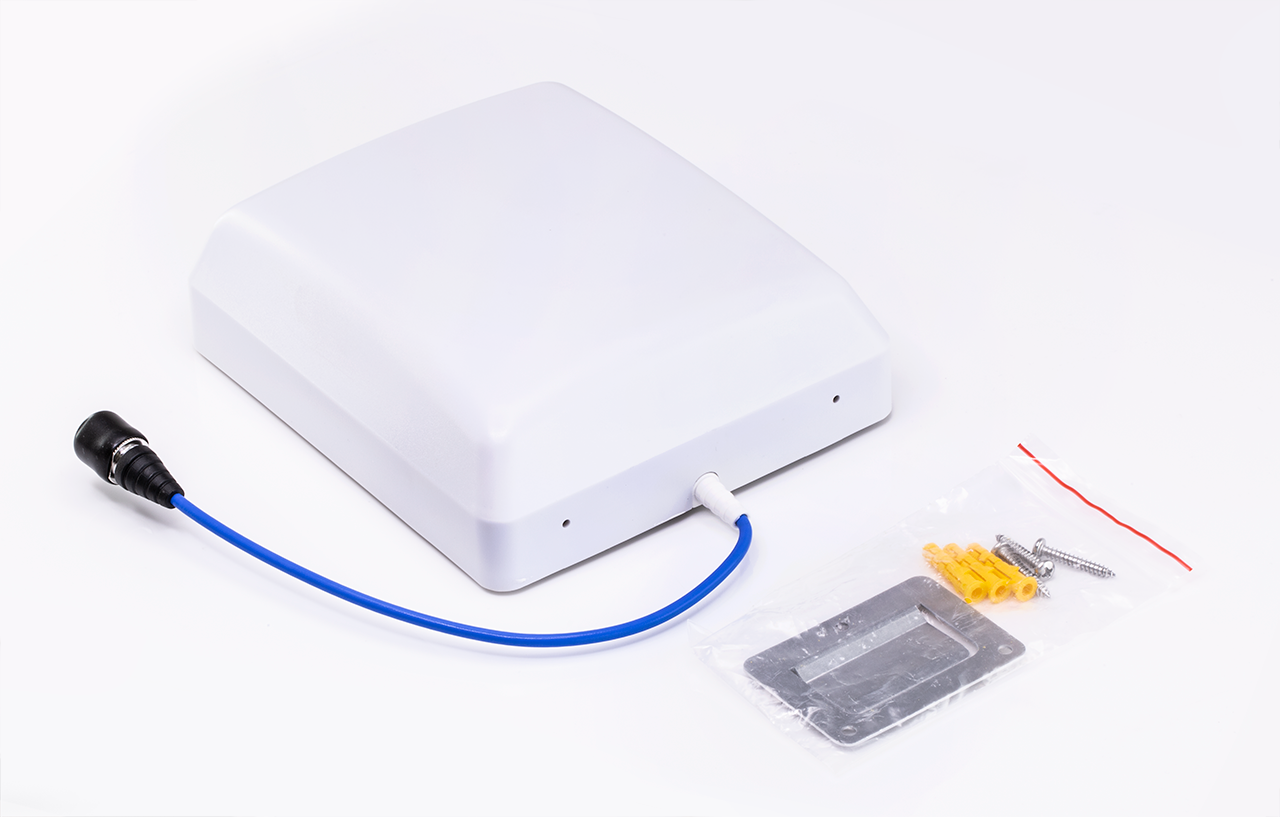

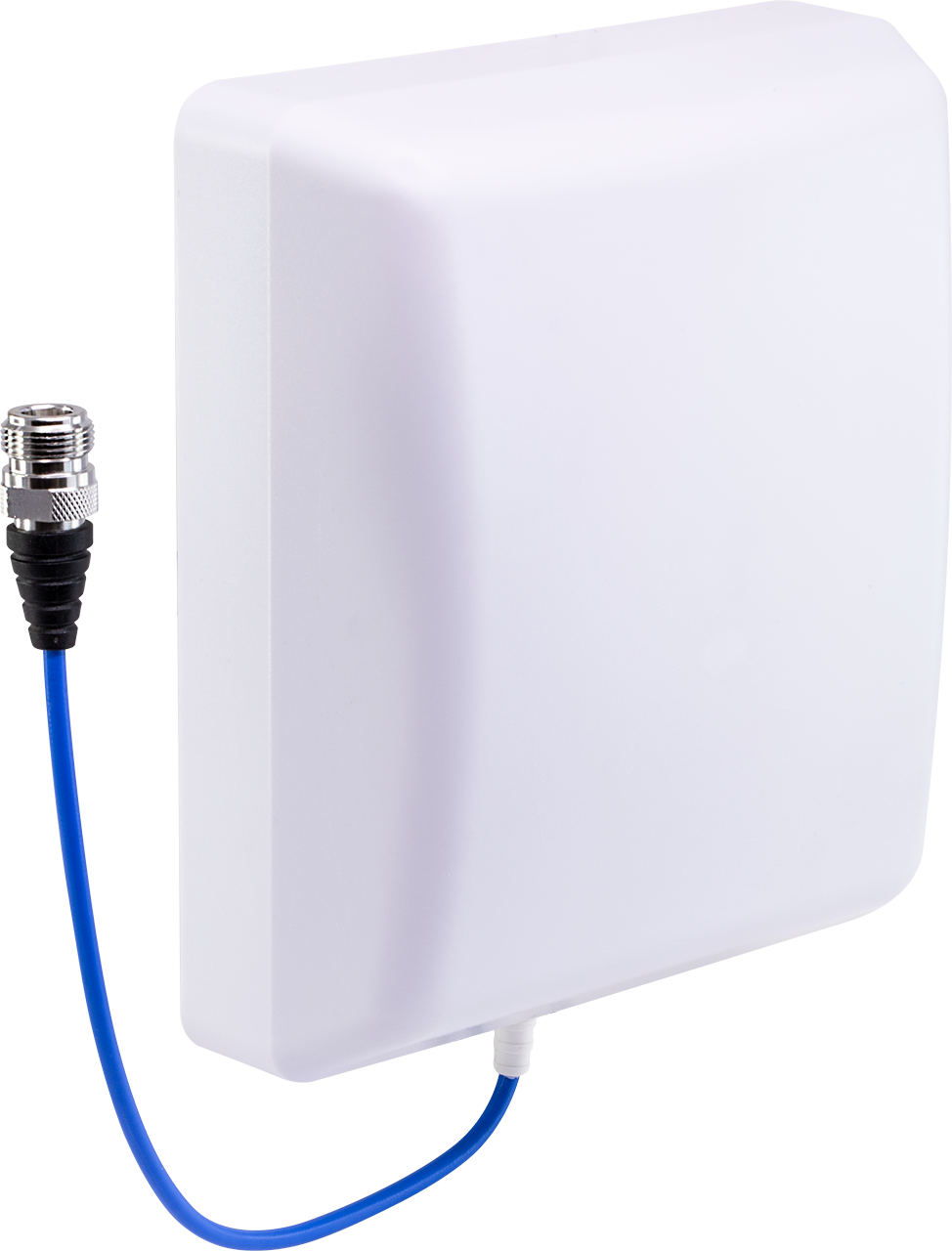

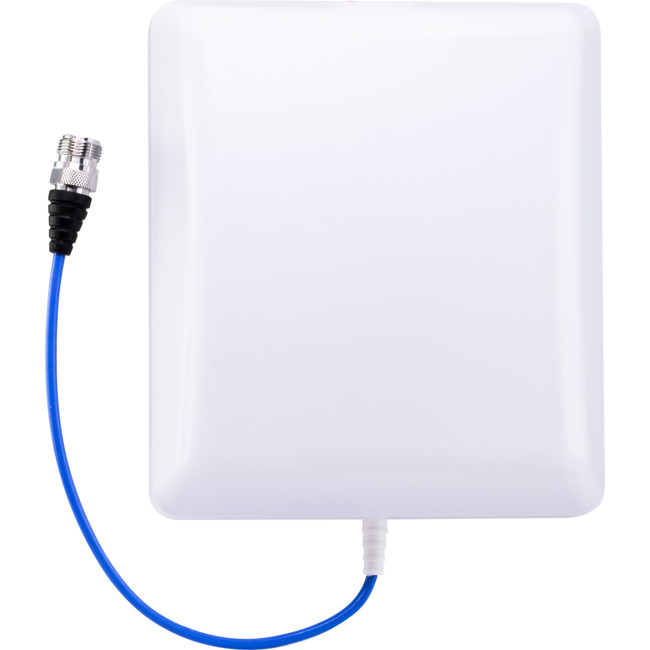

ANT-BH-WAL-698/2700-65 - BLACKHAWK INDOOR WALL MOUNT ANTENNA

Provides a 7dbi gain for 698-960 MHz

Provides a 8dbi gain for 1710-2600 MHz


The Blackhawk Indoor Wall Mount Antenna is designed to operate with all mobile carriers in mind, regardless of whatfrequency they operate on.


Offering a 7dB gain this antenna is suitable as an indoorantenna or panel antenna, that can be mounted on a wall for repeater applications.


Main Technical Specifications:

  • Model
BH-WAL-698/2700-65
  • Frequency Range
698~960 MHz / 1710~2600MHz
  • VSWR
<1.5
  • Input Impedance
50Ω
  • Gain
7 / 8dBi
  • Polarization type
Line polarization
  • E-plane beamwidth
65°
  • H-plane beamwidth
90°
  • F/B Ratio
≥23dB
  • Max Power
50W
  • Lightning protection
DC ground
  • Connector Type
N Female
  • RG58/U cable
L=300mm
  • Weight
600g
  • Dimensions
210mm×180mm×44mm
  • Radome material
UV-Resistance ABS
  • Radome color
White
  • Working temperature
-40°C~ 60°C
