RPR-CF-00732 CELFI GO4 BUILDING PACK including LPDA external and Wall internal antennas with cables
Cel-Fi GO4 (G41) represents the latest in 4G cellular repeater technology.
Building on the success of the GO2 model, GO4 has a higher output power ( 20 dBm), providing the largest coverage area of all GO models.
GO4 operates on more frequency bands and can be easily switched betweenTelstra, OptusandVodafone-TPGshould you change service provider.
Cel-Fi GO4 is ideal for inbuilding cellular coverage applications for Telstra, Optus and Vodafone.
The higher output power means more service antennas can be run from the one repeater, and by popular request, the unit now has an RJ45 Ethernet network interface for remote management.
Expanding on GO2’s dual-band functionality, GO4 supports carrier aggregation with 40 MHz of relay bandwidth.
FEATURES
- 700L/850/900/1800/2100/2600 MHz(700 band not supported on Vodafone)
- 3G, 4G, VoLTE, NB-IoT(GO4 has 5G capabilities, butcurrently not enabled or approved)
- Carrier Switching using WAVE App betweenTelstra, OptusorVodafone
- Up to 3000 m2 coverage area
- Two band simultaneous relay
- Total System Relay Bandwidth – Up to 40 MHz
- Remote Monitoring, Control and Alert Capabilities viaWAVE Portal
- Ethernet Port for connection to internet source for live monitoring

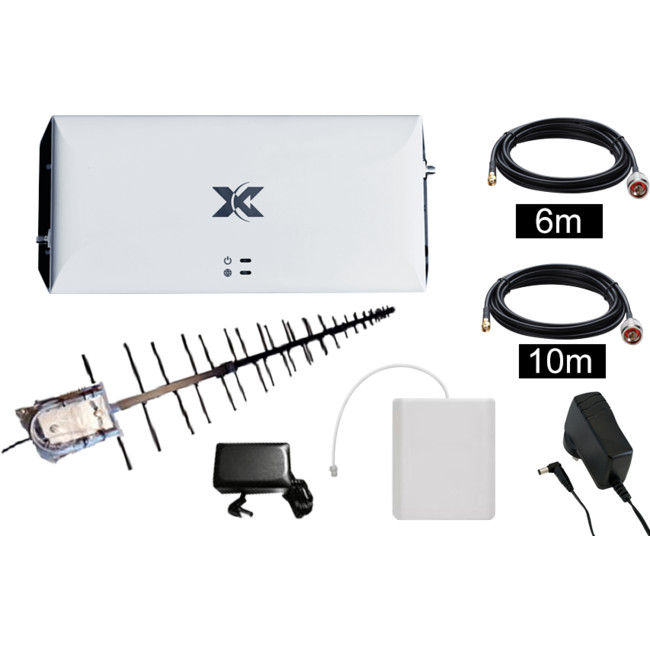

PACK INCLUDES:
- Cel-Fi GO4 (Switchable between Telstra, Optus and Vodafone-TPG)
- Internal antenna: Blackhawk Wall Mount 698-4000MHz 5/7dBi Panel Antenna -150dBc PIM
- External Antenna: Blackhawk LPDA 698-4000 12/14dBi
- 10m LMR240 Cable
- 6m LMR240 Cable
- 1m Ethernet cable
- 240v Power Supply
OPERATOR SWITCHING
It is important that you select your preferred operator before using GO4 via the WAVE App –Operator Switching Instructions
If you want to utilise this product for a large scale project or if you’re after any type of bespoke solution; please make contact with our sales team.
