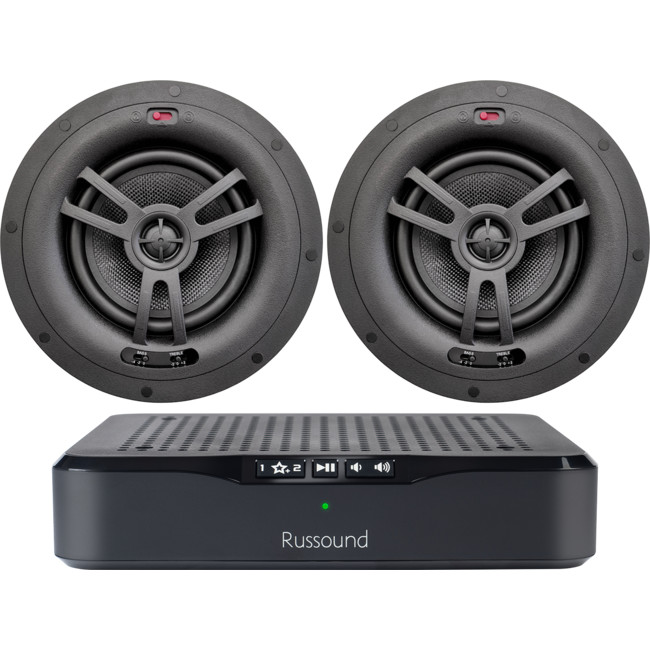

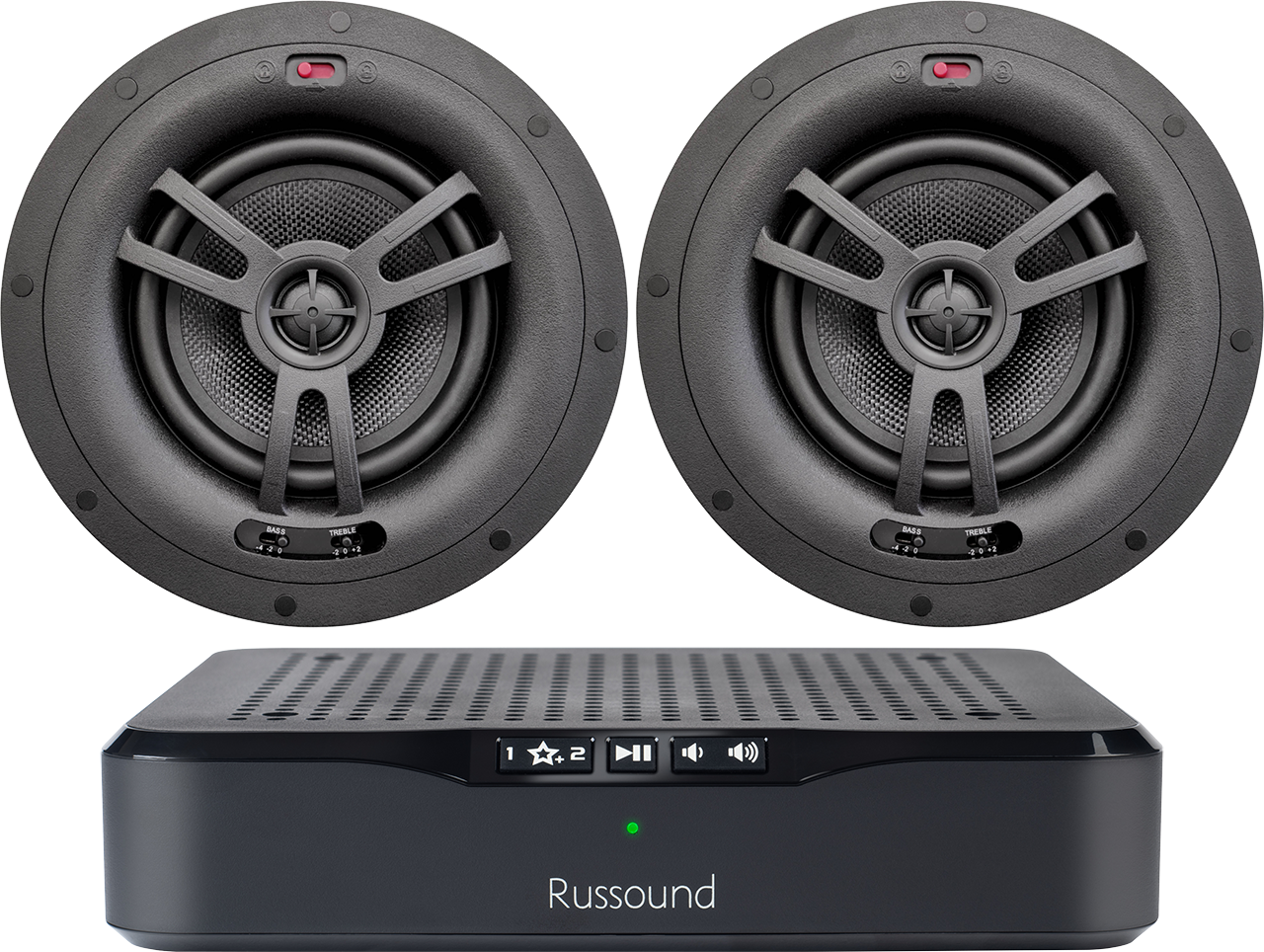

MBX-AMP - Russound Wi-Fi Streaming Zone Amplifier
The MBX-AMP Wi-Fi Streaming Zone Amplifier is designed to offer a simple-to-install and simple-to-configure streaming media solution to add high quality streaming audio anywhere in the home. Additionally, the advanced TV integration features enable the MBX-AMP to share speakers between your TV and your audio system easily without having to use any additional hardware or control system. Just use the included Infrared Sensor and quickly teach the MBX-AMP your remote control's volume and mute commands. It's that easy.
The MBX-AMP allows for expansion to up to 32 streaming rooms of audio in a single installation with any combination of other MBX-Series streaming products from Russound.
In addition to offering streaming audio from popular internet sources, the MBX-AMP also offers streaming of local UPnP™ compliant audio.
In addition, a built-in USB port allows users to connect an external flash drive or an externally-powered USB hard drive for use as additional music sources.
- Connect your TV's digital audio output to improve your TV's sound quality and to share your speakers with your premium audio system.
- External IR Sensor included to use the MBX-AMP with your current remote control for Volume/Mute commands
- Built-in AirPlay 2 streaming with full metadata to iOS/Android apps or XTS5.5 touchscreens
- Built-in Chromecast for Audio support with full metadata to iOS/Android apps or XTS5.5 touchscreens
- Bluetooth Audio
- Hi-Res audio streaming support up to 24-bit/192 kHz
- USB for Flash or external USB Hard drive-based music collections
- Digital (PCM) and Analog Stereo Inputs
- Digital or analog output
- Controllable with the Russound App and fully compatible with the Russound XTS5.5 in-wall touchscreen
- Bass, Treble, and Loudness settings available through the Russound App
- Supports local favourites
- Onboard browser-based configuration, accessible from a smartphone or tablet
- Mix and match with other MBX-Series® components for versatile system designs
Specifications
- Frequency Response: 20Hz to 20KHz
- Speaker Output: 50 Watts Per Channel @ 8ohms, 70 watts @ 4 ohms
- Audio Outputs: Analog Stereo RCA, Digital Optical, RCA Subwoofer Out(Analog Output configurable via software as fixed or variable)
- Line Audio Output: 2V rms
- Audio Inputs: 3.5mm Analog Stereo Audio, Digital Optical, USB2.0 Media Playback
- Communication Ports: Ethernet RJ45 10/100 BaseT
- Wi-Fi: 802.11ac, dual band
- Bluetooth Audio Support: Yes
- Subwoofer Out Low Frequency Filter: 80Hz
- Trigger Output: 12vDC @100mA
- Music File Formats: MP3 (CBR, VBR), WAV(8, 16-bit), OGG Vorbis, FLAC (8, 16-bit), AAC, AAC (supports up to 24-bit/192kHz)
- Power Requirements: 100-240V~50/60Hz, 4A
- Product Dimensions: 8.25”W x 7”D x 1.75”H (21cm W x 17.8cm D x 4.5cm H)
- Product Weight: 1.5 lb (0.68 kg)

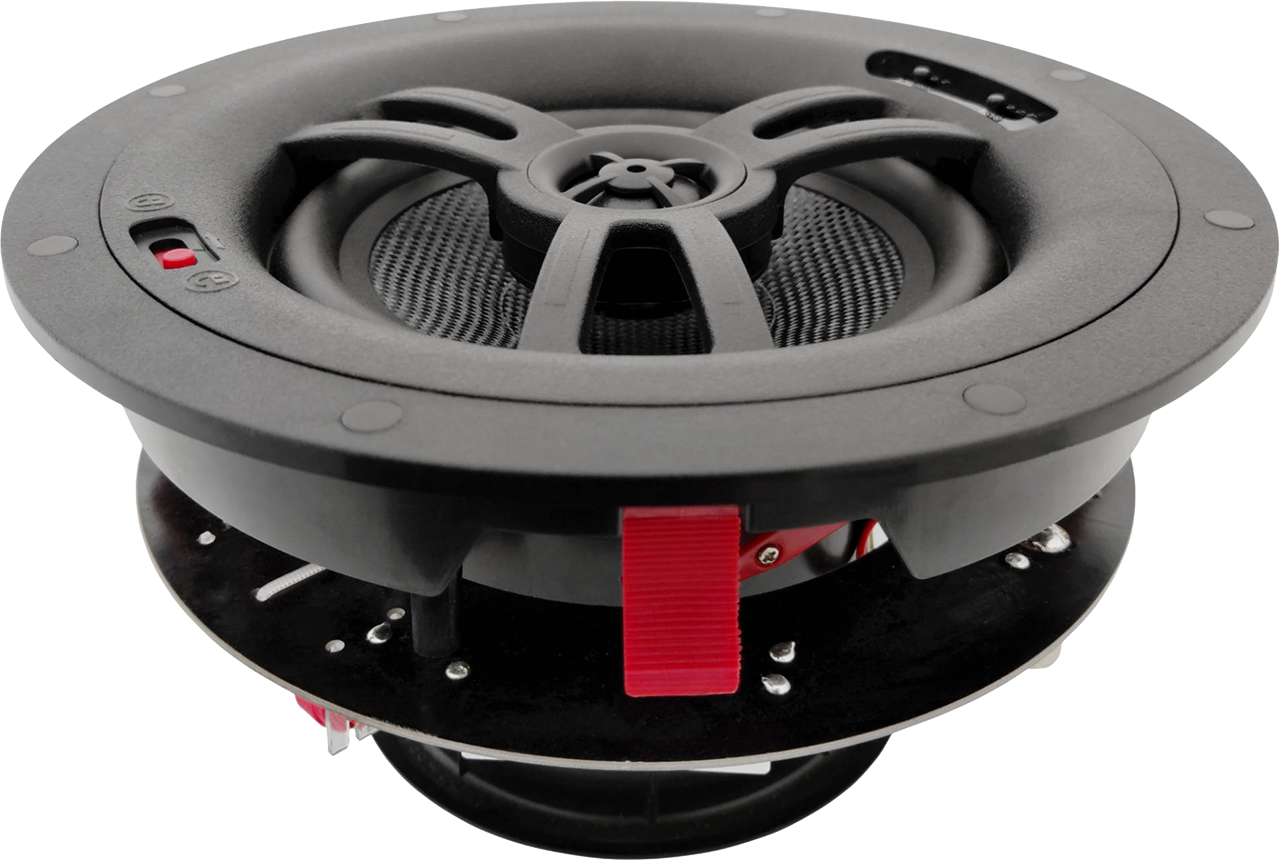

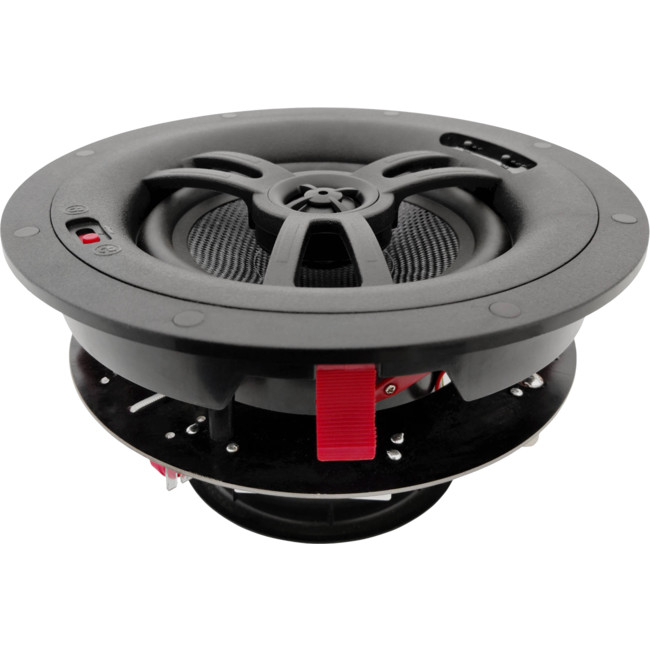

OH6 - Earthquake 6.5" Edgeless Ceiling Speakers
Earthquake Sound recognizes that standing on top of a ladder to install speakers can be an aggravating task for anyone. The newest member of Earthquake’s line of architectural speakers addresses this issue and gives to youthe OH6. Designed for a broad audience from the DIYer to theaudio integrator, this in-wall/in-ceiling speaker is the perfect choice for any audio project. The 6.5" 2-way coaxialwas made for both performance and ease of installation in mind.
Fitted with a revolutionary EZ Mount System, it sets itself apart from others in that it offers a frustration-free experience for all skill levels making yourinstallations ultra-fast and stupid simple. Constructed withquality components and compatible with a variety of wall thicknesses, the OH6 is an ideal choice for those who desirea more invisible or discrete integration. The OH6 is excellent whether it uses for music or home theater applications and will complement any new or pre-existing construction. Make your audio jobs a breeze and enjoy a rich, full-bodied sound with the all-new Earthquake Sound OH6.
Features
EZ MOUNT SYSTEM
Make installations easier by simply cutting the mounting hole, attach speaker wires, push the speaker into place, androtate the tweeter bridge to secure it to the drywall. Lock it and done!
SHALLOW DEPTH INSTALLATION
80mm (3.14") mounting depth is perfect for those limited roof cavity installations, such as the ground floor of a two-storey house.
TONAL CONTROLS
A 3-position bass and treble selector switch on the OH6 allows the listener to fine-tune low and high frequencies tomeet their preferences based on sitting position as well as application.
Bass: -4/-2/0 Treble: -2/0/ 2
2-WAY COAXIAL DESIGN
The OH6 is a 2-way system equipped with a 6.5" (165mm) stiff woven carbon fiber cone midrange/bass driver for lower distortion and a whopping 1" (25mm) pivoting silk dome neodymium tweeter for precision sound staging.
SEAMLESS INTEGRATION
The OH6 accepts a drywall thickness of 0.5" (12mm) to 1" (25mm) makes it an extremely versatile option whether installed for home theaters or commercial spaces. With a magnetically attached and paintable grille, Edgeless design for better aesthetic and reduced visibility and gives this speaker a high-end and professional look that will blend in with any décor
- Trimless round magnetically attached paintable Anti-Rust Magnetic Grilles
- 1" (25mm) adjustable pivoting silk dome neodymium tweeter
- Low mass stiff carbon fiber cone woofer for a smooth, accurate, and detailed output
- In-wall or in-ceiling applications
- Dog ear locking mechanism

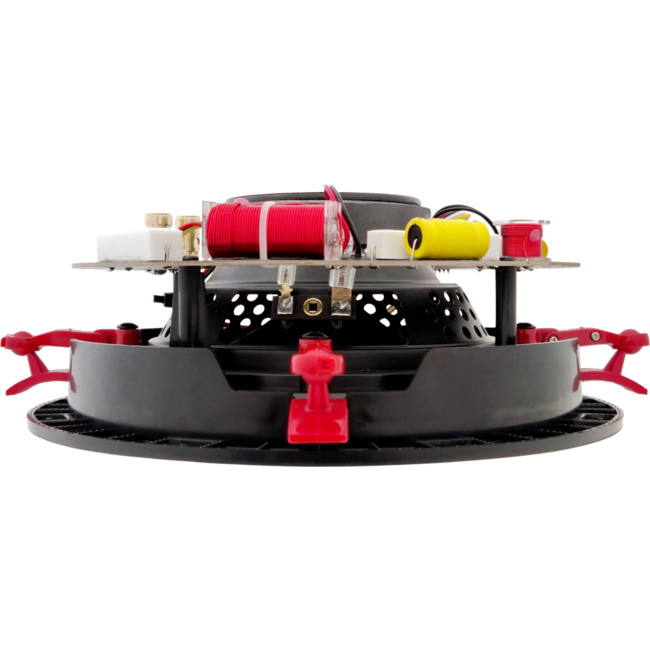

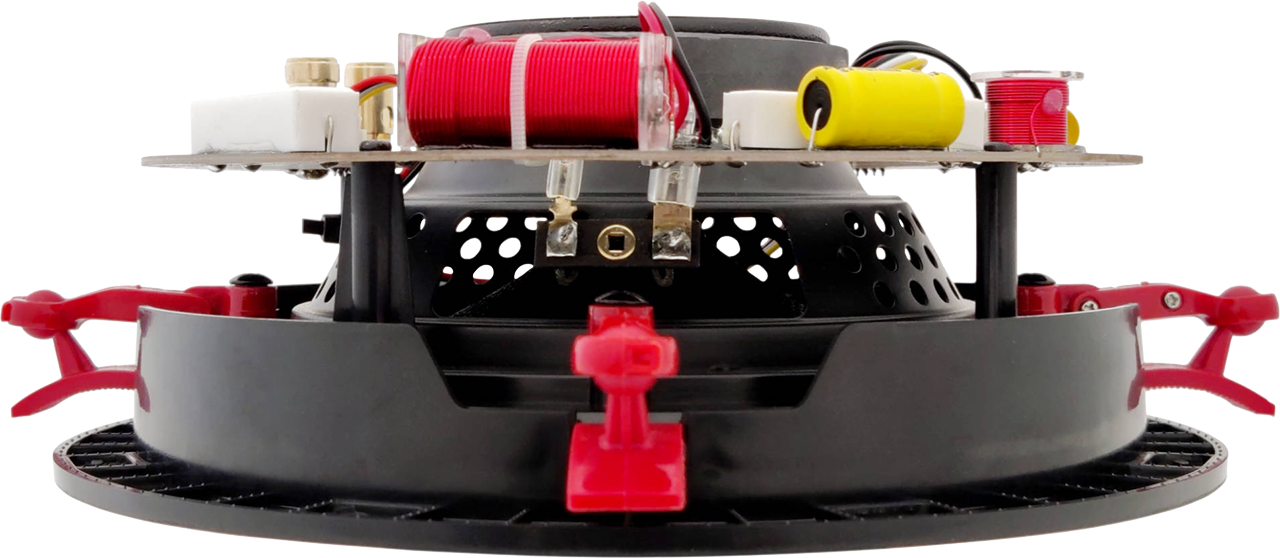

- Elaborate crossover network With Polyswitch Protection
- Gold plated spring-loaded terminals
- Grille removal tool included
- Sold by the pair
Specifications
- Power Handling: 150W MAX
- Frequency Response: 50Hz–15kHz
- Impedance: 8-Ohm
- Sensitivity: 87dB 1W/1M
- Midrange/bass Size: 6.5"
- Woofer Material: Carbon Fiber
- Surround Material: Butyl Rubber
- Tweeter Size: 1" (25mm) Pivoting
- Tweeter Material: Silk Dome, Neodymium
- Elaborate Crossover Network
- Round Grilles Included
- Grille Removal Tool Included
- Grille Finish: White/Paintable
- Rough-In Kit Ready
- Enclosure Material/Type Impact resistant ABS plastic
- Frame Diameter: 9.05" (230mm)
- Grille Diameter: 9.13" (232mm)
- Mounting Depth: 3.14" (80mm)
- Overall Depth: 3.5" (88.9mm)
- Cutout Diameter: 7.87" (200mm)
- Magnet Diameter: 3.34" (85mm)
- Weight: 3.9lbs (1.76kgs)
IN THE BOX
- 2 x OH6 Speakers
- 1 x Cutout Template
- 1 x Product Manual
- 1 x Grille Removal Tool
- 2 x Round Grilles
