Blustream's ARC11 has been designed to extract audio from the HDMI ARC (Audio Return Channel) of a display. Featuring both an analogue audio, and optical audio output, it can extract the embedded ARC audio information for use within a multi room audio distribution system.
Extracts audio from the Audio Return Channel of a HDMI signal *
Features analogue audio breakout of 2ch PCM audio signals, where source audio is 2ch PCM
Supports up to 192kHz sample rates at 24bit depth
Features optical audio breakout of multi-channel and 2ch audio formats
Supports the following embedded audio formats: Dolby Digital 5.1, Dolby Digital 2.0, DTS-ES 6.1, DTS 5.1, DTS 2.0, PCM 2.0
* Please note: the output of the ARC11 is a fixed line, and cannot be controlled via CEC volume commands from the display

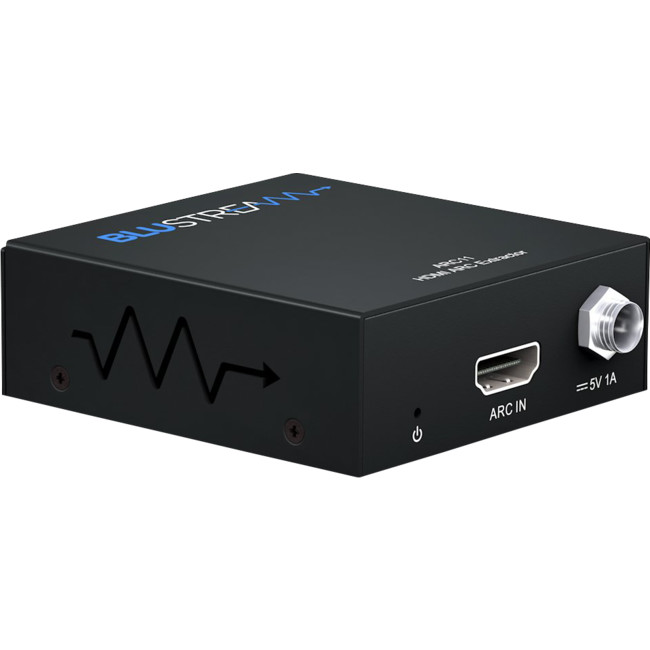

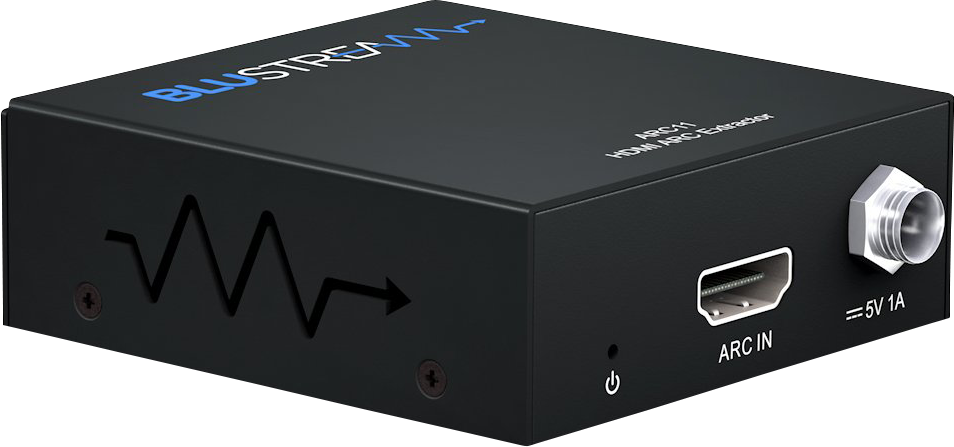

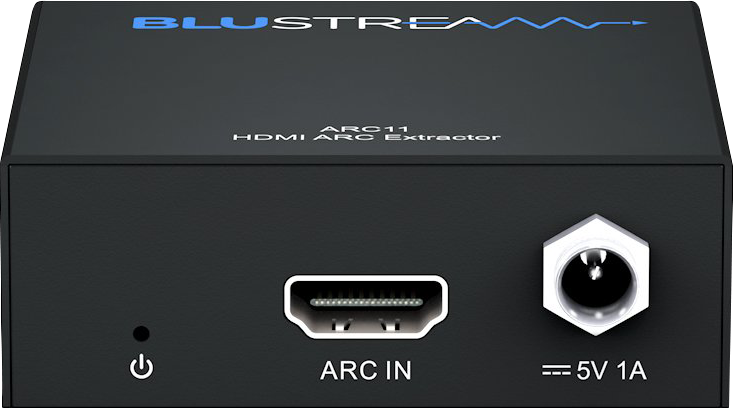

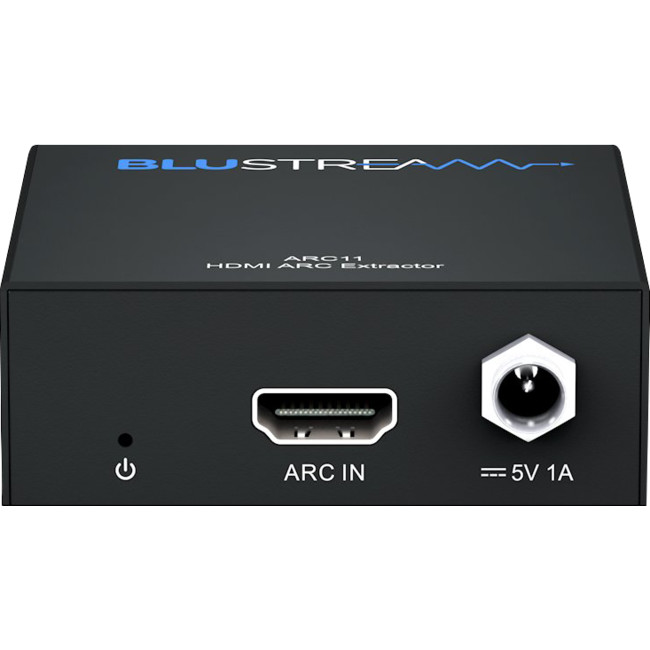

Audio Input Connectors: 1 x HDMI Type A, 19-pin, female

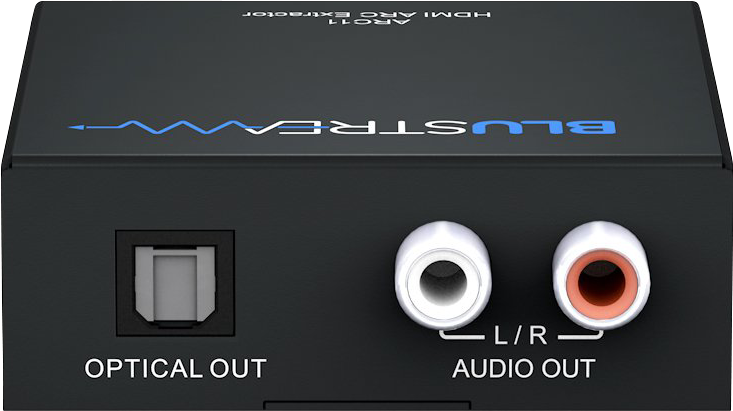

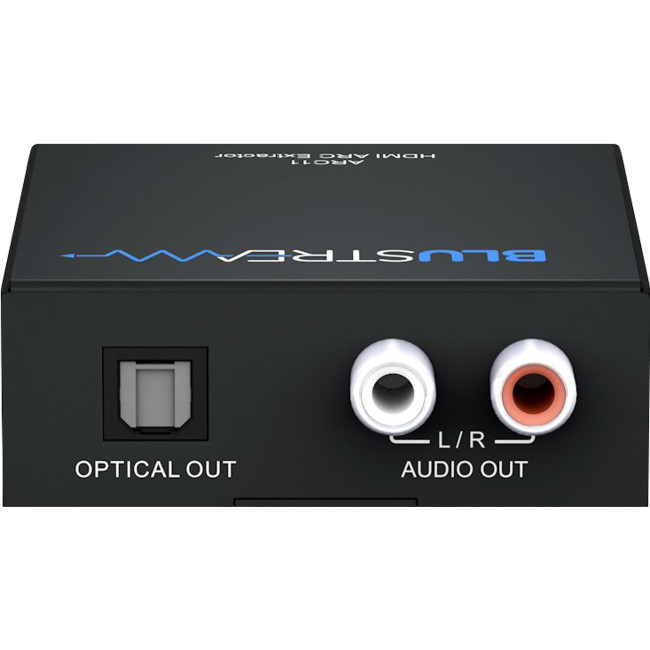

Audio Output Connectors: 2 x RCA analogue Left / Right, 1 x TOSLINK optical output
Dimensions (W x H x D): 70mm x 25mm x 73mm
Shipping Weight: 0.4kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Power Supply: 5V/1A DC USB
1 x ARC11 1 x 5V/1A DC USB Power Supply 1 x Mounting Kit 1 x Quick Reference Guide
