Our AD11AU has been designed to help correct audio delaysincurred when separating audio and video signals in an AV system.
The AD11AU can add a delay of up to 1 second selectable in 15 increments and has a volume adjustment of -75dB to 0dB.
In-line 2ch analogue audio delay with line-level volume control
Supports 48KHz / 24 bit sample rates
Selectable audio delay from 50-1,000ms
- 0-500ms in steps of 50ms
- 500-1,000ms in step is of 100ms
Adjustable line level volume control from -75dB to 0dB

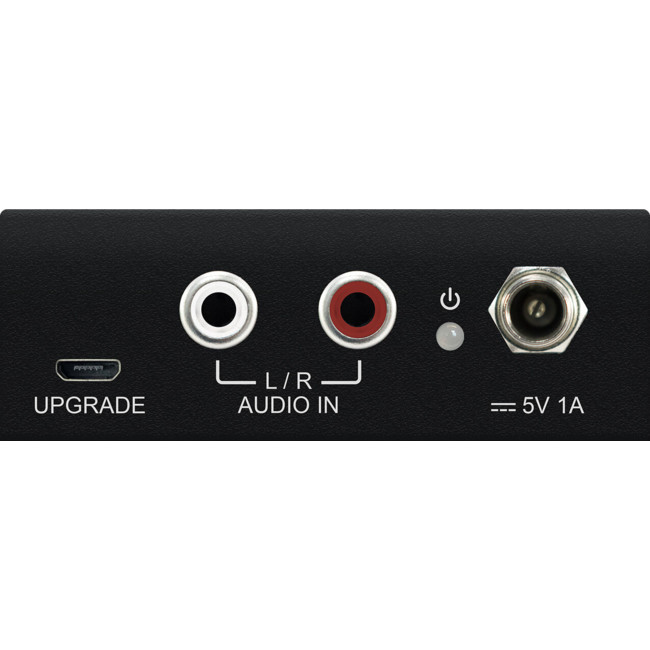

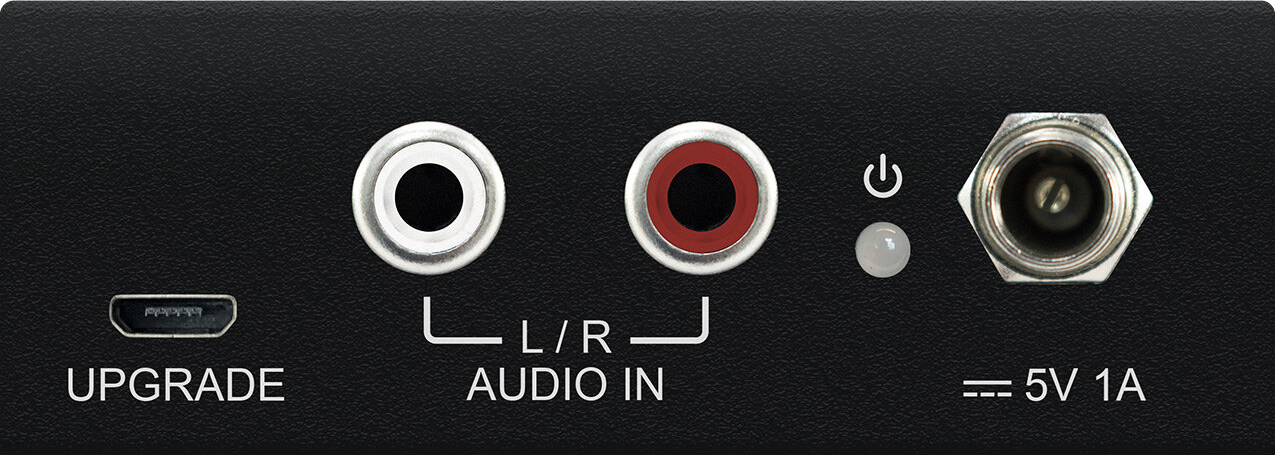

Audio Input Connectors: 2 x RCA analogue left/right

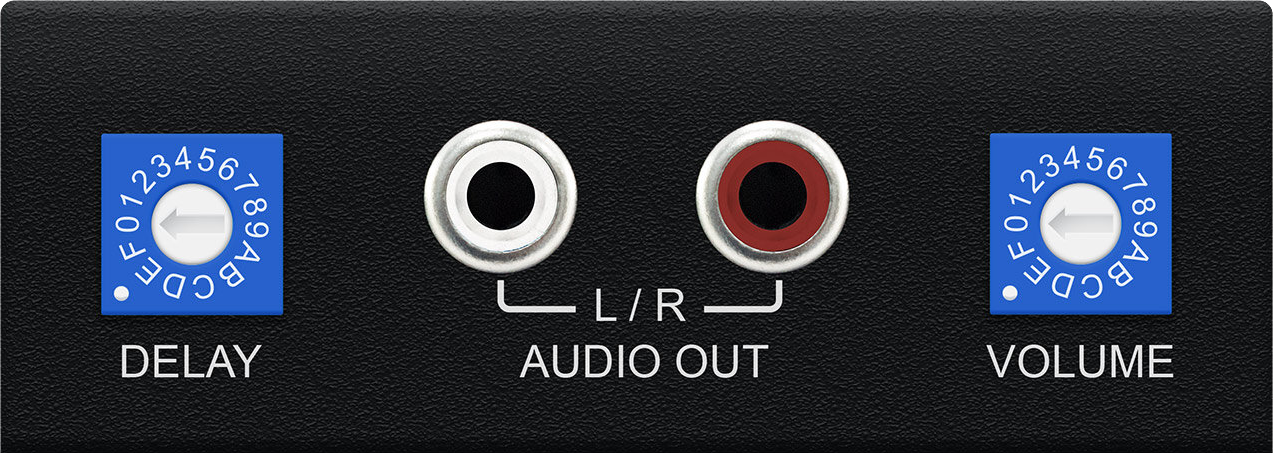

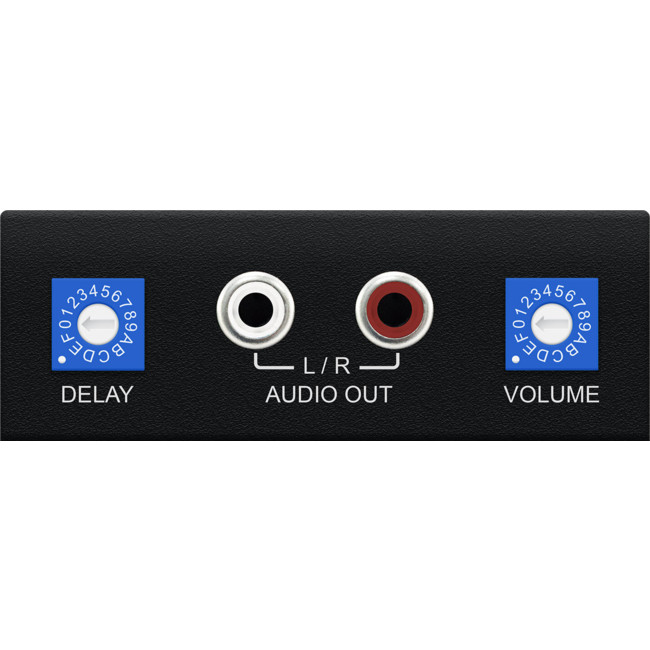

Audio Output Connectors: 2 x RCA analogue left/right
Audio Delay: Rotation switch
Volume Control: Rotation switch
Casing Dimensions (W x H x D): 70mm x 25mm x 73mm
Shipping Weight: 0.4kg
Operating Temperature: 32°F to 104°F (-5°C to 55°C)
Storage Temperature : -4°F to 140°F (-25°C to 70°C)
Power Supply: 5V/1A DC
1 x AD11AU 1 x 5V/1A DC Power Supply 1 x Mounting Kit 1 x Quick Reference Guide
