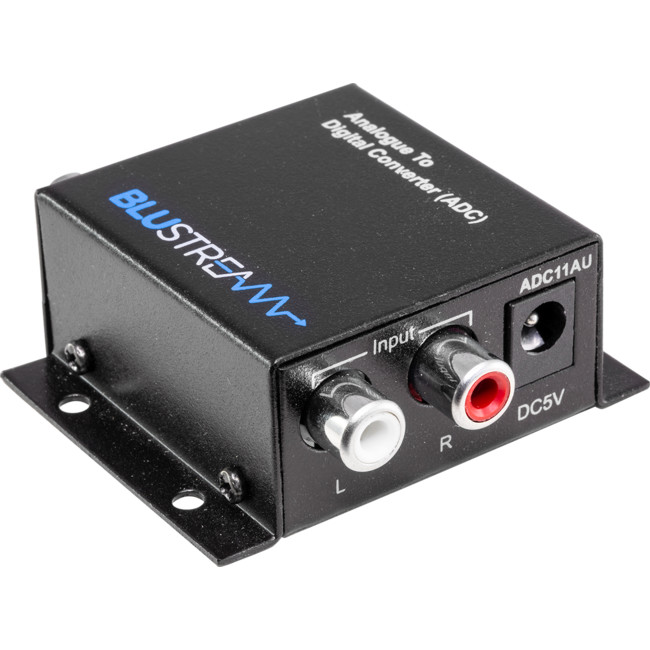

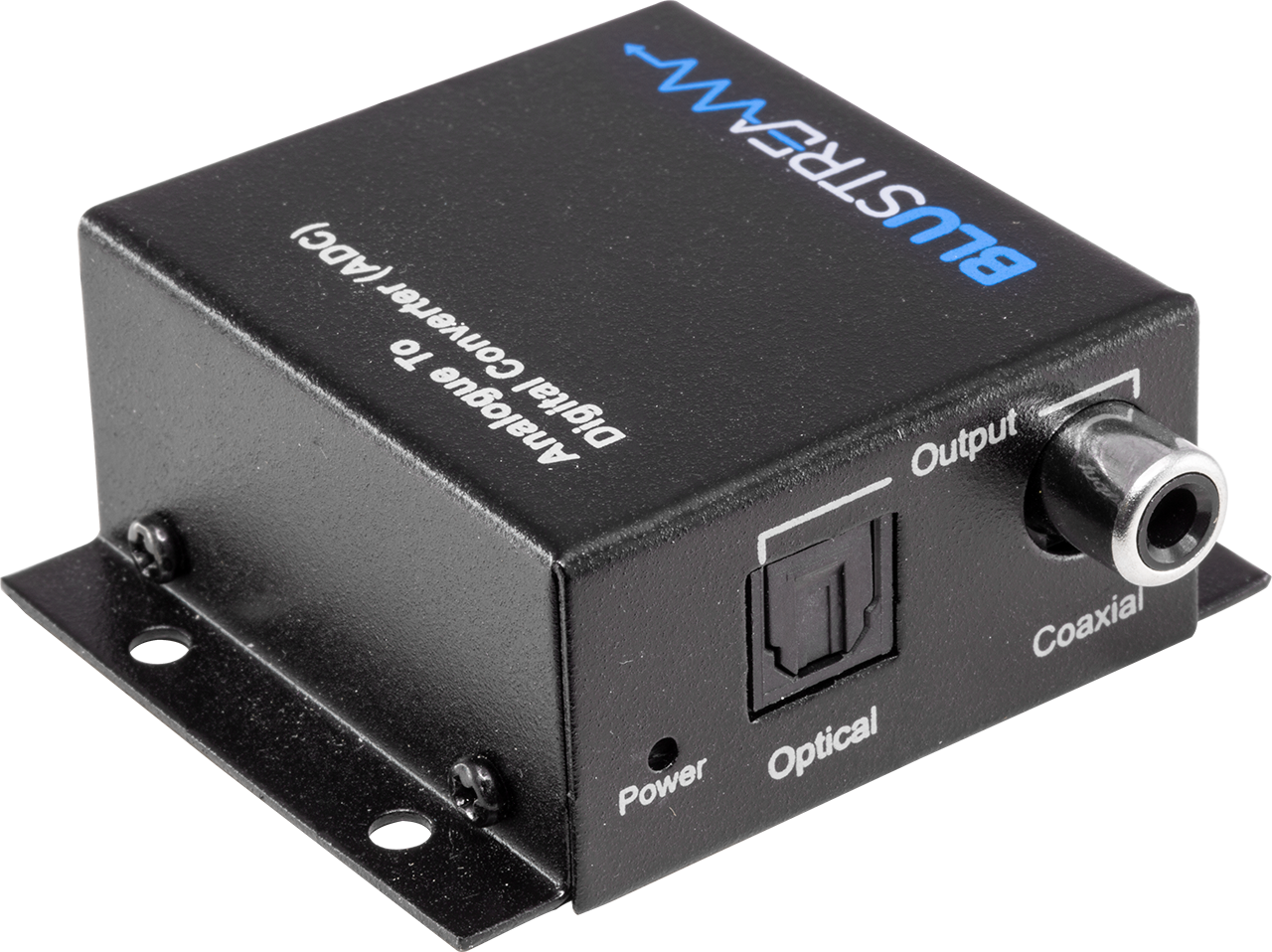

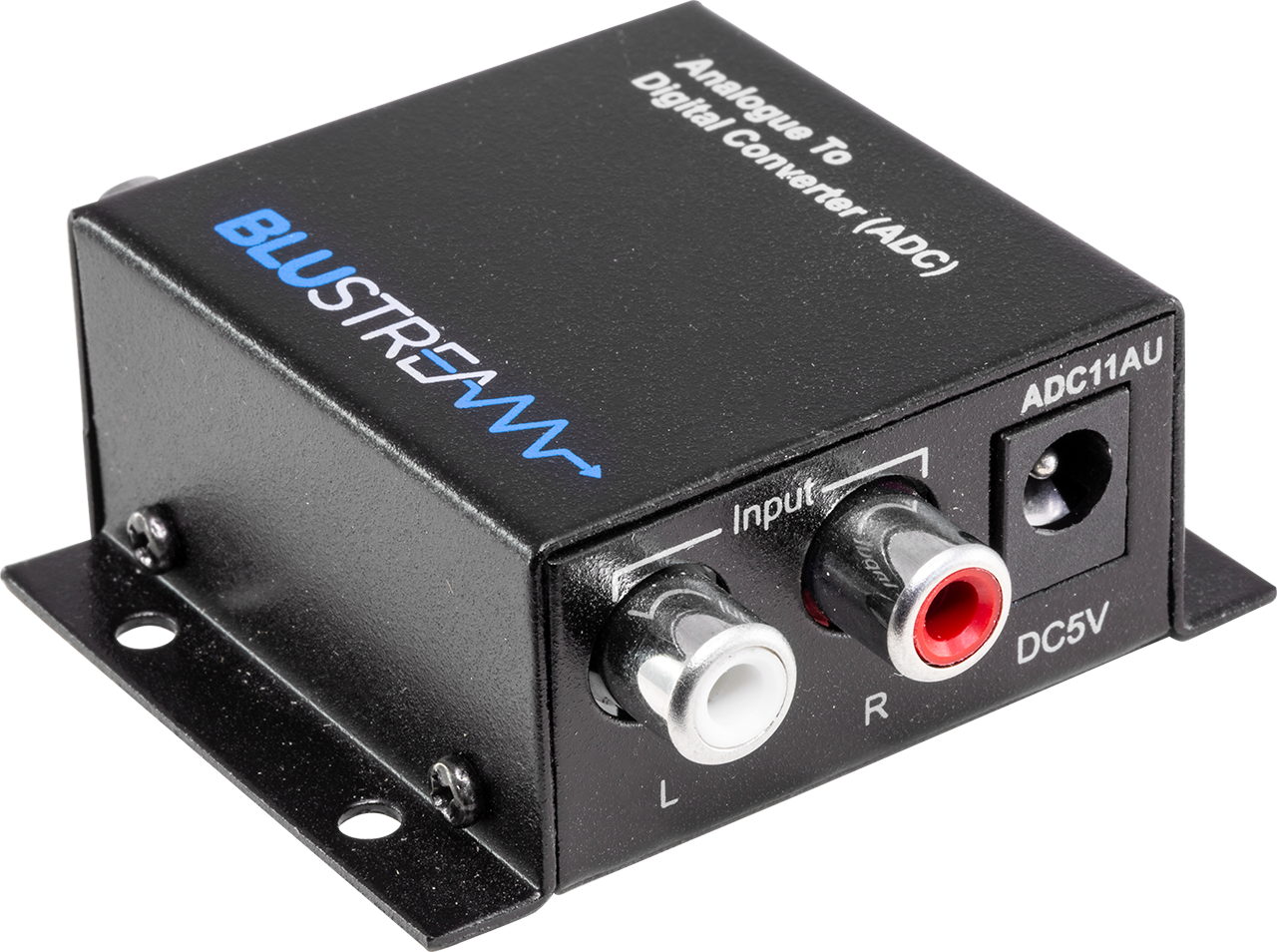

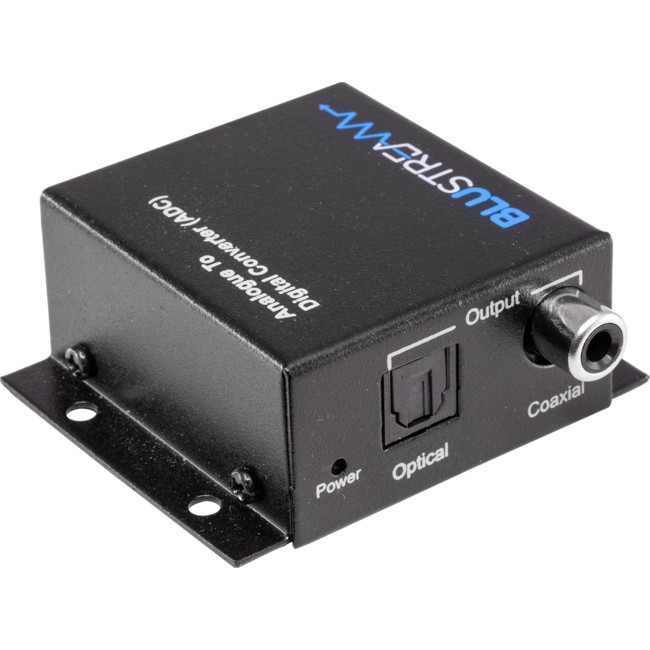

ADC11AU ANALOGUE TO DIGITAL CONVERTER

Our ADC11AU is designed to convert left/right analogue stereo audio into either coaxial or optical digital.

Bothdigital outputs are simultaneous so audio can be distributed to multiple locations.

The ADC11AU converts to 16-bit 48kHz digtial audio for enhanced sound reproduction.

Features

• ADC (Analogue to Digital Audio Converter) converts analogue left/right stereo audio input to both SPDIF opticaland coaxial digital PCM outputs
• Both optical digital and coaxial digital output simultaneously
• Converts to 16-bit 48kHz digital audio
• Plug-and-play solution

Specifications

• Audio Input Connectors: 2x Analogue stereo left/right (RCA)
• Audio Output Connectors: 1x Optical (SPDIF) & 1x RCA (SPDIF)
• Casing Dimensions (WxDxH): 50x42x26mm
• Dimensions including connections (WxDxH): 64x42x26mm
• Shipping Weight: 0.4kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature:-4°F to 140°F (-20°C to 60°C)
• Power Supply: 5V/1A DC, screw type connector
• Mounting kit included

Box Contents

1 x ADC11AU

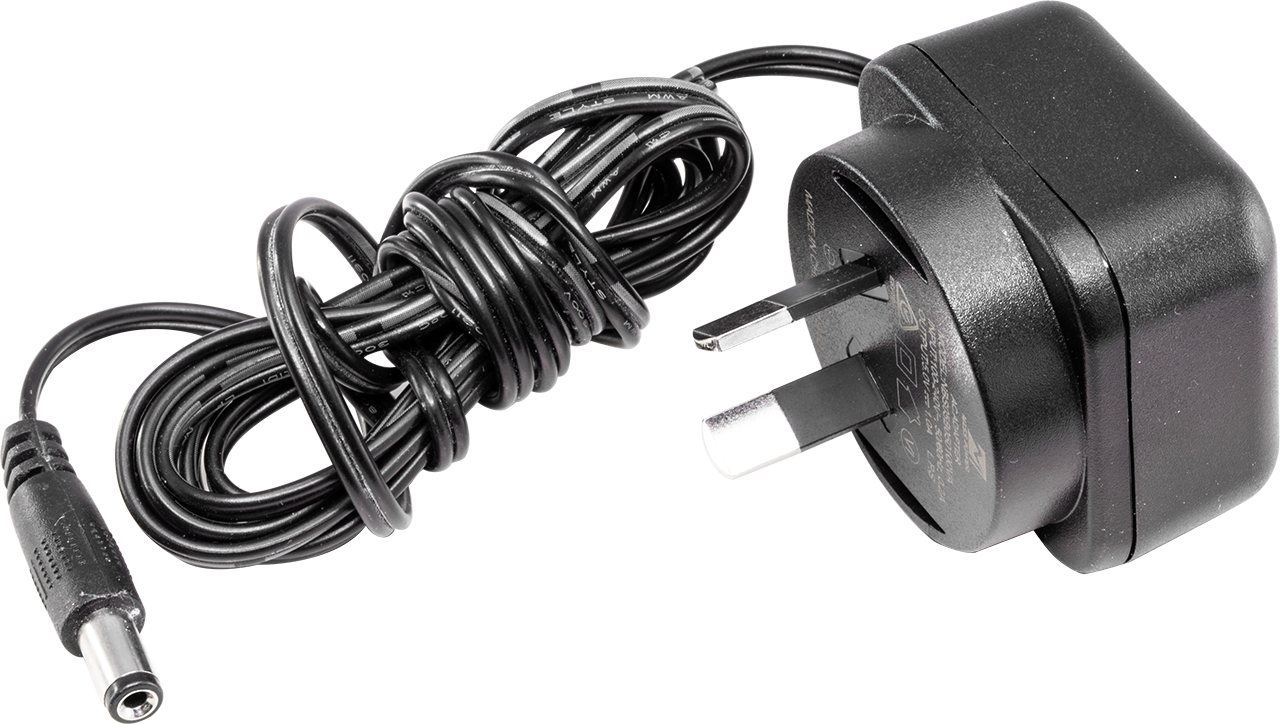

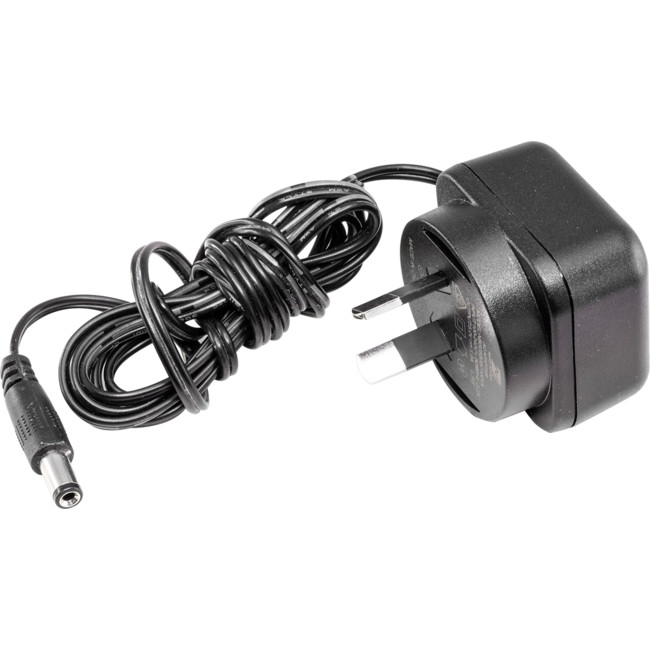

1 x 5V/1A DC power supply
1 x Mounting kit
1 x User manual
