SW41ABV2 4 IN 1 OUT 4K HDMI SWITCH

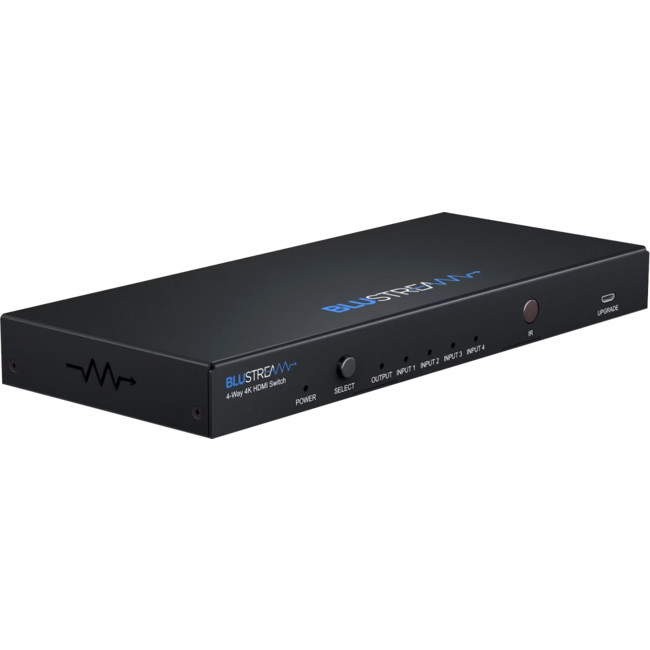

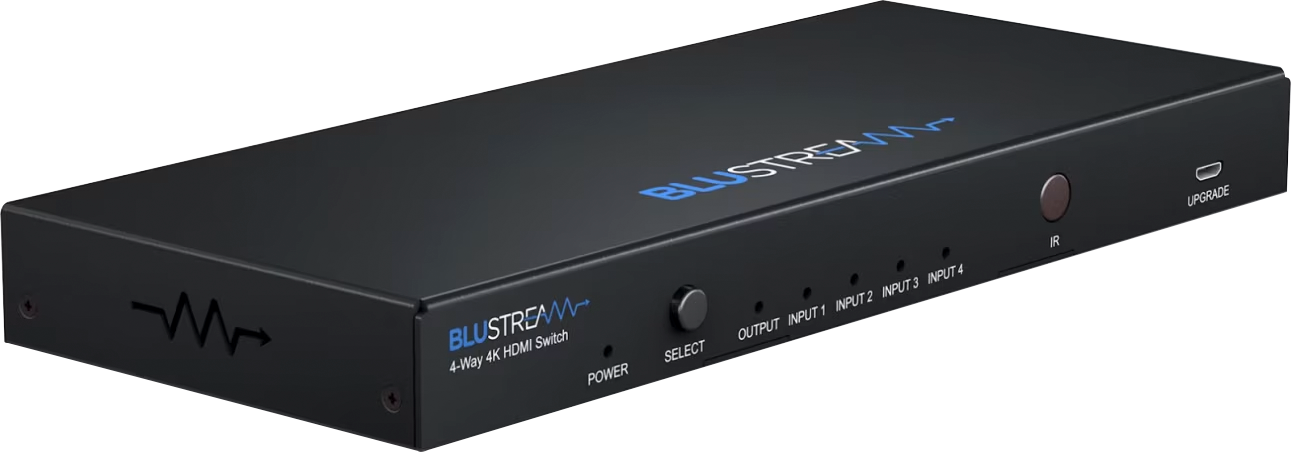

SW41-V2 4-Way 4K HDMI Switch

Our SW41-V2 is a 4-Way HDMI switch with integrated audio breakout.

The V2 switch supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.

Features

• Features 4x HDMI inputs which can be switched to a single HDMI output
• Supports 4K UHD video (3840 x 2160 @30Hz 4:4:4, 4096 x2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• V2 product supports full HDMI 2.0 specification with 4K UHD video to 4K @60Hz 4:4:4
• Supports 3D signal display
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• HDMI audio breakout to analogue L/R audio and Coaxial digital outputs concurrently

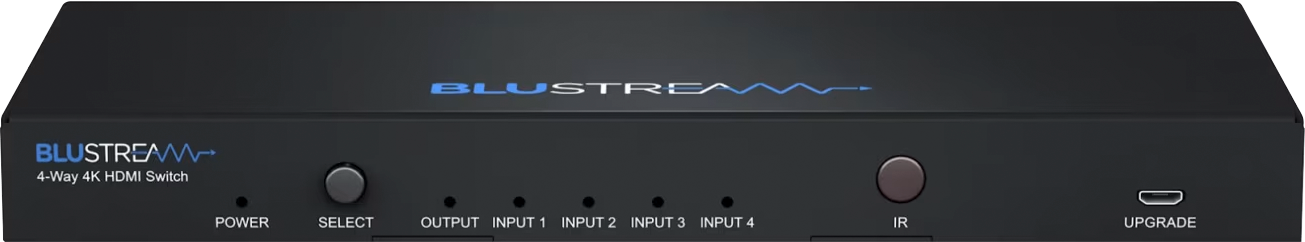

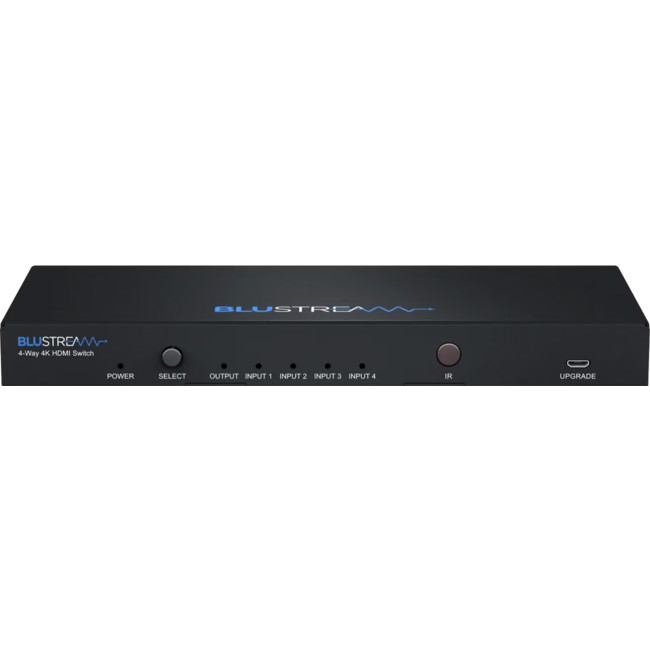

• Control via front panel and IR (remote control included)
• Advanced EDID management
• HDCP compliant
• HDMI 2.0 and HDCP 2.2 compliant (V2 product only)

Specifications

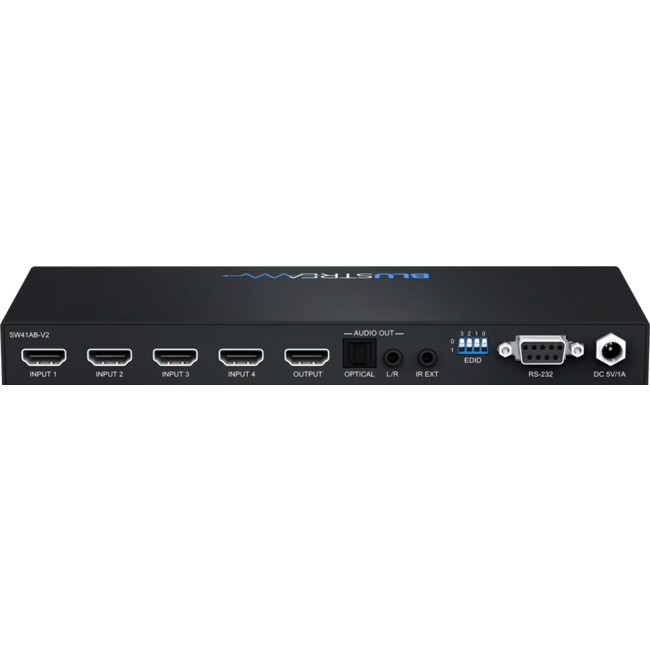

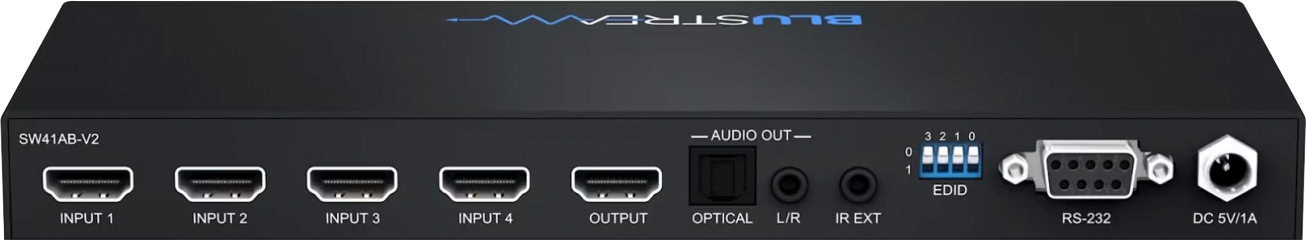

• Video Input Connectors: 4x HDMI Type A
• Video Output Connectors: 1x HDMI Type A
• Audio Output Connectors: 1x RCA (SPDIF) & 1x Analogue audio L/R (3.5mm stereo Jack)
• IR Input Ports: 1x 3.5mm stereo Jack
• RS232 Control Port: 1x DB9 (female) - V2 product only
• V1 Product Dimensions (WxDxH): 200 x 104 x 30mm (with connections)
• V1 Product Dimensions (WxDxH): 200 x 94 x 25mm (without connections)
• V2 Product Dimensions (WxDxH): 200 x 104 x 41mm (with connections)
• V2 Product Dimensions (WxDxH): 200 x 94 x 41mm (without connections)
• Product Weight: 0.45kg (excluding accessories)
• Carton / Box Dimensions (WxDxH): 295 x 155 x 80mm
• Shipping Weight: 0.9kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
• Power Supply: 5V / 2A DC

Contents

• 1x SW41-V2
• 1x SW41-REMOTE
• 1x 5V / 2A DC power supply
• 1x User manual
