MFP112 11-IN 2-OUT MULTI FORMAT

MFP112
11 Input 2 Output Multi-Format Presentation Switch

Our MFP112 is a multi-format presentation switcher within-built video scaling, audio embedding, de-embedding, EDID management and HDBaseT™ input and output.

The MFP112 works in 2 modes, first as a 11 input dual output switcher, alternatively each output can work independently with HDMI output 1 routing the 1x HDBaseT™ 4x HDMI inputs only and output 2 switching all 11 video audio inputs.

With control of the switcher using the front-panel push buttons, IR remote control or RS-232 interface it is an ideal solution for commercial installations.

Features

• Switcher can function in 2 modes:-
  • Splitter mode - Both HDMI output 1 & HDBaseT™ output 2 display the same selected input.
  • Matrix Switcher mode - HDMI inputs are independently switchable to HDMI output 1 & HDBaseT™ output 2. HDMI output 1 has access to HDBaseT™ input HDMI inputs 1-4 ONLY (HDMI signal pass-through including 4K resolution), whilst HDBaseT™output 2 has access to all HDMI, HDBaseT™ and analoguevideo inputs with associated audio.
• HDBaseT™ output (output 2) for distribution of video sources up to 100m (4K up to 70m) with bi-directional IR, RS-232, LAN serving and EDID management.
• HDBaseT™ input for integration of remote HDMI sources up to 100m distance (4K up to 70m) with bi-directional IR and LAN serving
• Built-in video scaling, both up-scaling (maximum of 1080p) and down-scaling capabilities (including 4K to lower resolutions).
• Video inputs support all industry standard video resolutions including VGA-WUXGA and 480i-4K.
• Scaled video output resolutions include 720p, 1080P, 1280x1024, 1024x768, 1360x768, 1440,900, 1680x1050
• Audio embedding - independent analogue L/R audio inputcan be embedded to HDMI/HDBaseT™ outputs analogue L/R audio and Coaxial digital outputs concurrently (feature available on HDMI/HDBaseT™ outputs 1 2 in Splitter mode and HDBaseT™ output 2 only in Matrix Switcher mode).
• HDMI audio breakout to analogue L/R audio and Coaxial digital outputs concurrently (linked to output 2 when in Matrix Switcher mode)
• Volume control of HDMI, line-level analogue L/R audio and Coaxial digital outputs
• PoH to compatible Blustream Transmitters & Receivers (local power required when using HEX100ARC-RX)
• Supports all known HDMI audio formats on HDMI pass-through, including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master audio transmission

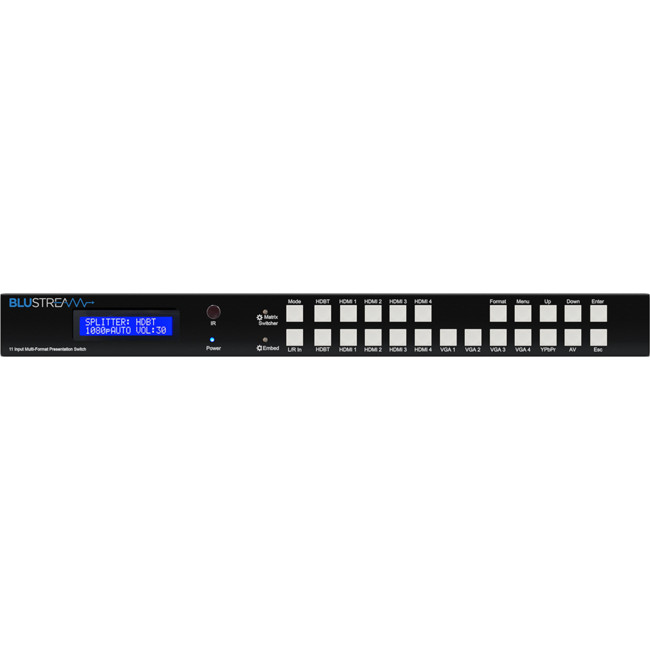

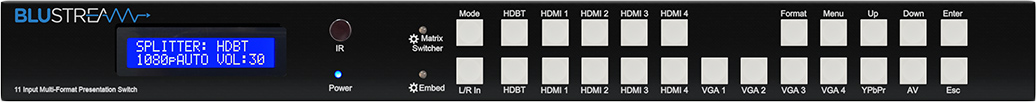

• Front panel display for status feedback
• Control via front panel, IR, RS-232 and TCP/IP
• 3rd Party drivers available for all major home controlbrands
• Advanced EDID management
• HDCP compliant

Specifications

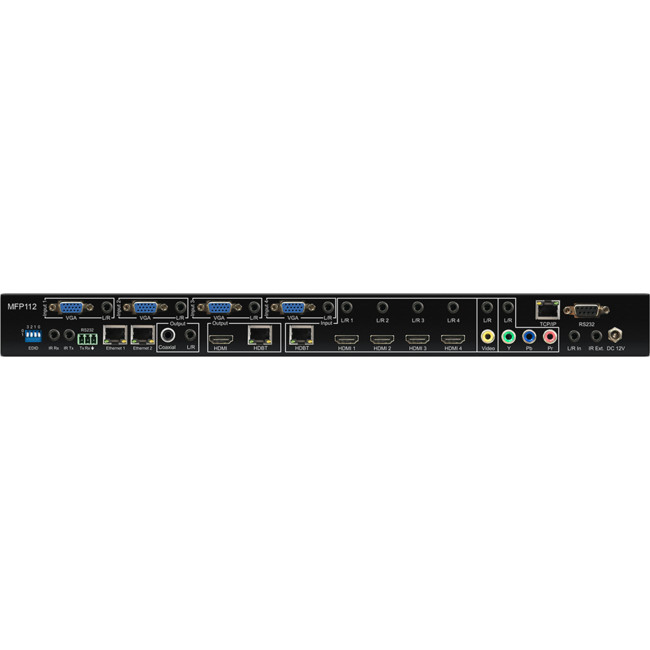

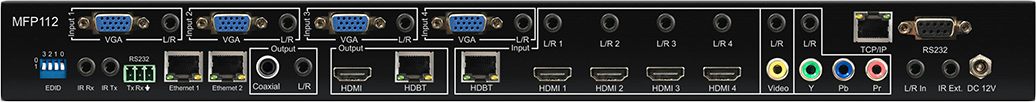

• Video Input Connectors: 4x HDMI Type A, 1x HDBaseT™ RJ45 connector, 4x VGA, 1x Composite, 1x Component (YPbPr)
• Video Output Connectors: 1x HDMI Type A, 1x HDBaseT™ RJ45 connector
• Audio Input Connectors: 11x Analogue audio 3.5mm stereo jack
• Audio Output Connectors: 1x Analogue audio 3.5mm stereo jack, 1x SPDIF Coaxial digital
• RS-232 serial port: DB-9 connector (Matrix control), 1x 3-pin Phoenix connector for RS232 pass-through
• IR Input ports: 2x 3.5mm stereo jack
• IR Output ports: 2x 3.5mm mono jack
• Casing Dimensions (W x H x D): 438mm x 45mm x 225mm, without feet
• Dimensions Including Connections (W x H x D): 438mm x 45mm x 235mm
• Shipping Weight: 1.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 12V/5A DC

Box Contents

Box Contents

1 x MFP112
1 x 12V/5A DC power supply
1 x Remote control
4 x IR receiver
3 x IR transmitters
1 x IR control cable - 3.5mm-3.5mm cable
1 x Serial cable - 9-pin RS232 to 3-pin phoenix connector
1 x Mounting kit
1 x User manual

Optional Components ( sold seperately )

1 x HDBaseT™ 100m transmitter (HDBaseT™ source input)
1 x HDBaseT™ 100m receiver (HDBaseT™ output)
