AV313 R

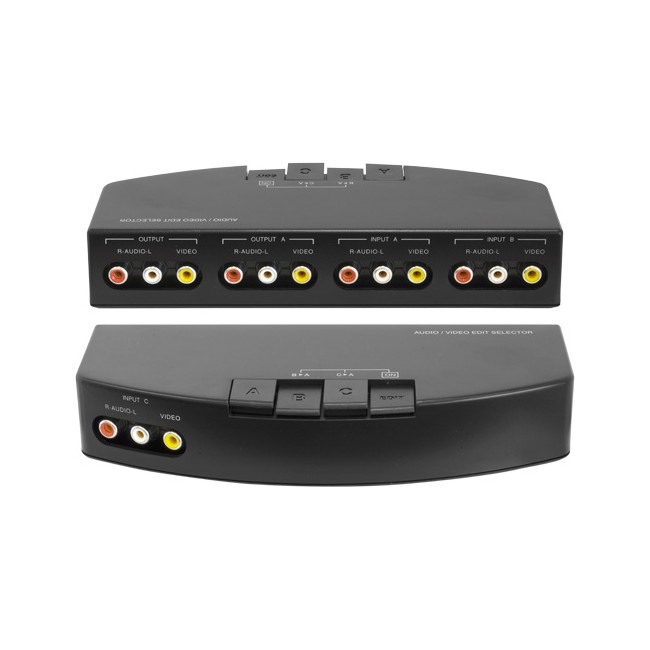

• 3 in 2 out Composite AV Selector
• Connect multiple AV sources to multiple destinations
• Easily switch between AV sources with the press of abutton
• EDIT button: This feature allows you to record material from Source B or C to a VCR which is connected to Output A

Specifications

• Specification for audio :
  1. Frequency range: 10-20K Hz
  2. Insertion loss: 0.1dB limited.
  3. Channel separation (@ 1KHz): 60dB normal / 55dB limited.
  4. Crosstalk between function (@ 1K Hz) 60dB normal/ 55dB limited.
  Note:
  1. The generator impedance should be 600 ohm.
  2. Signal output reading is taken across a 47K ohm load.
  3. Product Output 4.7K ohm terminated. (on testing channel separation and crosstalk)
• Specification for video:
  1.Frequency range: 0.3-6M Hz
  2.Insertion loss: 0.5dB limited.
  3.Isolation loss: 35dB limited.
  Note:
  1.The generator impedance should be 75 ohm.
  2. Input 75 ohm terminated.
