This product requires a pair of transceiver module to work. Please choose from related product at the bottom of the page. Compatible module part numbers are as follows. SM:SFP10G10KSMLC & MM: SFP10G300MMLC. Please note the modules used must be 10G modules, not 1G modules, even with the 1080P signal.

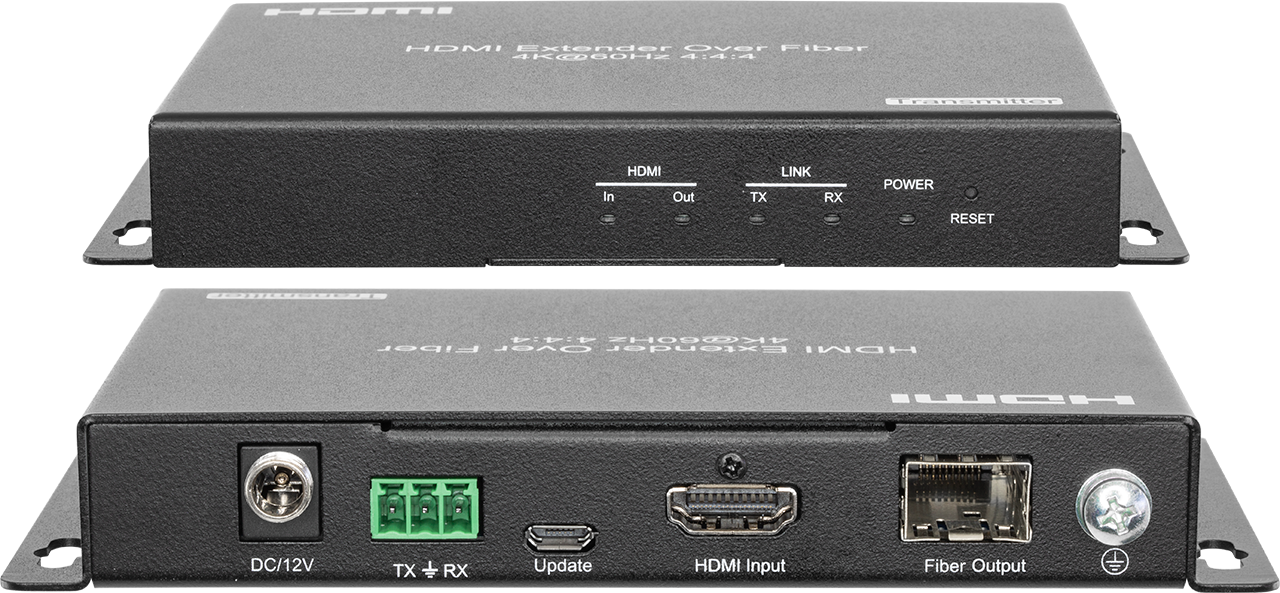

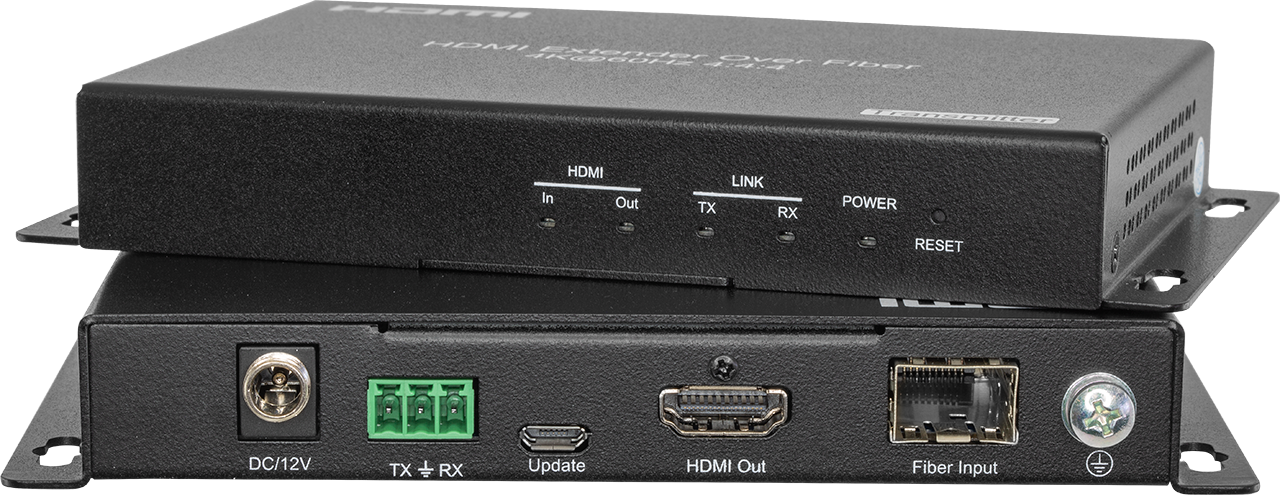

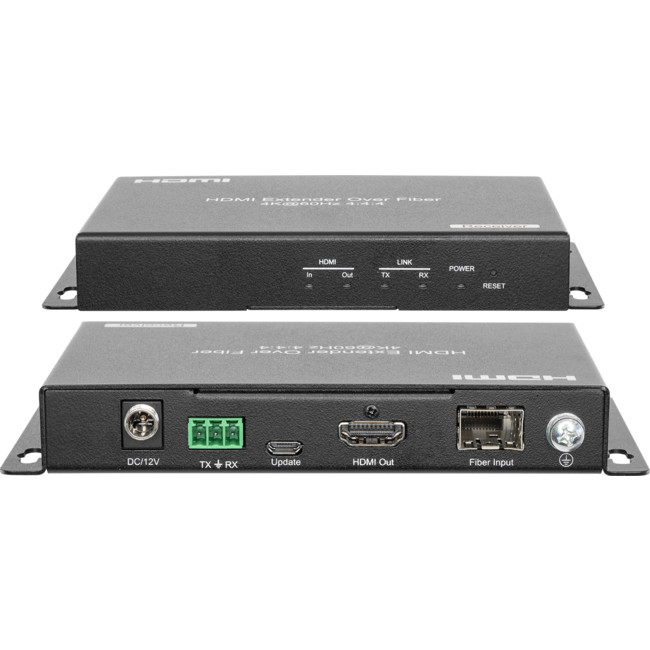

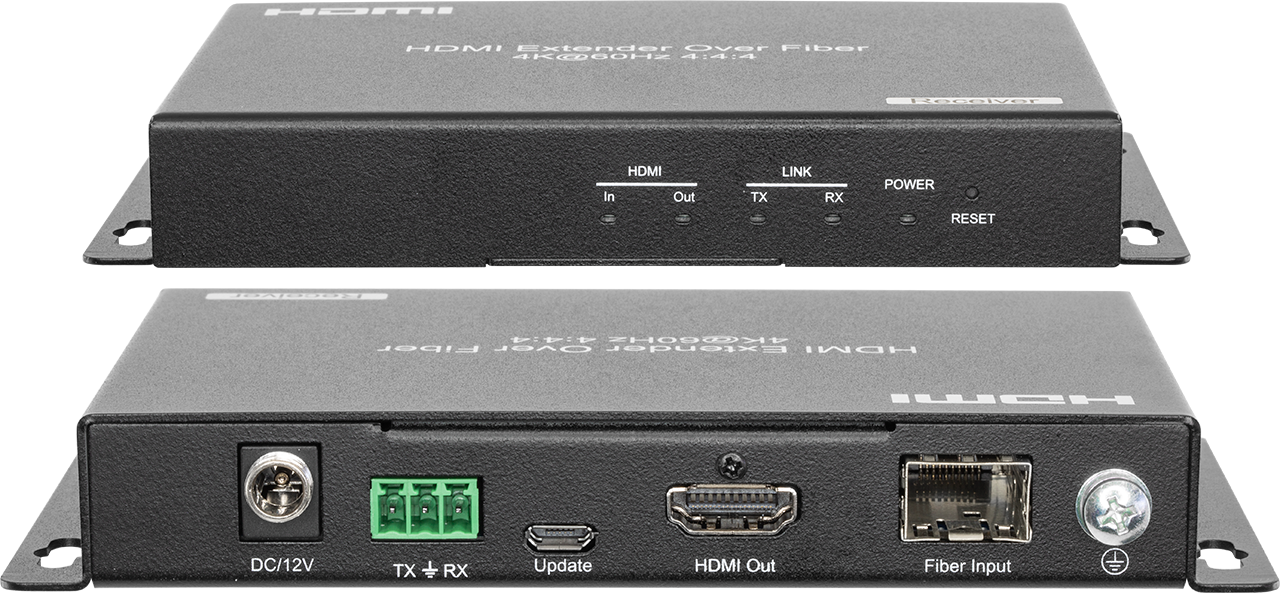

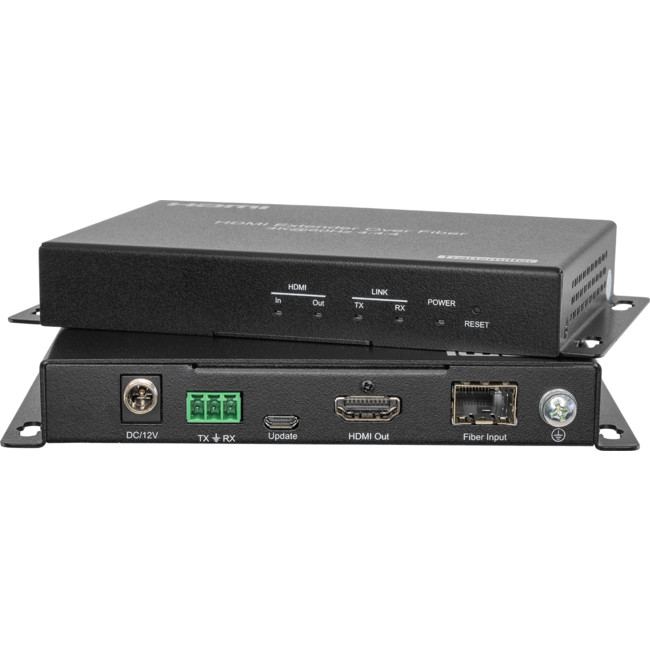

The HDMIFIB4K is a long-range HDMI video extender kit that uses LC fibre optic cable to extend video/audio from anHDMI-equipped device to a remote display up to 60km away(60km transceiver fibre module required). The extender supports up to 4K resolution with 18Gps bandwidth includes both the transmitter and receiver base only.
SPECIFICATIONS
-5 to 40( 23 to 95)
Operating Humidity Range
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
Link(Transmitter/ Receiver)
1m~60Km single Multi mode 300m single Duplex fibre optical cable
Module type required?
SFP Type, Single / Multi mode ,Single / Duplex fibre (optional)
Video Format
4K@60Hz YUV 4:4:4, 4K@60Hz, 1080P, 720P, 576P, 480P/ VESA Resolution
Audio Format
Support LPCM 7.1, Dolby®True&n bsp;HD, DTS-HD Master Audio™ .
HDCP
HDCP 1.4 in, HDCP 1.4 out HDCP 2.2 in, HDCP 2.2 out
Power consumption
Transmitter: 3watts(Maximum) Receive: 3watts(Maximum)
Dimension (L×W×H)
Transmitter: 96*100*21mm Receiver: 96*100*21mm
Net Weight
475g (Pair)

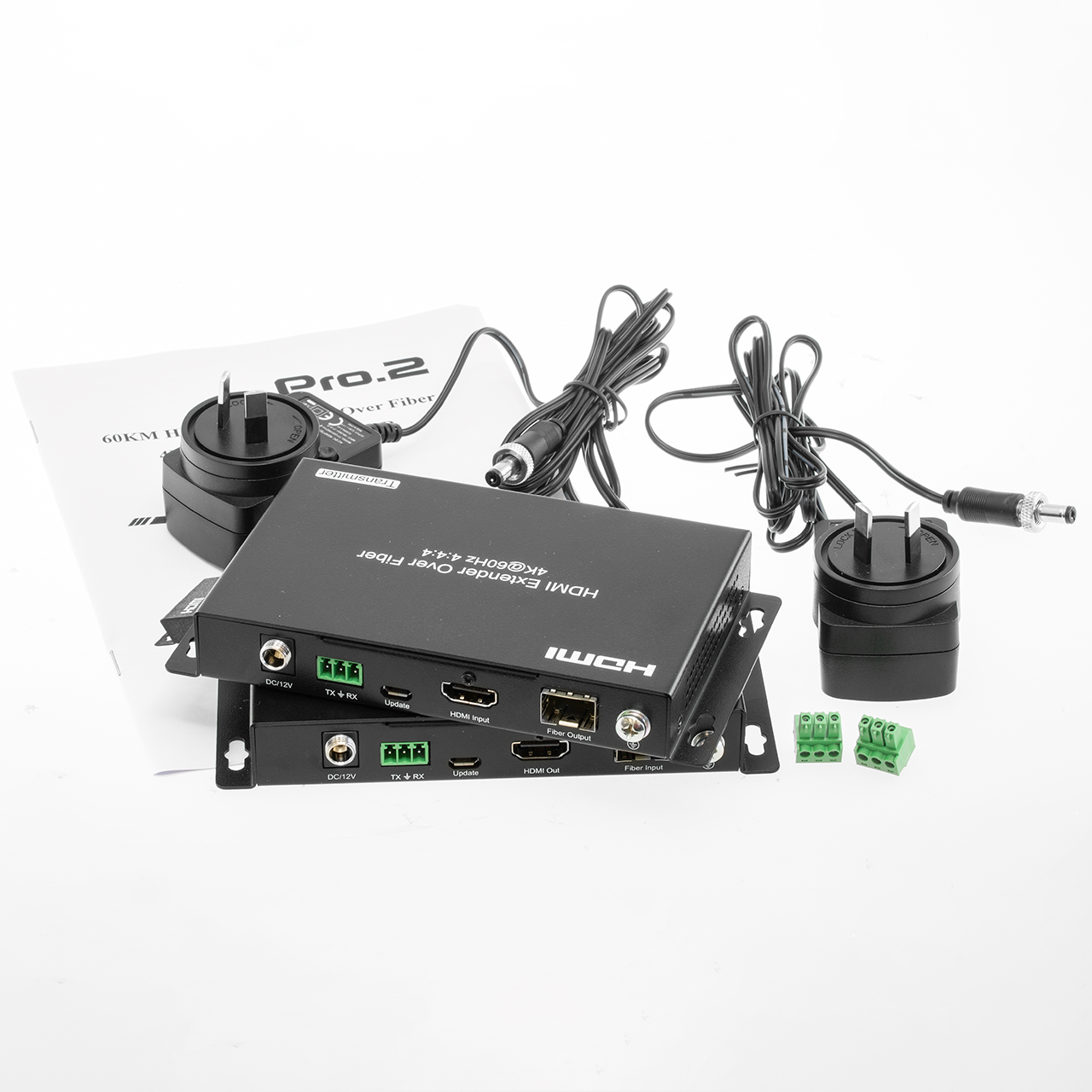

PACKING CONTENTS 1). Main Unit. HDMI Extender Over Fibre 2). DC12V 1A Power Supply X2 3). Operating Instructions *The Unit without Fibre Modules
FAQ
Q: Unit supports 18G bandwidth, using the fibre module only 10G? A: Unit converts 18G signal to 10G using CSC (color space conversion) to transmit from the source to the receiver, itthen converts back to 18G at the receiver.
