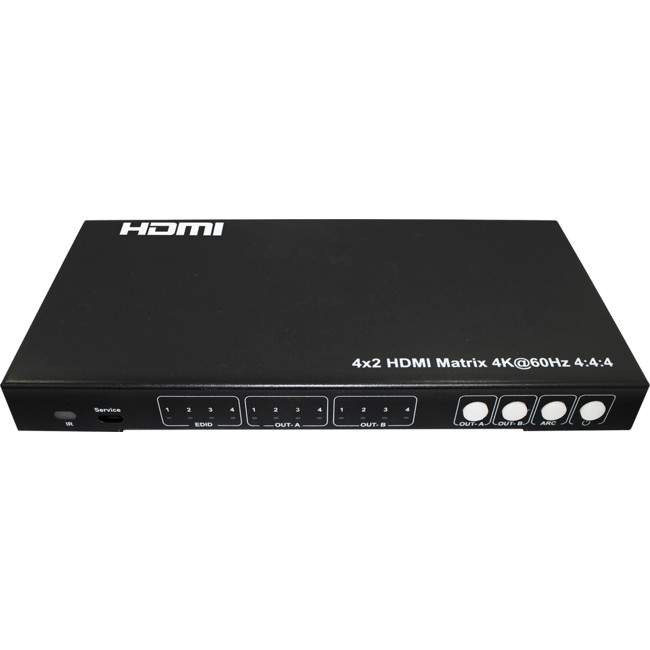

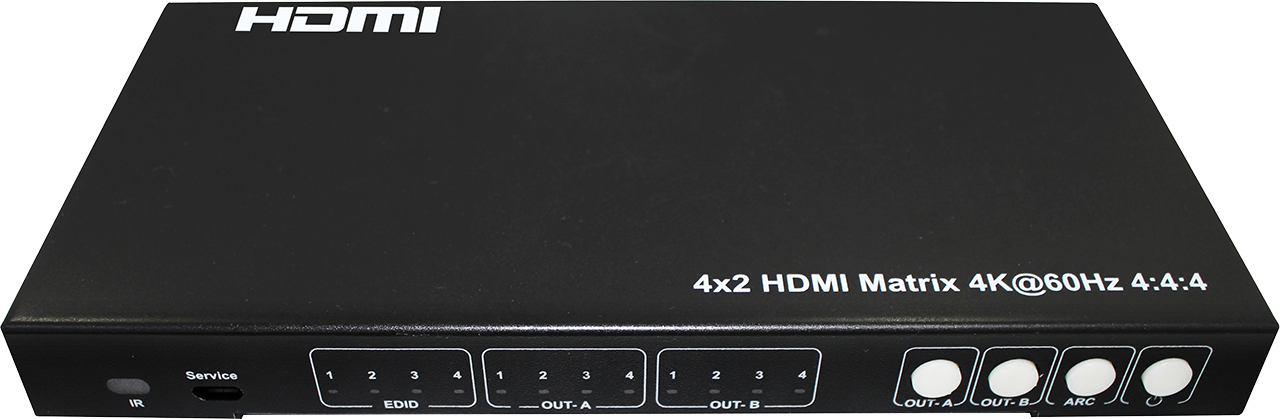

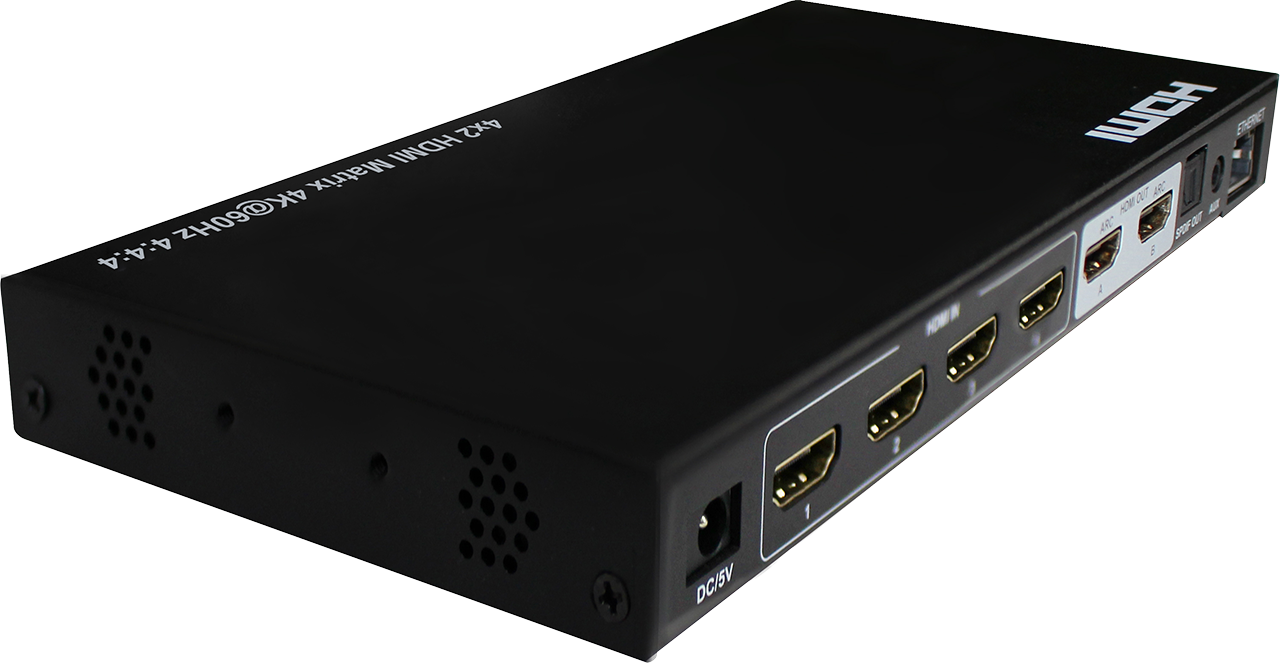

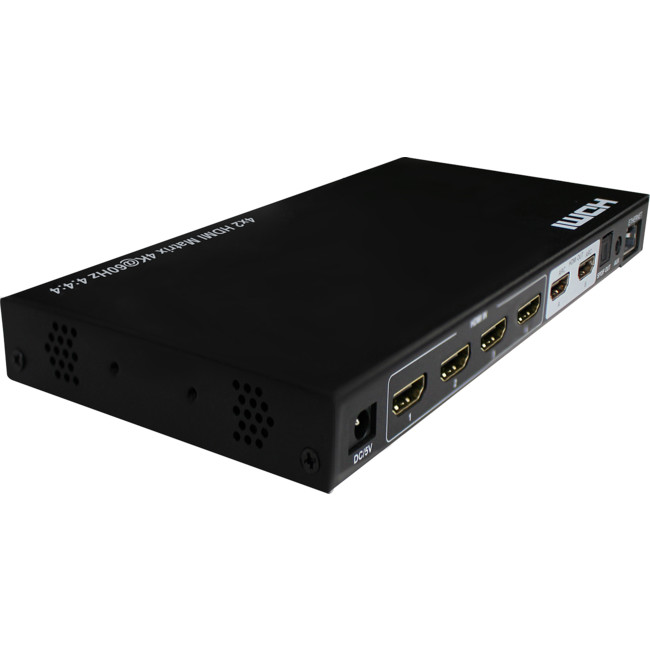

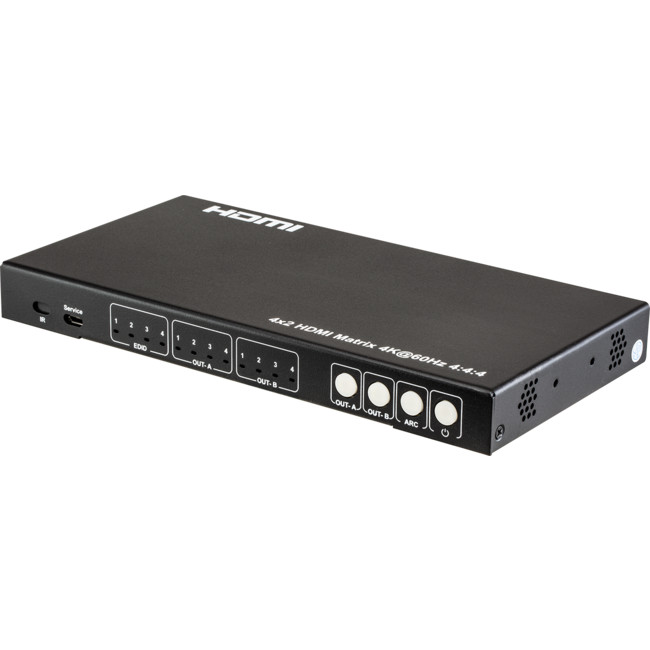

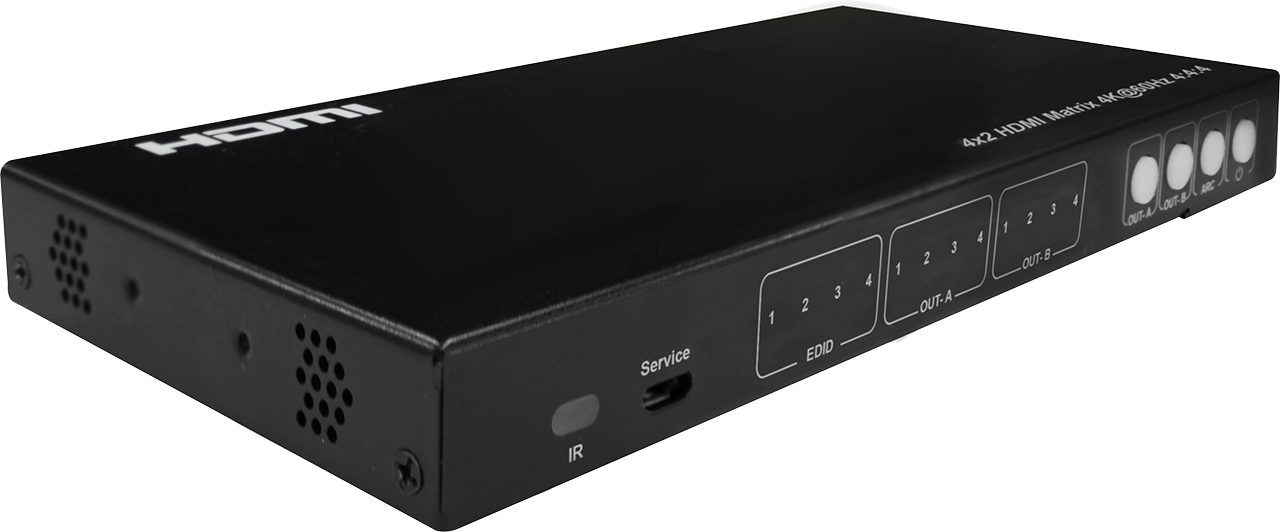

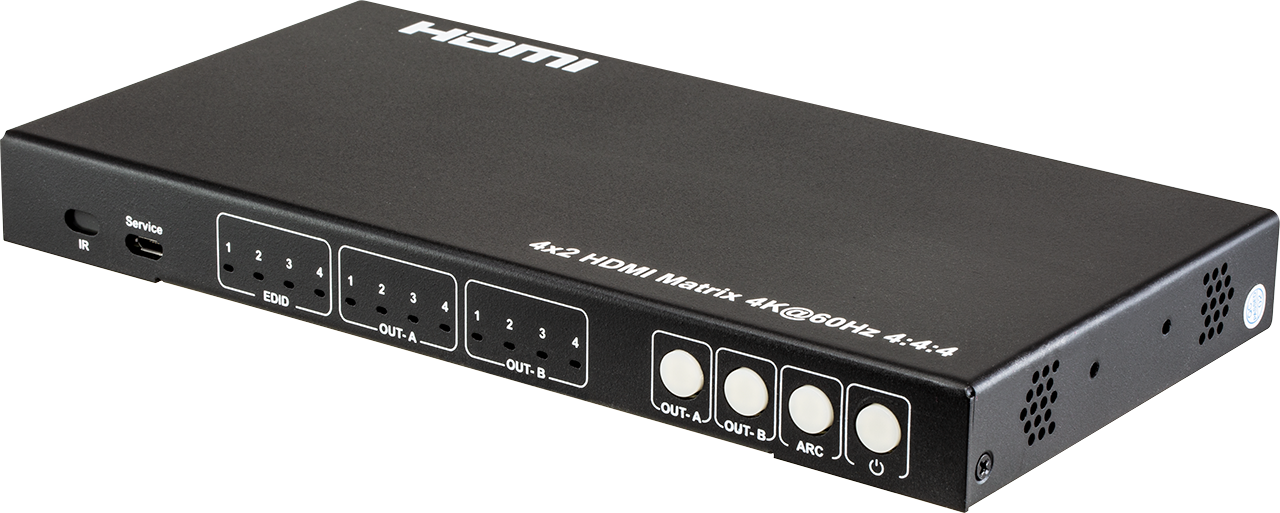

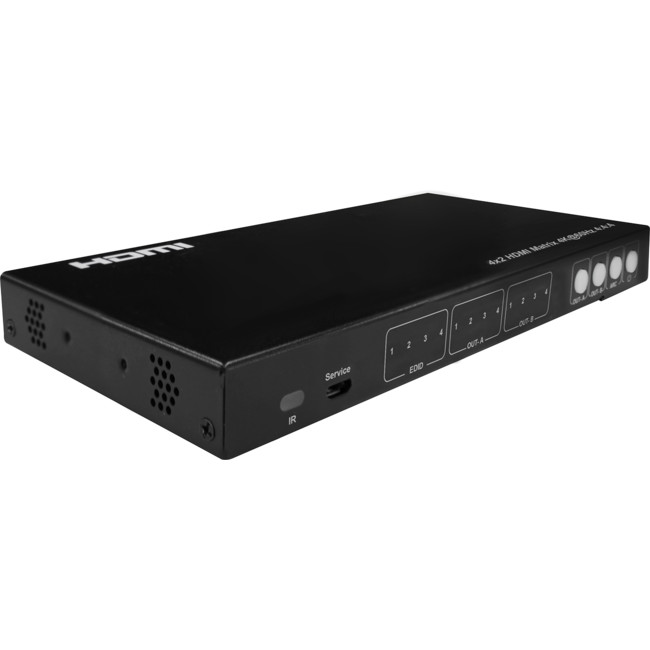

HDMIMX42ARCV2 4X2 HDMI 18G MATRIX SWITCHER

18G HDMI 4X2 MATRIX SWITCHER WITH ARC

Features

• Bandwidth up to 18 Gbps
• HDMI 2.0 version(Support 4K@60Hz YUV4:4:4)

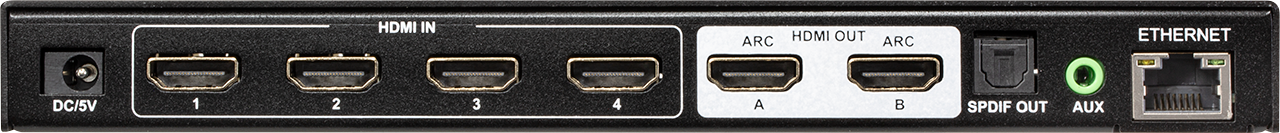

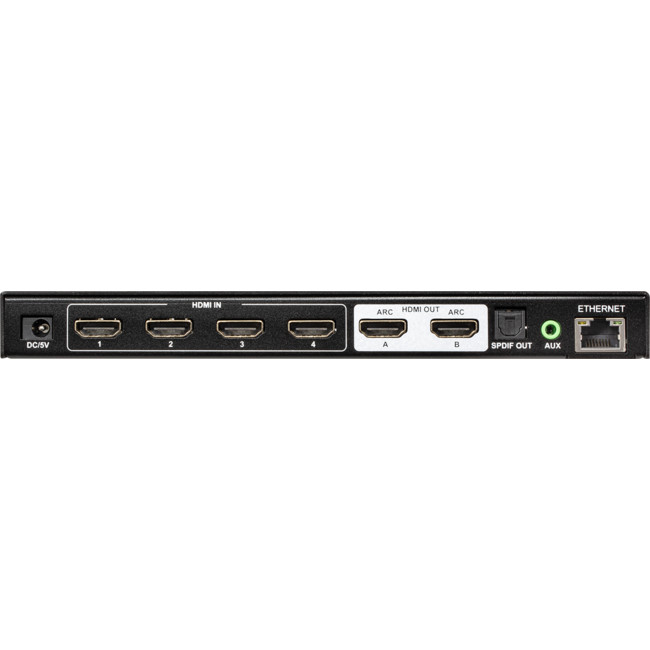

• 4×2 HDMI Matrix,4×HDMI Inputs,2×HDMI Outputs
• SPDIF out/Analog audio 2.0 extraction
• HDCP 2.2/HDCP1.4 compliant
• LPCM7.1/24-bit/96khz, Dolby Atmos and DTS-X
• Support Dolby and HDR10
• Support 3D,deep color max 12bit
• Support CEC and ARC on both outputs
• EDID management to have mixed EDID or copy EDID
• Use as a downscaler to downscale from 4K60Hz to 1080p
• Micro USB port for future firmware upgrade

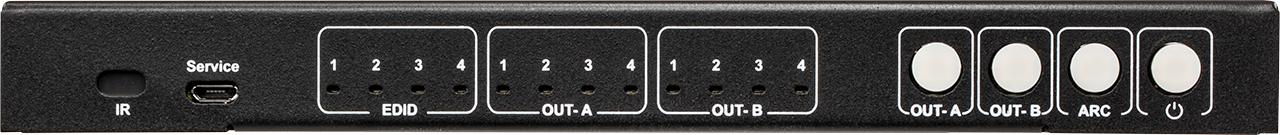

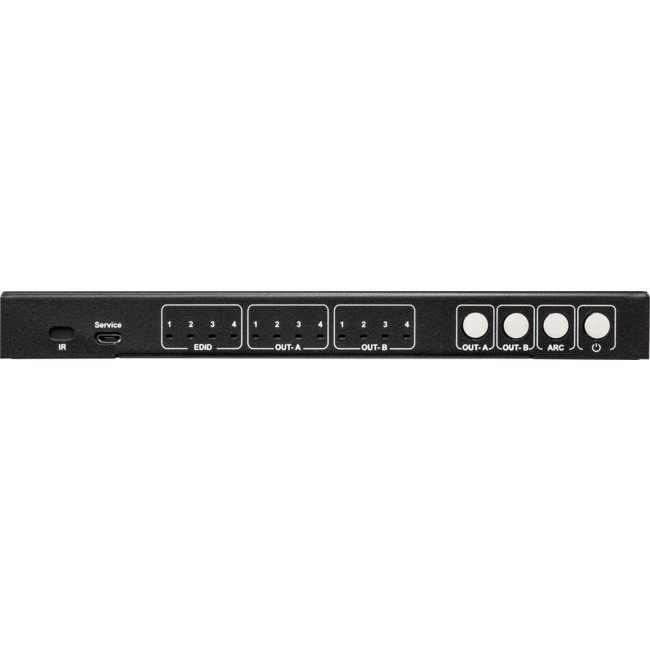

• Control the unit with the front panel button, IR remote control, web control, or third-party platform
• The command list is available to integrate with the third-party platform

Specifications

• Bandwidth: 18 Gbps
• Resolution: 480p@60hz,576P@50hz,720P@60hz, 1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz,
  4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4
• Operating Temperature Range: 0 to 40°C (32 to 104°F)
• Operating Humidity Range: 5 to 90 % RH (no condensation)
• Input Video Signal: 0.5-1.0 volts p-p
• Input DDC Signal: 5 volts p-p (TTL)
• Analog audio Ext port: 1x3.5mm audio jack
• Output Video: HDMI 2.0 HDCP1.4/2.2
• Output Audio: Support HD digital audio format,SPDIF out/Analog audio 2.0 out, LPCM7.1/24-bit/96khz,Dolby Atmos and DTS-X
• Dimensions(WxHxD): L210 X W104.3 X H20.8mm
• Net Weight: 0.66kg
• Power consumption: 2.5W(Max)
• Power supply: 5V 1A

What is in the box

• HDMIMX42ARCV2 x 1pc
• 5V 1A DC power supply x 1pc

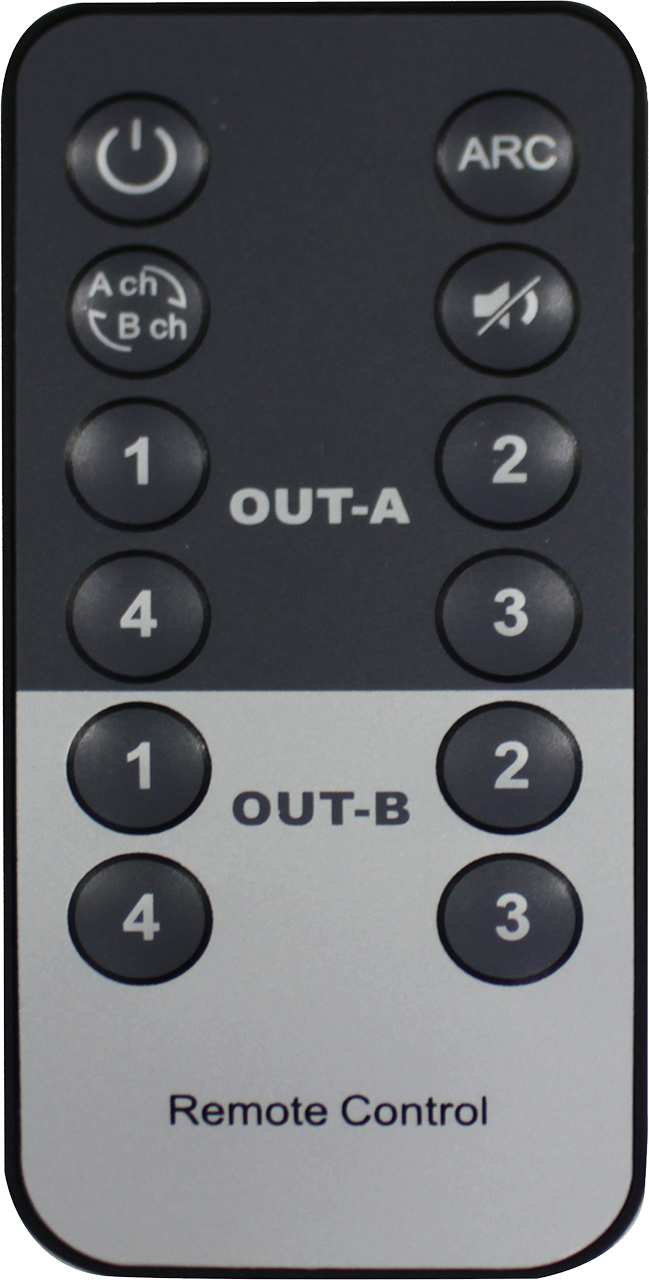

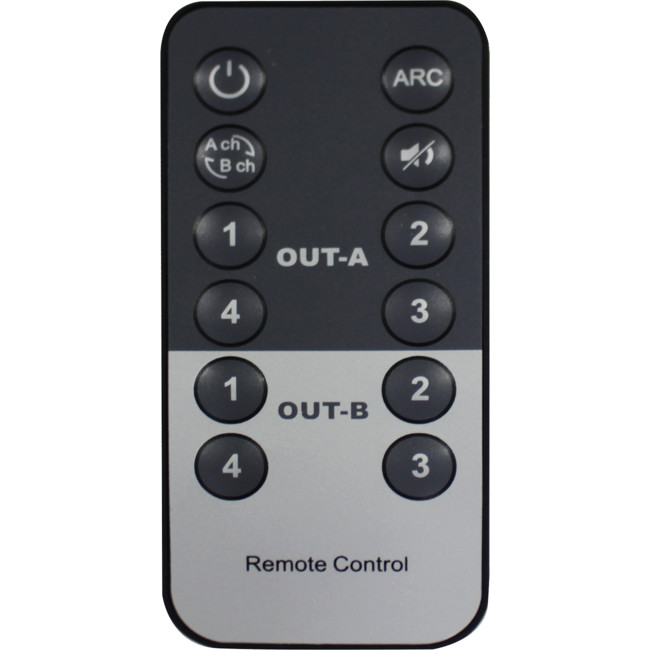

• IR Remote control x 1pc
• CD Disc x 1pc
