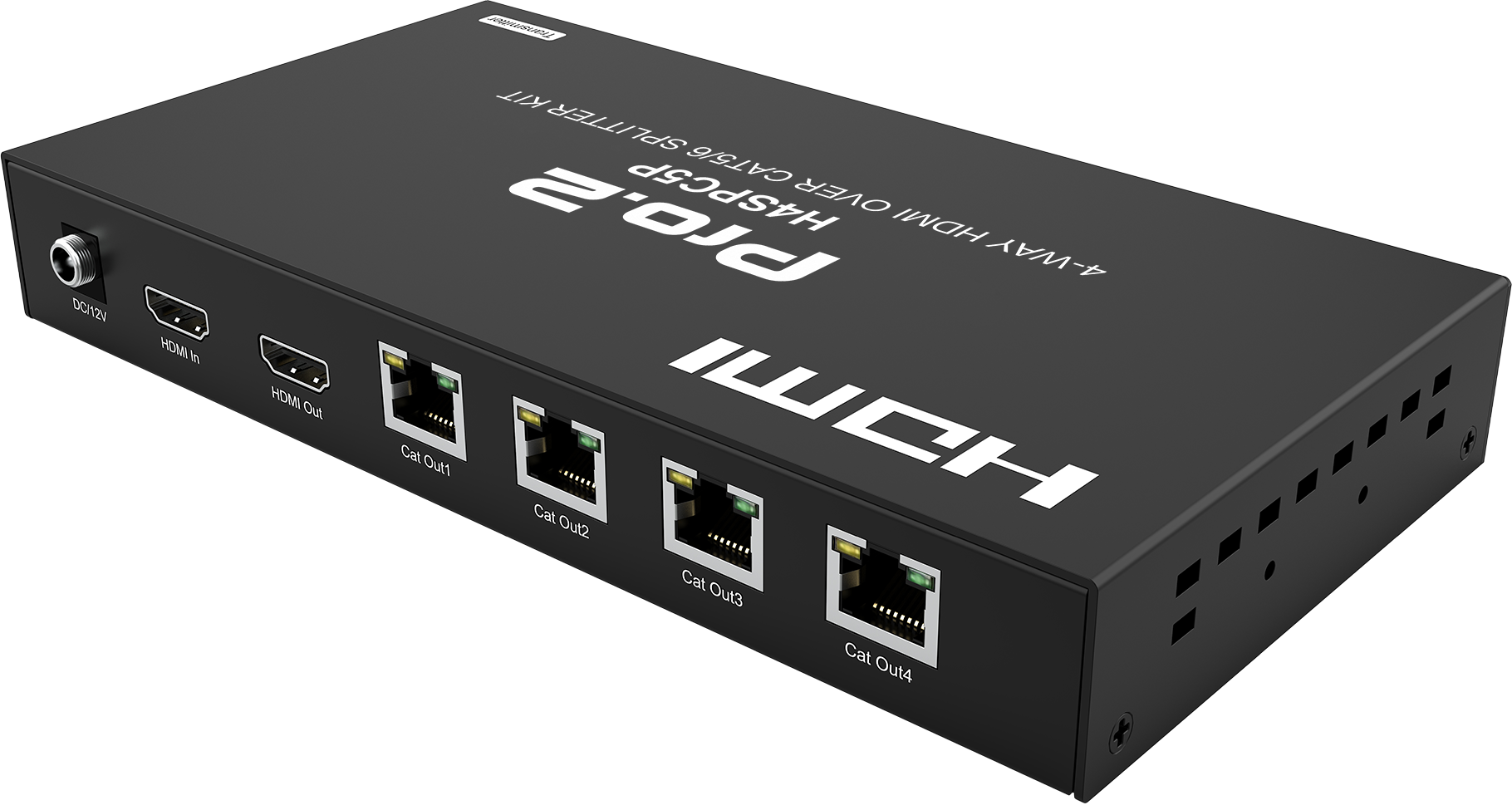

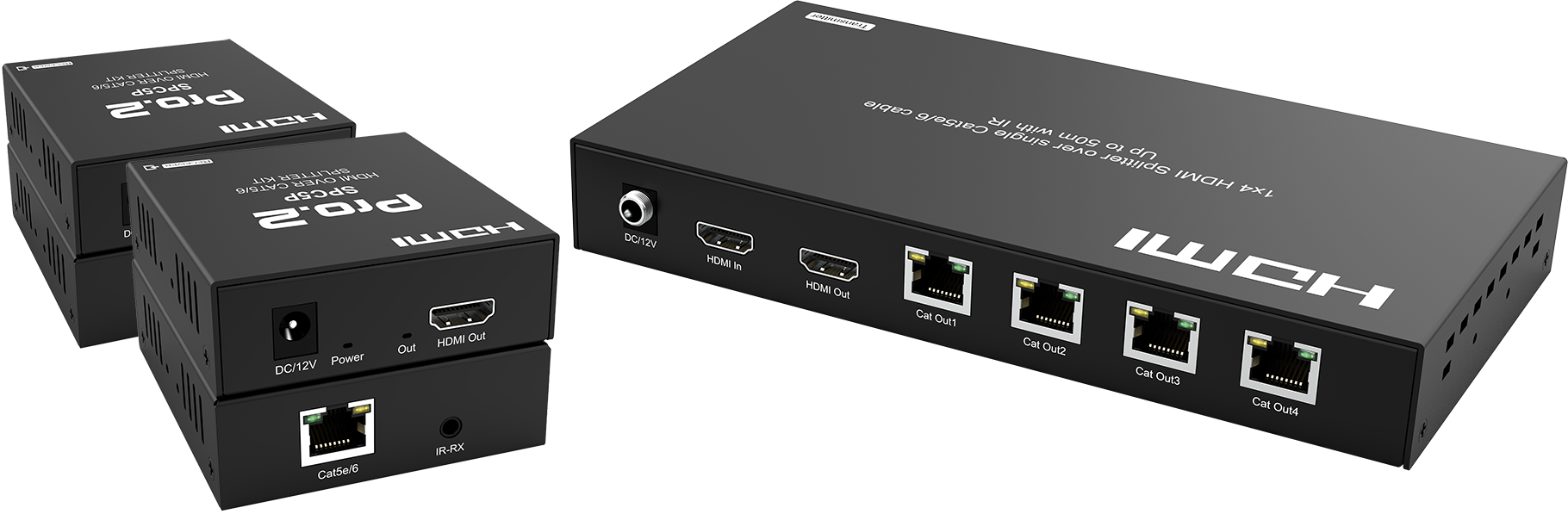

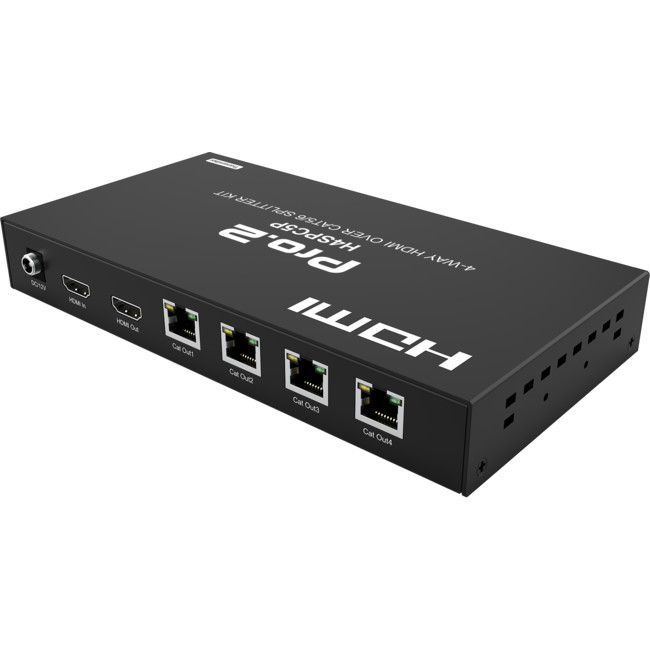

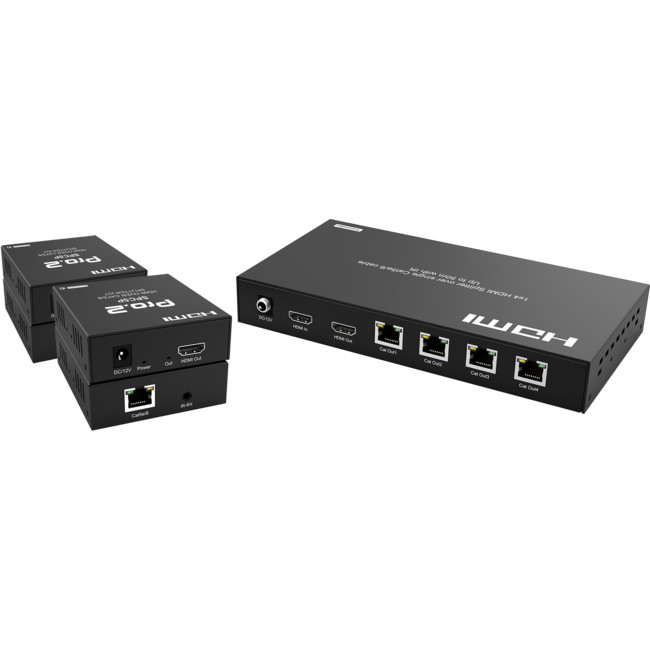

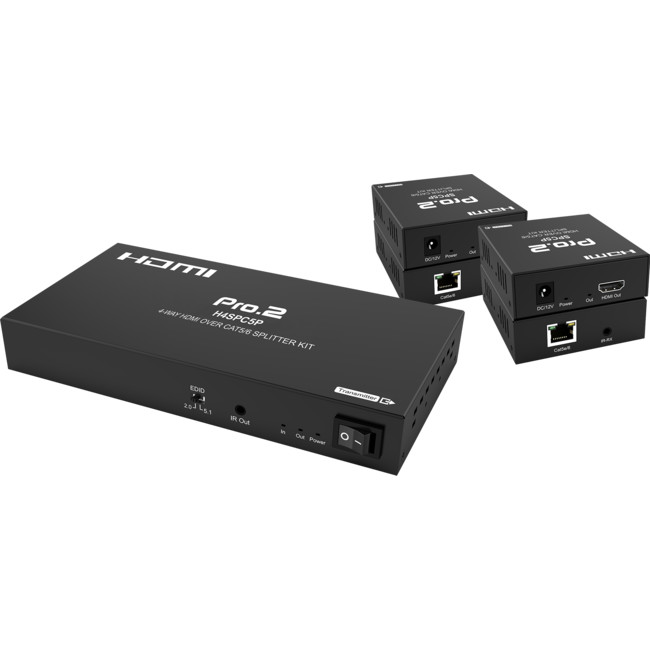

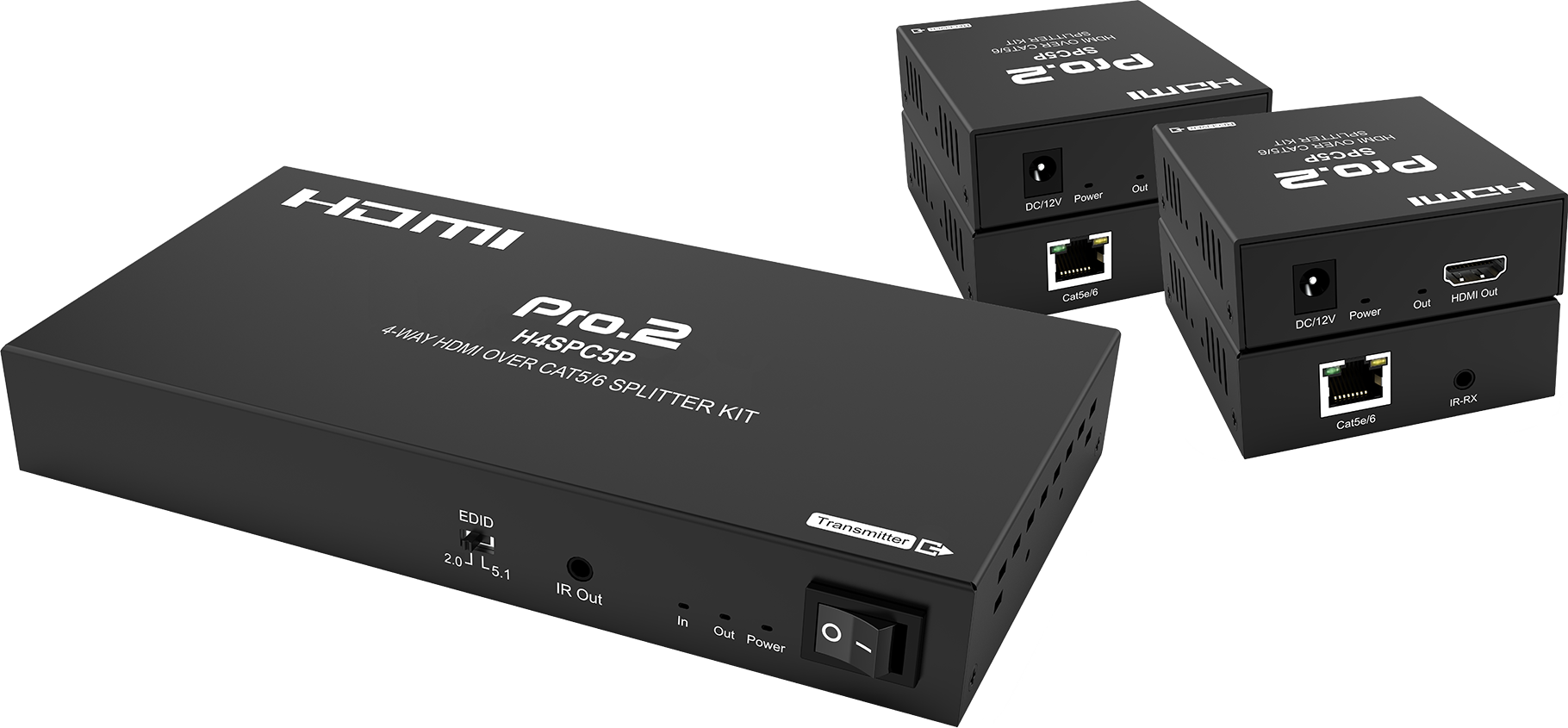

Distribute a single HDMI source to up to four displays with ease. Ideal for Blu-ray players, HD TVs, Pay TV (Foxtel) and other HDMI source devices.
Transmit a high-quality HDMI signal up to 50 metres using a single Cat5e or Cat6 cable, providing a reliable and cost-effective solution for multi-room installations.
If you are running a cable 15 metres or more, make sure you use a SOLID CAT5/6 cable. This product may not work with standard stranded ethernet cable. See related items forcabling that will work this product. 60m distance has been tested fine on F/UTP solid CAT6 cable.
FYI: Most of the pre-made CAT5/6 leads on the market are stranded cable not solid.

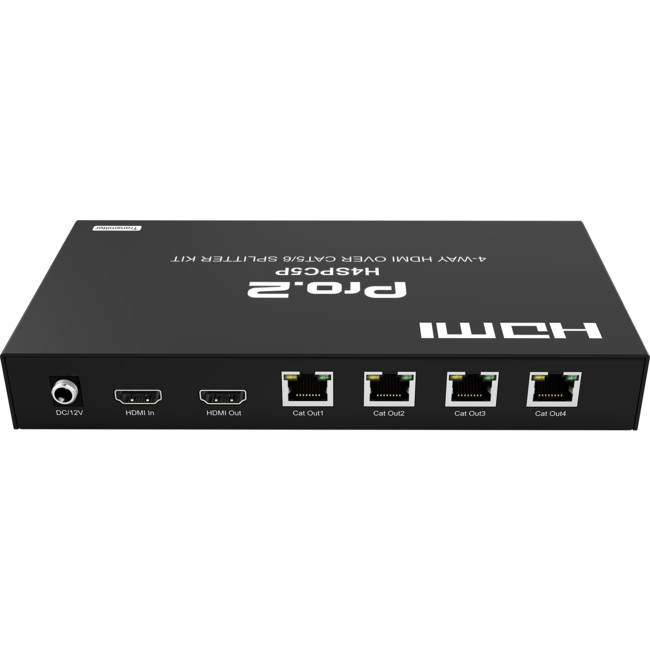

HDMI Loop-Out Allows the HDMI signal to be extended over Ethernet while maintaining a direct connection to a local display at the source.
Expandable & Cascadable Design Supports cascading up to 4 transmitter layers, enabling connection of up to 16 receivers for larger distribution setups. Simply hook up the loop-out from one transmitter to the input of another!
Full HD Performance Supports video resolutions up to 1080p Full HD, including 3D content.

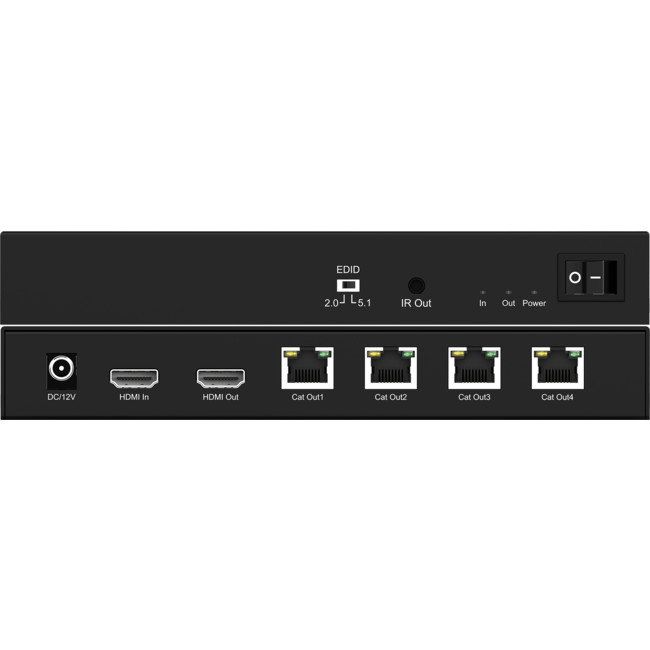

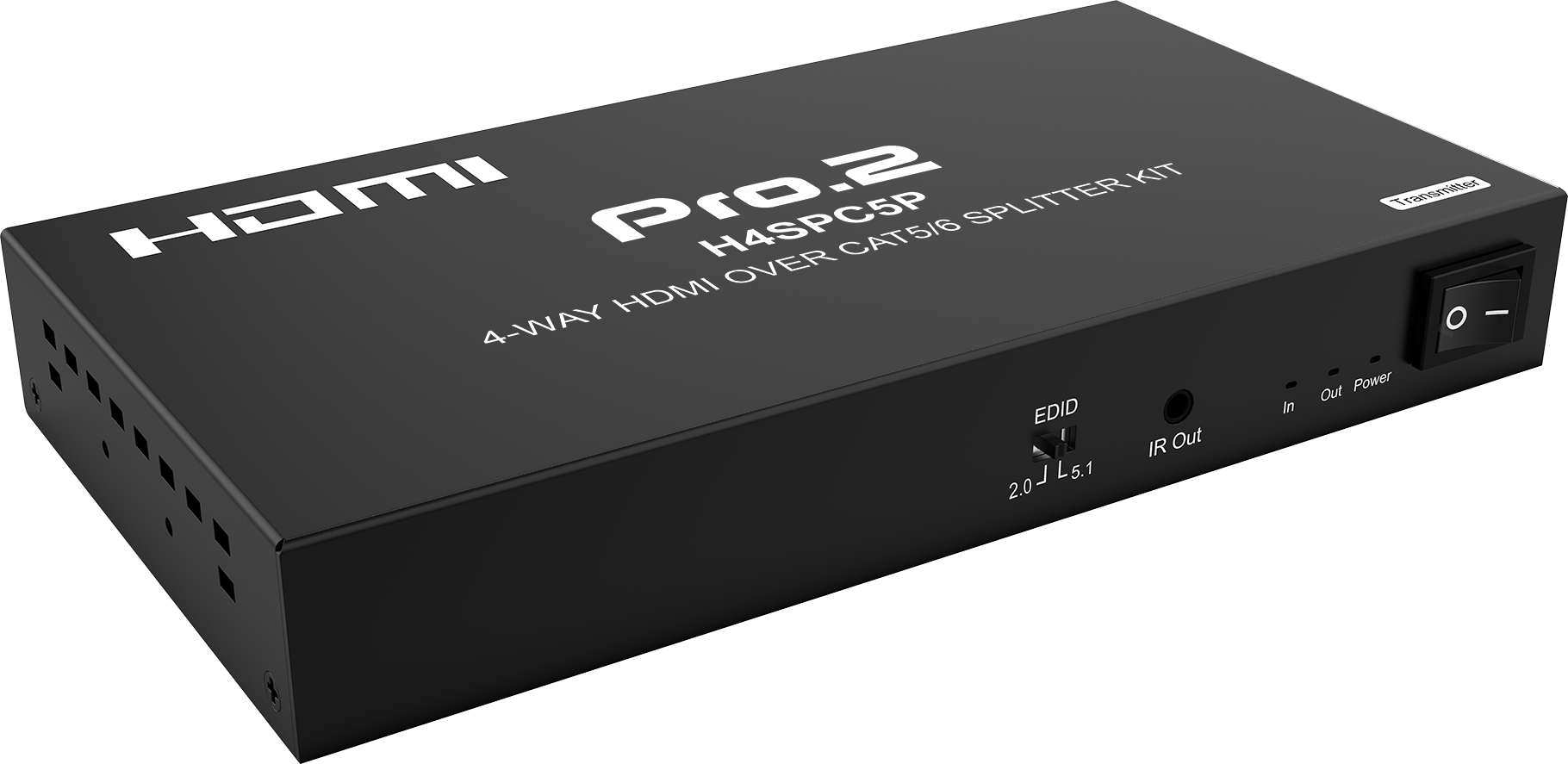

Advanced Audio Support Compatible with stereo and 5.1-channel audio, with EDID control for easy audio format selection.

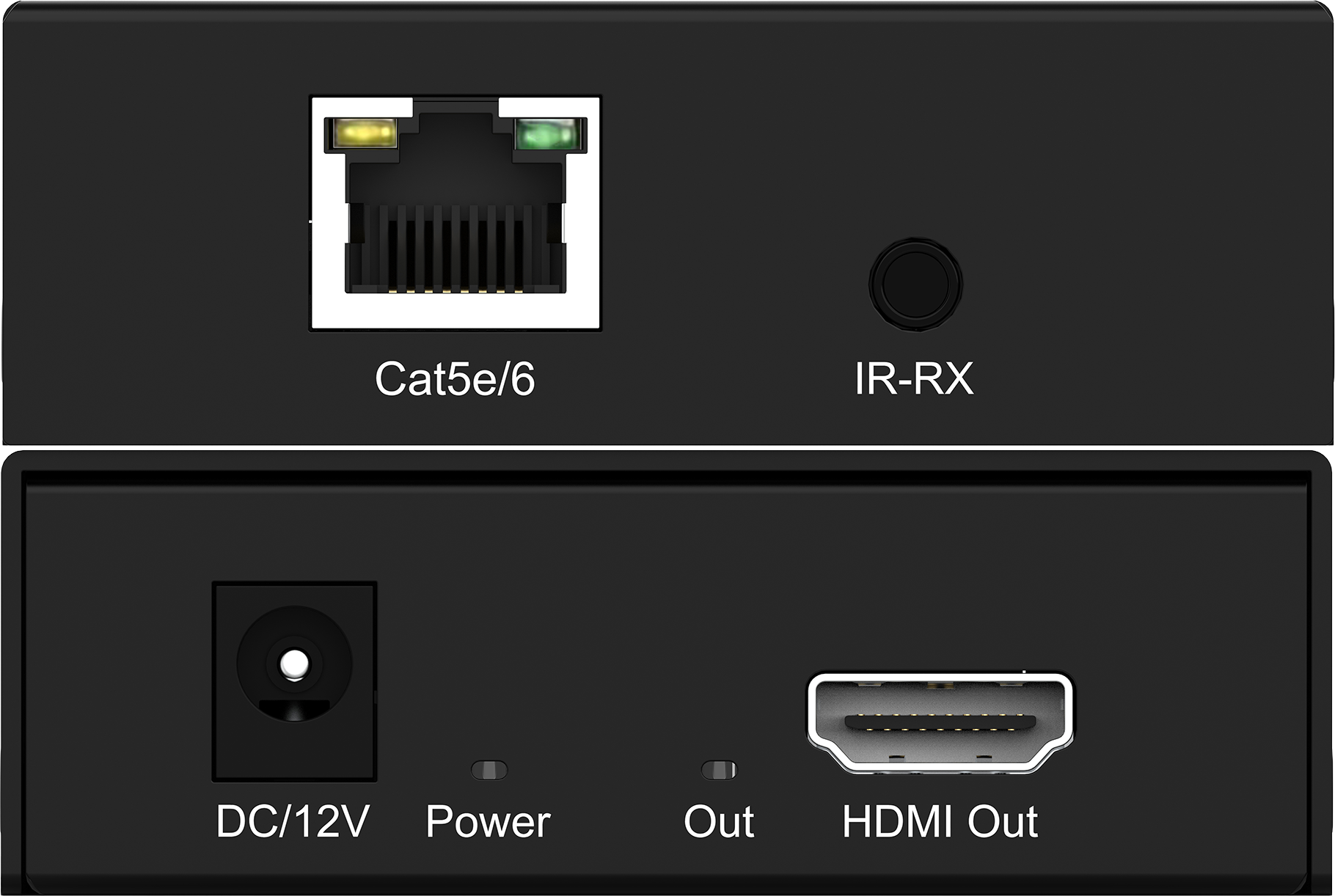

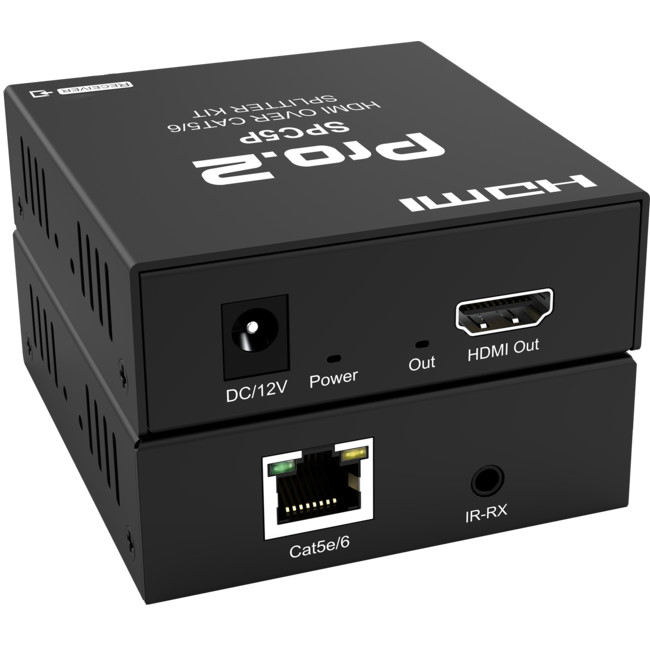

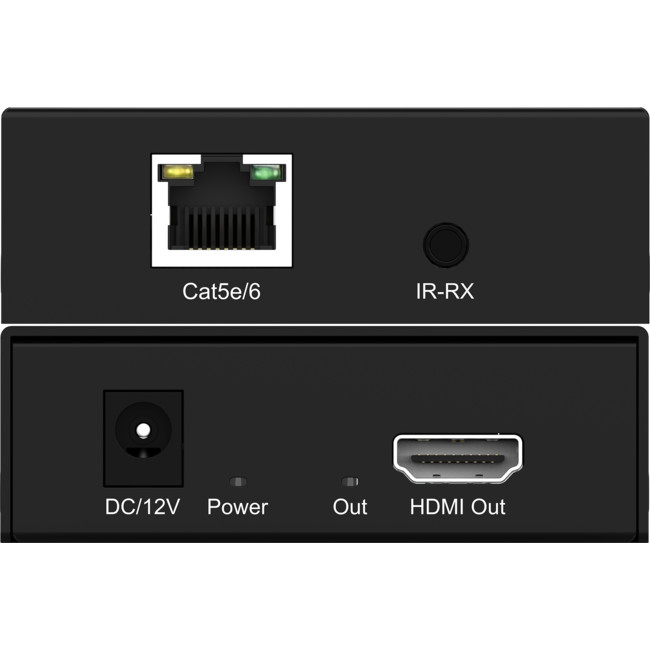

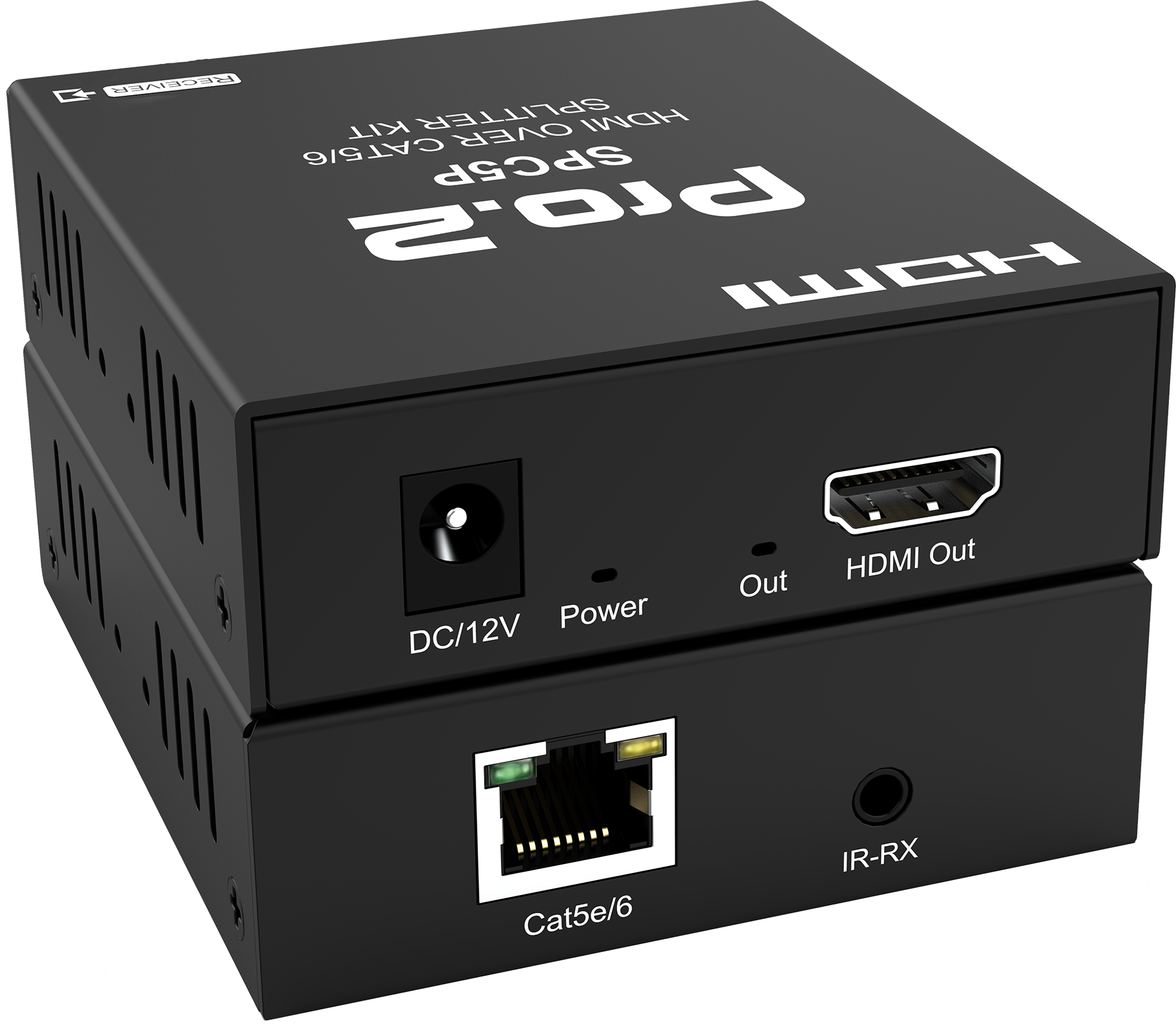

Power over Cable (PoC) Receivers are powered directly from the transmitter, reducing the need for additional power supplies.

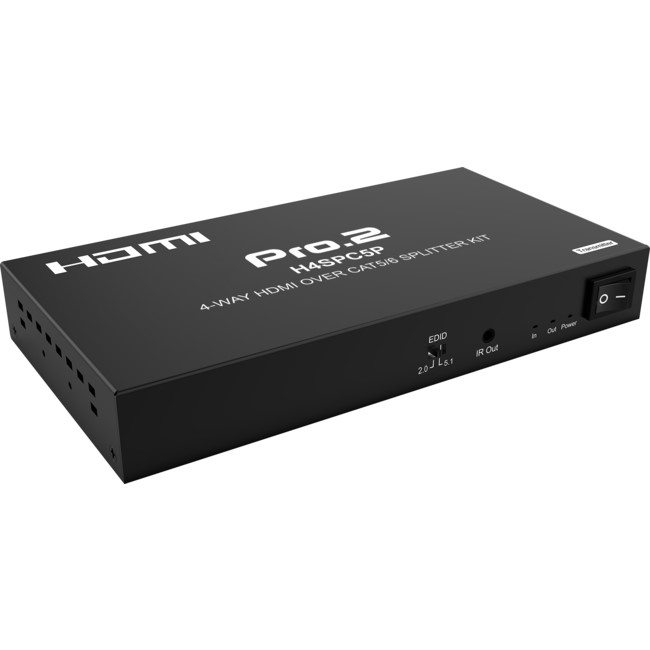

One-Way IR Control Includes 4× IR receivers and 1× IR emitter, allowing remote control of the source device from the transmitter location.
In the Box
-10°C-40°C(+14-140°F)
Operating Humidity Range
5 to 90% RH (No Condensation)
Video Amplifier Bandwidth
140MHz
Input Video Signal
0.5-1.0 Volts P-P
Input DDC Signal
5 volts p-p (TTL)
Data transfer speed rate
6 Gbps (Maximum)

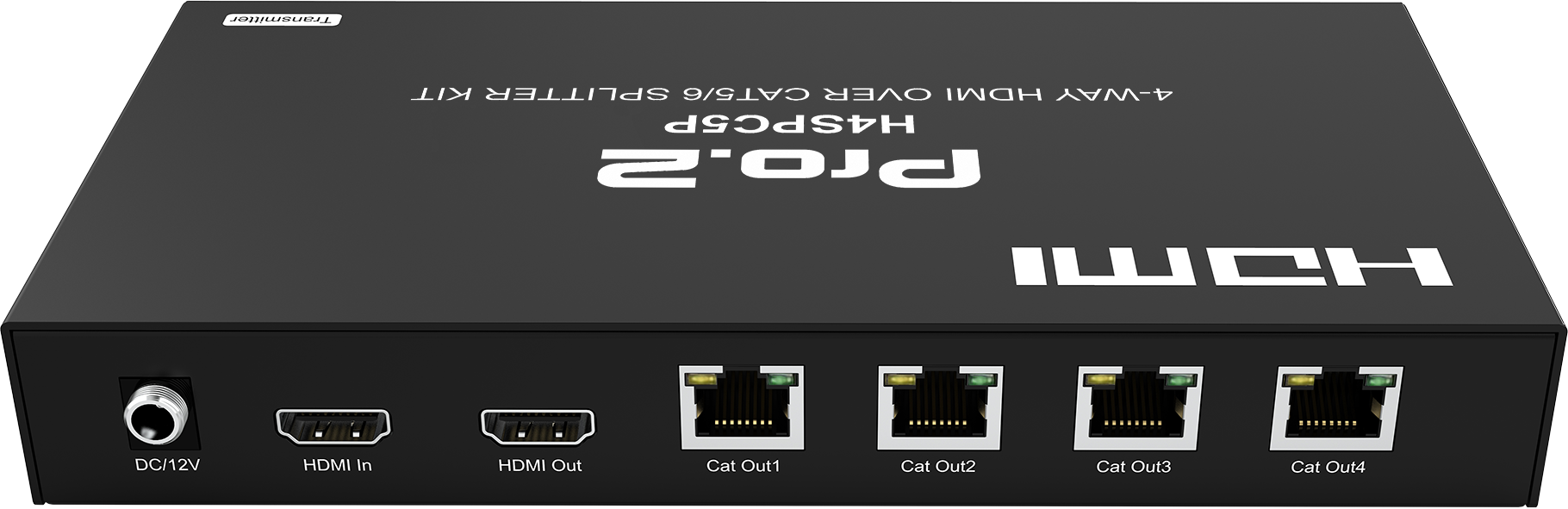

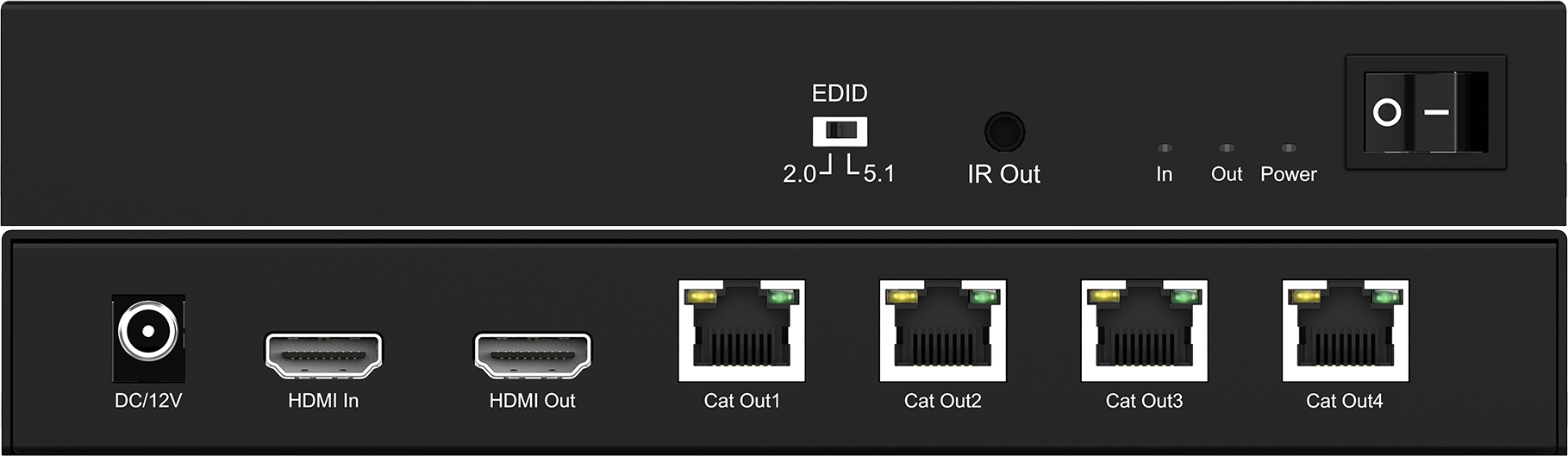

Input port
1x HDMI
Output ports
4x Cat5e/6, 1x HDMI
Video Format Supported
DTV/HDTV: 720P/1080i/1080P 3D video support
Vertical Frequency range
60 Hz
Support Audio Format
2.0/5.1
Transmission Distance
1080P60-8bit 50m Over single cat5e or cat6 cable/24AWG/Solid
Dimension (L×W×H)
L202.3xW105.5xH29.2mm
