HD4SP 4 WAY HDMI SPLITTER 1 IN 4 OUT

1 IN 4 OUT 4K UHD HDMI SPLITTER

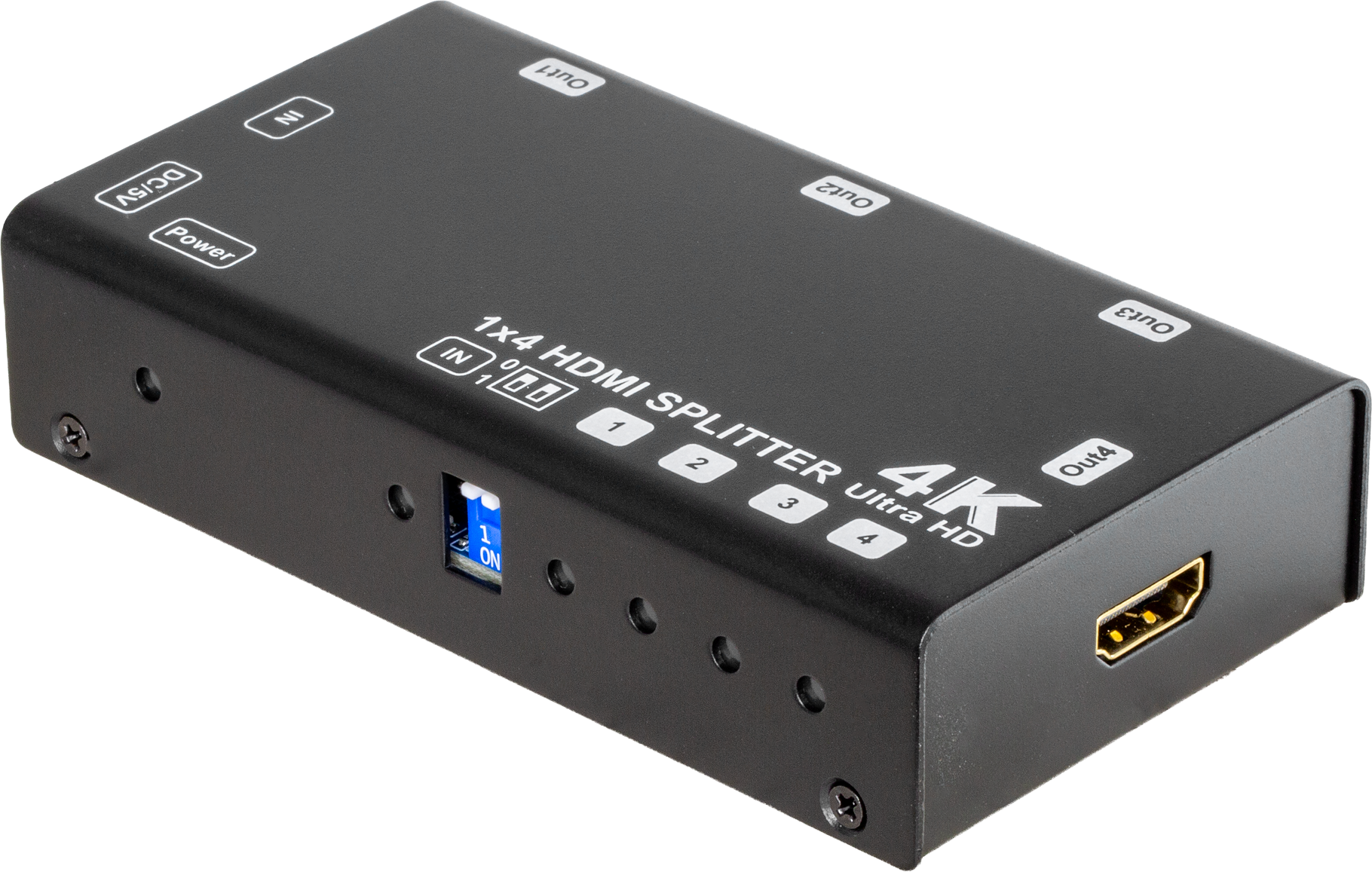

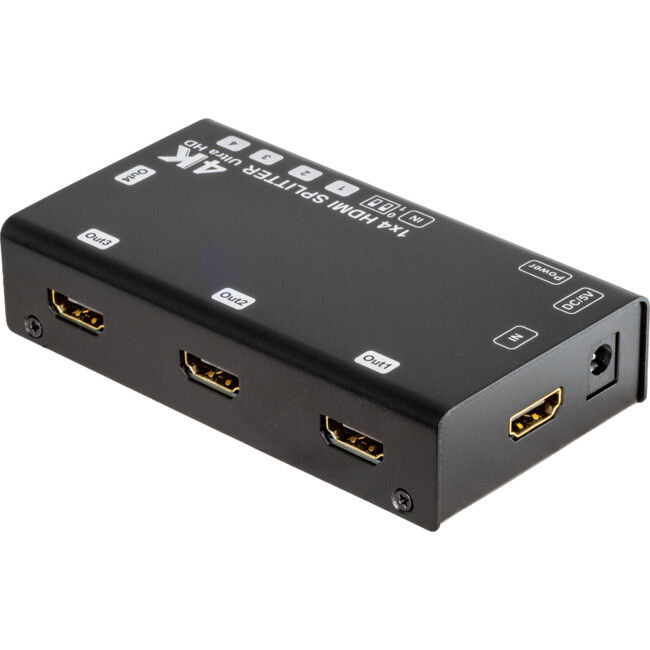

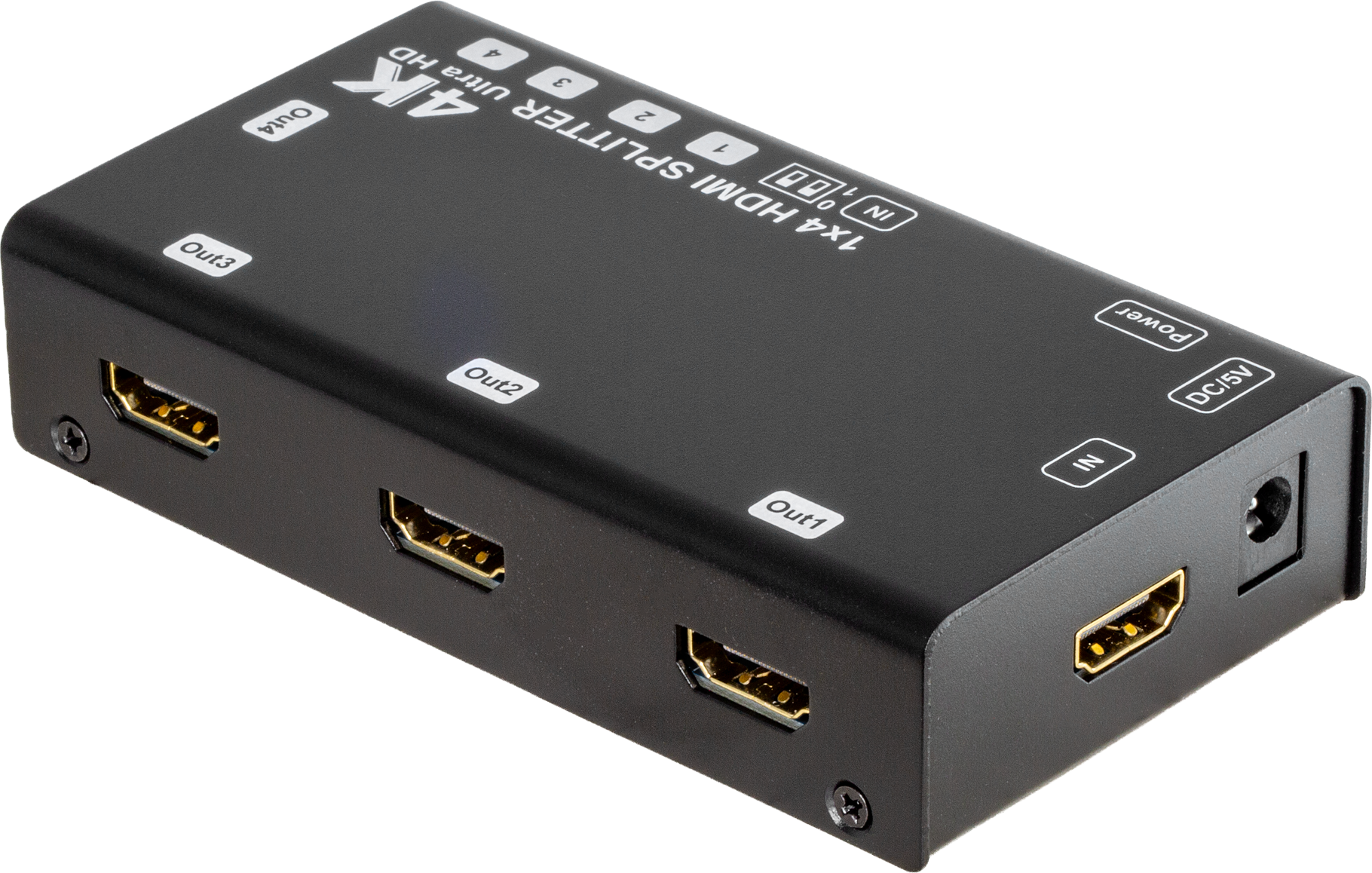

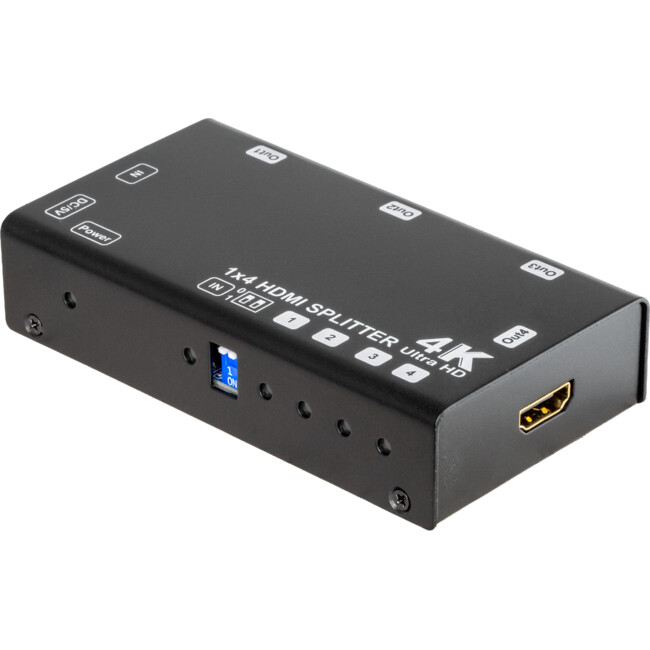

The Pro.2 HD4SP is a 1 in 4 out HDMI splitter that sends one HDMI source, such as a set-top box, Blu-ray or DVD player or games console, to four HDMI displays at the same time. It supports 4K Ultra HD at up to 60Hz as well as 1080p Full HD, with built-in EDID management to keep every screen working when they have different capabilities. Ideal for projectors, TVs and monitors in retail and digital signage displays, bars and venues, meeting rooms, classrooms and the home.

Features:

• Four Display Outputs:
  • Shows one HDMI source on up to four displays simultaneously
• 4K Ultra HD:
  • Supports resolutions up to 3840x2160 at 60Hz (YUV 4:2:0) and 1080p Full HD
• EDID Management:
  • Four EDID modes: mixed EDID, copy EDID, default 1080p output and default 4K output, selected with the 2-position DIP switch on the front panel, for reliable operation with mixed display types
• Multi-Channel Audio:
  • Passes LPCM 7.1, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
• 36-bit Deep Colour
• 3D support
• HDCP compliant
• LED status indicators for power, input and each output
• Compact metal housing

• Model: HD4SP
• Video:
  • Maximum resolution: 3840x2160 at 60Hz (YUV 4:2:0)
  • Bandwidth: 10.2Gbps
  • Colour depth: 36-bit Deep Colour
  • 3D: Yes
  • HDCP: Compliant
• Audio:
  • LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio
• EDID modes:
  • Mixed EDID, copy EDID, default 1080p, default 4K
  • Selection: 2-position DIP switch
• Connections:
  • Input: 1x HDMI (female)
  • Outputs: 4x HDMI (female)
  • DC 5V power input
• Indicators: power LED, input LED, output 1 to 4 LEDs
• Housing: metal
• Transmission distance: up to 15m over standard 26AWG HDMI cable
• Power supply: 5V DC plug pack (AU plug)
• Operating temperature: -5 to +35 degrees C
• Operating humidity: 5 to 90 percent RH, non-condensing

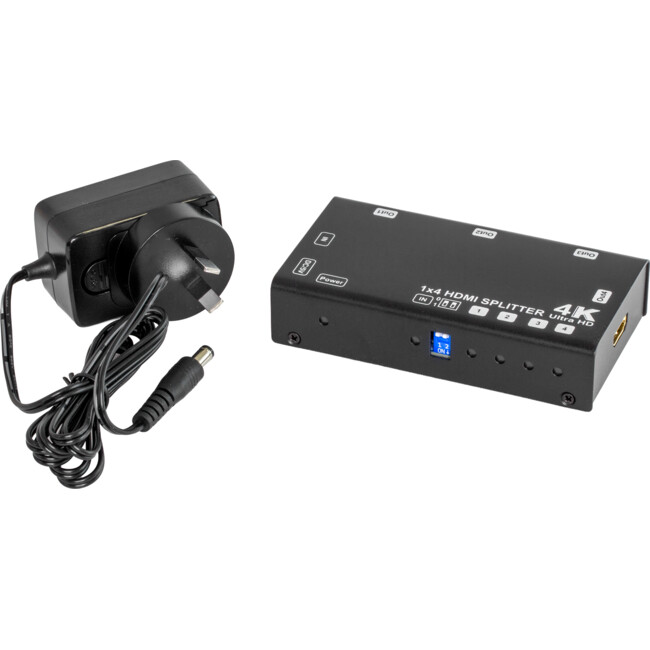

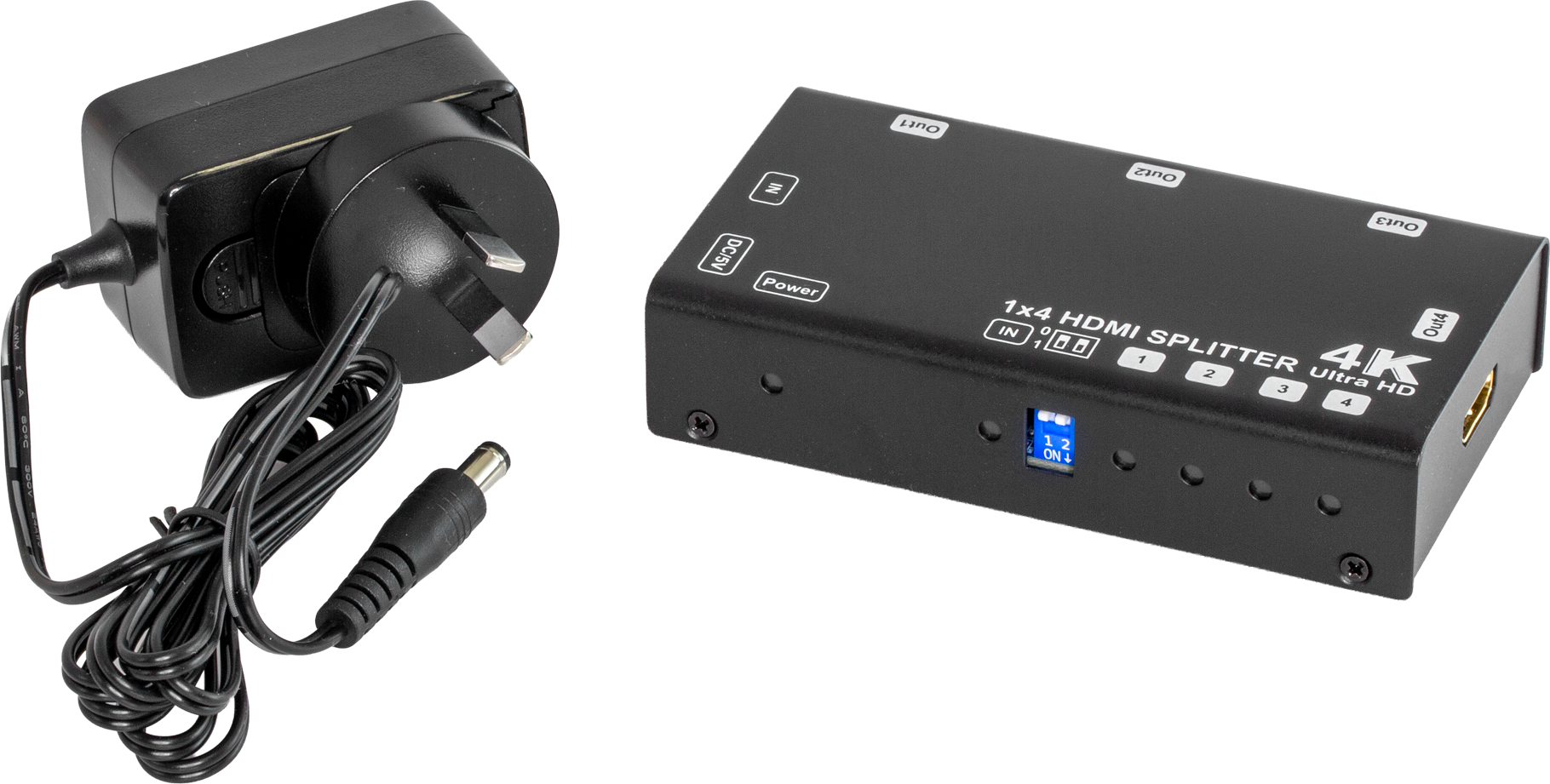

• In the box:
  • 1x HDMI splitter
  • 1x 5V DC power adapter
  • 1x User manual
