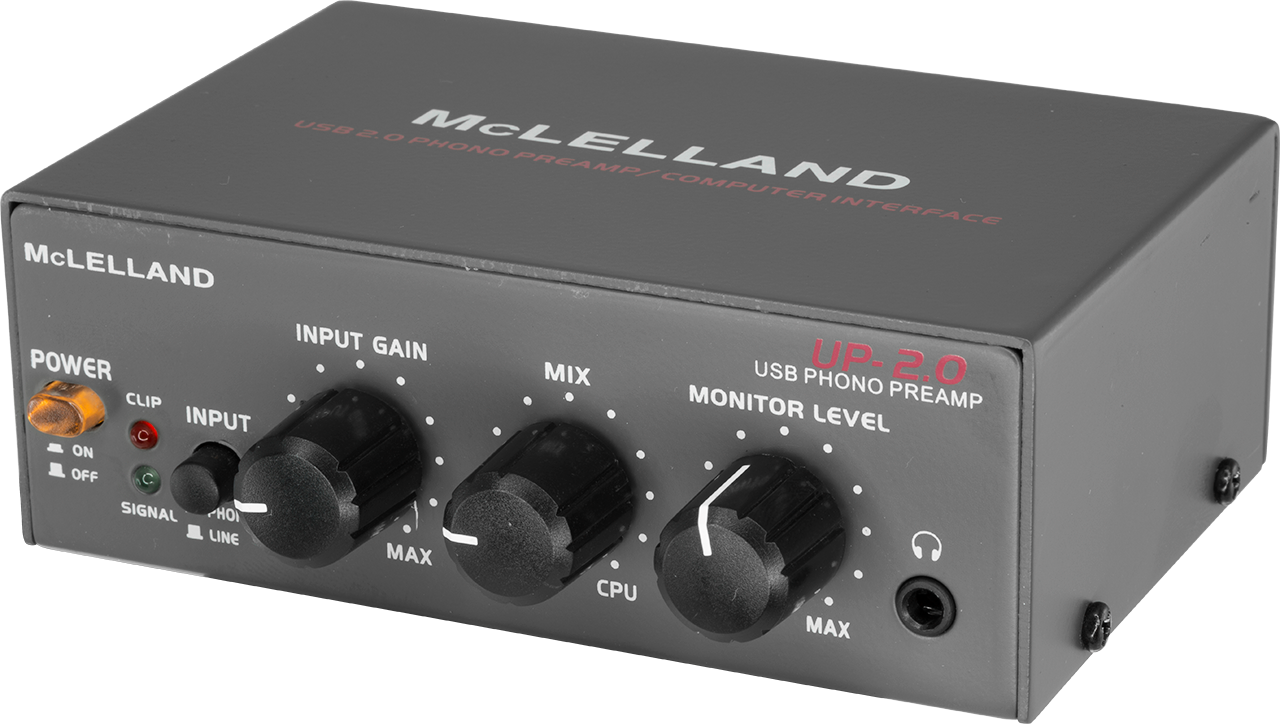

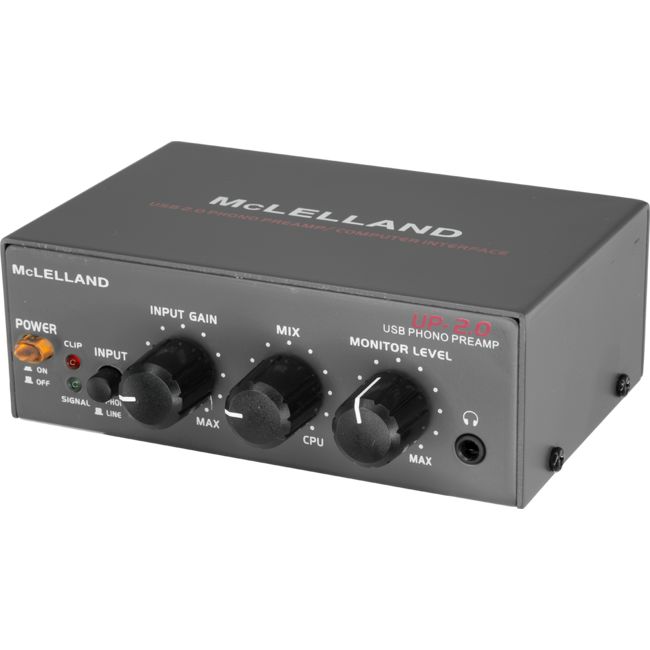

UP2 PHONO PREAMP WITH USB

UP2 PREAMP

Features

• For all turntables with moving magnet (MM) cartridges or audio devices with line level (e.g. tape decks)
• External housing, reliably shielded against interference
• Audio recording takes place through USB
• No need to open the computer housing
• Top quality circuit technology and components
• Built-in low-noise phono preamp circuit conforms to the RIAA standard
• Signal and peak LED
• No additional drivers required
• Power supply included

Applications

• Home recording
• Converting older audio formats to new digital format through USB
• DJ mixing & recording tracks
• Digital home studio
• High quality computer audio playback
• Adding computer audio source to your mixer
• Audio archiving

Specifications

• Frequency response: 10 Hz ~ 20K Hz, /-.5dB
• THD: 0.01% Typical @1 KHz
• Hum and Noise: >89dB below clipping
• Maximum input level: 40mVrms @ 1 KHz (phono), 19dBu (line)

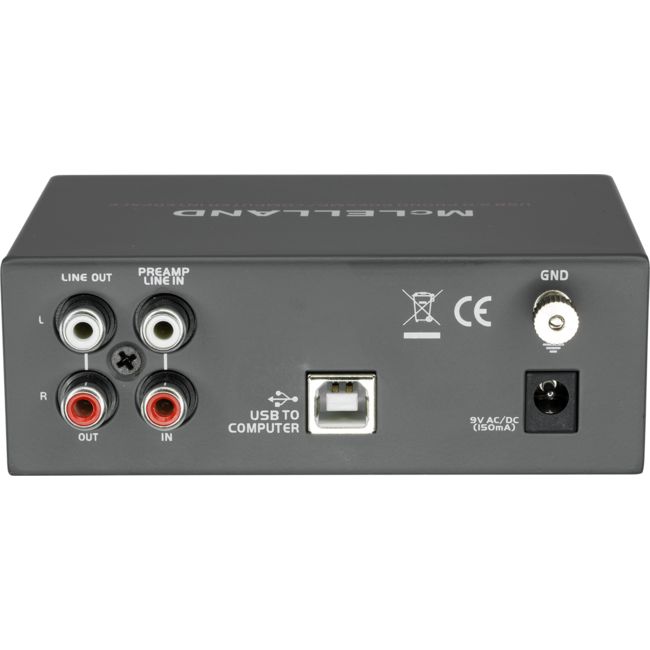

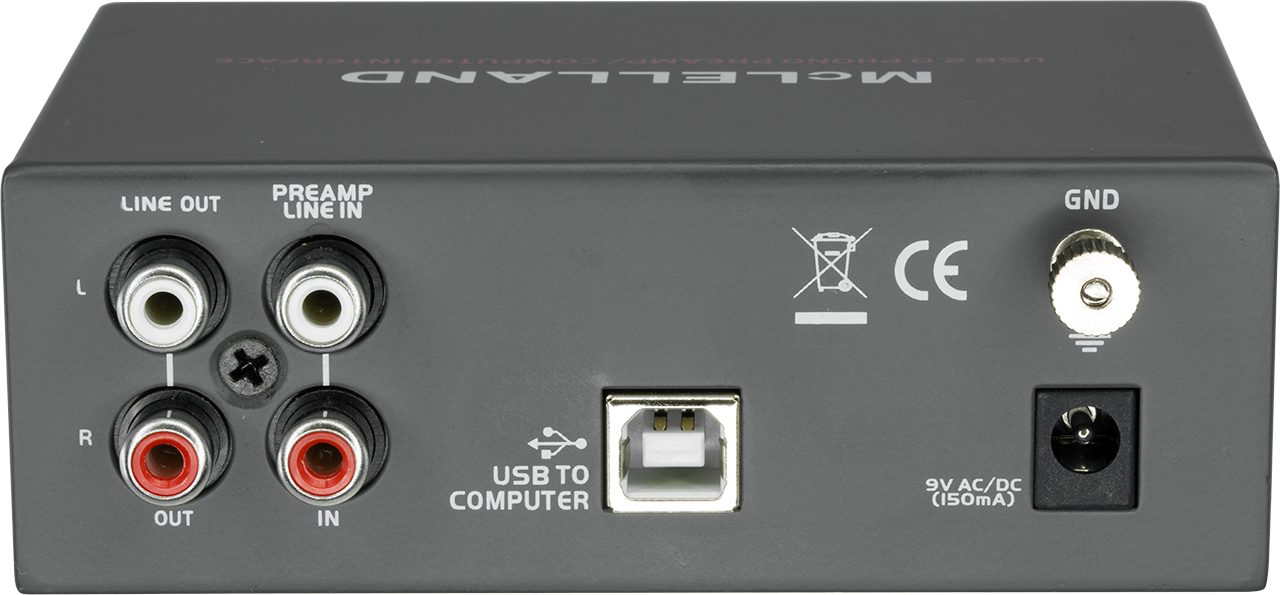

• Analog output connections: RCA (preamp line output), 1/8" mini jack (USB monitor/headphone output)
• A/D & D/A: 16 bit, 44.1 KHz or 48 KHz USB selectable
• Computer interface: USB2.0 compliant, Windows & Mac OS9.1 or newer
• Power requirement: 9VAC @150mA, or USB bus powered
• Dimensions: 113mm x 73mm x 40mm
