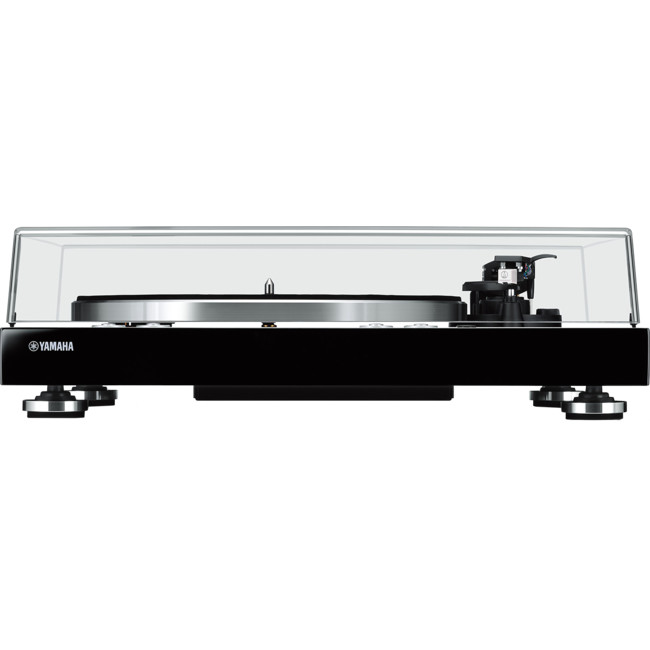

Turntable |
Network Section | File Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC / WAV / AIFF: up to 192 kHz / 24-bit, DSD: up to 11.2 MHz |
Ethernet | Yes |
Wi-Fi | Yes (2.4 / 5 GHz) |
AirPlay | Yes |
Bluetooth Section | Version/Profile | Ver. 4.2 / A2DP, AVRCP |
Audio Codec | SBC, AAC |
Maximum Communication Range | 10 m / 32.8 ft. 10 in. (without interferene) |

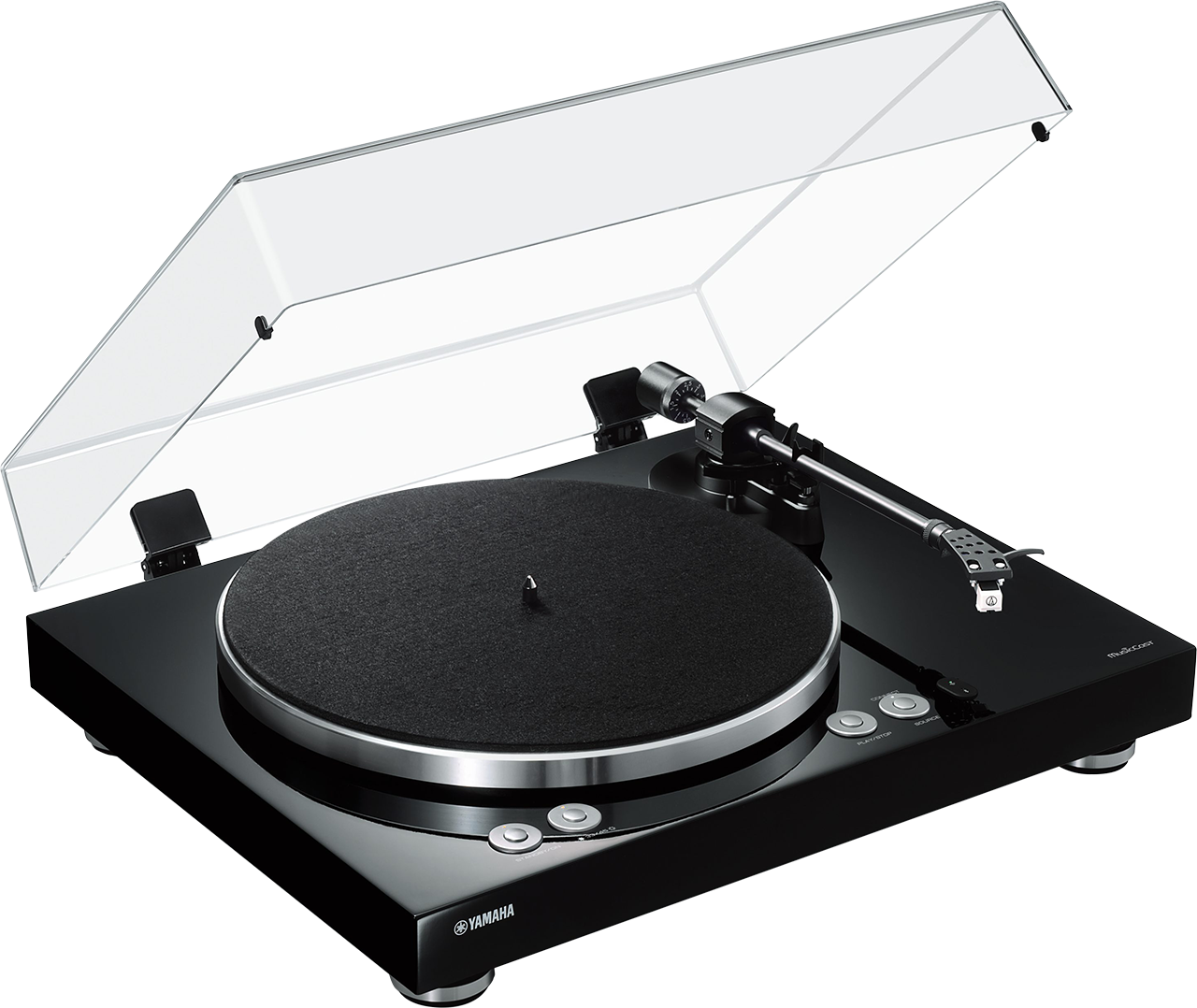

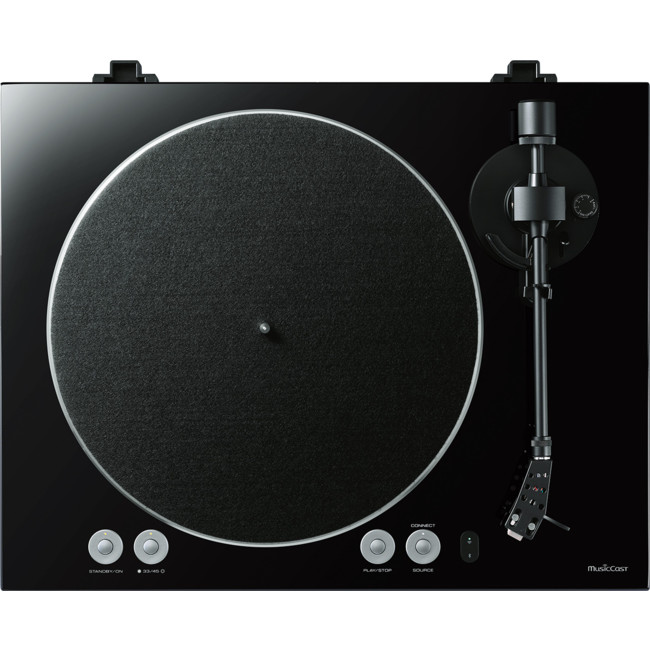

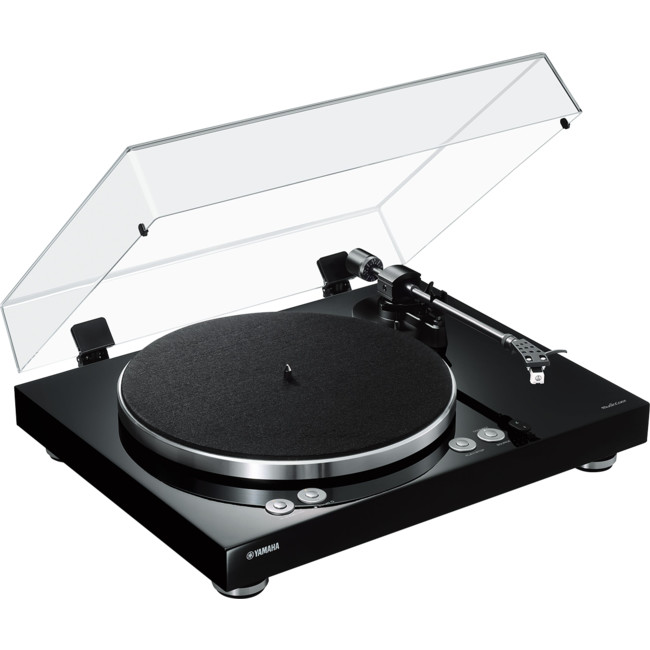

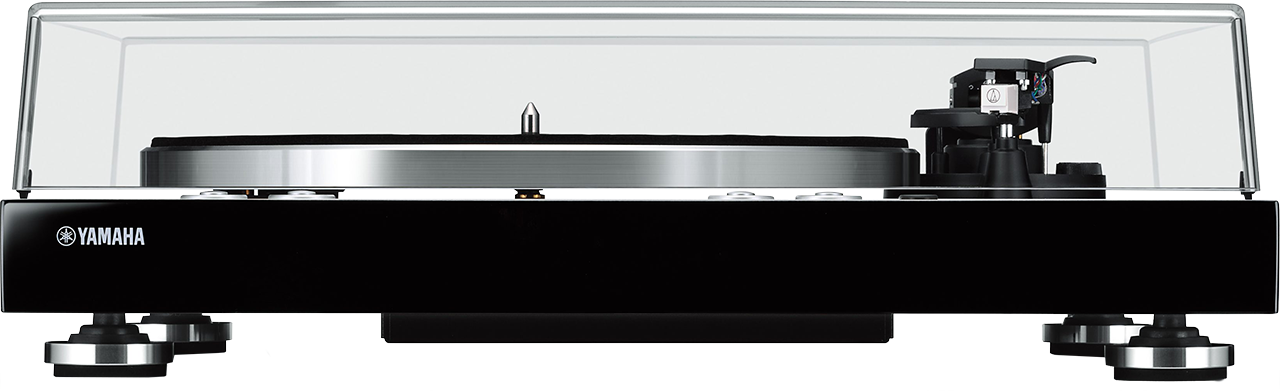

Turntable | Drive Method | Belt drive |
Motor | DC motor |
Rotation Speed | 33-1/3 rpm, 45 rpm |
Rotation Speed Variation | ±2% |
Wow And Flutter | 0.2% |
Platter | Aluminium die-cast (Diameter 30 cm) |
Output Level | 450 mV (-7 dBV, with RIAA EQ, 1 kHz, 3.54 cm / sec), 2.5 mV ± 3 dBV (without RIAA EQ, 1 kHz, 3.54 cm/ sec) |
Signal To Noise Ratio | 67 dB or higher (A-weighted, 20 kHz, LPF) |

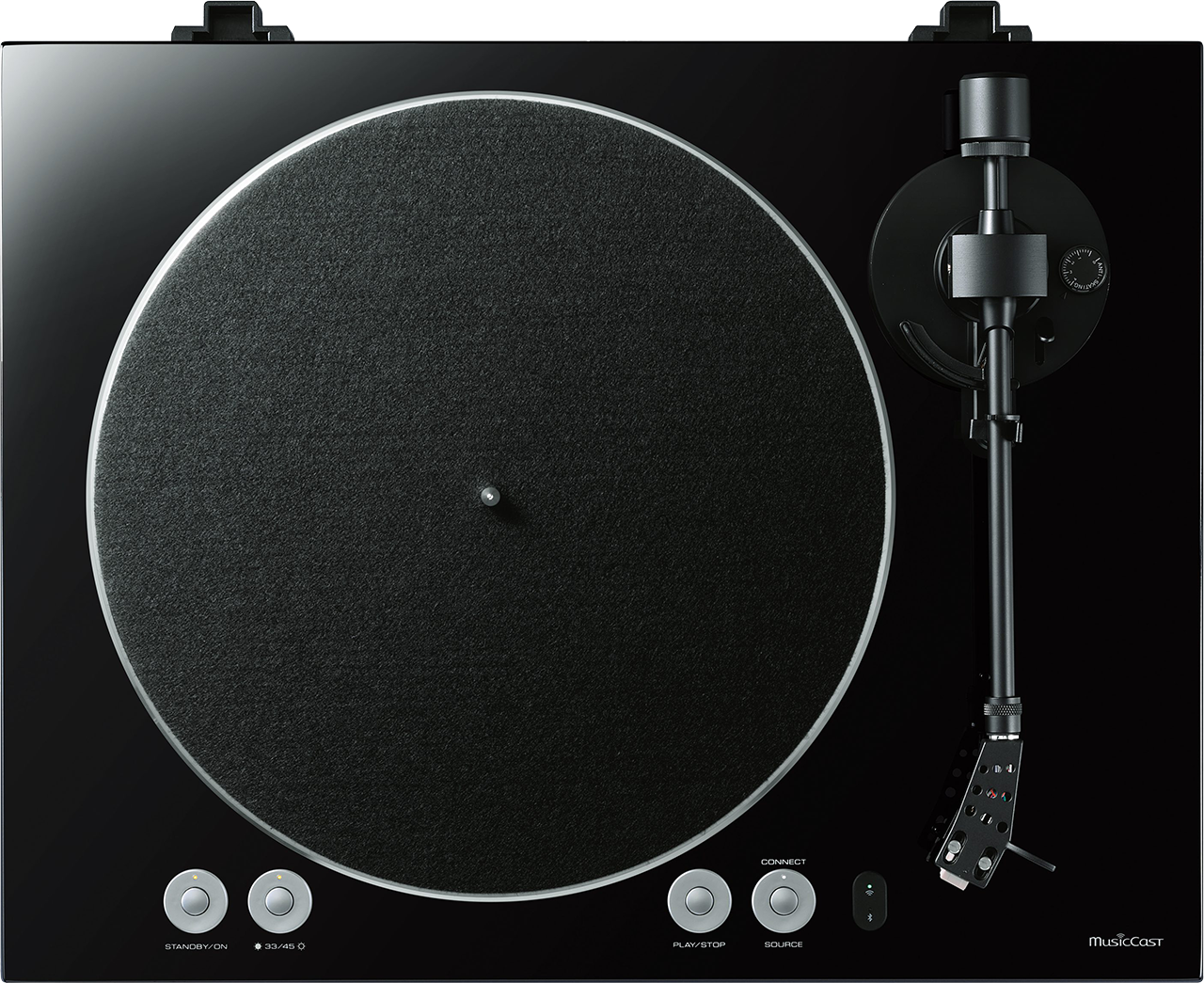

Tonearm | Tonearm | Static balance straight tonearm |
Effective Arm Length | 223.5 mm |
Overhang | 19 mm |
Stylus Pressure Adjustment Range | 0-4 g |
Acceptable Cartridge Weight | 15.5-19 g (including headshell) |
Attached Cartridge | Cartridge Type | MM type |
Output Voltage | 2.5 mV (1 kHz, 3.54 cm / sec) |
Stylus Pressure | 3.5 ± 0.5 g |
Cartridge Weight | 5.0 ± 0.3 g |
Cartridge Height | 17.0 ± 0.7 mm |
Head-shell Weight | 10 g (including screws, nuts and wires) |

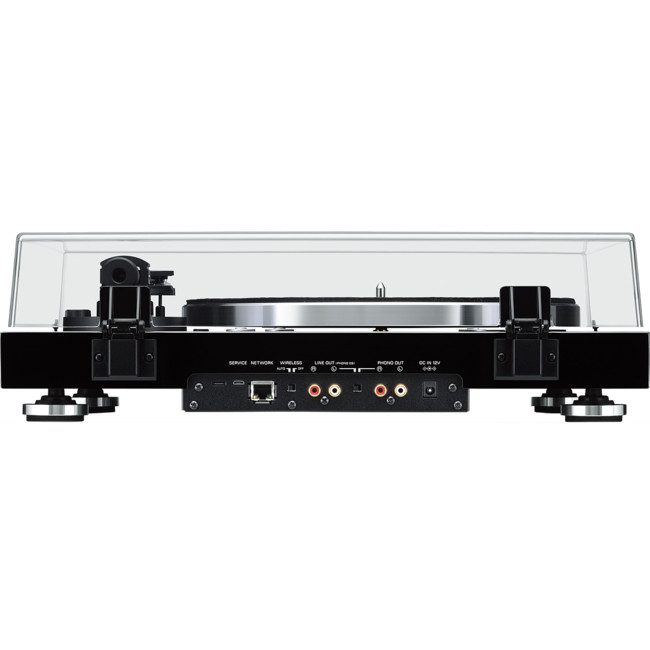

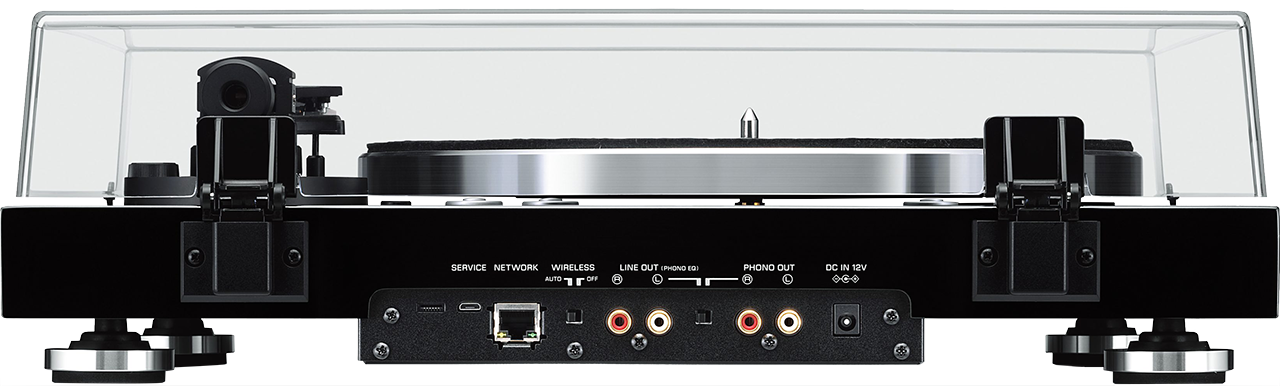

Audio Specifications | Output Terminal | RCA: 2 (PHONO, LINE) |
Output Level | 2.0 ± 0.3 V (1 kHz, 0 dB, Fs 44.1 kHz) |
Signal to Noise Ratio | [IHF-A network] 110 dB or higher (Infinity zero, Fs 44.1 kHz) |
Dynamic Range | 100 dB or higher (1 kHz, -60 dB, Fs 44.1 kHz) |
Harmonic Distortion | 0.003 % or lower (1 kHz, 0 dB, Fs 44.1 kHz) |
Frequency Response | Fs 44.1 kHz; 2 Hz to 20 kHz ( 0 / -3 dB), Fs 48 kHz; 2 Hz to 24 kHz ( 0 / -3 dB), Fs 96 kHz; 2 Hz to 48 kHz ( 0 / -3 dB), Fs 192 kHz; 2 Hz to 96 kHz ( 0 / -6 dB) |
General | Power Consumption | 6 W |
Eco-Standby (reference date) | 0.3 W |
Standby Power Consumption | 1.4 W (Network standby ON, Bluetooth® standby OFF, Wired), 1.8 W (Network standby ON, Bluetooth standby ON/OFF, Wi-Fi), 1.6 W (Network standby ON, Bluetooth standbyON, Wired) |
Dimension (W×H×D) | 450 x 136 x 368 mm; 17-3/4” x 5-3/8” x14-1/2” |
Weight | 5.7 kg; 12.6 lbs. |
