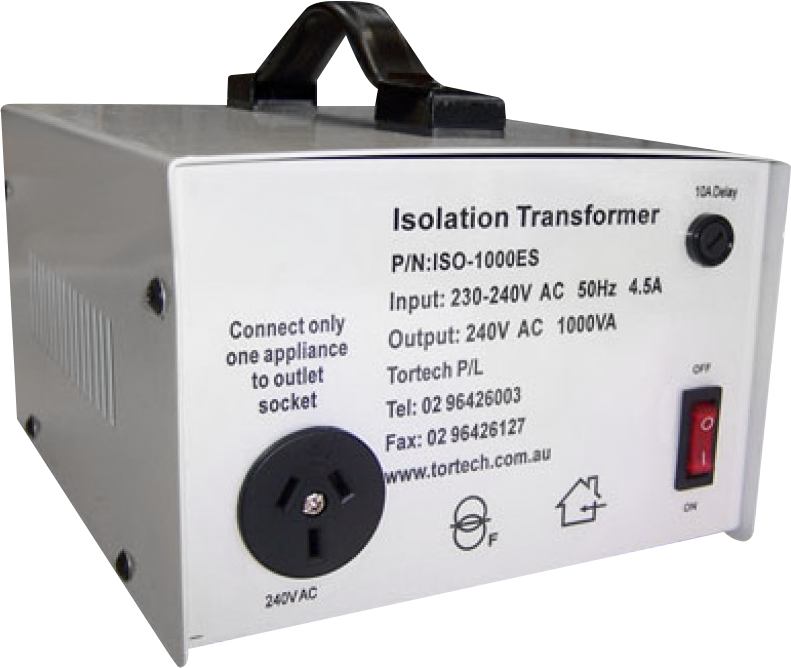

ISO1000ES-240V 1000VA ISOLATION TRANSFORMER

1000VA MAINS ISOLATION TRANSFORMER WITH ELECTROSTATIC SCREEN

• Australian Made Quality Units
• All units are enclosed
• All units include a noise minimising electrostatic screen, suitable for audio noise reduction.
• Applications include Earth Loop removal in audio systems and the elimination of boating electrolysis.
• Input voltage 240V ±10% 50Hz. Australian flexand plug
• Output voltage 240V Unregulated. Australian female chassis socket

FEATURES:

• All units are enclosed
• All units are Fully Australian Made and Quality
• Input voltage 240V ±10% 50Hz. Australian flexand plug
• Output voltage 240V Unregulated.
• One Australian female chassis socket
• All units are double wound. Primary to Secondary fully insulated
• Optional Electrostatic screen
• All transformers incorporate “soft start” circuitry to eliminate inrush current problems during turn on.
• All enclosures are metal, with white powder coat finish.
• All enclosures are earthed on the input side
• Test Voltage 3.75 kV AC RMS
• All units are fuse protected on the 240V input side.
• All units are made to AS/NZS 61558

SPECIFICATIONS:
