POWERTRAN M2170C 12V- 30V 3A MAINS TRANSFORMER 100VA MULTIPLE TAPPED VOLTAGES - Radio Parts

In-Store Training

100VA MULTIPLE TAPPED VOLTAGES

Code: 54150883

1.69 kg

9321758054864

EACH

Low Stock

$39 inc GST

Increase value Decrease value

Qty	Each (inc GST)	Each

Request Price Match

Freight Estimator Enter 4 digit postcode

Features

Specifications

Primary Voltage: 240V AC
Total VA Rating: 100VA
Insulation: Class E (120°C)
Magnetising Current: <85mA
Temperature Rise: <70°C
Regulation: ˜14%
Recommended primary AC Fuse: 500mA
Weight: ˜1.6kg
Primary connection: 200mm fly leads
Secondary connection: Solder tags
AS/NZS 61558.2.6 approval: Q042028
AS3108 approval: CS/813/Q

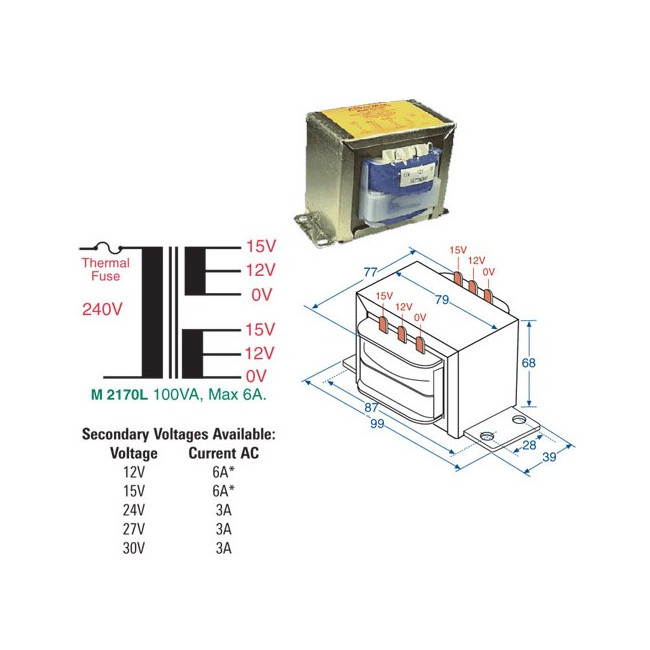

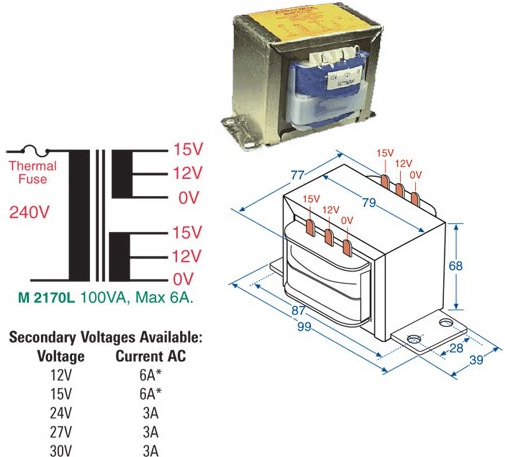

Secondary Voltages Available:

Voltage : 12V Current : 6A*
Voltage : 15V Current : 6A*
Voltage : 24V Current : 3A
Voltage : 27V Current : 3A
Voltage : 30V Current : 3A
*Max Current when connected in parallel
Primary fitted with 200mm fly leads. Secondary taps have solder tags.
