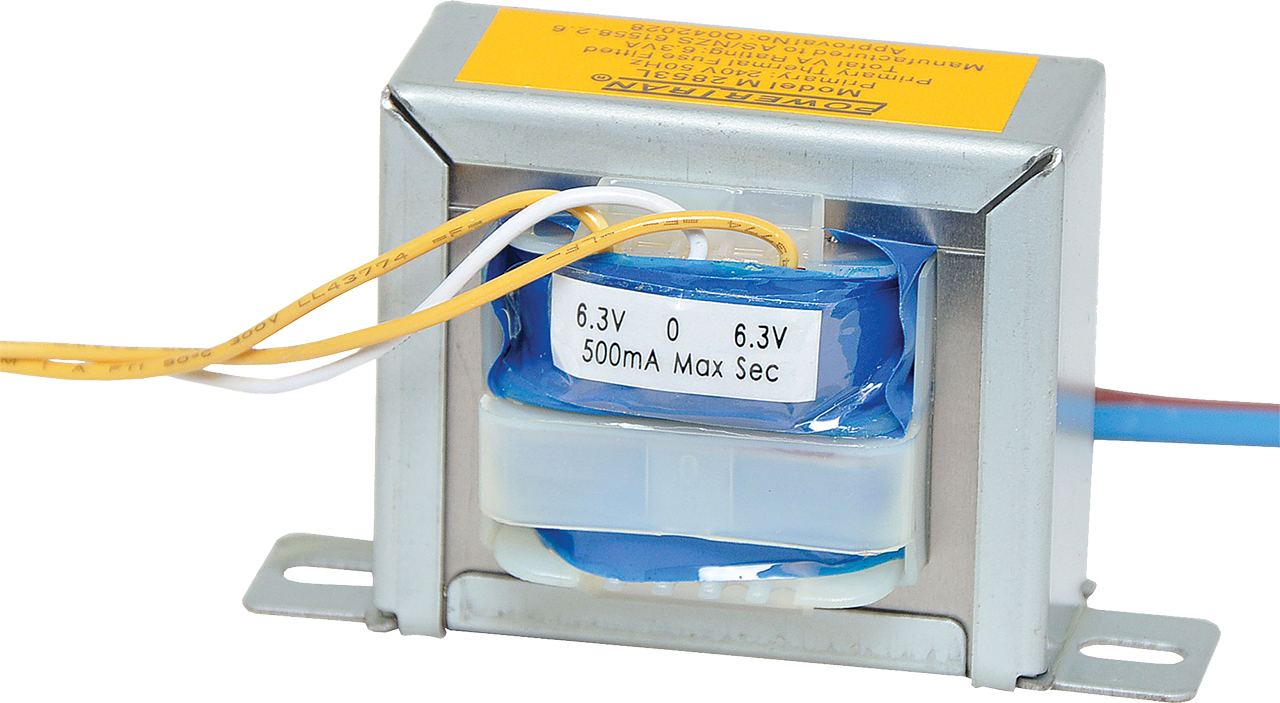

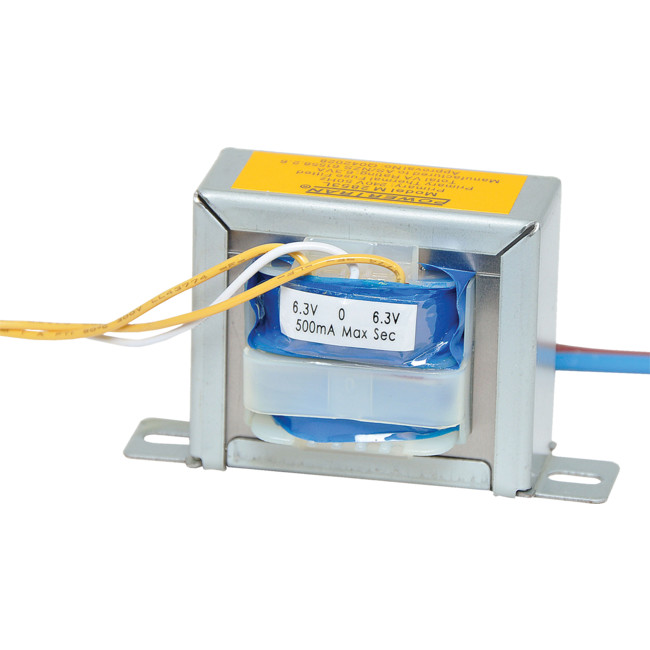

M2853C 12.6V 500MA MAINS TRANSFORMER

6.3VA CT - CENTRE TAPPED

Code: 54150806

0.3200 kg
9321758250266
EACH
40
Low Stock
$15.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode
  • Specifications
  •  Primary voltage: 240V AC
  • Total VA rating: 6.3VA
  • Insulation: Class E (120°C)
  • Magnetising current: <45mA
  • Temperature rise: <65°C
  • Regulation: ˜13%
  • Recommended AC fuse: 100mA
  • Weight: ˜315g
  • Primary connection: 200mm fly leads
  • Secondary connection: 200mm fly leads
  • AS/NZS 61558.2.6 approval: Q042028
  • AS3108 approval: CS/813/Q
  • Secondary Voltages Available: Voltage : 6.3V, 12.6V / Current : 500mA
  • Primary and secondary fitted with 200mm fly leads.

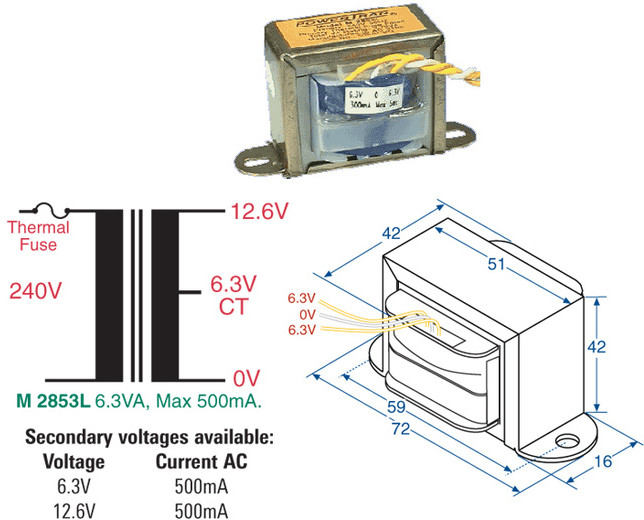

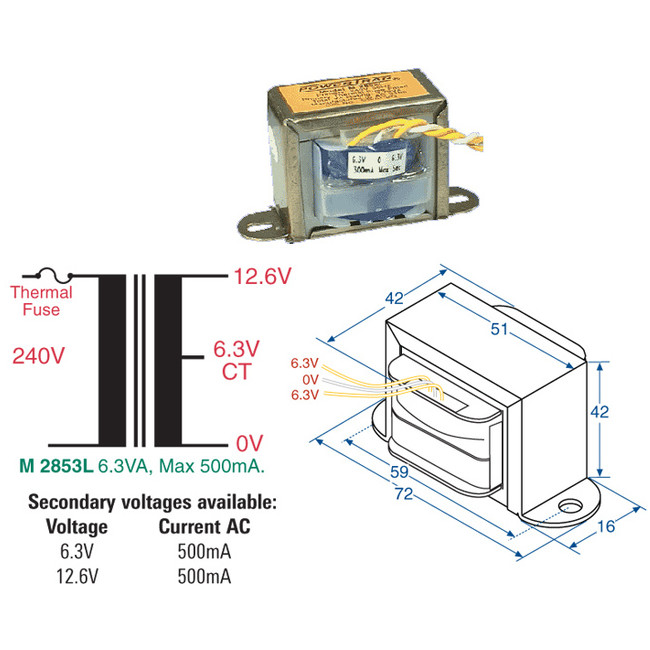

  • Dimensions: A-42, B-59, C-72, D-42 mm
