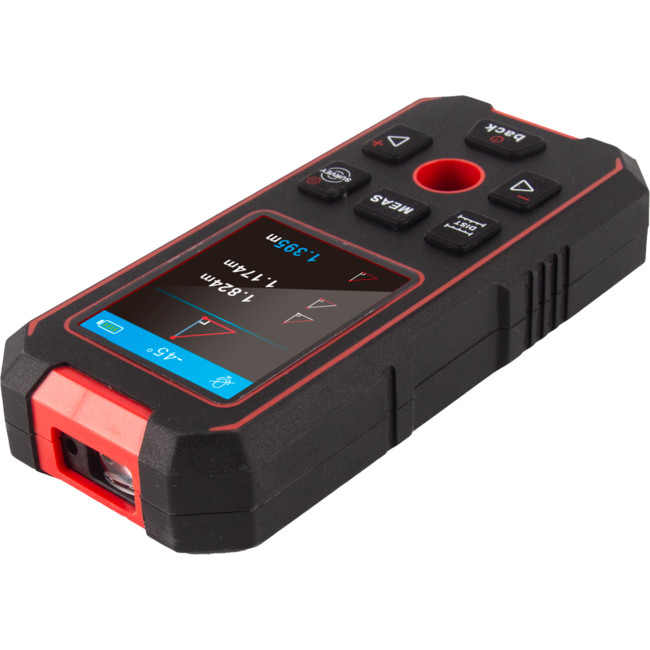

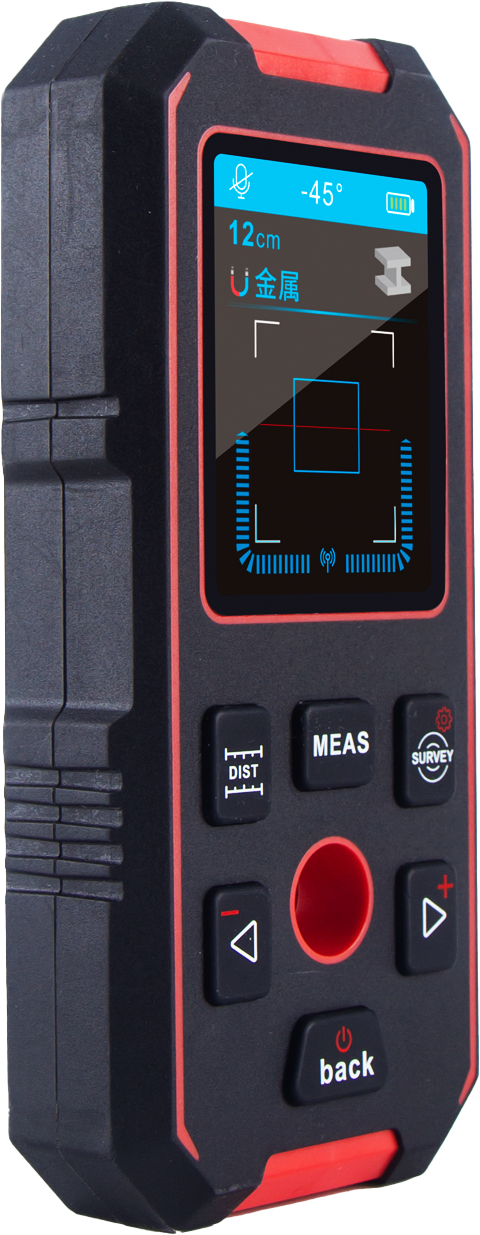

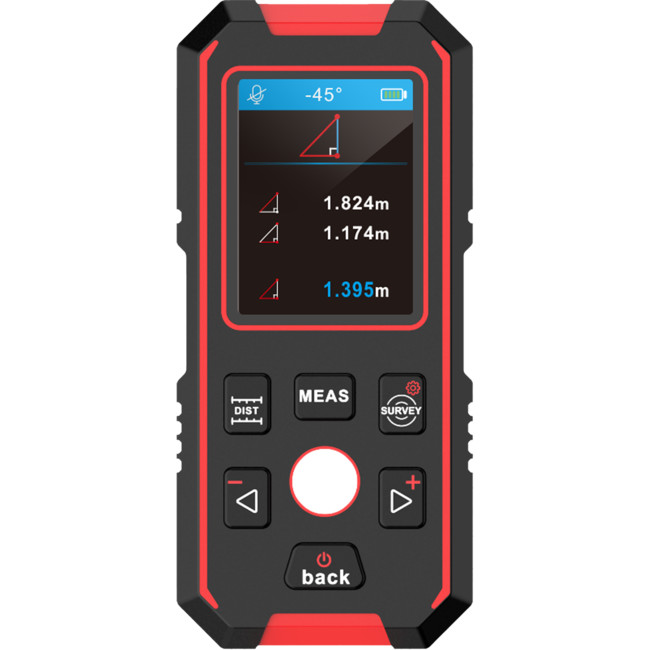

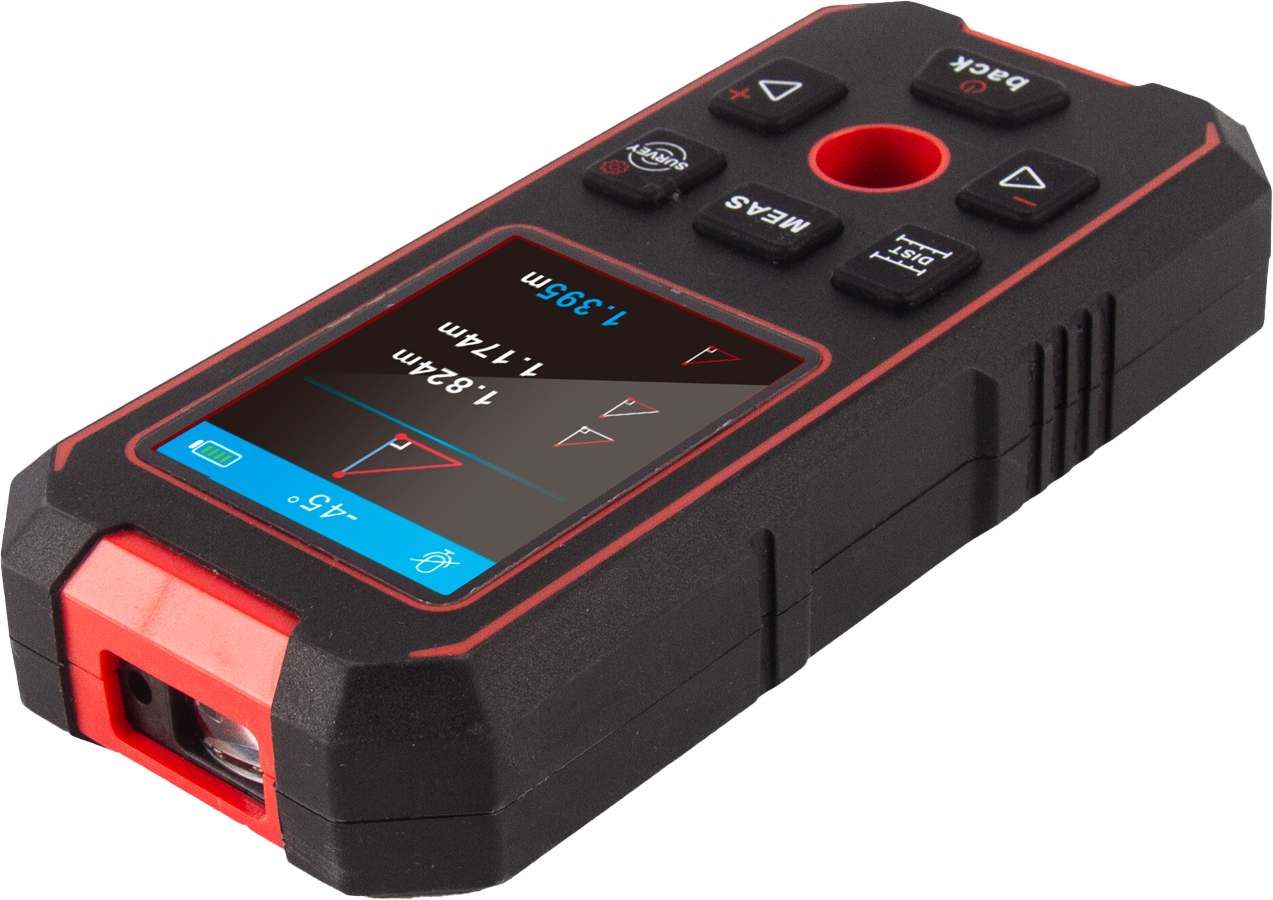

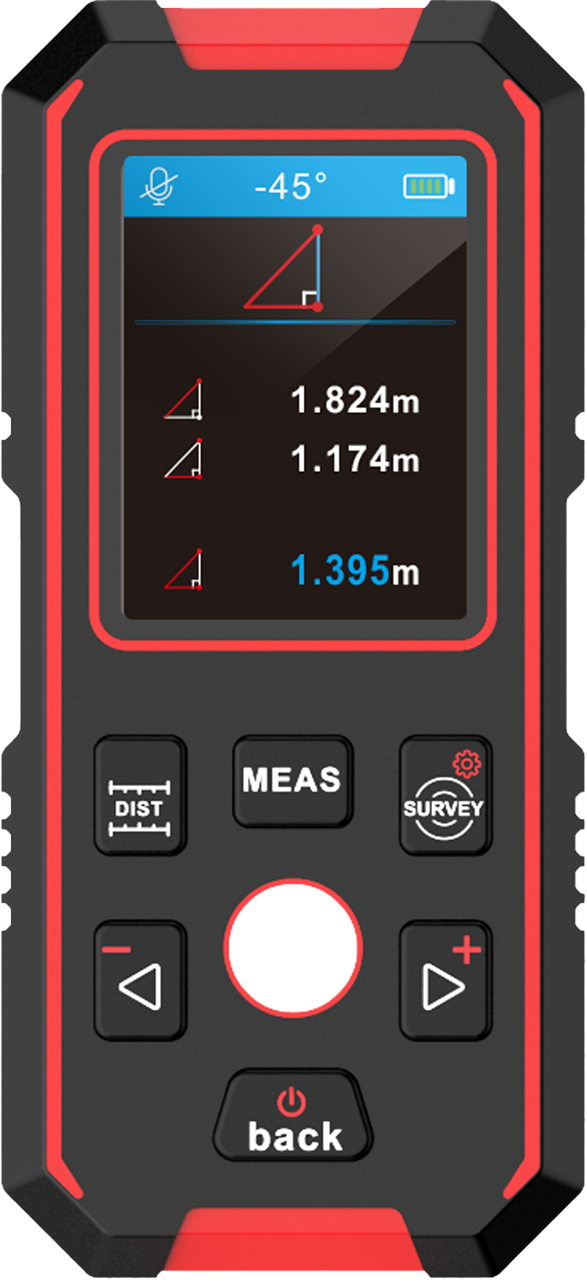

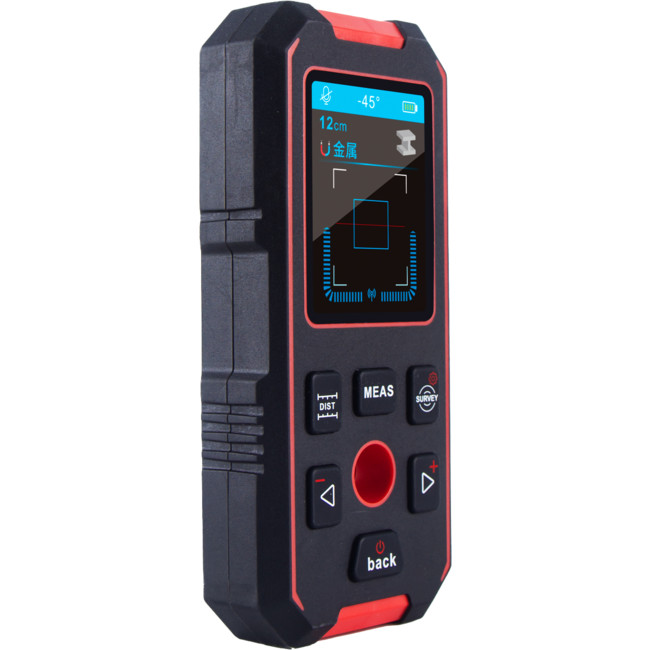

NF518S MULTI-FUNCTION DIGITAL DETECTOR

STUD FINDER/AC/LASER DISTANCE METER

Code: 52712032

9328202034243
EACH
40
In Stock
TRADE ALERT!
$139 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

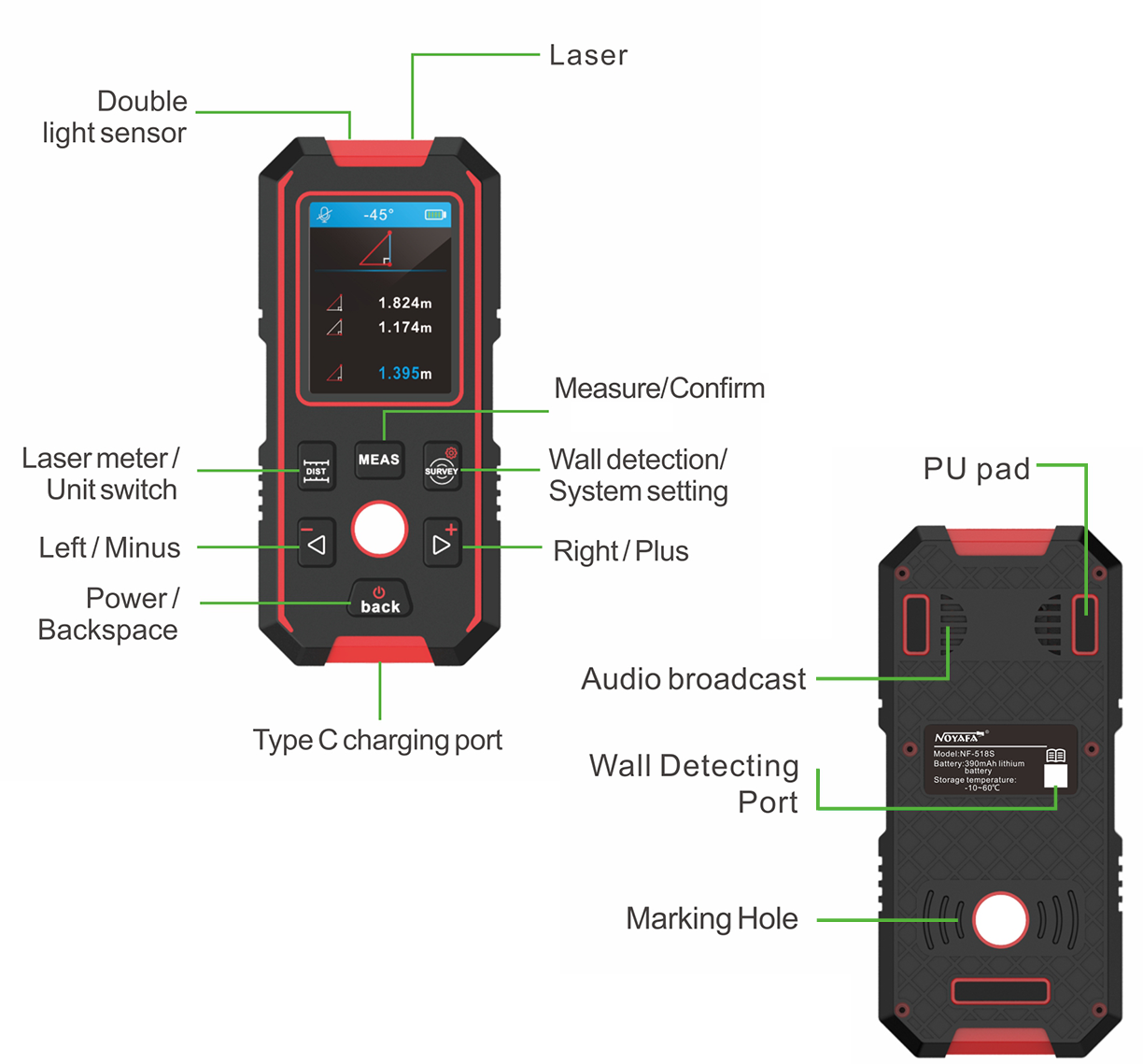

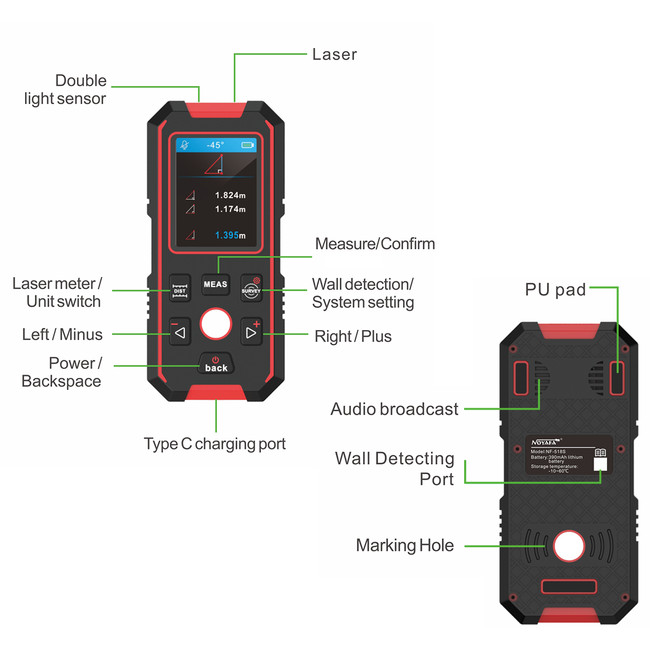

Features

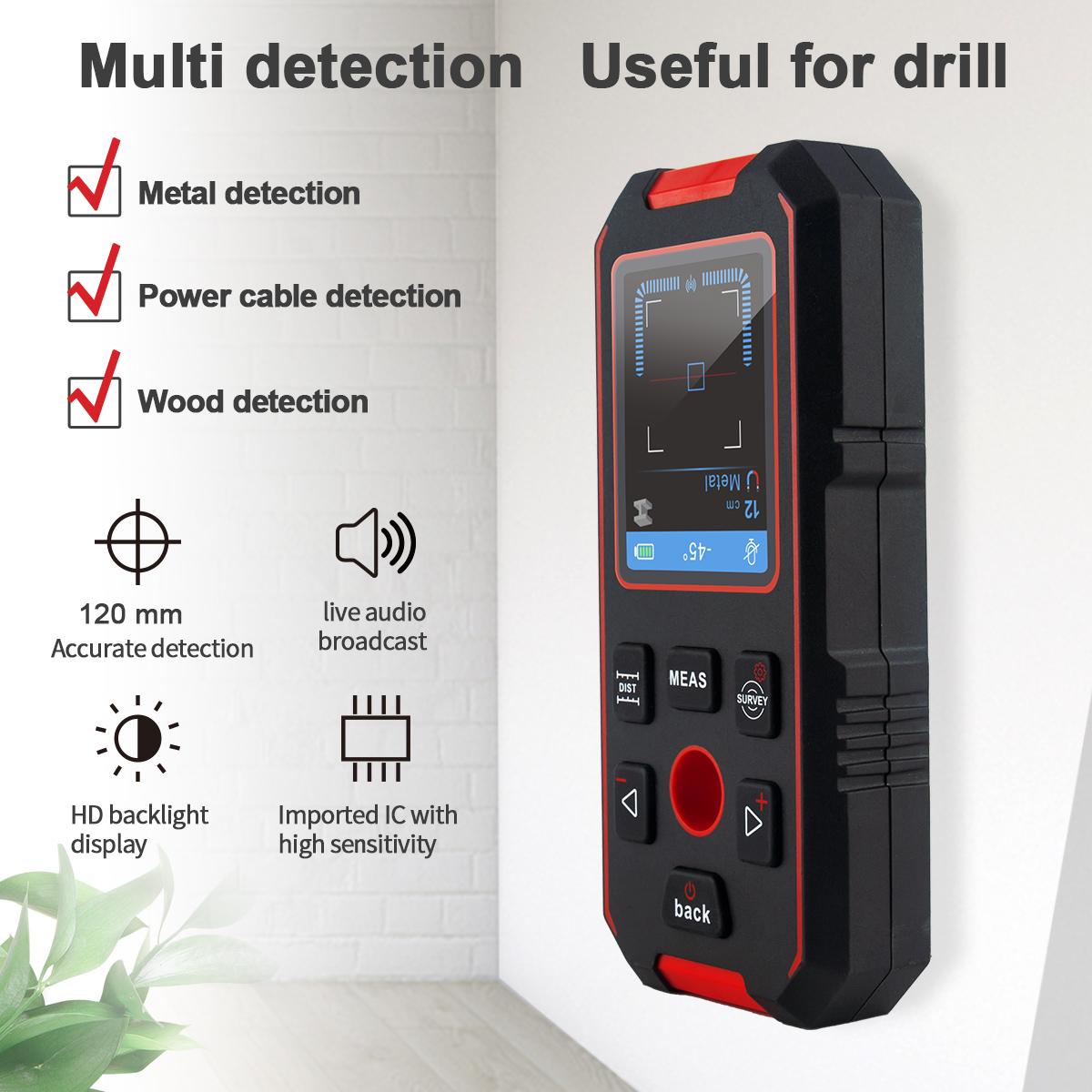

  • Wall Detecting Function: Metal Detection/ Wooden Detection/ AC Power Detection

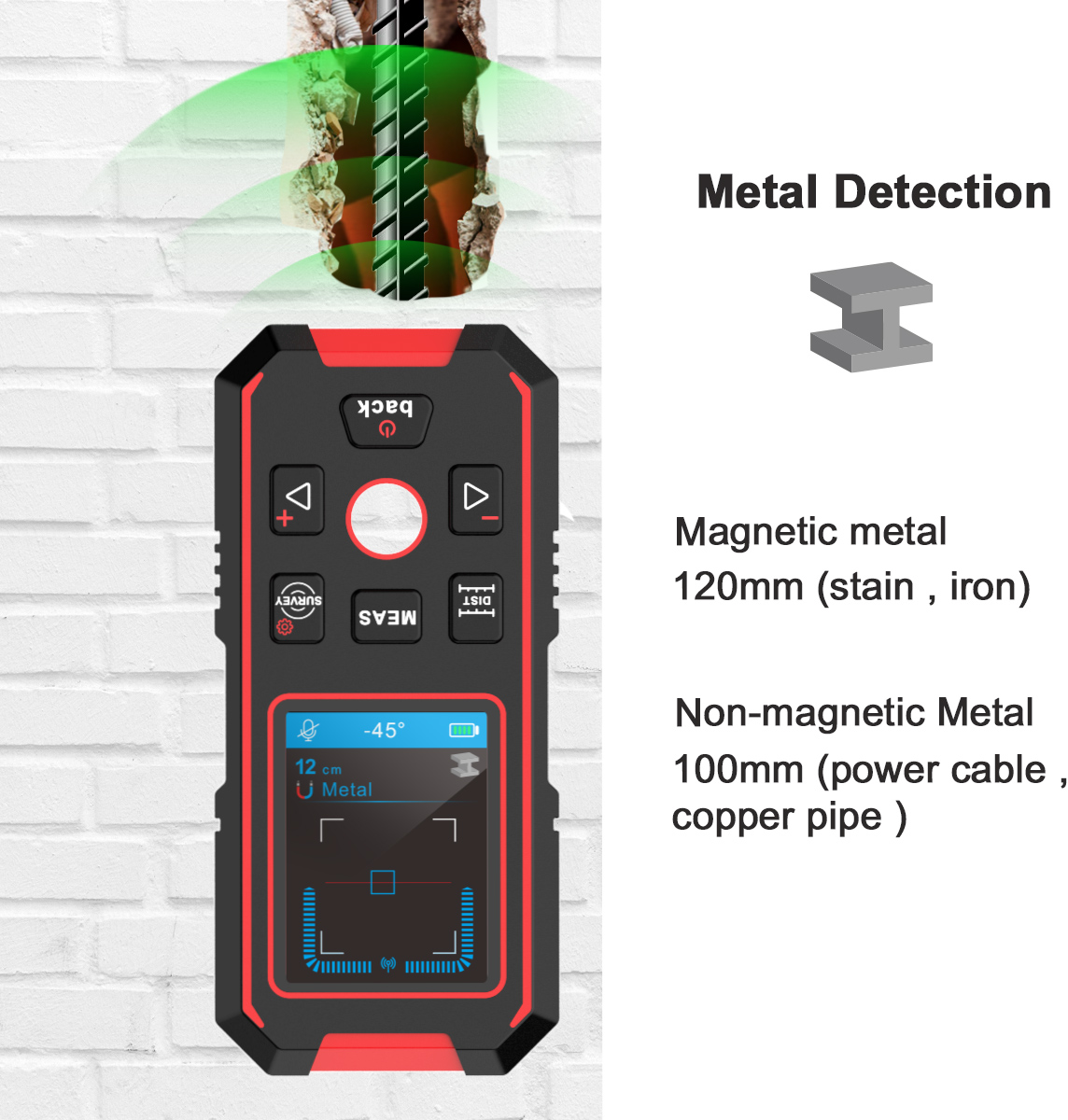

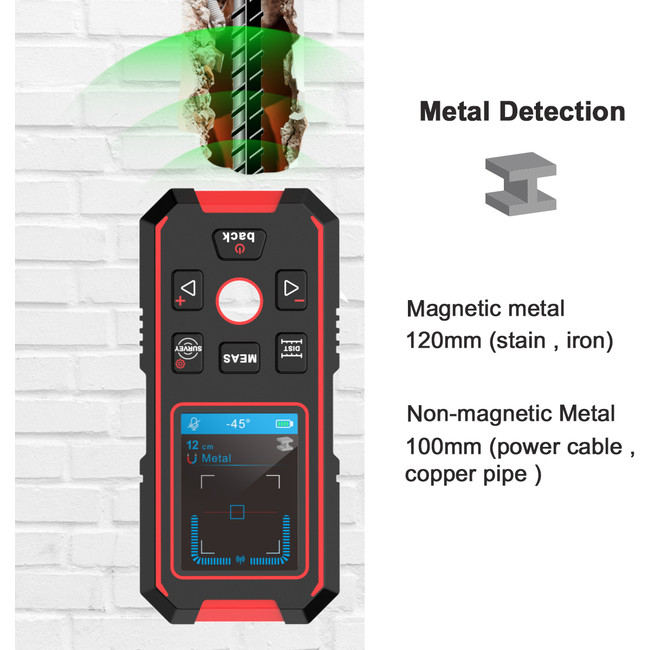

  • Metal Detection: Magnetic Metal up to a depth of 120mm (stain , iron), Non-magnetic Metal up to a depth of 100mm (power cable ,copper pipe )
  • Wood Detection: Detects object such as wood, nail, pipe for wire, etc under the plasterboard, naked wooden floor, or plastic plate
  • AC power detection: up to a depth of 50mm, AC 90V~250V power supply
  • Laser Distance Meter Function: measures the length, scale, volume, carry calculations for plus&minus, and times for volume
  • Detect metal (Stainless steel, copper pipe), power cable, wooden product behind the wall, ceiling, ground floor.
  • Built-in rechargeable lithium battery using supplied USB type C cable to charge
  • Central marking hole
  • Self or manual calibration to avoid errors and improve the accuracy
  • With the 2.4 inch display it is easy to read
  • Stores up to 50 records of the measuring data

Specifications

Function Laser distance Wall Detection Digital level
Appearance 2 colors, solid shape
Screen Type 2.4HDscreen,240*320 resolution
Charging Type-C charging
Battery Type Lithium Battery (390mAh)
Protect Lever IP54
Audio Broadcast Live Broadcast

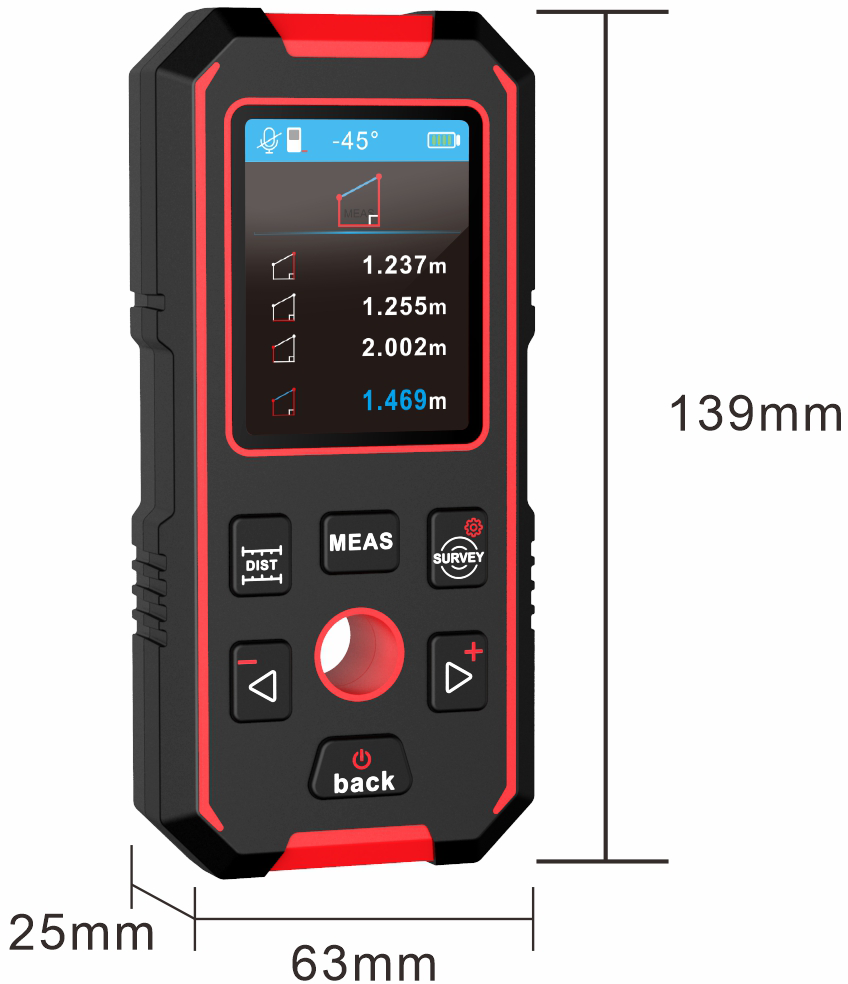

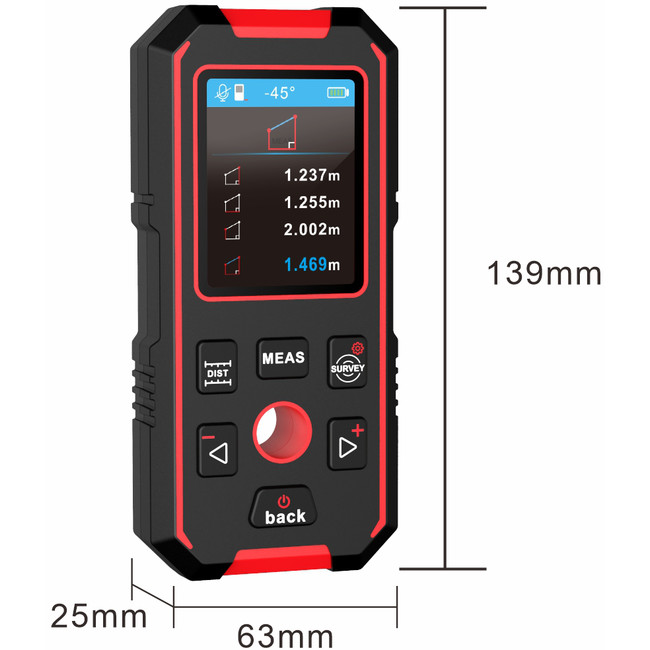

Dimension (mm) 63*25*139 (mm)
Net.Weight(g) 200 ( g )
Laser Meter Function Wall Detection Function

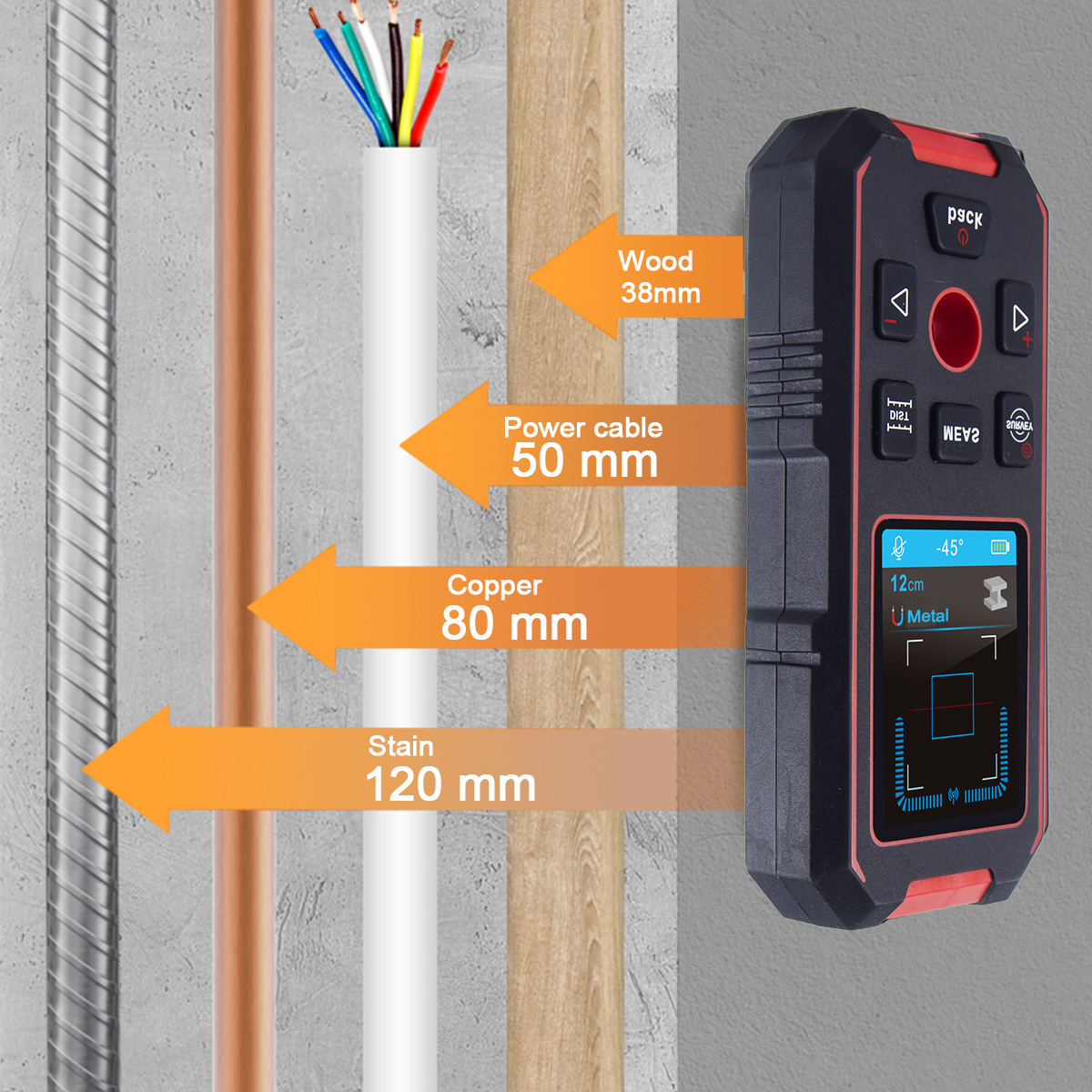

Distance 0.2-40/60m Depth Measurement Magnetic Metal: 12cm
Accuracy 1.5mm D*5out of hundred thousand Non-Magnetic Metal: 10cm
Laser Type 630-670nm,<1mw AC power cable : 5cm
Laser Cat Cat 2 Wood: 3.8cm
Auto OFF 3 minutes Metal Detection Testing figures provided with Φ20 mm stainless pipe as tested object
Unit Switch Benchmark Switch m/ ft/ in / ft in Non Metal Detection Yes
Front / Bottom AC power Detection Yes
Continuously Measurement Max/ Min value Auto OFF 5 minutes
Single Measurement Yes Operation Temperature 0~50°c
Area Measurement Yes Storage Temperature -10~60°C

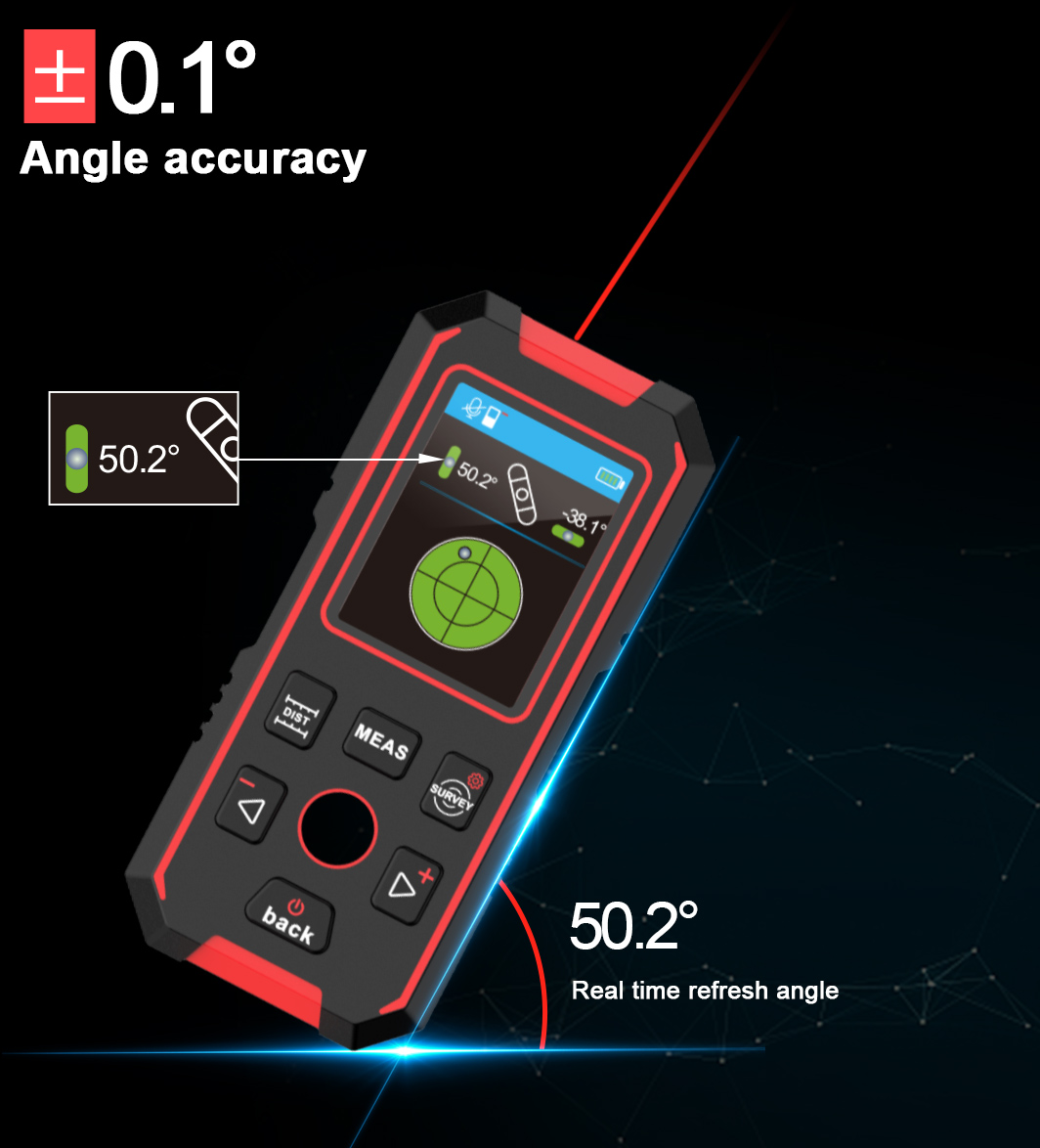

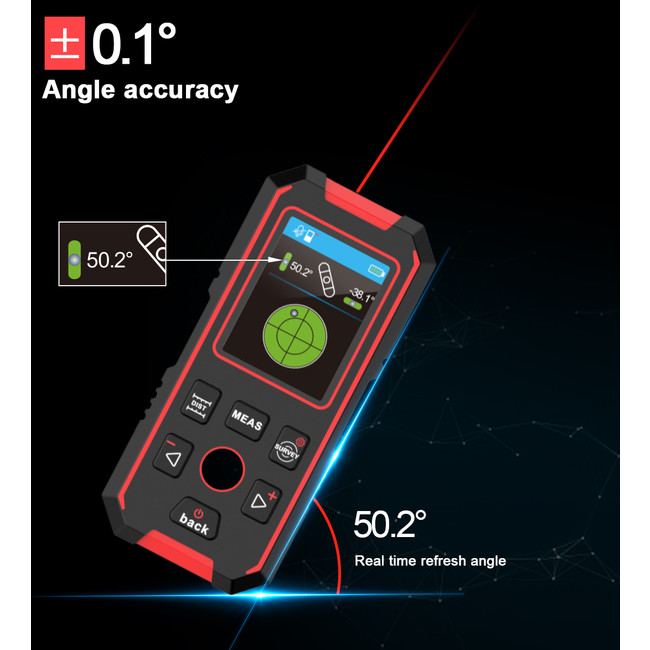

Volume Measurement Yes Digital level Function
Pythagoras theorem Yes Digital level ±90°C
Secondary Pythagoras theorem 1 Yes
Secondary Pythagoras theorem 2 Yes
Triangle area measurement Yes
Trapezoid measurement Yes
Auto Horizon measurement Yes
Auto Vertical measurement Yes
Countdown measurement Yes
Digital level measurement Yes
Plus / Minus Yes
History Record Storage 50
Self collaboration Yes
Operation Temperature 0~40°C
Storage Temperature -10~60°C




NF518S Manual PDF file
