T5132B70 SNAP PLUG CAT6 UTP STARTER KIT

CRIMPER STRIPPER PLIER CUTTER

Code: 50401565

1.15 kg
9328202032980
EACH
6
In Stock
TRADE ALERT!
$179 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

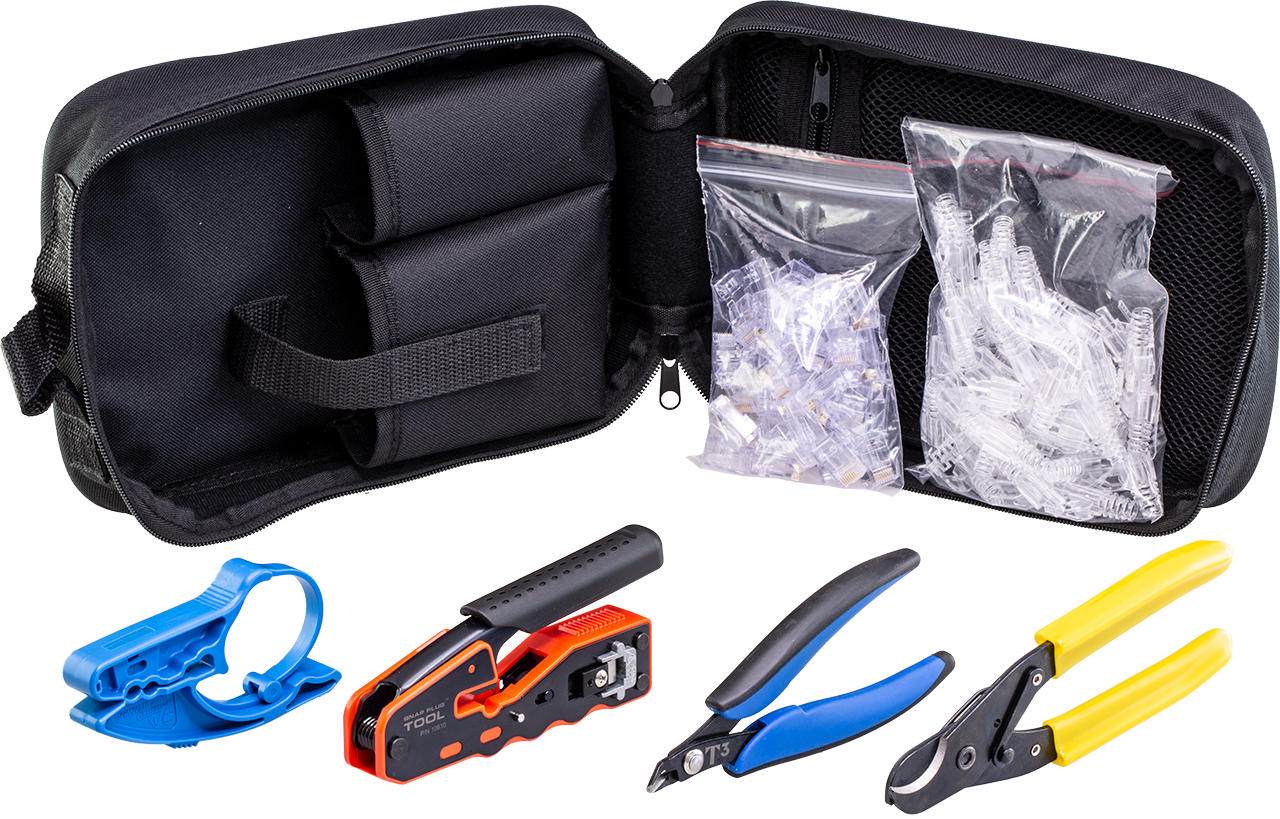

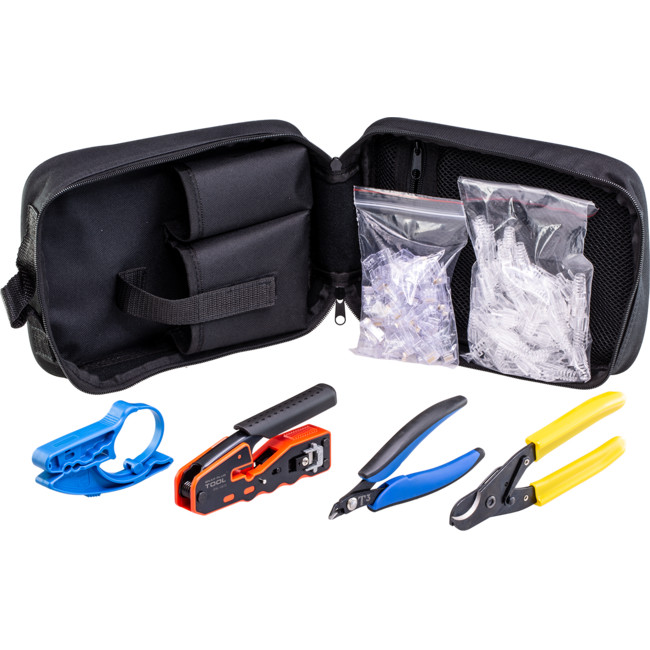

T5132B70 Snap Plug Cat6 UTP Starter Kit


This kit gives you everything you need to start using the most popular Cat6 UTP Snap Plug. The kit includes a T10610 Snap Plug crimper, a cable stripper, a cable cutter, and a flush cutter, every tool you need for RJ45 termination.

This kit also includes 50sets of Cat6 UTP SNAP PLUG with a 7.0 mm clear strain relief integrated boot. Everything is well packaged and stored in a high-quality working pouch, and keep organized and professional.

Kits include:

  • T10610 Snap Plug Crimper x1pc
  • T3031C Lan Cable Stripper x 1pc
  • High quality side cutting pliers x 1pc
  • High quality round cable cutter x 1pc
  • Cat6 UTP Snap Plug x 50pc
  • 7.0mm clear strain relief boot x 50pc
  • T3 professional pouch x 1pc

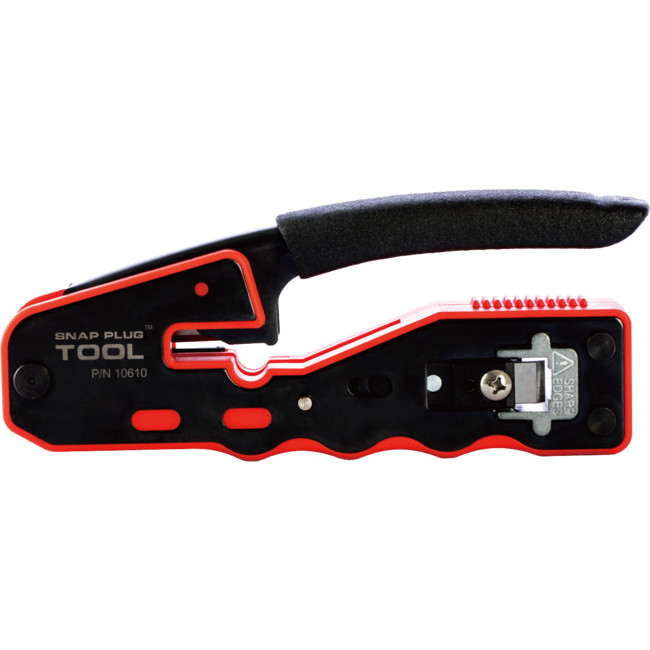

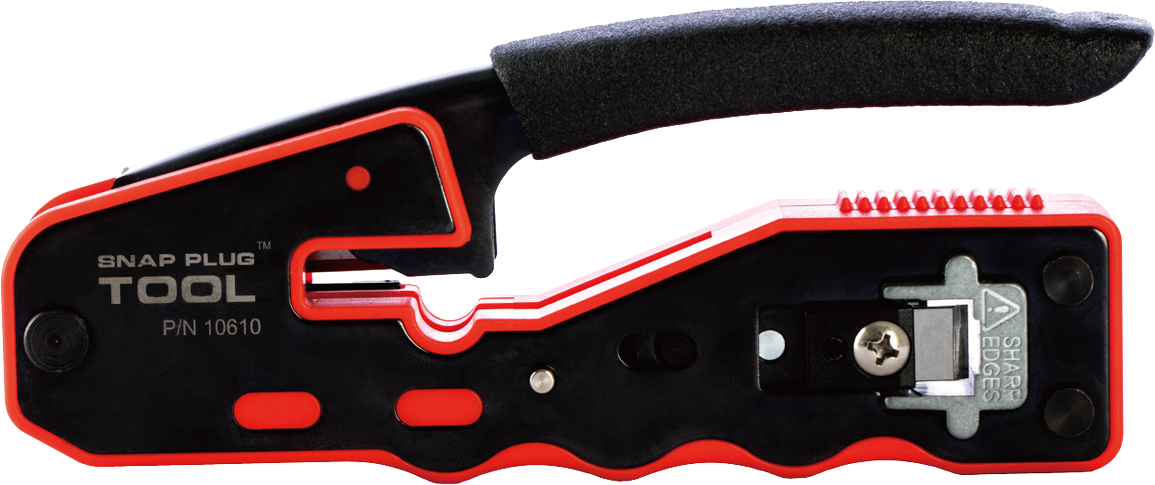

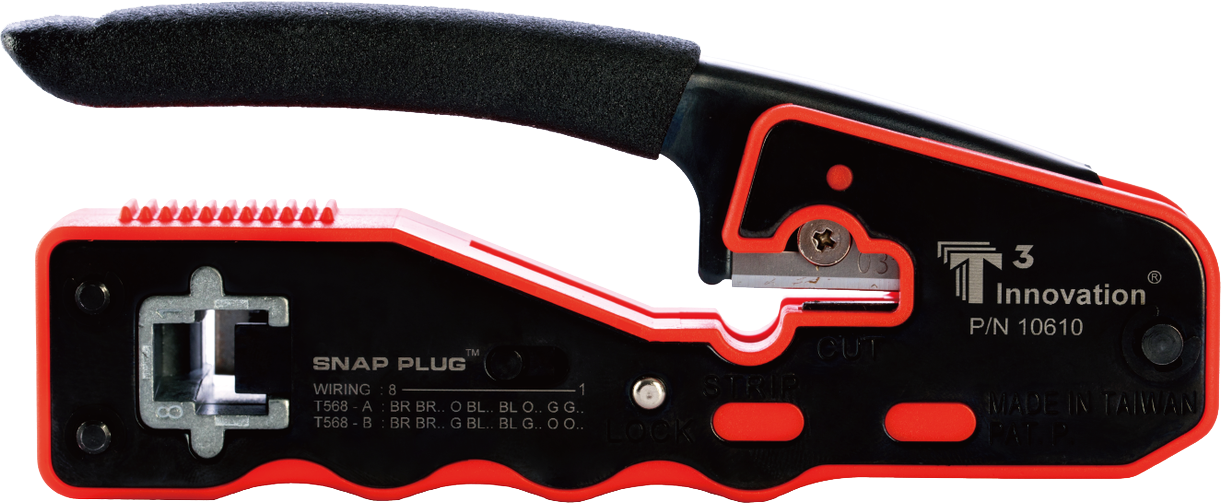

T10610 Snap Plug Crimper

This tool is designed for the SNAP PLUG only. Good for professional installation that requires high performance. While crimping the SNAP PLUG, this tool will trim the wire at the same time, increase efficiency at work, and reduce unnecessary crimping errors. it’s a tool that could meet multiple needs for professional use and achieve best termination. Find more info from here.

Features

  • Good for T3 Innovation Cat5e / Cat6 SNAP PLUG™ only
  • Built-in cable cutter and stripper
  • Good for professional installation

Specifications

  • Material Body :ABS Plastic
  • Material Handle & Cover Plate :Middle Carbon Steel
  • Material Grip :PVC Dipping
  • Hardness Handle & Cover Plate :HRC38~46
  • Finish Handle & Cover Plate :Black Oxide
  • Overall Length :140mm ± 3mm
  • Weight :295 ± 10g
  • Crimping tool instruction

T3SPC6 UTP RJ45 Cat6 Solid SnapPlug

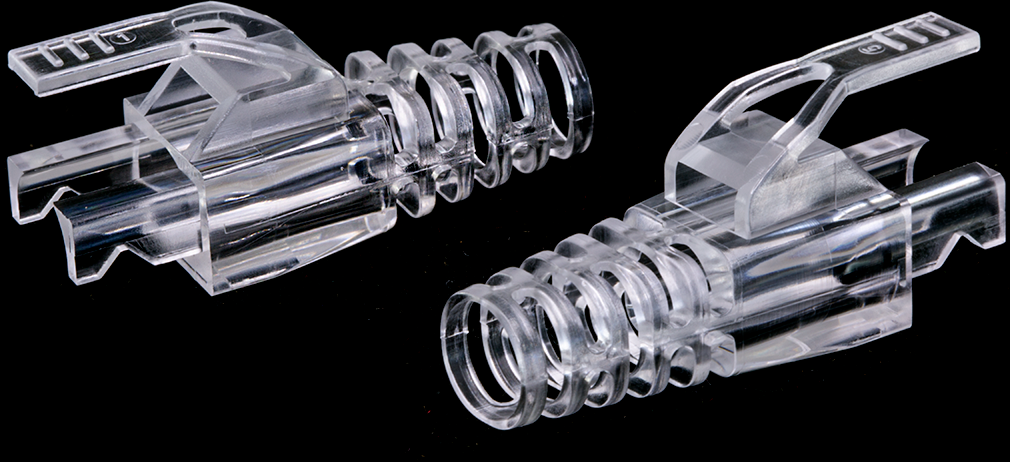

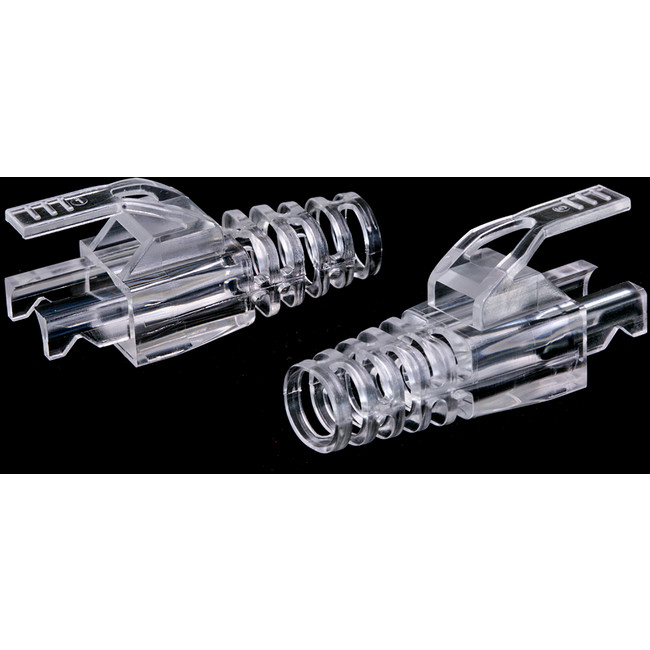

7.0mm Clear RJ45 Snagless Boot

Find more info from here, apart from the different sizes, 6.5mm instead of 7.0mm.

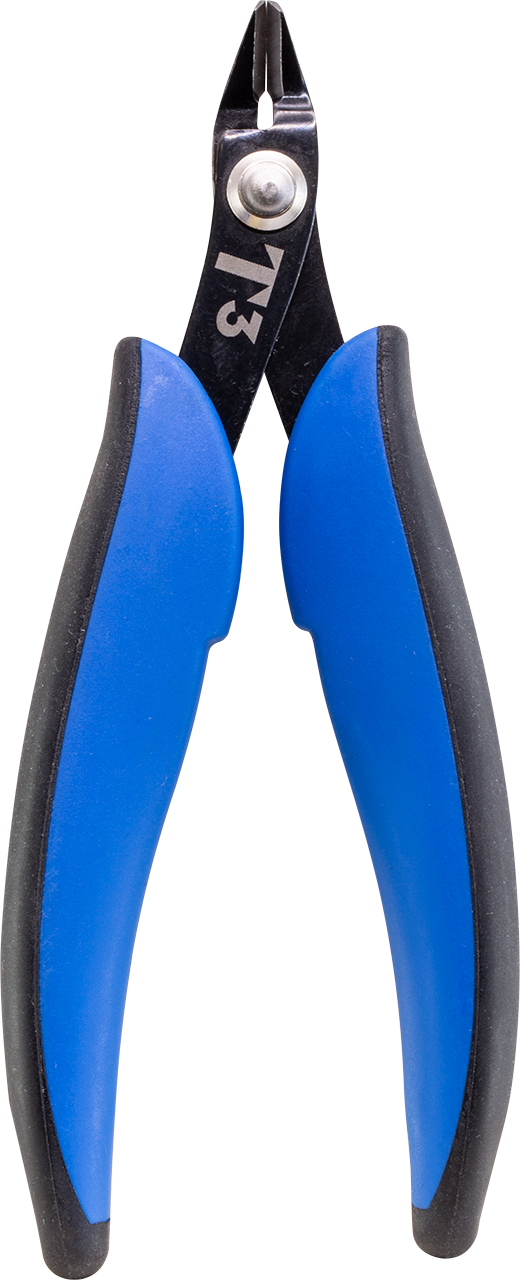

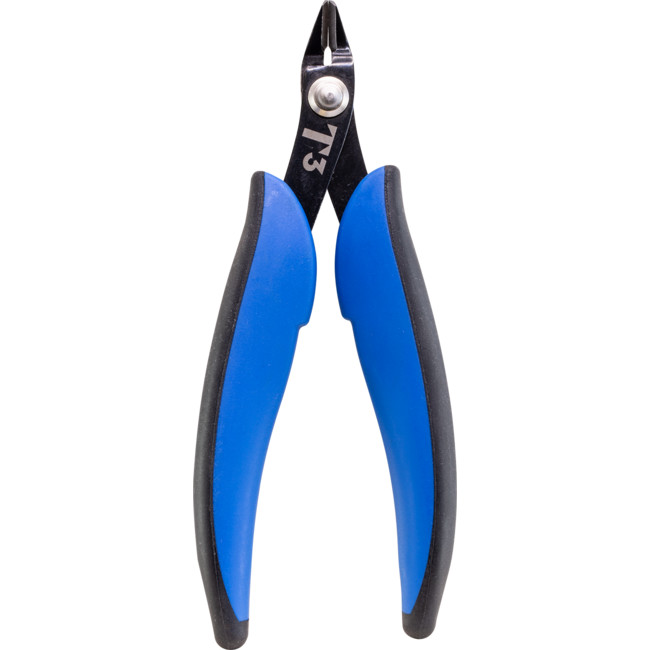

T40130 5” Flush Cutter

This is a must-have cutter in every installer’s toolbox. Made of high carbon steel for great durability. Ideal for trimming LAN cable wire conductors, precise trimming for load bars, keystone jacks, and more.

Features

  • Good for applications of the below cable types:Cat5e / Cat6 / Cat6a / Cat7 / Cat8
  • Professional trim of LAN cable wires
  • Shears soft wire up to 18 AWG(1mm), not for Steel.
  • Angled jaw for precision cuts
  • Cushioned Non-slip grip for greater comfort
  • High Carbon Steel for great durability
  • Heat-treated high carbon steel blade

Specifications

  • Material - Body: High Carbon Steel
  • Material - Grip: TPR
  • Overall Length : 127 mm /- 3mm
  • Weight : 76 /- 5g

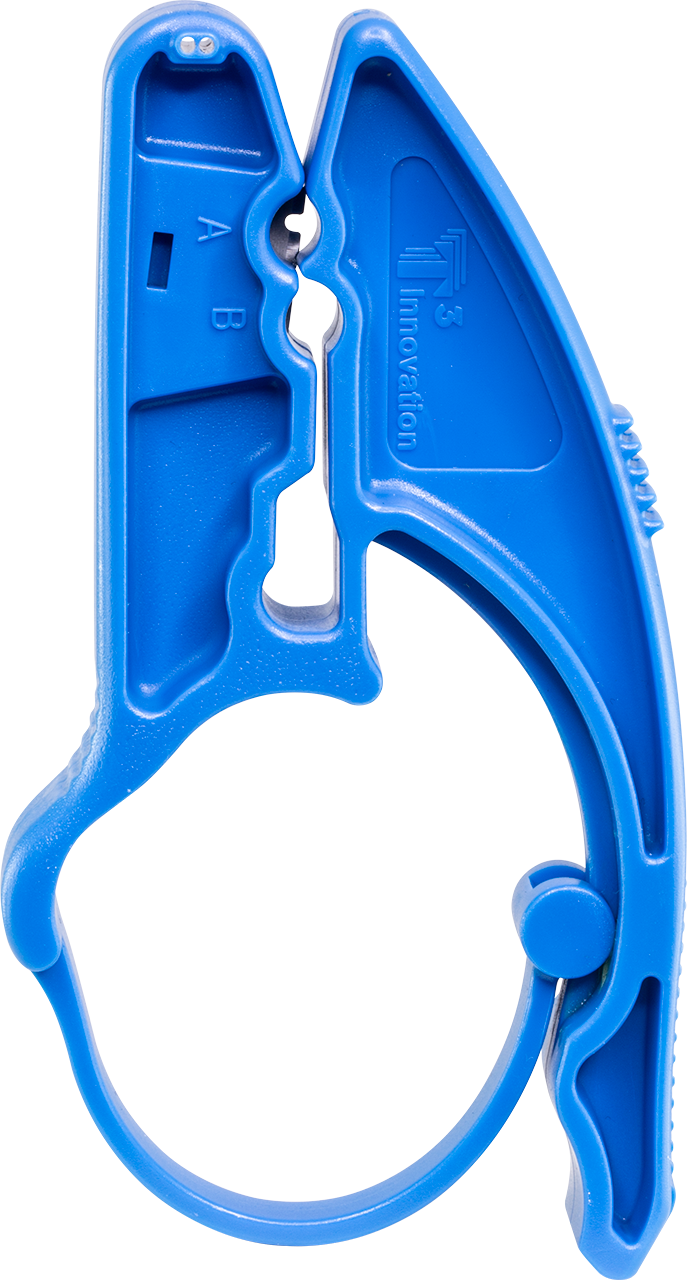

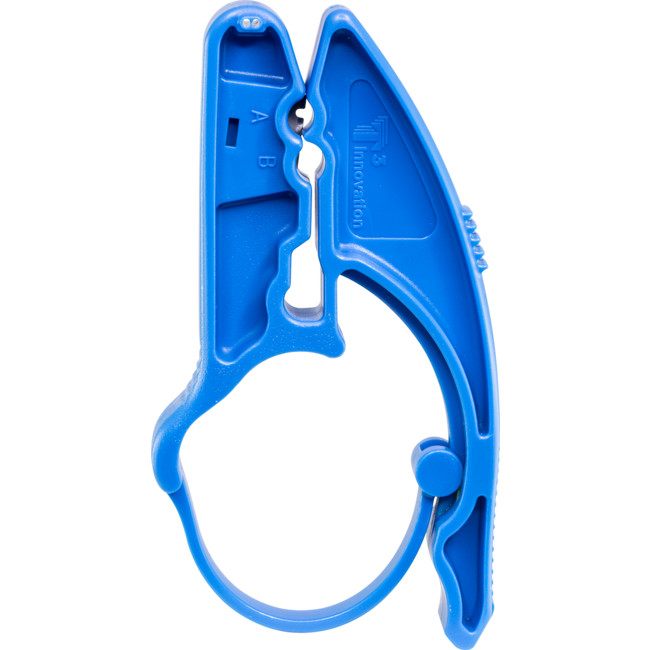

T3031C Lan cable easy Stripper


Economical option for stripping cable jacket of either Cat5e/Cat6 Lan cables or Coaxial cable. Compact design with great durability.

Features

  • Strips Cat5e / Cat6 Lan cables
  • Stripes coaxial cables RG5 / RG59 / RG6

Specifications

  • Material - Body : POM
  • Overall Length : 115 mm /- 3mm
  • Weight : 40 /- 5g

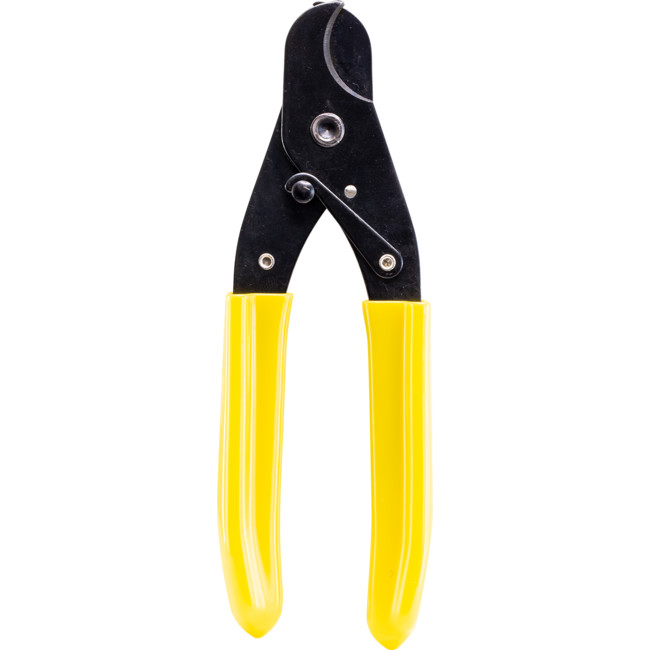

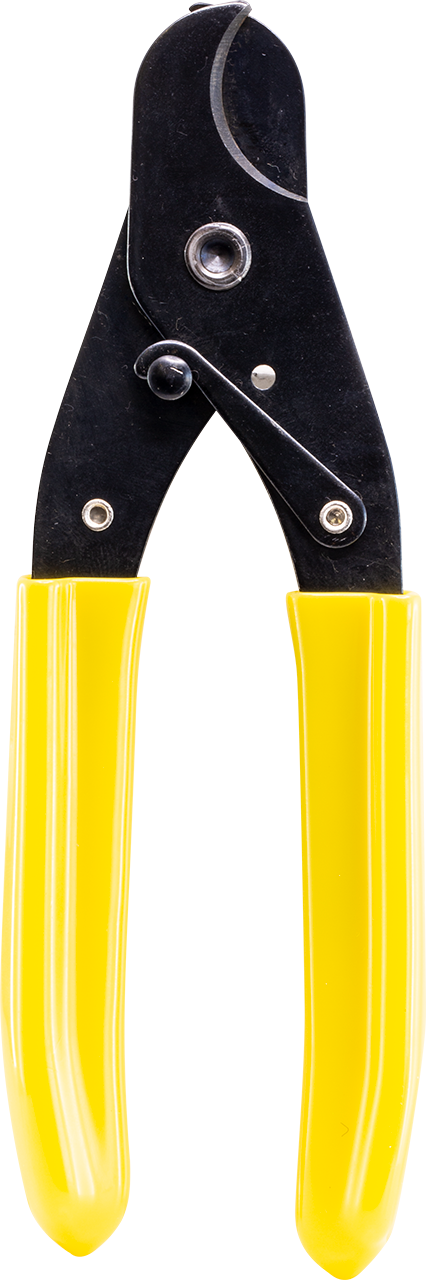

Round Cable Cutter

Designed to cut solid and stranded wire up to 8 AWG, multi-conductor and coaxial cable up to 1/2" diameter. Features a curved, precision ground, the cutting blade that will not deform the conductors or dielectric you are cutting. Stamped from high carbon tool steel and heat-treated for long life.

Features

  • Cuts Lan cable and coaxial cables without deforming the dielectric
  • Cuts solid and stranded wire to 8 AWG.
  • Cuts multi-conductor cable
  • Locking mechanism for easy storage

Specifications

  • Material - Body : High Carbon Steel
  • Material - Grip : PVC
  • Overall Length : 165 mm /- 3mm
  • Weight : 145 /- 5g

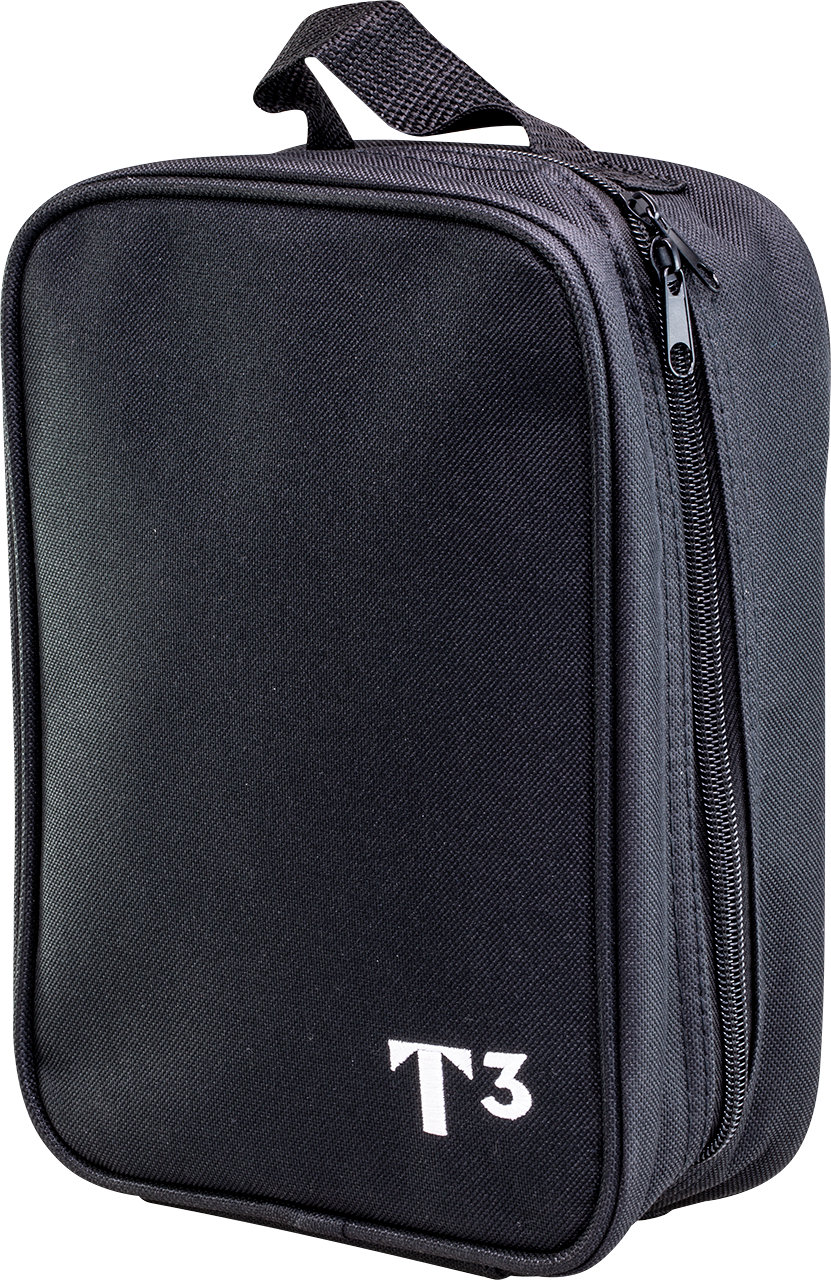

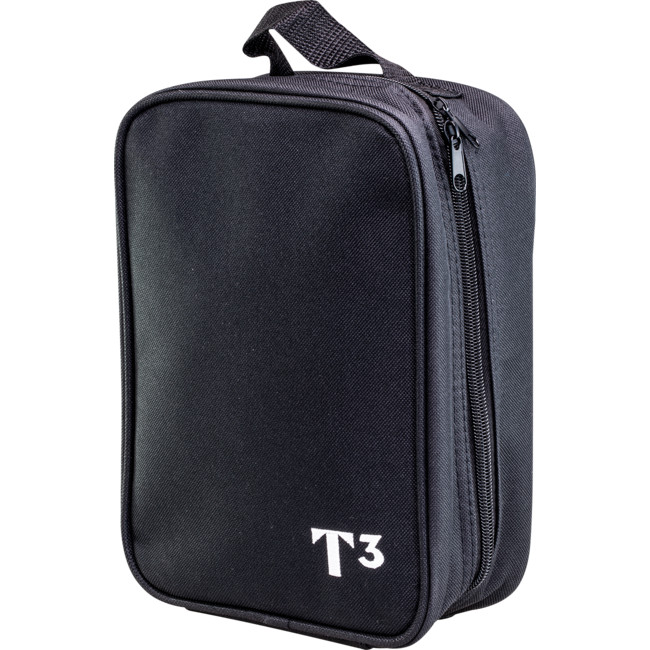

T3 hanging pouch

Compact pouch with 2 built-in pocket and 1 large zipper compartment. Fit's hand tools, testers, and accessories for the job.

Features

  • Tough black nylon fabric
  • 2 built-in packet
  • 1 large zipper compartment
  • Tough handle for hanging up, easy to use at the job site.

Specifications

  • Material: Tough black nylon fabric
  • Size: 25.5cm (L) x 9cm (W) x 8cm (H)
