Features:
- Oversized Display ? Large, backlit LCD makes resultscrystal clear whether in bright sunshine or in a dark closet
- Revolutionary Interface ? Graphical wiremap, length, cable ID, and distance to fault displayed on one screen
- Multimedia Support ? Tests all common media types including RJ11, RJ45, Coax, with no need for adapters
- IntelliTone Toning ? Locates virtually any cable or wire pair with IntelliTone digital and analog toning
- VDV Service Detection ? Verifies today's media services, including 10/100/1000 Ethernet, POTS, and PoE
- Rugged Housing ? Integrated rubber holster enhances grip and makes it durable enough for the toughest jobs
Includes Accessories:
- 2 - AA Alkaline Batteries
- 1 - Carrying Pouch
- 1 - Getting Started Guide
- 1 - Users Manual on CD-ROM

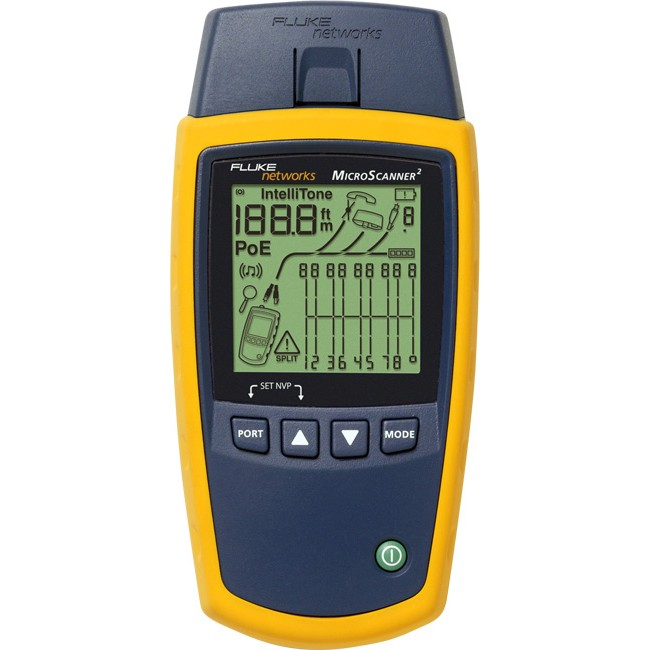

Next generation MicroScanner verifies voice/data/video cable and services with a revolutionary user interface.
Streamline verification testing
The MicroScanner2 Cable Verifier presents a revolutionary change in voice, data, and video cable testing. It starts by taking results from what was four different test modes and displaying them all at once ? graphical wiremap, pair lengths, distance to fault, cable ID, and far end device. What?s more, its integrated RJ11,RJ45, and coax test ports support virtually any type of low-voltage cable testing with no need for awkward adapters.The end result is reduced test time and technician error. That makes high-quality installations more efficient than ever.
Rule out service problems fast
Today?s communications technicians have a lot more problems to deal with than just the cabling. They have to rule out a whole host of potential cable and service issues before determining the cause of a connection problem. Is there telephone voltage? What?s the polarity? Is there an Ethernet switch at the far end? Is PoE available? MicroScanner2 acknowledges this, giving technicians high power vision to verify today?s most common voice, data, and video services. That means faster, more comprehensive troubleshooting.
| Test Connectors | Twisted-pair: UTP, FTP, SSTP 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs
Coax: F-connector for 75 O, 50 O, 93 O cables |
| Cable Tests | Length (460 m or 1500 ft. with resolution to 0.3 mor 1 ft.), wiremap to TIA-568A/B standards, remote ID locators; displays results on one screen |
| Tone Generator | IntelliTone digital tone: [500 KHz]; analog tones: [400Hz, 1KHz] |
| PoE Detection | Solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices |
| Ethernet Port Test | Advertised speed of 802.3 Ethernet ports (10/100/1000) |
| Power Source | Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries
Battery life: 20 hours of typical use
Other compatible battery types: 2 AA photo lithium, NIMH, NICAD |
| Dimensions | 3 in x 6.4” x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm) |
| Weight | 0.8 lbs. (363 grams) |
| Display | Monochrome liquid crystal display (LCD) with backlight |
| Calibration | User-configurable NVP for twisted pair and coax; determines actual NVP with known length of cable |
| Operating Temperature | 32 °F to 113 °F (0 oC to 45 oC) |
| Storage Temperature | -4 °F to 140 °F (-20 oC to 60 oC) |
| Operating Humidity | 90 % (50 °F to 95 °F; 10 oC to 35 oC) |
| (%RH without condensing) | 75 % (95 °F to 113 °F; 35 oC to 45 oC) |
| Shock Vibration | Meets requirements for MIL-PRF-28800F for Class 2 random vibration
1 m drop test with and without wiremap adapter attached |
| Safety | EN 61010-1 2nd Edition |
| Altitude | 4000 m; Storage: 12000 m |
| EMC | EN 61326-1 |
| Agency Certifications | N10140 C-Tick EMC standard; FCC Part 15 Class A; CE
European Union Directives Pollution Degree 2 |
| Warranty | One year |
