LRAT3000KIT LINKRUNNER AT3000 NETWORK AND CABLE TESTER

{tab Overview}

LRAT3000KIT LINKRUNNER AT3000 NETWORK AND CABLE TESTER - NETALLY

The LinkRunner AT 3000 is designed for frontline technicians who need fast and comprehensive validation of copper and fiber network links with powerful network connectivity troubleshooting.

While offering the same core functions of its predecessors (LinkRunner AT 1000 and 2000 models), the LinkRunner AT 3000 features a large touchscreen and in-depth AutoTest that provides deeper network visibility.

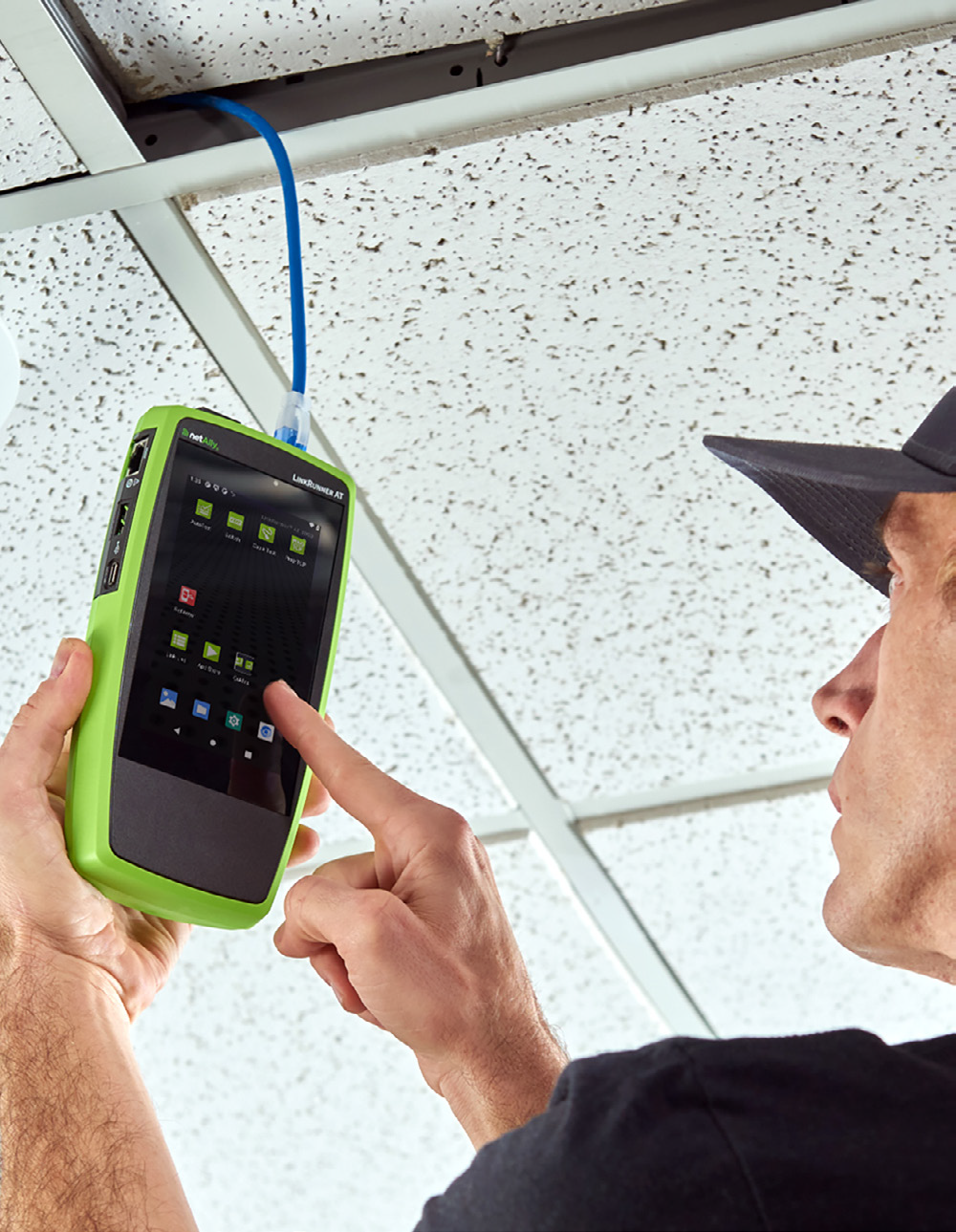

With tools designed to help with network changes and troubleshooting, this network tester’s quick cable test and switch identification functionality facilitates installation validation and fast problem isolation.
Test results can be automatically uploaded to the Link-Live collaboration, reporting, and analysis platform to improveteamwork between network engineers and technicians, creating greater job visibility, better project control, and improved tester fleet management.

Independent management plane via wired or Wi-Fi connection (with optional adapter) allows
remote operation and result uploading independent of the network under test.

{tab Features}

Comprehensive AutoTest:

• The network connectivity tester features a fast 8-step AutoTest that checks every aspect of network connectivity, including PoE, DHCP and DNS.

• For 10/100 Mbps and 1Gbps ethernet connections, with detection of multigigabit links (2.5G, 5G, 10Gbps), ensuring maximum efficiency.

• Quickly identifies nearest switch details via protocols like CDP/LLDP/EDP, perfect for monitoring VLAN configurations and traffic.

• Tests PoE configuration to ensure up to 90W power delivery under real load conditions with TruePower™ technology.

• Conducts detailed cable tests, including length measurement, wiremap, and fault location for copper (RJ45), plus fiber optics link signal strength and SFP diagnostics.

• Optional WiFi/Bluetooth adapters enable remote control* and connectivity for heightened flexibility.


{tab Specs}

• Dimensions 4.02 in x 7.72 in x 1.65 in (10.2 cm x 19.6 cm x 4.2 cm)
• Weight 1.06 lbs (0.48 kg)
• Battery Rechargeable lithium-ion battery pack (3.63 V, 9.75 Ah, 36.39 Wh)
• Battery Life Typical run duration: 9 hours Typical charge time: 3 hours

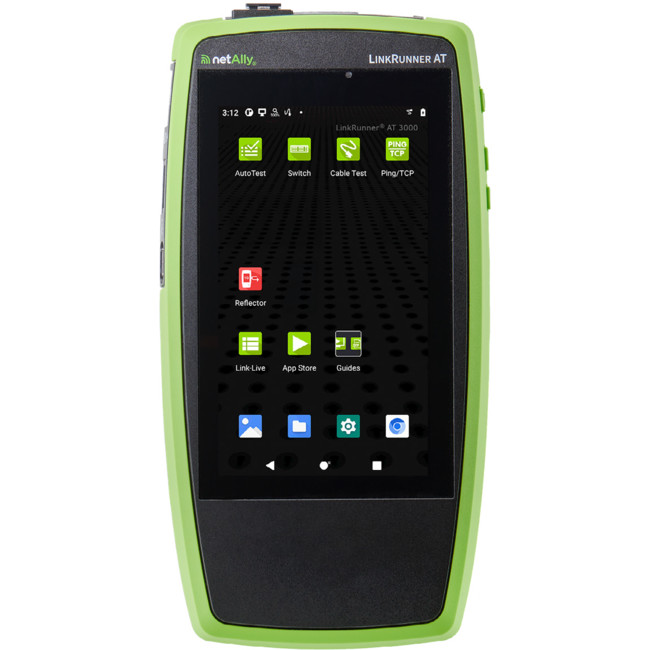

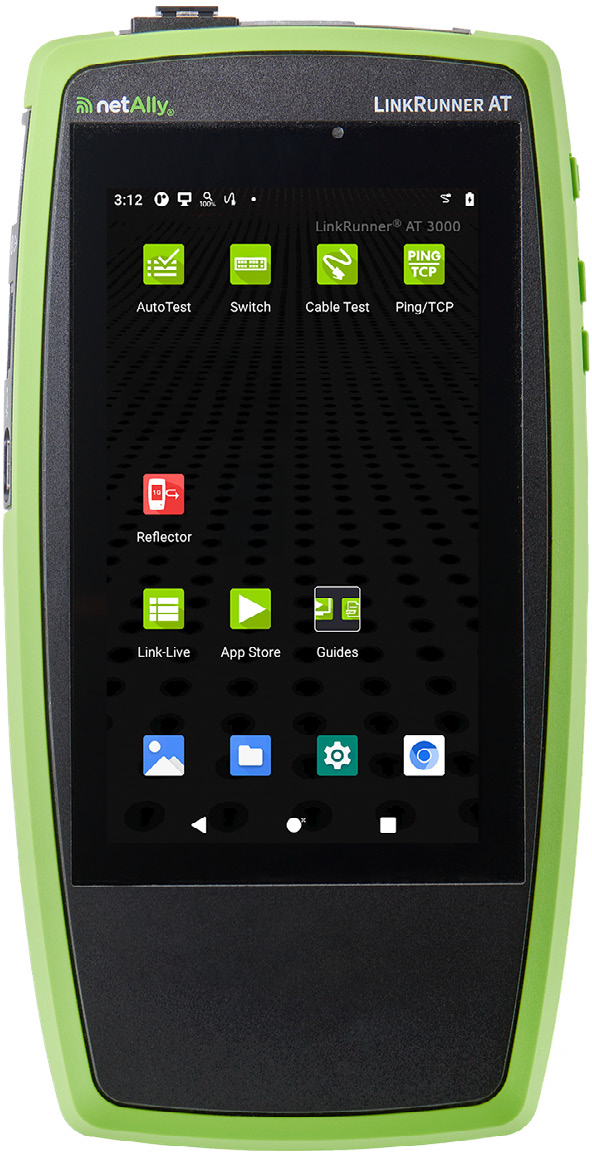

• Display 5.0-inch color LCD with capacitive touchscreen (720 x 1280 pixels)
• Host Interfaces
• RJ-45 and SFP test port
• RJ-45 Cable test port
• (1) USB Type-A Port
• (1) USB Type-C On-the-Go Port
• Memory Approximately 8 GB available for storing test results and user applications
• Battery Charging USB Type-C 65-W adapter: AC Input Power 100-240 V, 50-60 Hz; DC Output Power 15 V (3 A)
• PoE Battery Charging 802.3 af/at/bt
• Supported IEEE Standards
  • Wired: 802.3/ab/i/u/z, 1000BASE-T
  • PoE: 802.3af/at/bt Class 0-8, and UPOE
  • Fiber: 1000BASE-X, SFP SX/LX/ZX
• LEDs 1 LED (Battery Status Indicator)

Environmental Specifications

• Operating Temperature 32°F to 113°F (0°C to 45°C) NOTE: The battery will not charge if the internal temperature of the tester is above 113°F (45°C).

• Operating relative humidity (% RH without condensation)

  • 90% (50°F to 95°F; 10°C to 35°C)

  • 75% (95°F to 113°F; 35°C to 45°C)

• Storage temperature -4°F to 140°F (-20°C to 60°C)

• Shock and vibration Meets the requirements of MIL-PRF-28800F for Class 3 Equipment

• Safety IEC 61010-1:2010: Pollution degree 2

• Altitude Operating: 4,000 m; Storage: 12,000 m

• EMC
  • IEC 61326-1: Basic Electromagnetic Environment

  • CISPR 11: Group 1, Class A

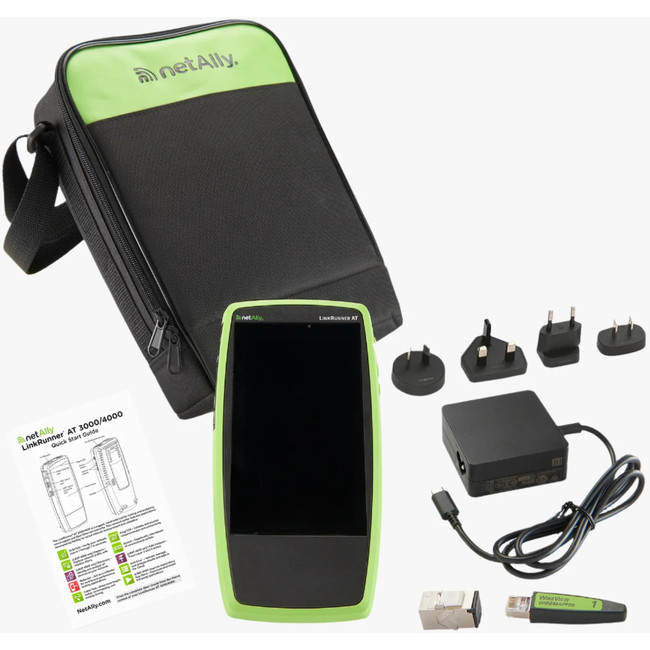

{tab Included Accessories}

• LinkRunner AT 3000 tester,
• Power Supply with regional power plugs,
• WireView Cable ID

• #1-#6, RJ-45 coupler,
• 850nm multimode 1 Gbps SFP,
• Holster,
• Quick Start Guide, and
• small soft case

{/tabs}
