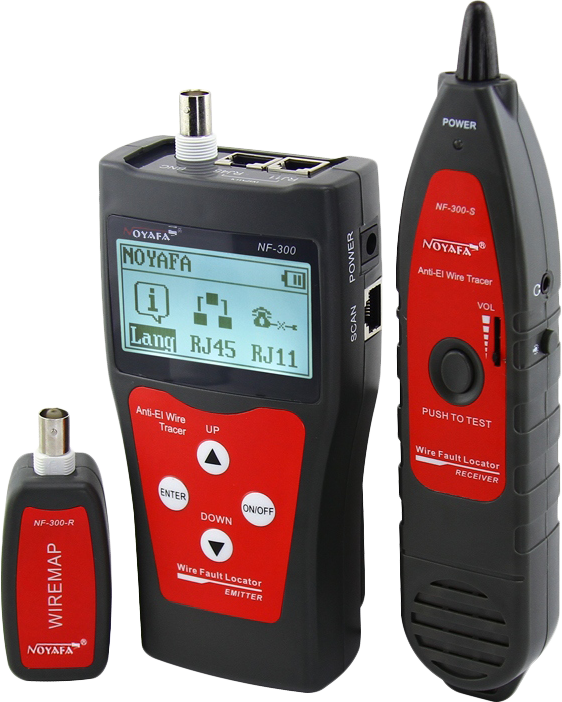

NF300 NETWORK COAX CABLE TESTER

FLASHING PORT FUNCTION

Code: 47650012

0.5330 kg
9328202001962
EACH
30
In Stock
$139 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode
Doss NF-300 is a multifunction network coax cable tester. Itincludes remote wire map and tone tracer. It also features aporting flashing function for cable identifying on switch.

Features

  • Enables cables to be located even when totally concealed
  • Memory and storage function
  • LCD Screen shows test result clearly
  • RJ45, RJ11, USB and BNC cable testing
  • Port flashing function
  • Cable length testing
  • Cable fault testing
  • Headphone jack on tone tracer
  • LCD screen
  • Voltage protection

Specifications

NF-300 Transmitter specifications
LCD screen 53x25mm
Tone frequency 225kHz
Trace cable coonected to switch Anti-jamming
Tone mode 2 Tones, adjustable
Compatible with connectors RJ11,RJ45,BNC,USB
Cable map indication Pin #1- #8
Shielded indication # G
Voltage protection AC 60V/DC 42V
Low battery display LCD (6.5V)
Battery type DC9.0V(NEDA 1604/6F22 DC9V) x 1pc
Dimensions (LxWxD) 185x80x32mm
NF-300 Receiver specifications
Frequency 225kHz
The Max. working current Less than 70mA
Battery type DC9.0V(NEDA 1604/6F22 DC9V) x 1pc
Dimensions (LxWxD) 218x46x29mm
NF-300 Remote unit specifications
Compatible with connectors RJ45,BNC
Dimensions (LxWxD) 107x30x24mm

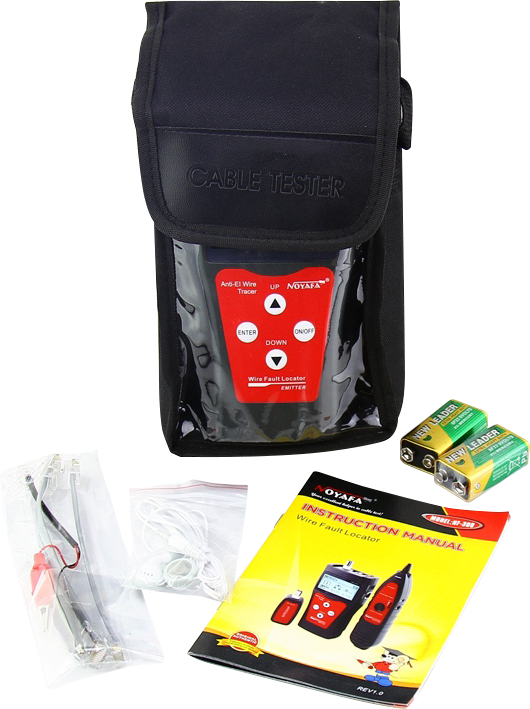

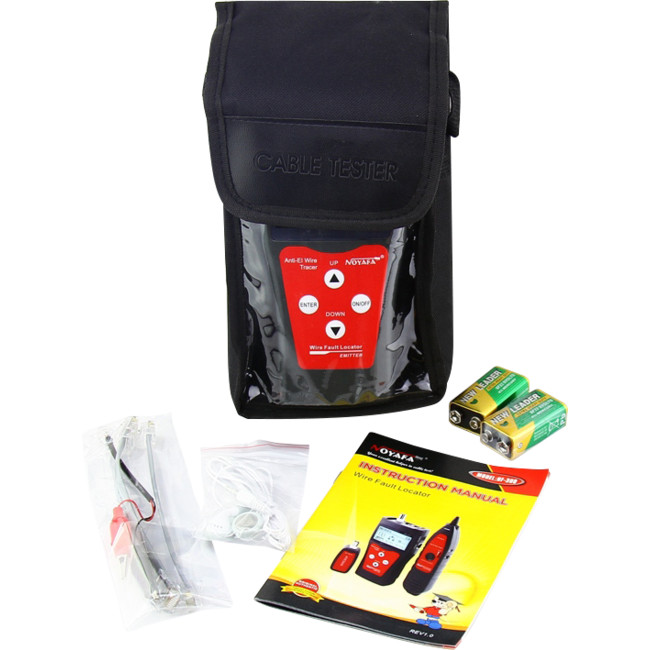

Accessories Included:

earphone x 1 set
telephone line adapter x 1 set
network cable adapter x 1 set
Cable clips x 1 set
